Build a SMARS Robot in Fusion 360
52% Percent Complete
Overview
Create the Base
Refine
Wheels
Motor Holders
Front
Wheel
Final Design
Stub extrude profile
Cut the profile
By Kevin McAleer, 1 Minute

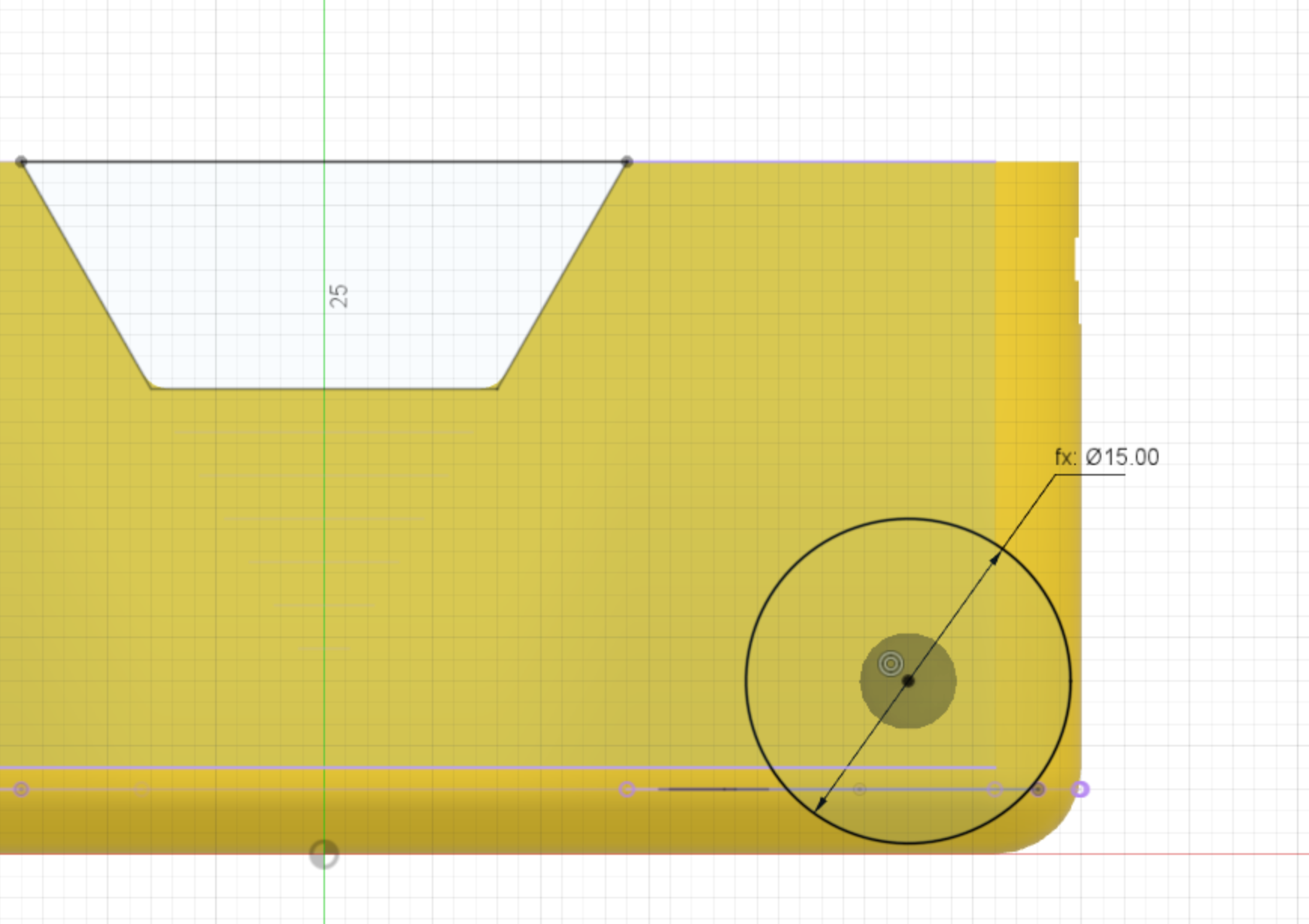

A small extrusion is needed to join the stub wheel to the fillet at the bottom of the chassis.
Dimension:
- stub wheel diameter = 15mm
The center of the circle is located at the centre of the previously extruded motor hole.
