Side Profile
Create the side profile
By Kevin McAleer, 1 Minute

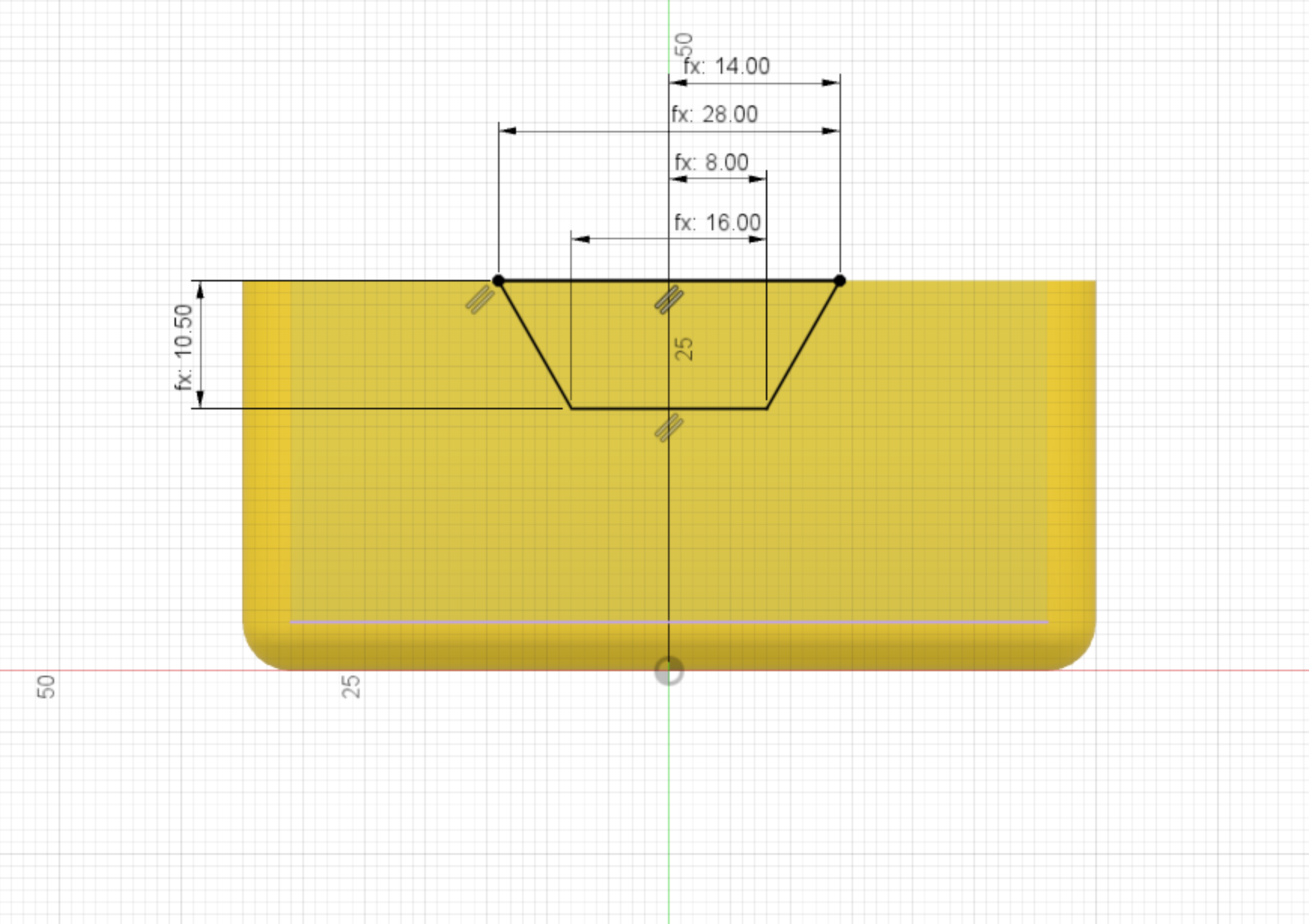

The profile for the side cutout is created next. This is an inverted trapezium shape, with three main dimensions:
- Top width = 28mm
- Bottom width = 16mm
- Depth = 10.5mm
