Thin the Front and Back sides
Adjust the wall thickness
By Kevin McAleer, 2 Minutes

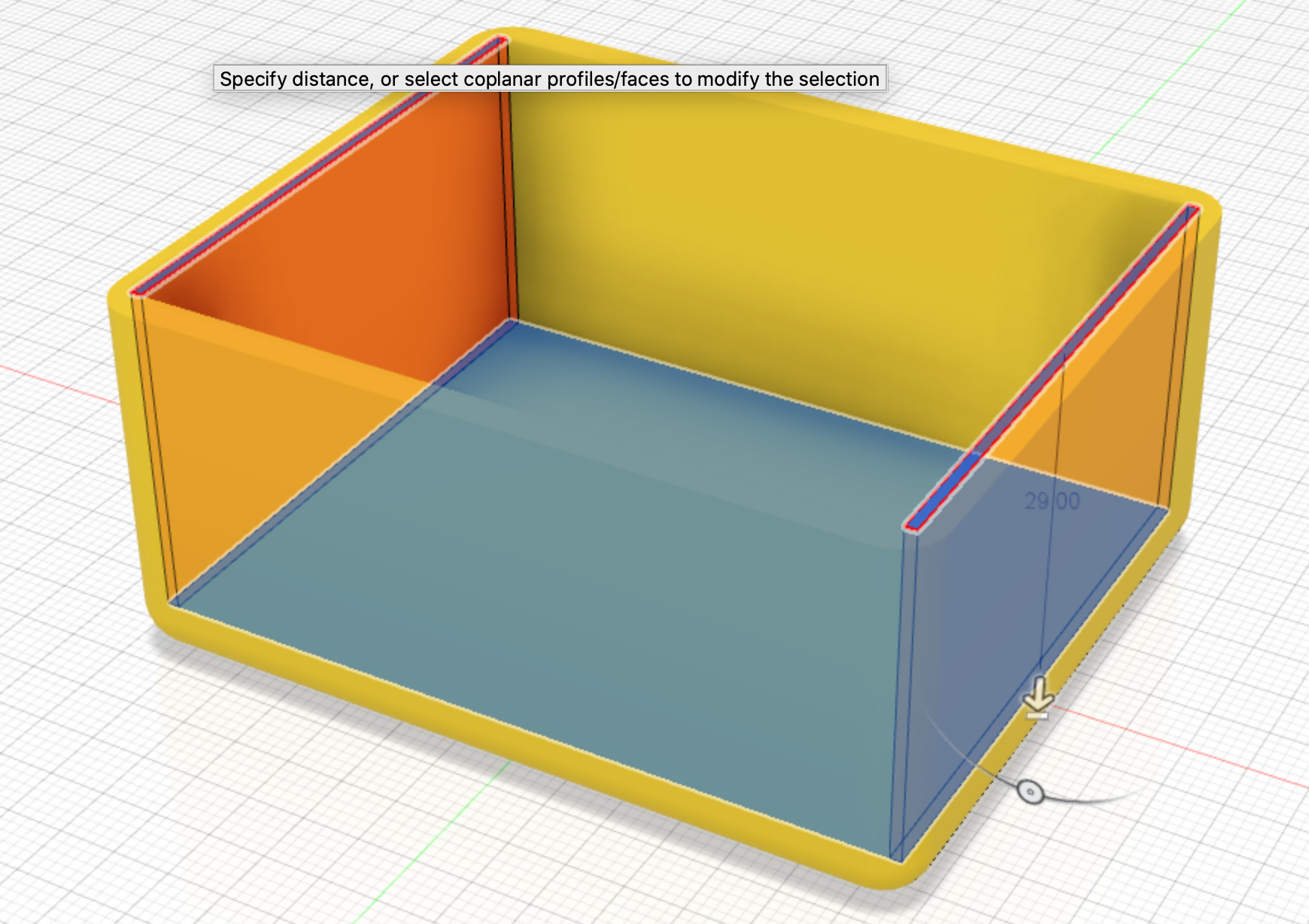

The Front and Back sides are currently the case thickness from the shell we applied earlier. This needs to be trimmed down so that they are only 2mm thick.
Check your understanding
Quick quiz 1 of 3
What does the Shell tool do to the extruded base?
Shell removes the inside of a solid and leaves walls 3mm thick, giving us the open box shape of the chassis.
Quick quiz 2 of 3
How big is the chassis base sketch?
The base is 70mm by 58mm, then extruded 32mm high.
Quick quiz 3 of 3
Why do we add a 4mm fillet to the bottom edges and corners?
Fillets round sharp edges. On a 3D print they also make corners stronger and nicer to handle.
