Fillet applied to side cutouts

Round the edges

By Kevin McAleer,    1 Minute

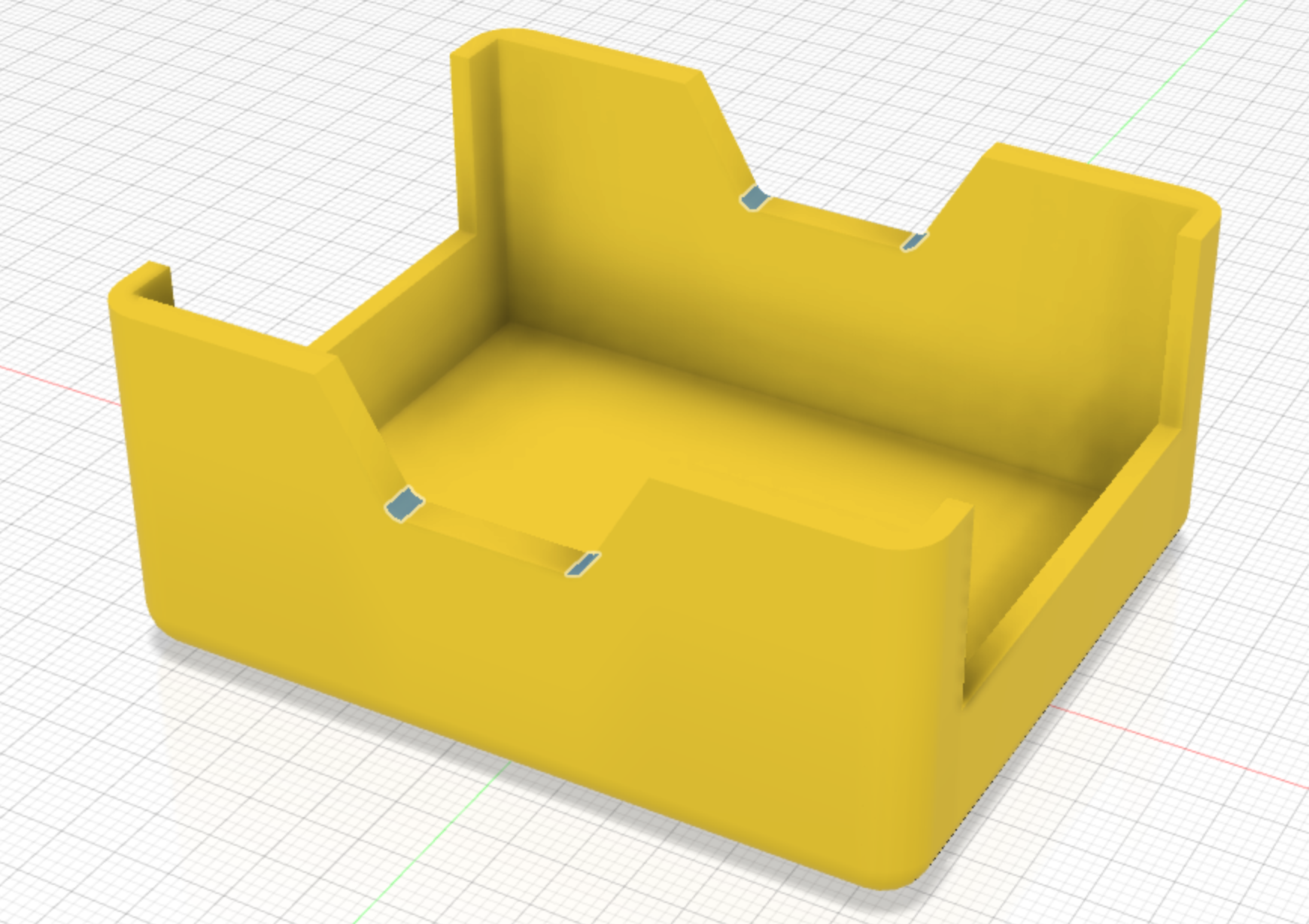

A small fillet of 1.5mm is applied to round the inner edges of the cutout that has just been applied.

Chassis Fillet applied Cad Drawing
