Design a SMARS Robot in Fusion 360 - Part 1, The Chassis Shell
35% complete
Quiz score
Reset my progressOverview
Create the Base
Refine the Shape
Wheel Holes and Arduino Slots
Front Cutout Profile
Cut away the range finder area
By Kevin McAleer, 1 Minute

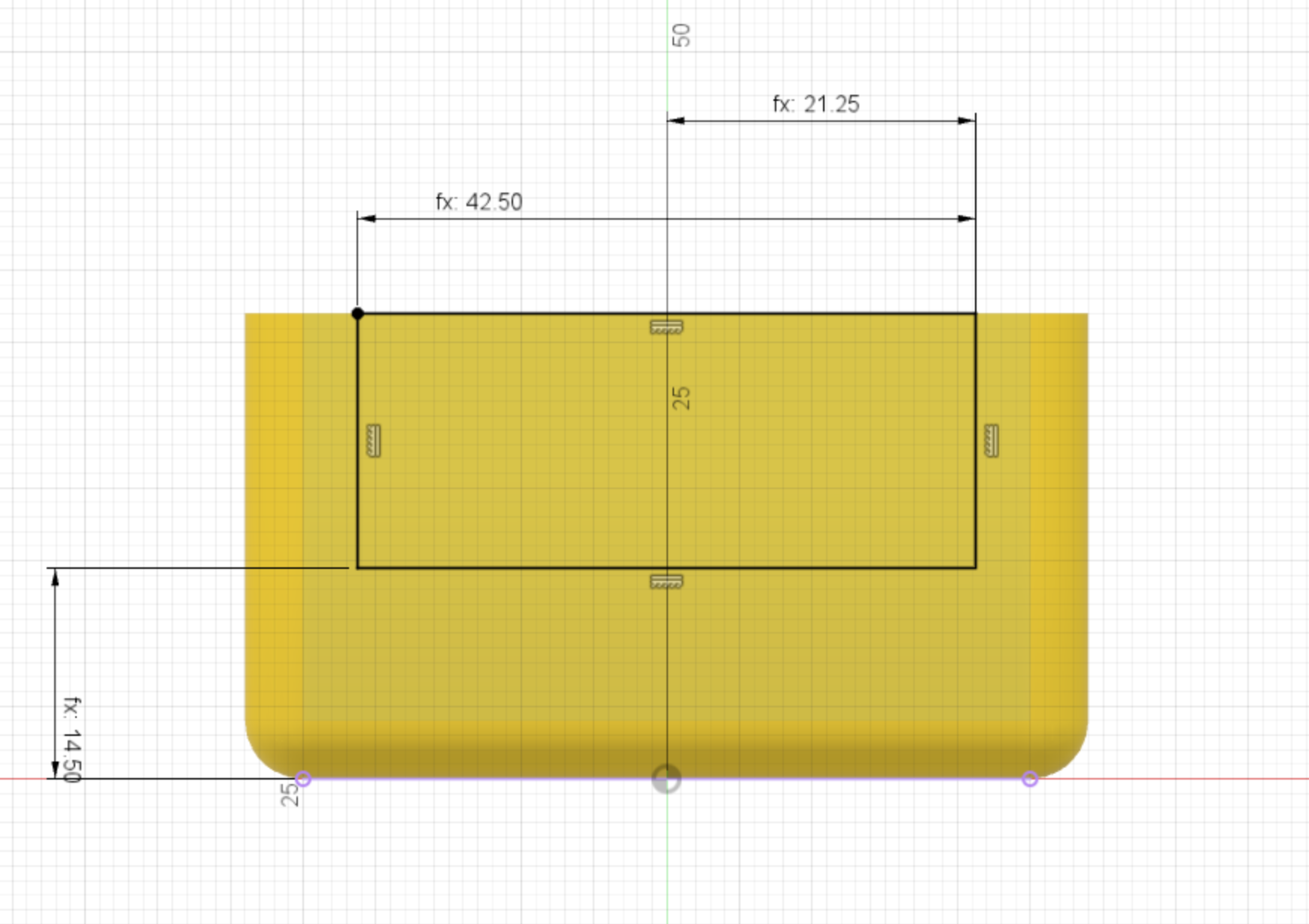

The Front and Back sides need to have a section cut out of them, first we need to create a profile for the cutout.
There are 2 main dimensions.
- Width = 42.5mm
- Height from bottom edge to the base = 14.5mm
