Front profile

Create the front profile

By Kevin McAleer,    1 Minute


A profile sketch is needed to make a final cut to the front side.

The dimensions of the cut are:

  • width = 5mm
  • distance from chassis side to profile = 5.5mm

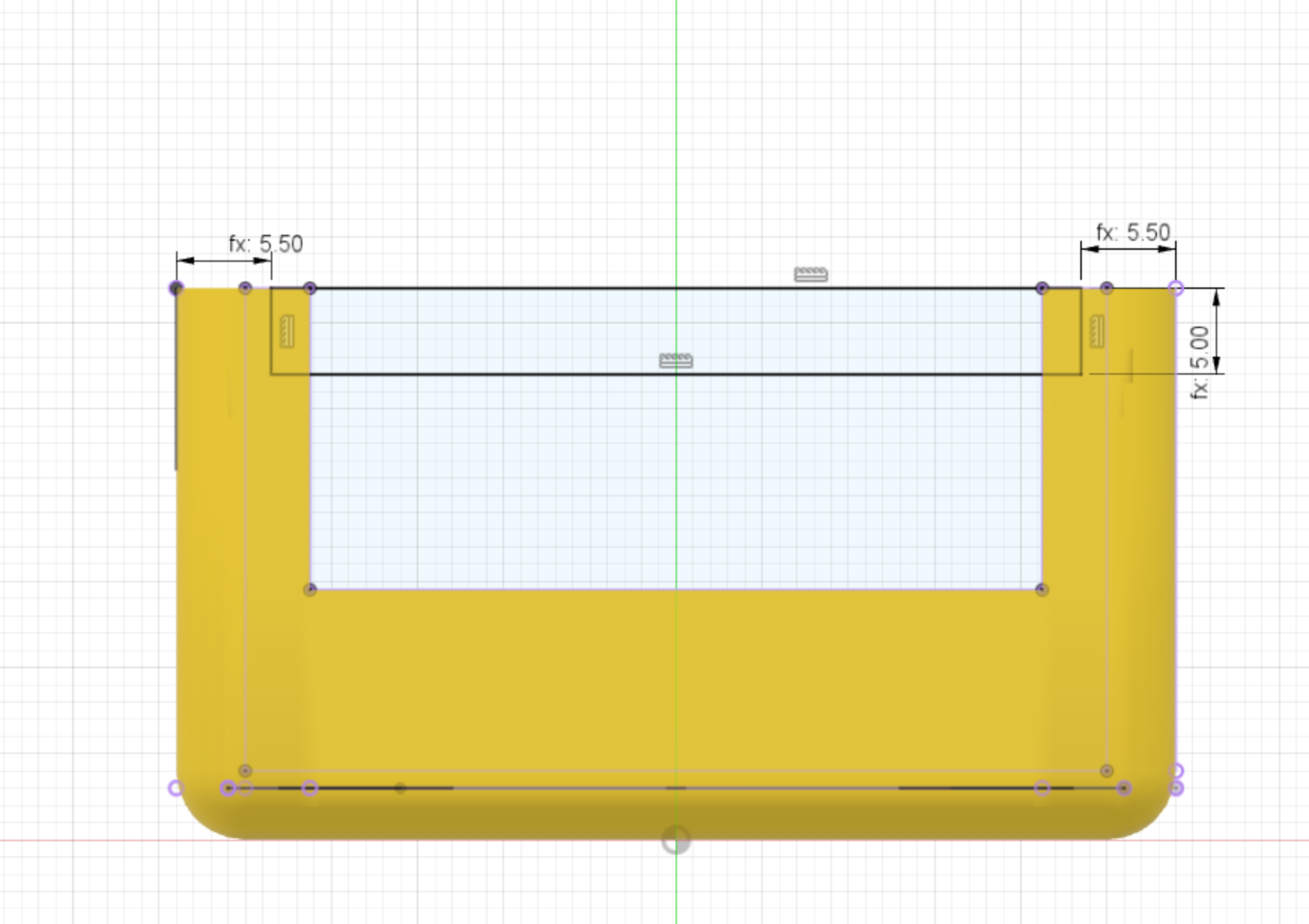

Chassis Front profile Cad Drawing
