Motor Holders
Front Cut
Stub Wheels
Motor Holder Slots
Final Design
Front profile
Create the front profile
By Kevin McAleer, 1 Minute

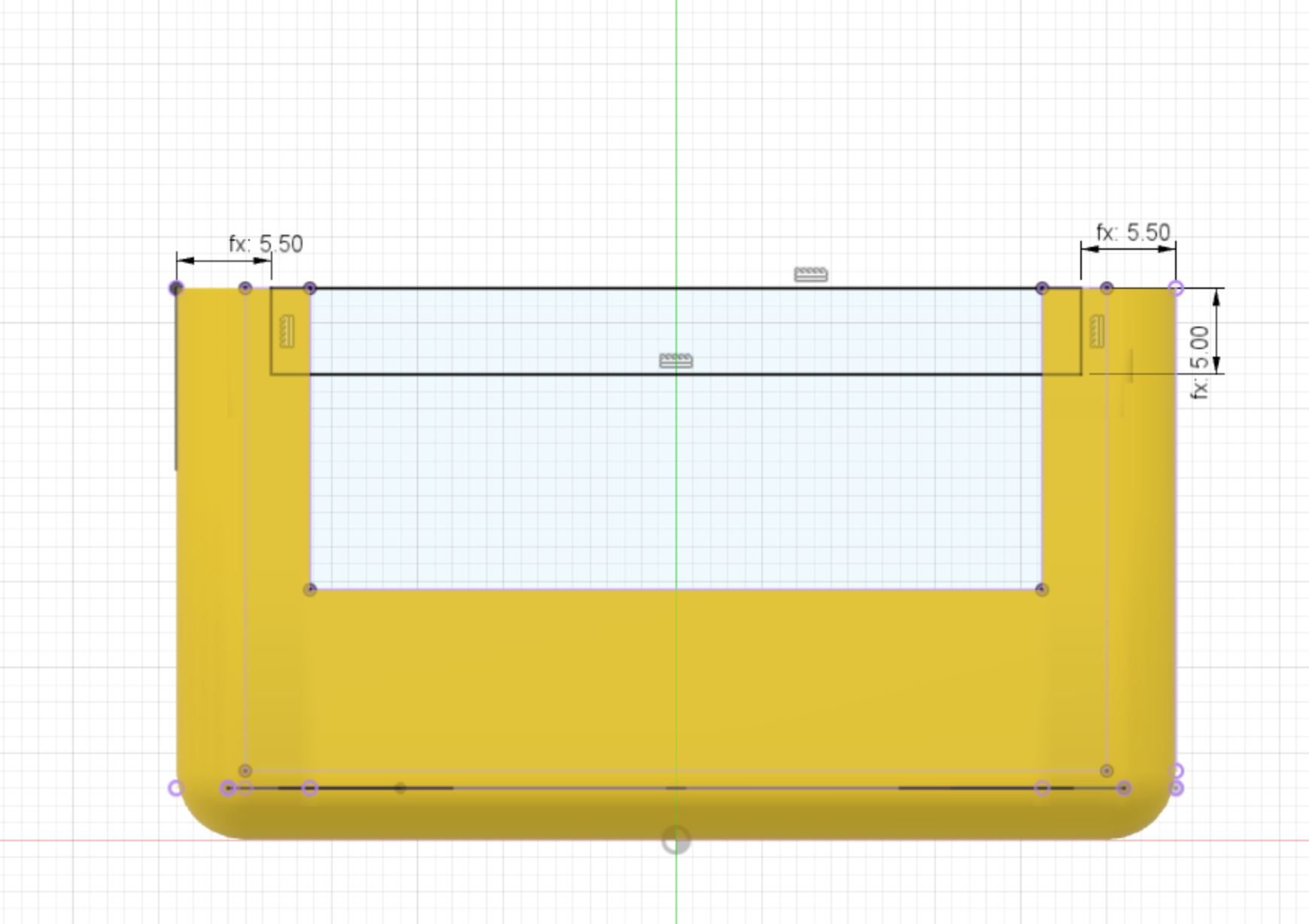

A profile sketch is needed to make a final cut to the front side.
The dimensions of the cut are:
- width = 5mm
- distance from chassis side to profile = 5.5mm
