Design a SMARS Robot in Fusion 360 - Part 2, Motor Holders and Stub Wheels
80% complete
Quiz score
Reset my progressOverview
Motor Holders
Front Cut
Stub Wheels
Motor Holder Slots
Final Design
Motor holder slots profile
Define the motor holder slots
By Kevin McAleer, 1 Minute

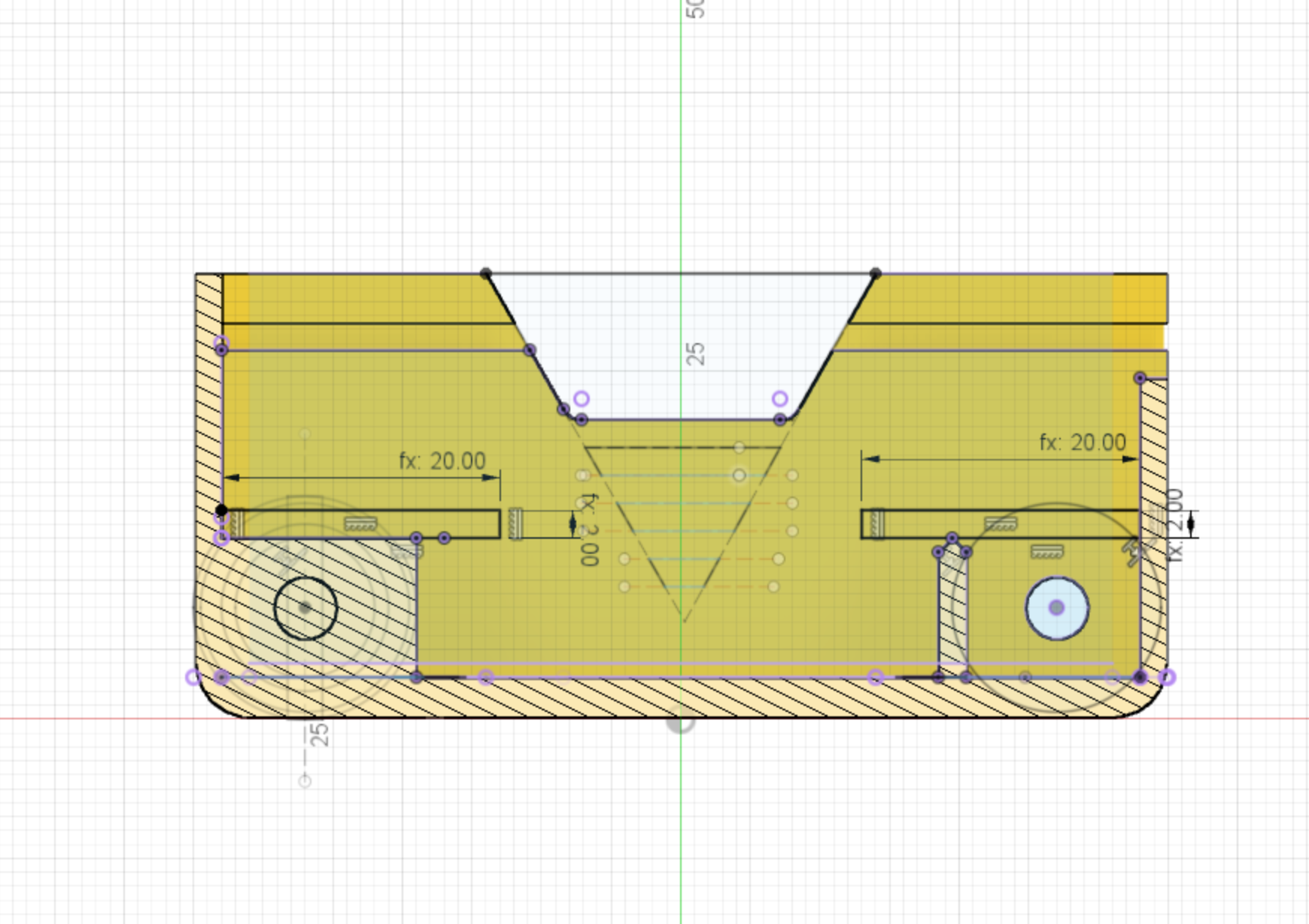

Two slot profiles need to be sketched above each of the areas where the motors live. This will enable a motor holder part to be snapped into place later once the motors are installed. The parts are pressure fit, so this part will only need to be a few mm deep.
Dimensions:
- length = 20mm
- depth = 2mm
You can use the arrows ← → on your keyboard to navigate between lessons.
