Motor holder and nub chamfer
Refine the tops
By Kevin McAleer, 1 Minute

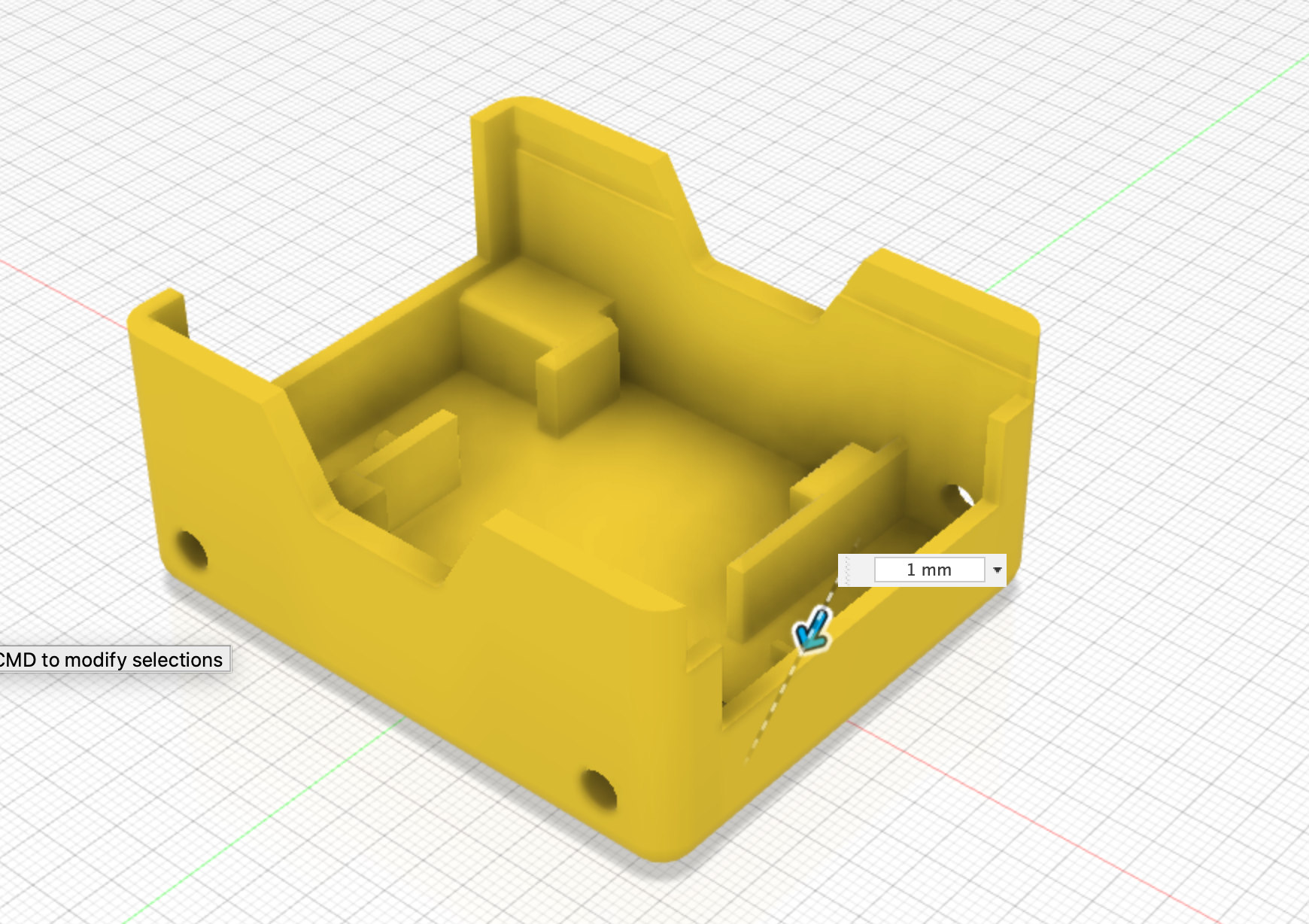

A small chamfer is applied to the tops of the extruded motor holder profiles and motor nubs.
The dimension of the chamfer is:
- motor holder chamfer = 1mm
Check your understanding
Quick quiz 1 of 2
What are the small motor nubs for?
The 2mm nubs sit behind each motor and hold it in place.
Quick quiz 2 of 2
What does a Chamfer do to an edge?
A chamfer bevels an edge at an angle. A fillet rounds it instead.
