Stub extrude
Give the stub some depth
By Kevin McAleer, 1 Minute

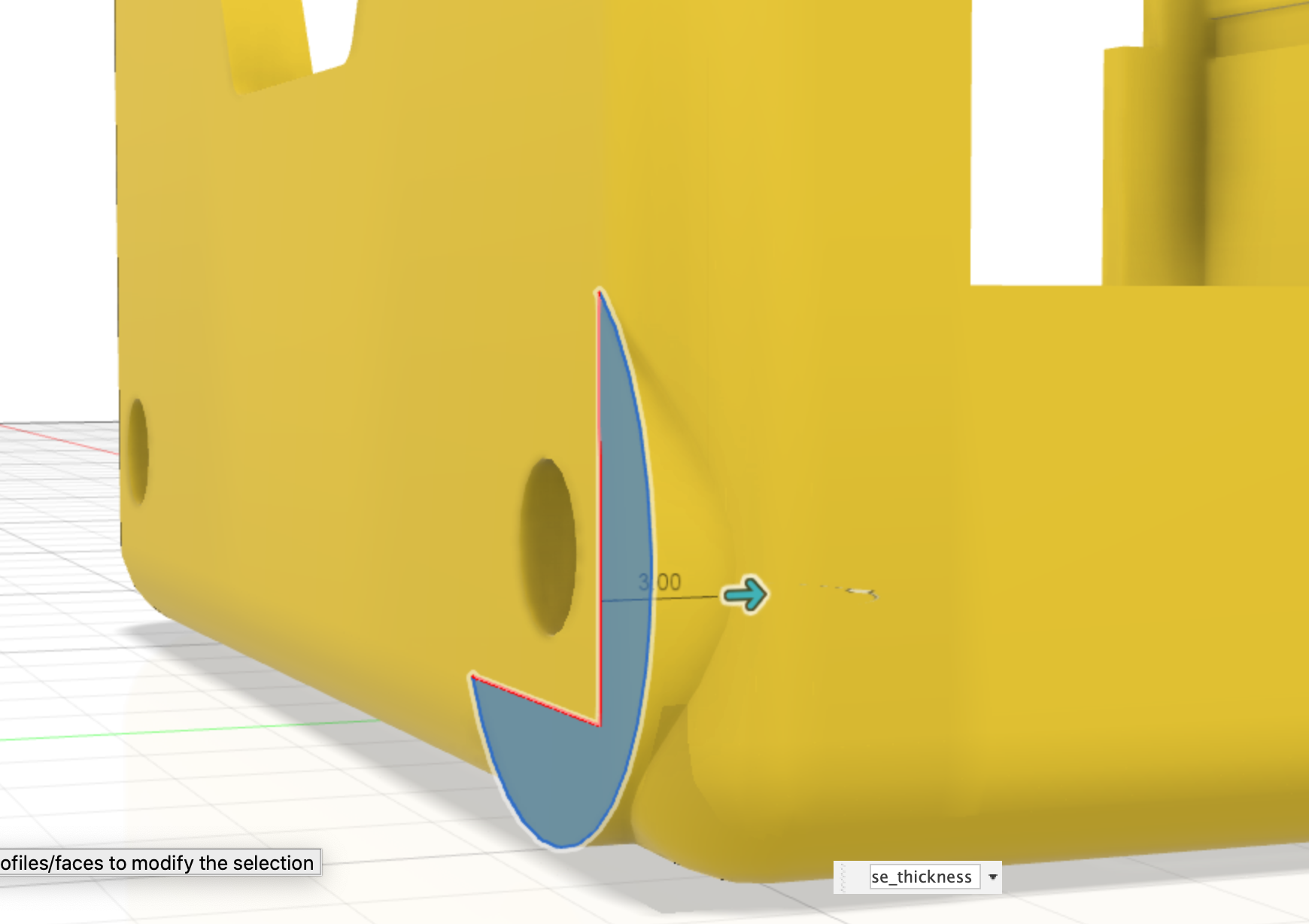

The Stub extrude profile is extruded into the chassis body. The dimensions are:
- stub extrude 3mm
This feature is replicated to the other side of the case using a circular pattern.
