Motor nub profile
Keep the motors in place
By Kevin McAleer, 1 Minute

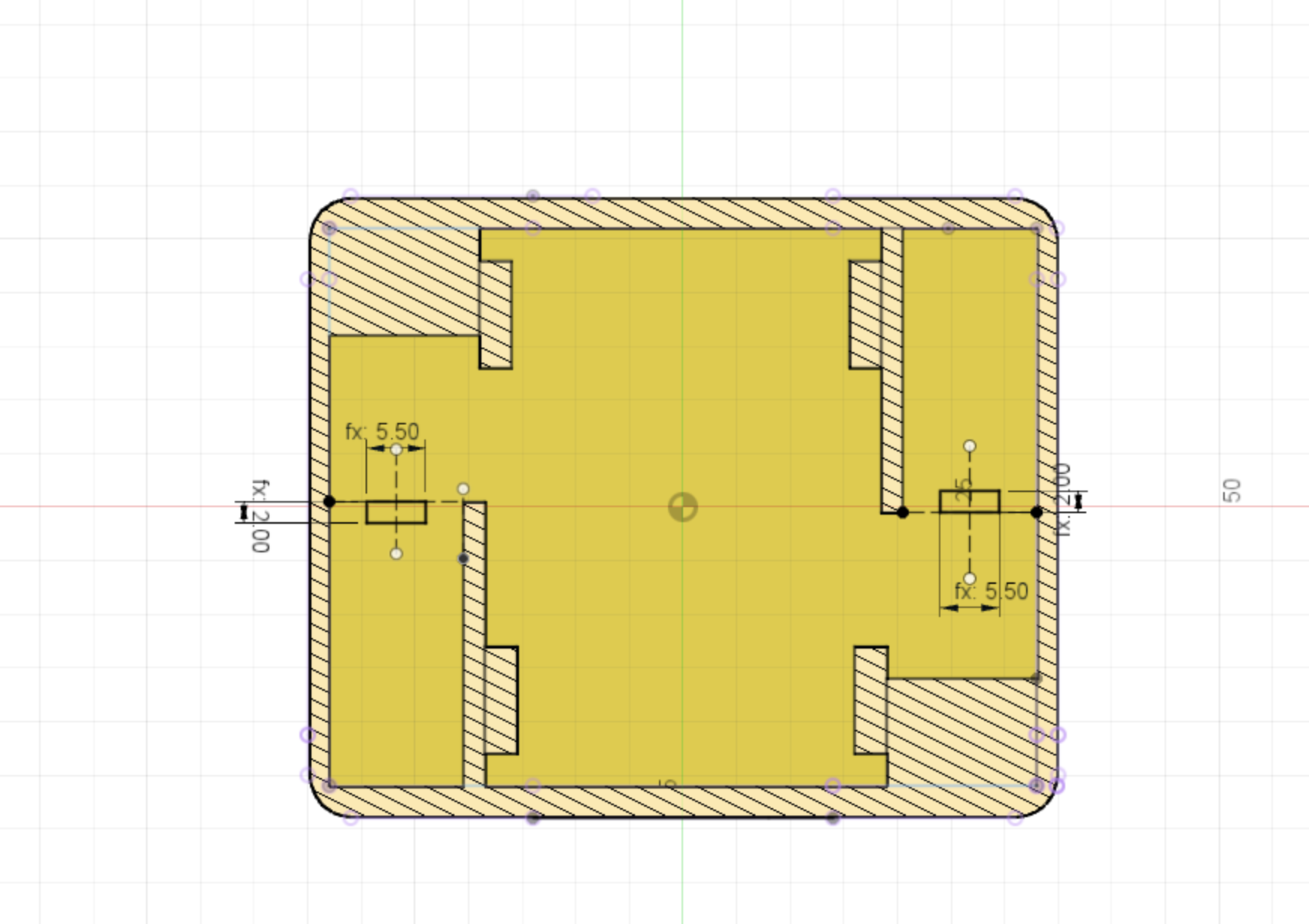

A small nub needs to be sketched - this is to prevent the motor from sliding backwards into the chassis body.
The dimensions are:
- motor nub height = 2mm
- motor nub width = 5.5mm
They are aligned to the top of the motor holder sides and centred within that area.
