Stub wheel cutout
Cut away the center section
By Kevin McAleer, 1 Minute

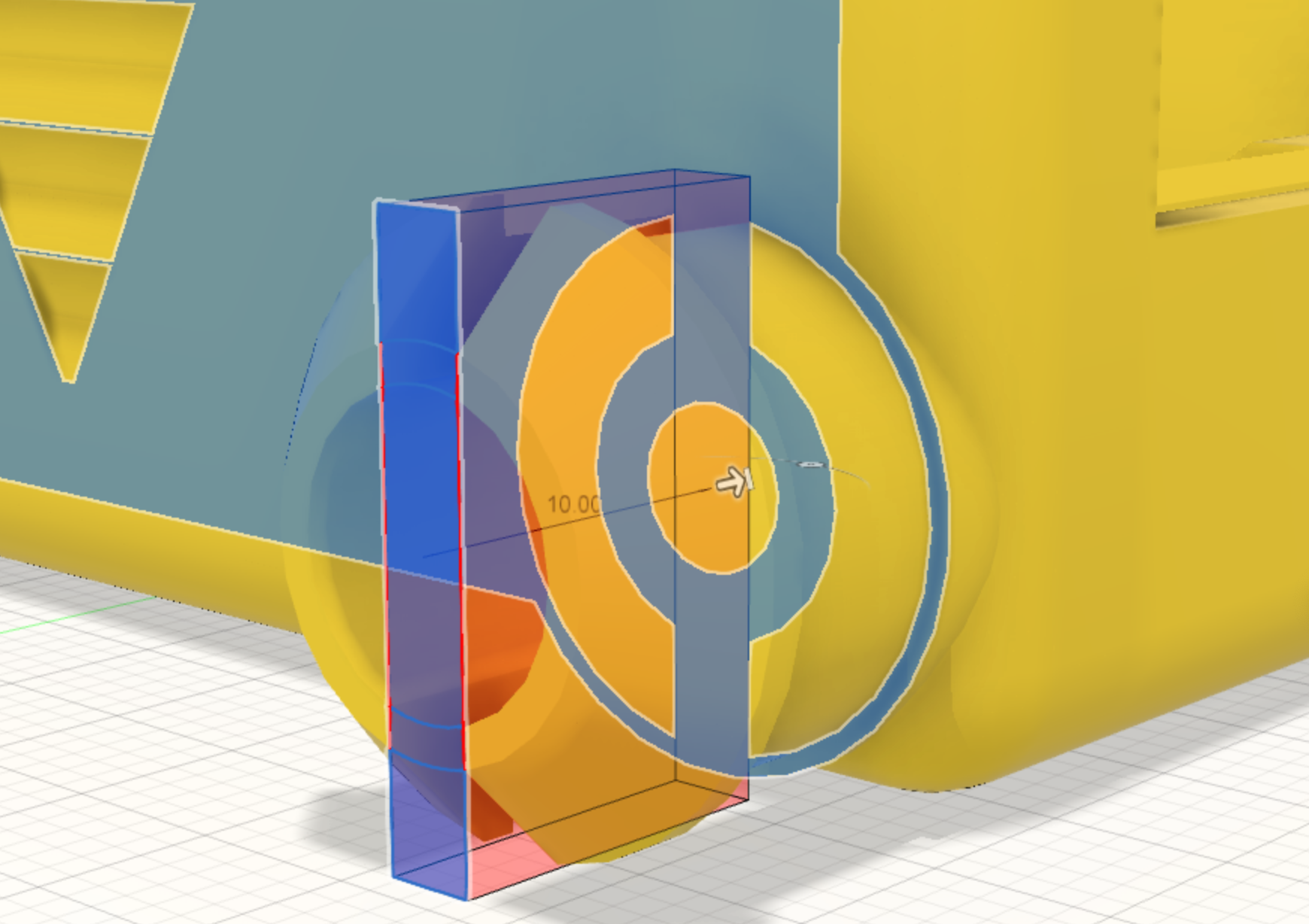

The Stub wheel cutout profile is used to extrude-cut the section into the stub wheel to create two halves.
The cut operation goes through the stub wheel to the surface of the side of the chassis body.
Check your understanding
Quick quiz 1 of 2
How is the round stub wheel made?
Revolve spins a 2D profile around an axis to make a round solid, like a part turned on a lathe.
Quick quiz 2 of 2
Why does the stub wheel have a 2.5mm slot cut through its middle?
The slot makes it springy, so an unpowered wheel snaps on and stays on.
