Design a SMARS Robot in Fusion 360 - Part 2, Motor Holders and Stub Wheels
50% complete
Quiz score
Reset my progressOverview
Motor Holders
Front Cut
Stub Wheels
Motor Holder Slots
Final Design
Stub extrude profile
Cut the profile
By Kevin McAleer, 1 Minute

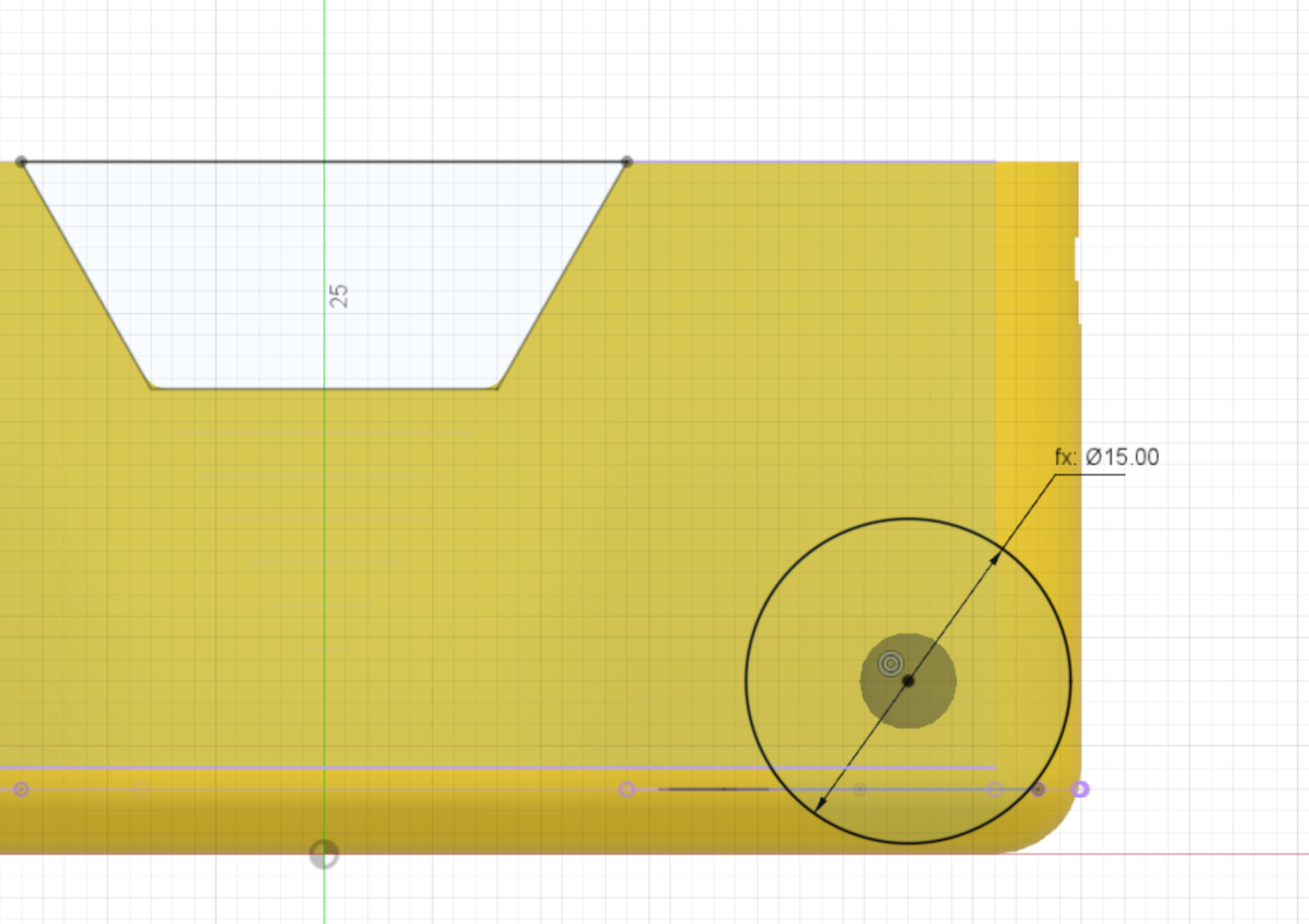

A small extrusion is needed to join the stub wheel to the fillet at the bottom of the chassis.
Dimension:
- stub wheel diameter = 15mm
The center of the circle is located at the centre of the wheel hole you cut in Part 1.
