Design a SMARS Robot in Fusion 360 - Part 1, The Chassis Shell
70% complete
Quiz score
Reset my progressOverview
Create the Base
Refine the Shape
Wheel Holes and Arduino Slots
Chassis Wheel hole profile
Create the wheel holes
By Kevin McAleer, 1 Minute

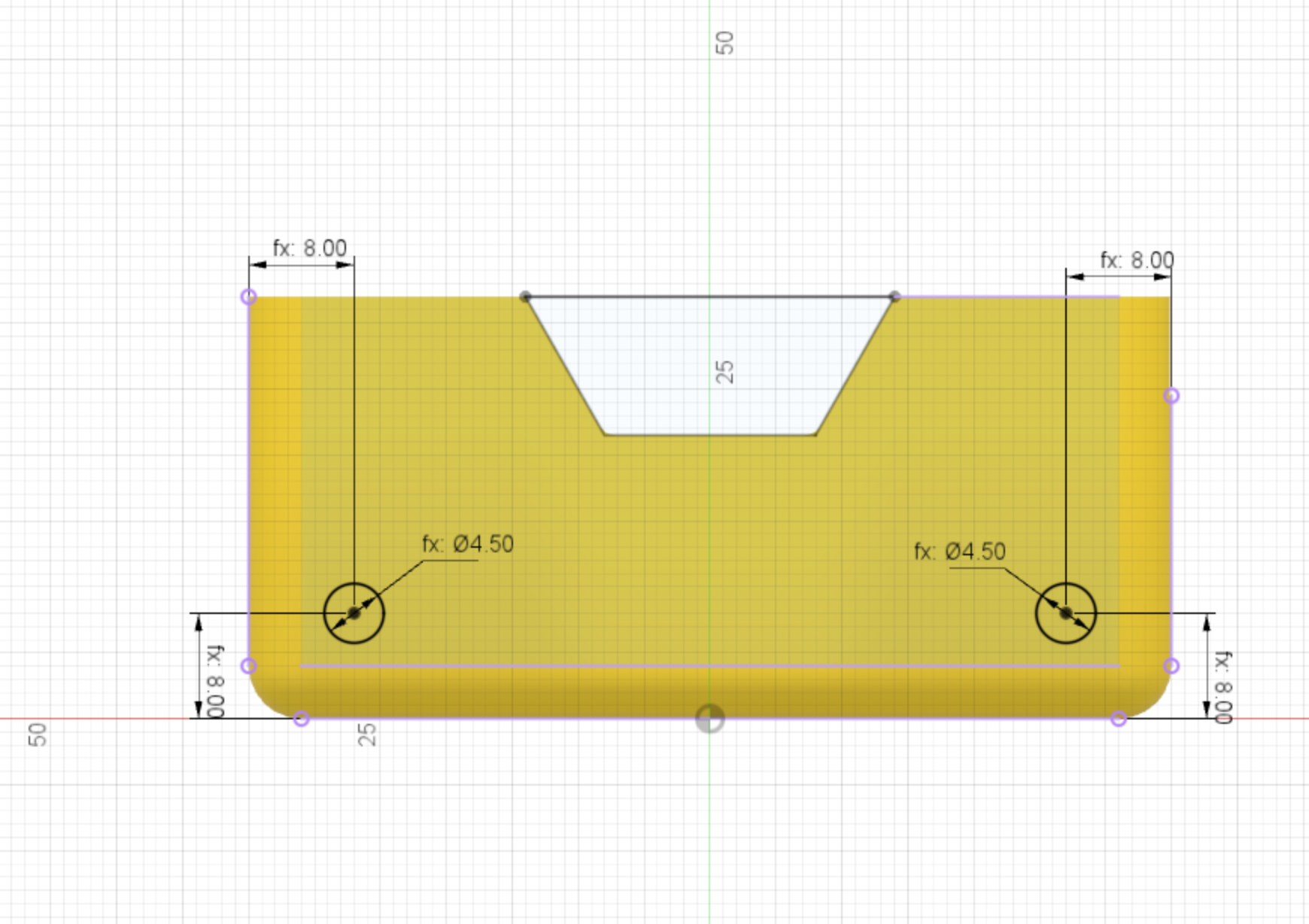

The profile for the wheel holes is created next. This has 2 dimensions:
- Hole diameter = 4.5mm (the motor spindle is 3mm so this is plenty of clearance)
- Hole centre from edge and bottom = 8mm
