Design a SMARS Robot in Fusion 360 - Part 1, The Chassis Shell

60% complete

Reset my progress
Overview
Create the Base
Refine the Shape
Wheel Holes and Arduino Slots

Back cutout profile

Refine the back area

By Kevin McAleer,    1 Minute

A profile is created for the back cutout section. This has 2 dimensions:

  • width = 52mm
  • depth = 7.5mm

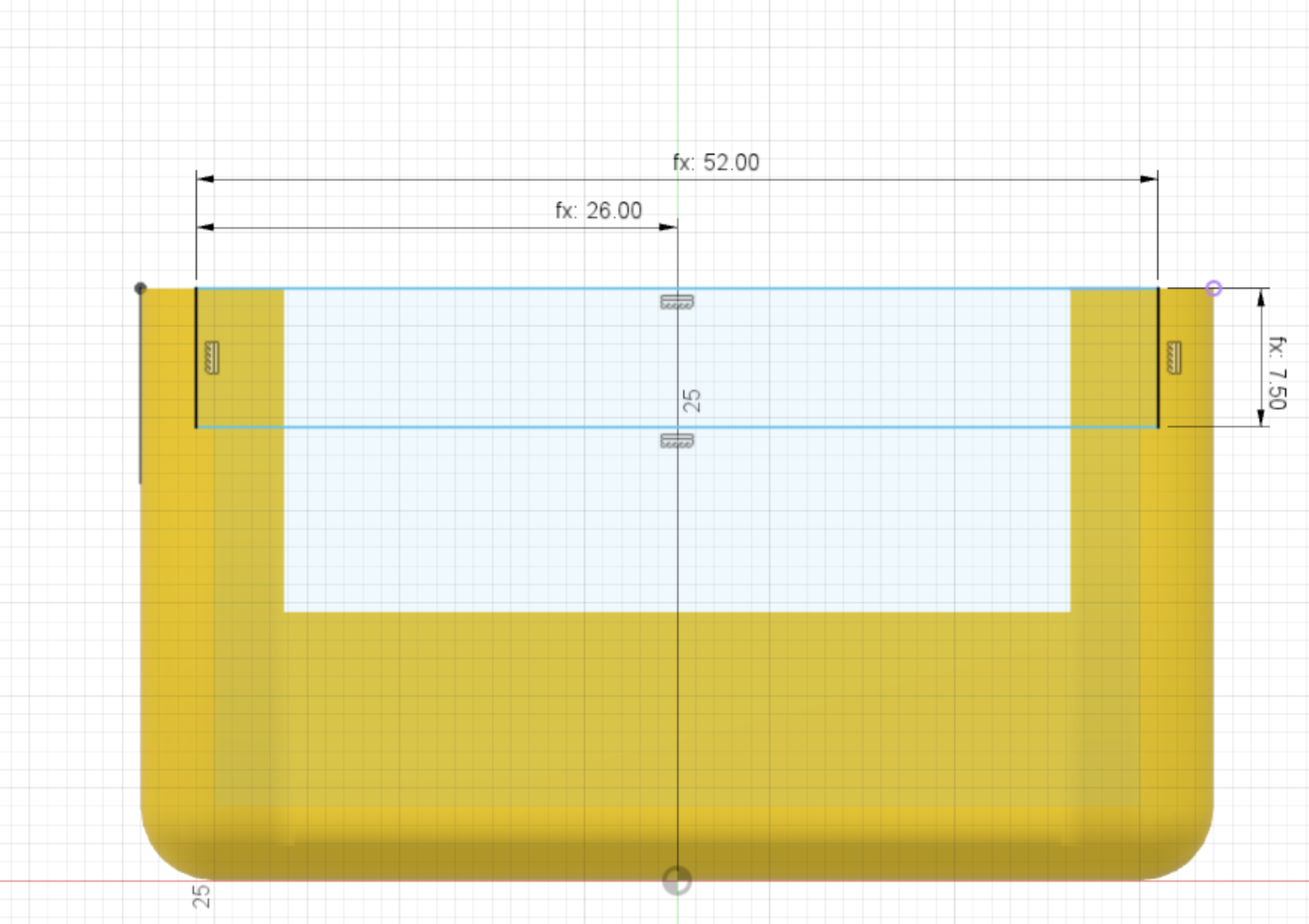

Chassis Back profile Cad Drawing
