Cut out the back
By Kevin McAleer, 1 Minute

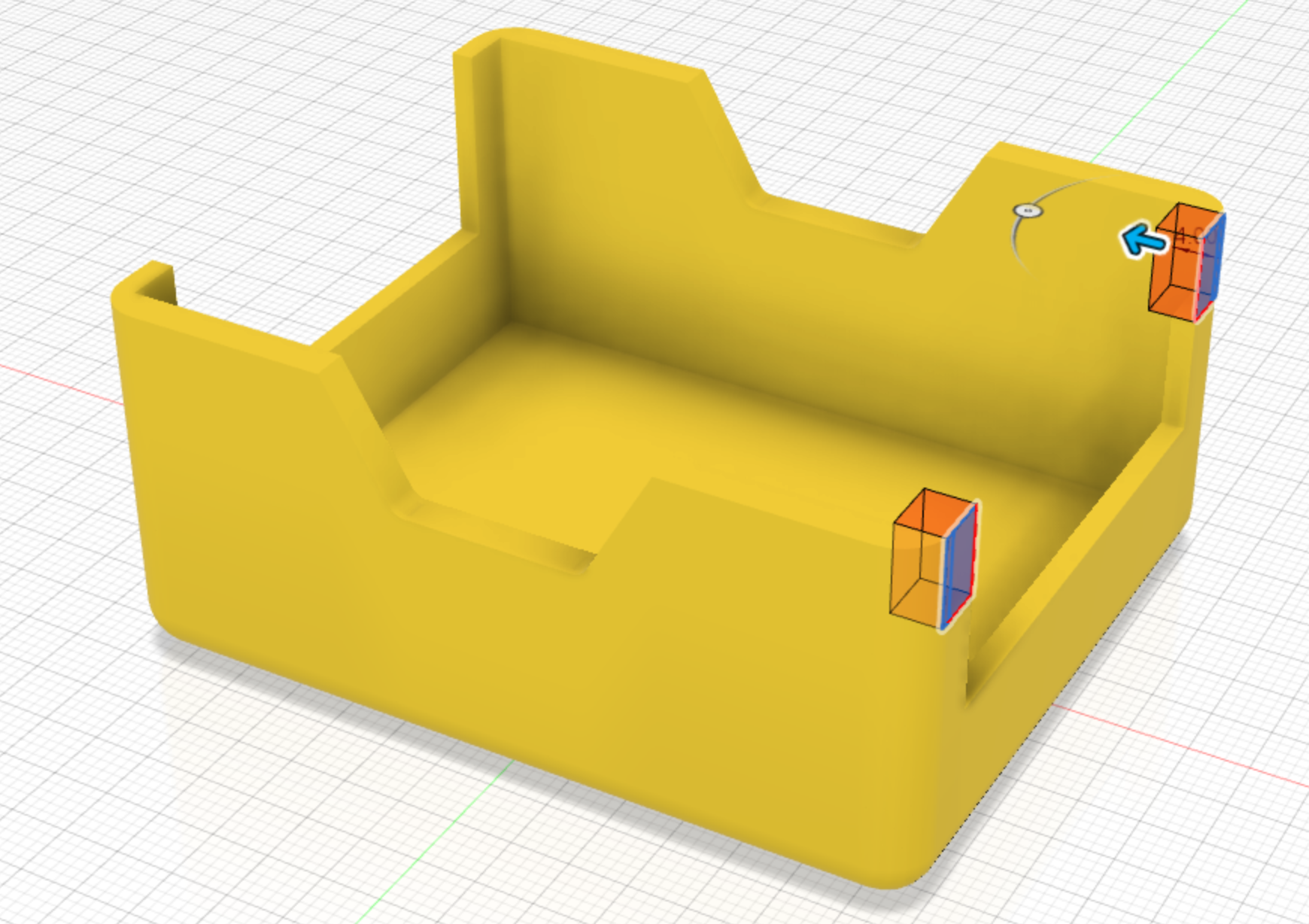

The profile created above is used to extrude a cut through the back side of the body. This is where the Arduino will slide in. The slots will come shortly.
Check your understanding
Quick quiz 1 of 2
How do you cut a shape out of a solid body in Fusion 360?
An extrude can join, cut or create a new body. Setting it to Cut removes material wherever the profile passes through.
Quick quiz 2 of 2
What shape is the side cutout profile?
The 28mm top, 16mm bottom trapezium gives SMARS its classic tank-like side shape.
