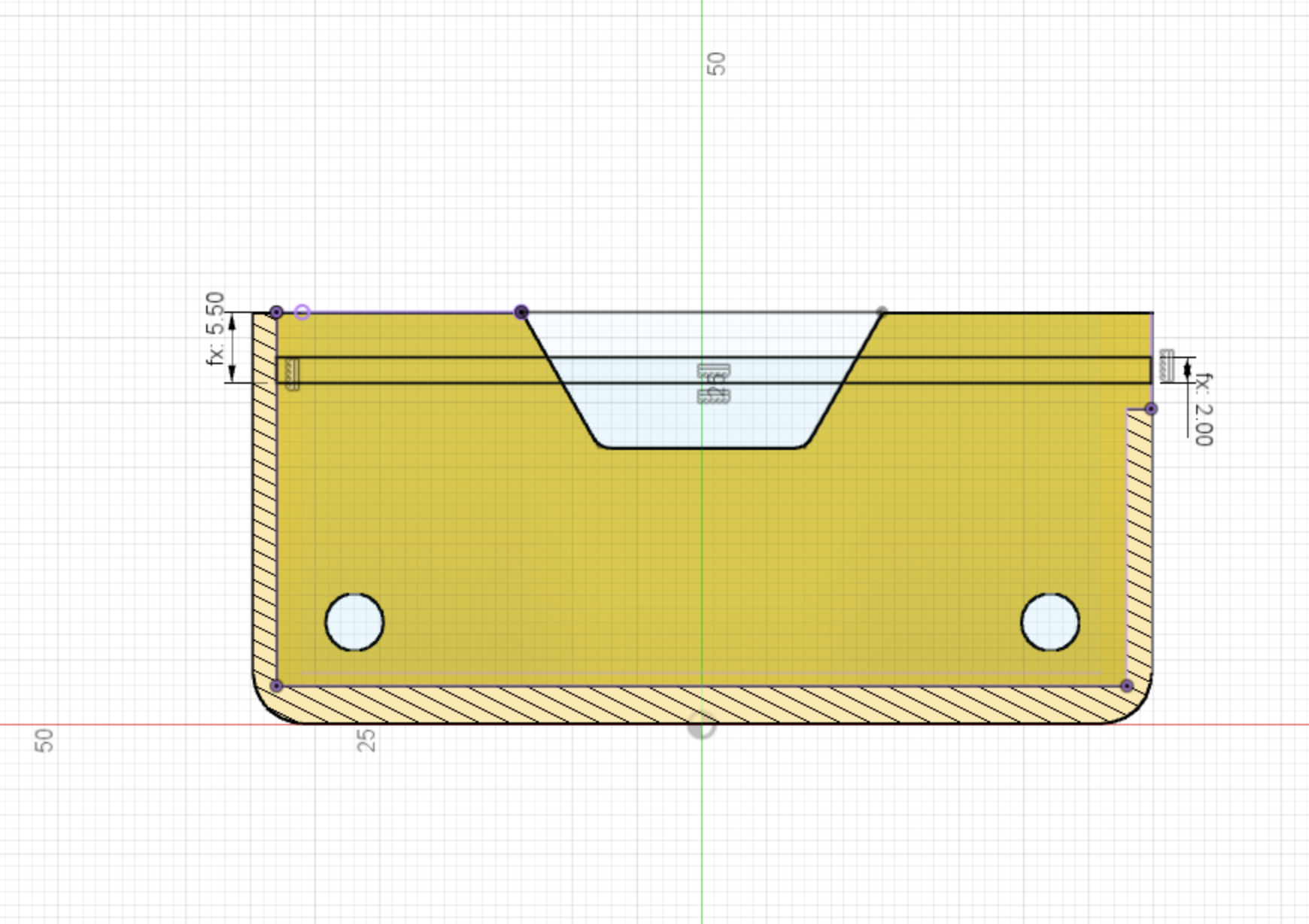

Arduino slot profile
Create the slots for the Arduino
By Kevin McAleer, 1 Minute
The slots for the Arduino are sketched next. They go all the way from the back edge to the inner front edge. The dimensions of the Arduino slots are:
- Slot height = 2mm
- Body top to slot bottom edge = 5.5mm
