Build a SMARS Robot in Fusion 360

34% Percent Complete

Overview
Create the Base
Refine
Wheels
Motor Holders
Front
Wheel
Final Design

Arduino slot cut

Cut the slots out

By Kevin McAleer,    1 Minute

The Arduino slot profile created previously is used to extrude a cut into the body, to a depth of 0.5mm.

  • Arduino slot depth 0.5mm

This feature is mirrored across to the other side of the chassis.

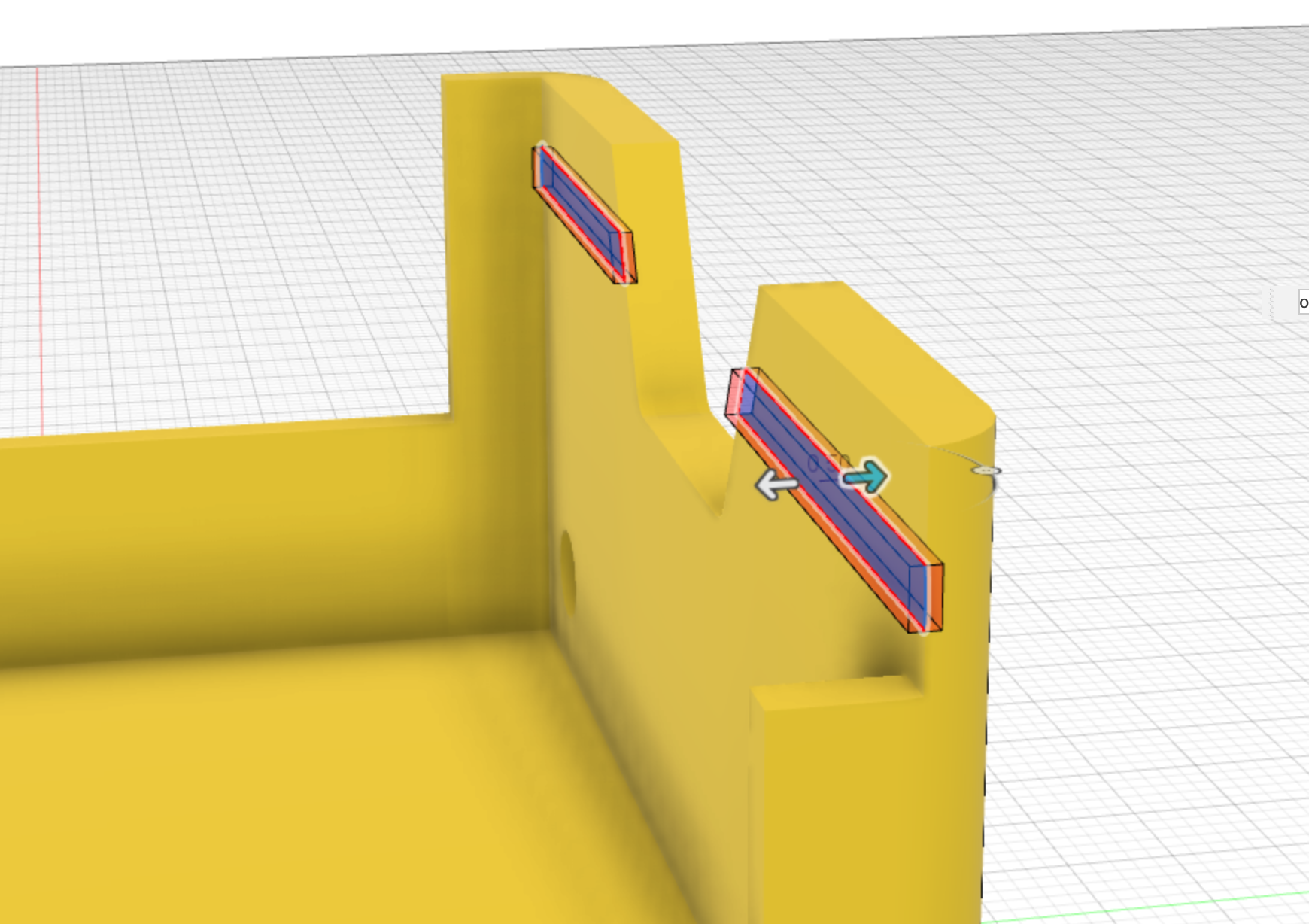

Chassis Arduinio slot cut Cad Drawing
