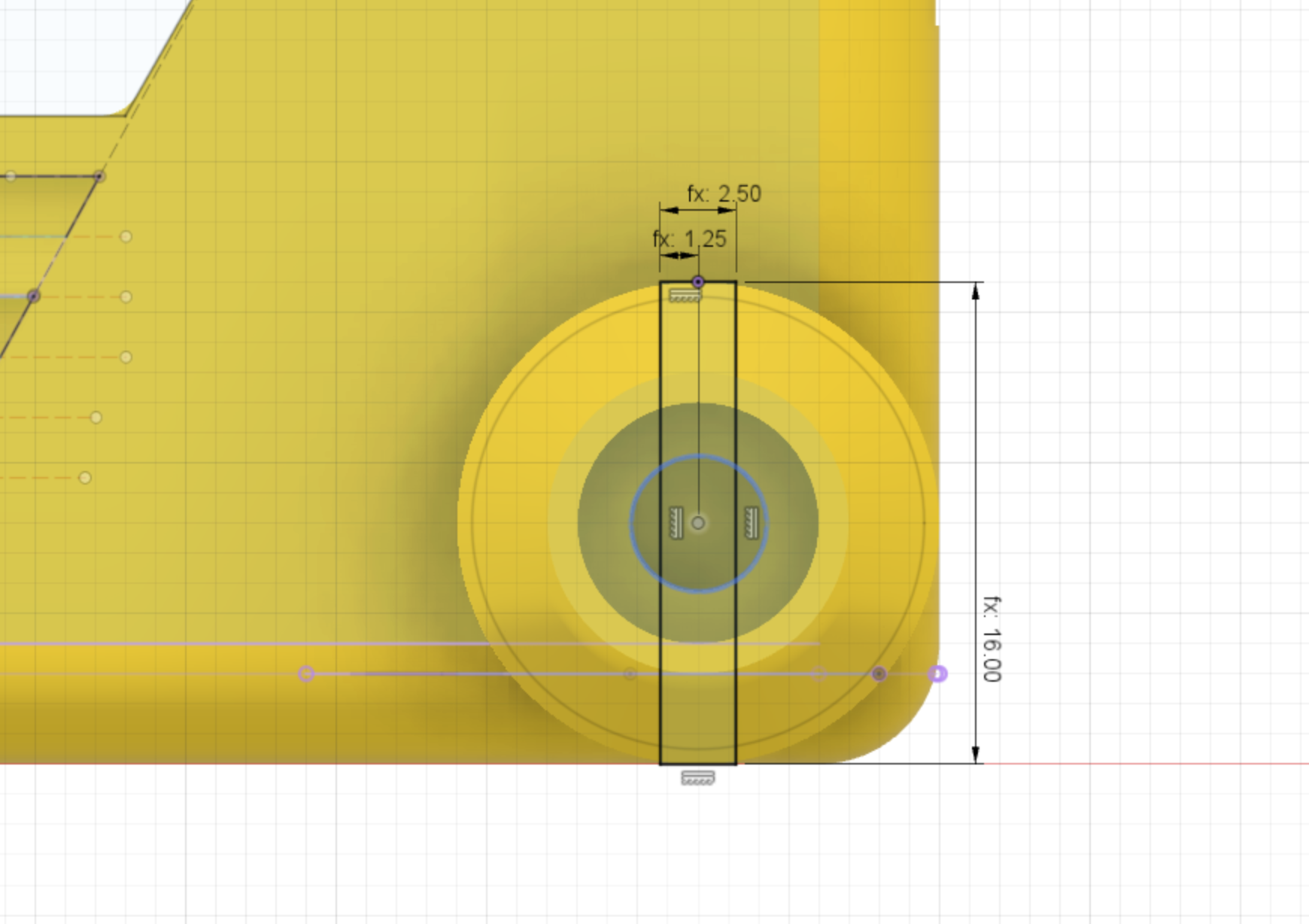

Stub wheel cutout profile
Cut out the center
By Kevin McAleer, 1 Minute
The stub wheel needs a cut out section to allow the two halfs of the stub wheel to squeeze together when pushing on an unpowered wheel.
The dimensions are:
- cutout width = 2.5mm
- cutout height = 16mm (the wheel diameter)
