BurgerBot An open-source, burger-shared robot you can build yourself 2 December 2024 2 minute read By Kevin McAleer Share this article on Table of Contents Overview Bill of Materials Circuit Diagram Wiring Assembly Code Downloadable STL files Tags: robots burgerbot Difficulty: beginner Category: robots

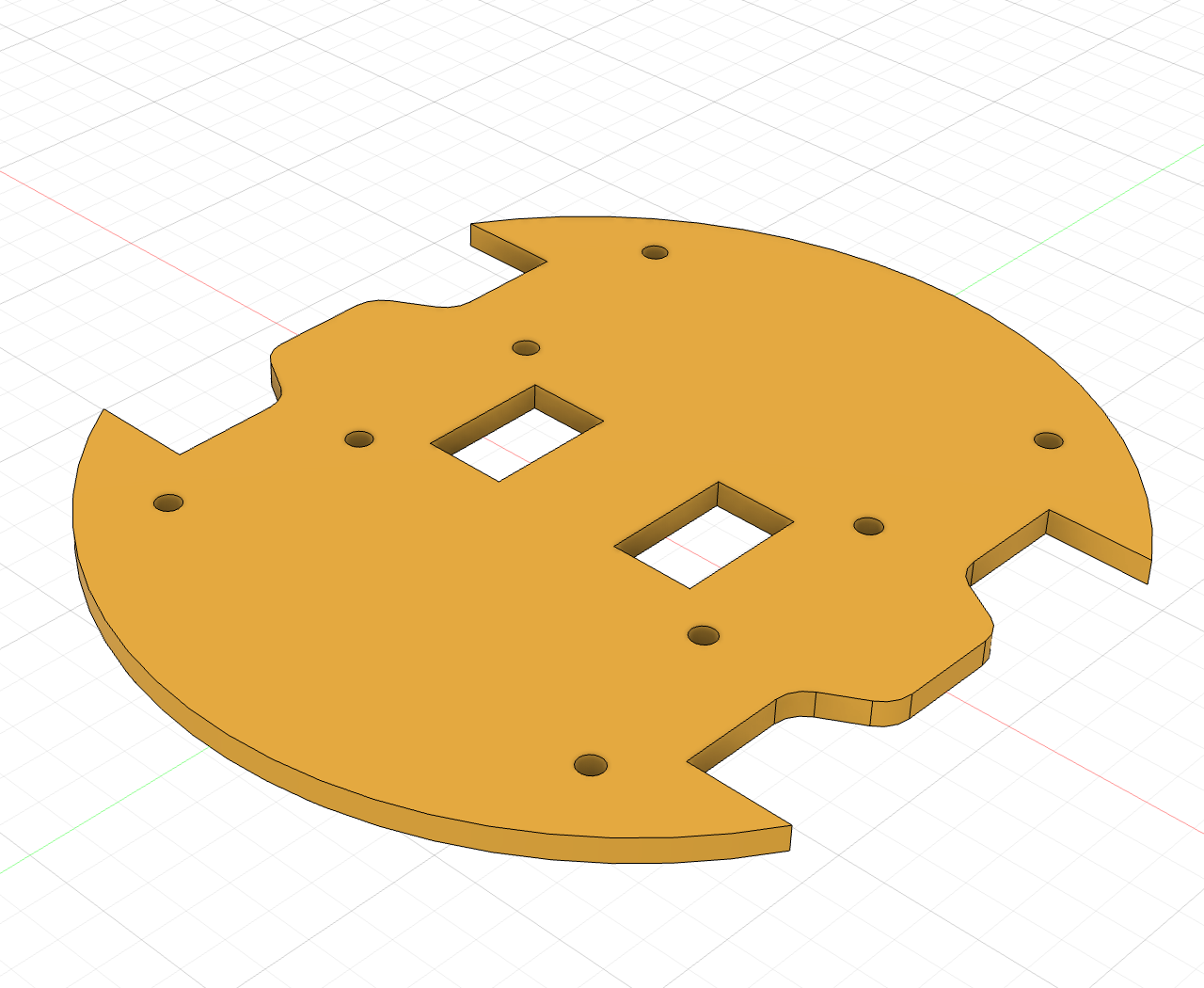

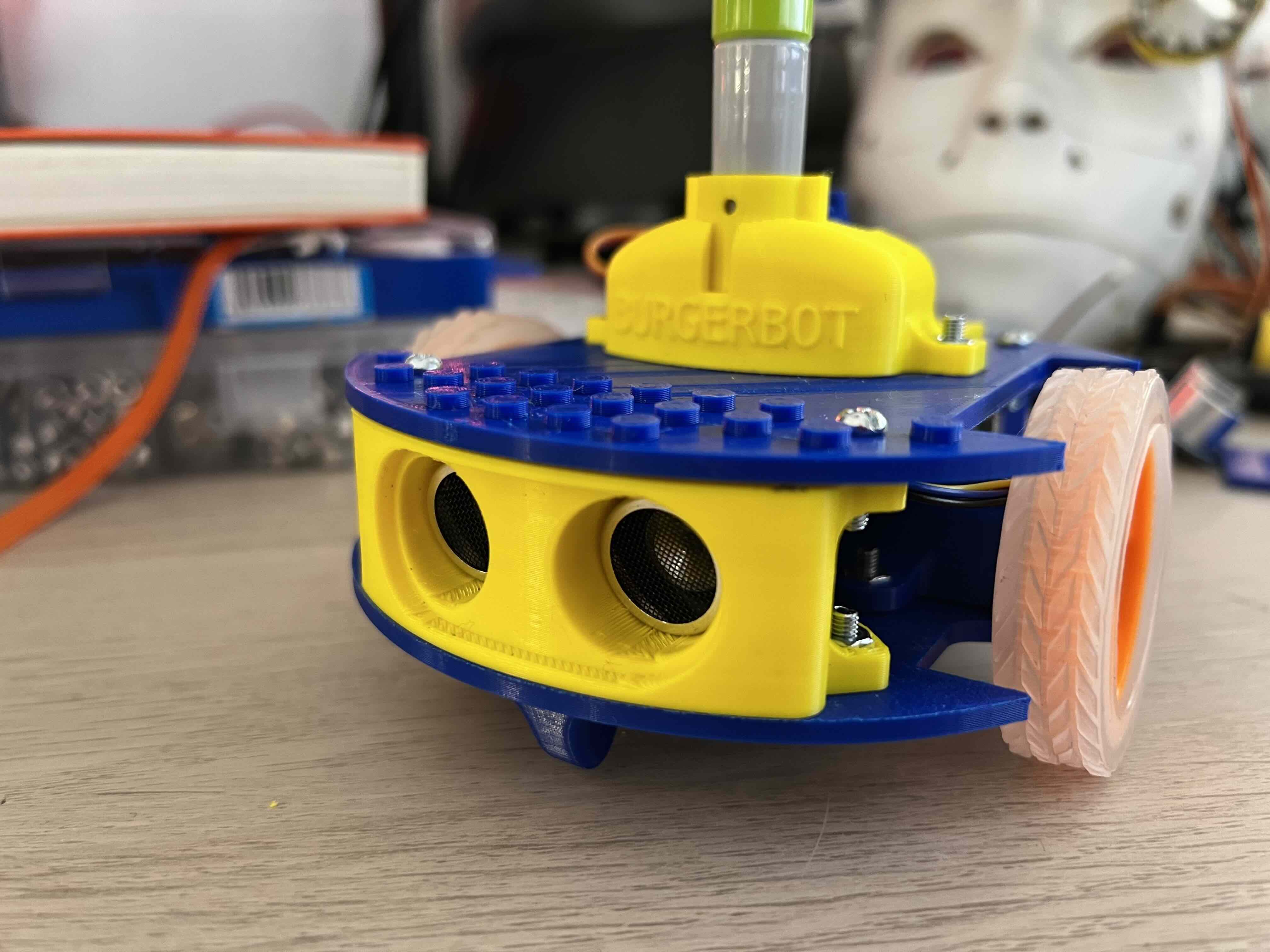

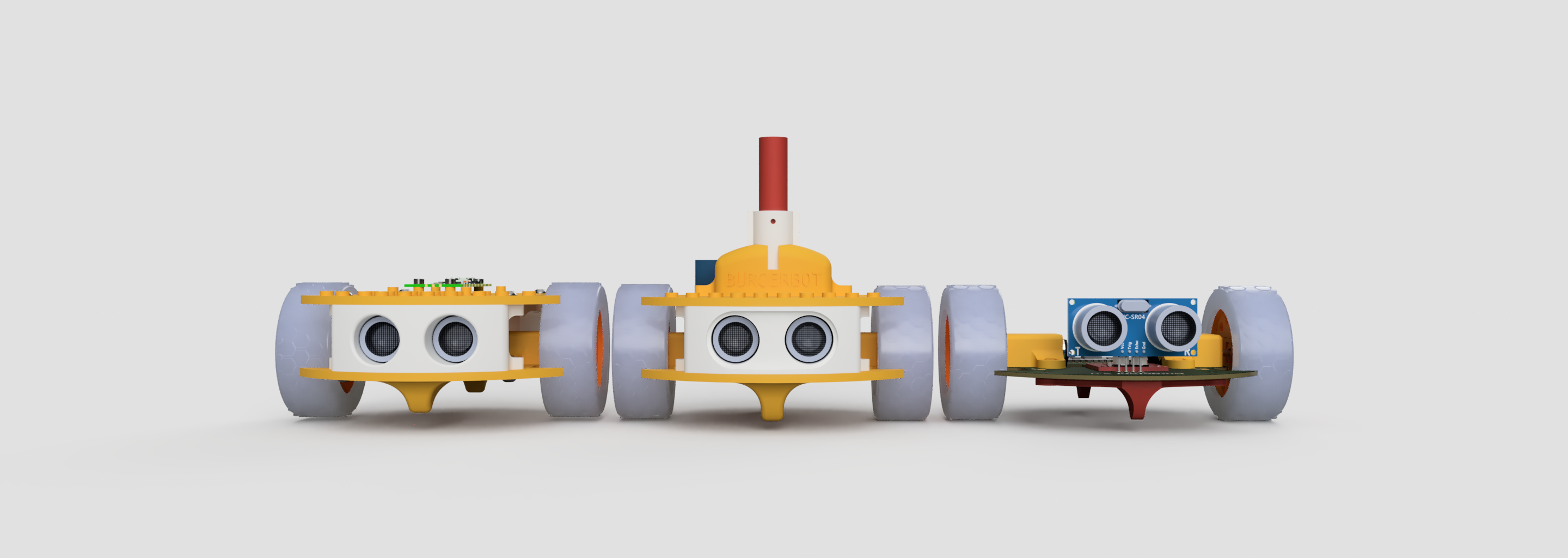

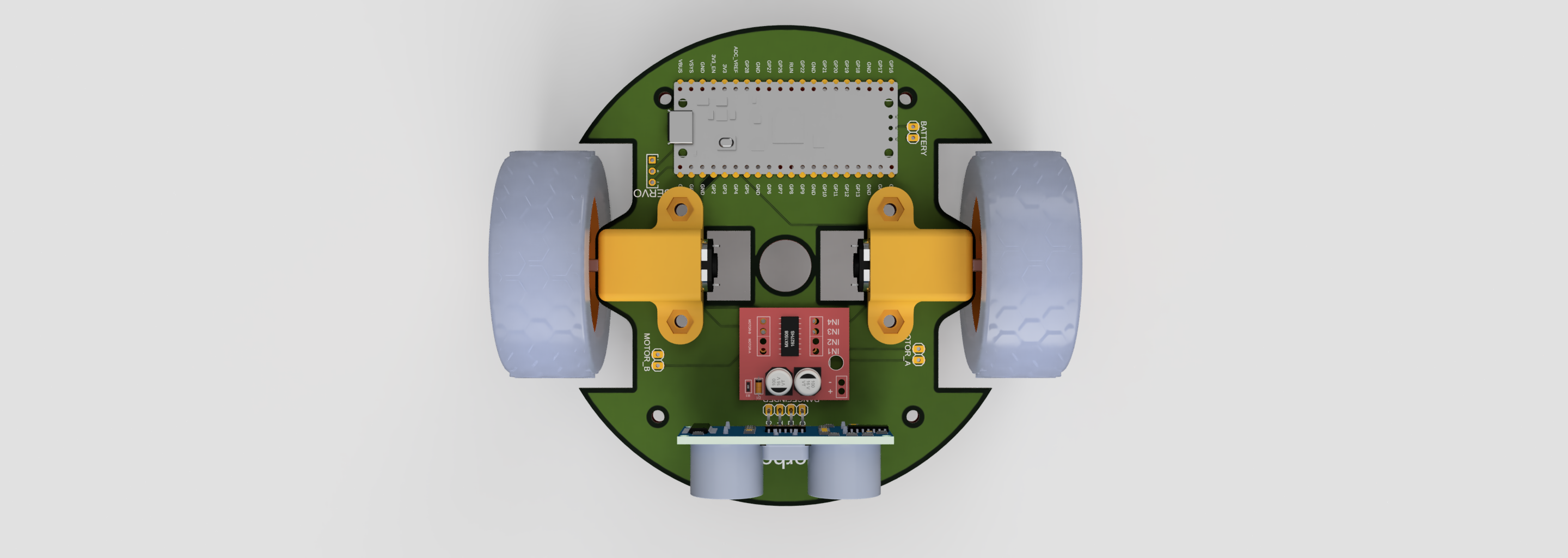

What is BurgerBot? BurgerBot is a simple 3d printable robot you can build yourself. It’s a flexible design that can be used for a variety of applcations including, simple follow or avoidance, line following, and even drawing with the addition of the pen module. The 3d printable robot you can build yourself BurgerBot starts with a simple base. Evolution of BurgerBot BurgerBot has evolved over the years, from a simple robot with a Raspberry Pi Pico, to a more complex robot with a Raspberry Pi Pico 2 W and a custom PCB. The ltest version of BurgerBot is based on a custom PCB (Printed Circuit Board) that makes it easier to build and more reliable. For the best results use a Pico H, Pico WH, Pico 2 H, or Pico 2 WH as these have the header pins already soldered in place, and include a small plastic spaceer to keep the PCB off the surface of the robot. This makes it easier to connect a USB cable to the Pico for programming. Features BurgerBot is made up of a base, a front face for the Rangefinder, and a back section that can house the battery pack. The raspberry Pi can either be mounted on top (for the non-drawing version), or inside the robot (for the drawing version). 3d printable Raspberry Pi Pico powered 2x DC motors 1x Servo motor (for the drawing version) 1x Ultrasonic sensor Bluetooth and Wifi connectivity for the Raspberry Pi Pico W & Pico 2 W versions Simple and quick to print All the components are designed to be quick to print Download STLs Bill of Materials >
