A microcontroller (MCU) is like the brain in many of our electronic devices. While a standard computer can handle multiple tasks simultaneously, a microcontroller is optimized for specific tasks, making it efficient and responsive.

microcontrollers arduino pico raspberrypi How it works stm32 microbit

29 October 2023 by Kevin McAleer | Share this article on

A microcontroller (MCU) is like the brain in many of our electronic devices. While a standard computer can handle multiple tasks simultaneously, a microcontroller is optimized for specific tasks, making it efficient and responsive.

For instance, while a computer could run a word processor, a web browser, and a video game at once, a microcontroller might be dedicated to monitoring the temperature inside a refrigerator or controlling the movements of a robot.

How Microcontrollers Operate

At their core, microcontrollers comprise a processor, memory, I/O ports, and various peripherals. Think of a microcontroller as the conductor of an orchestra, directing various instruments (components) to play in harmony to produce a specific output.

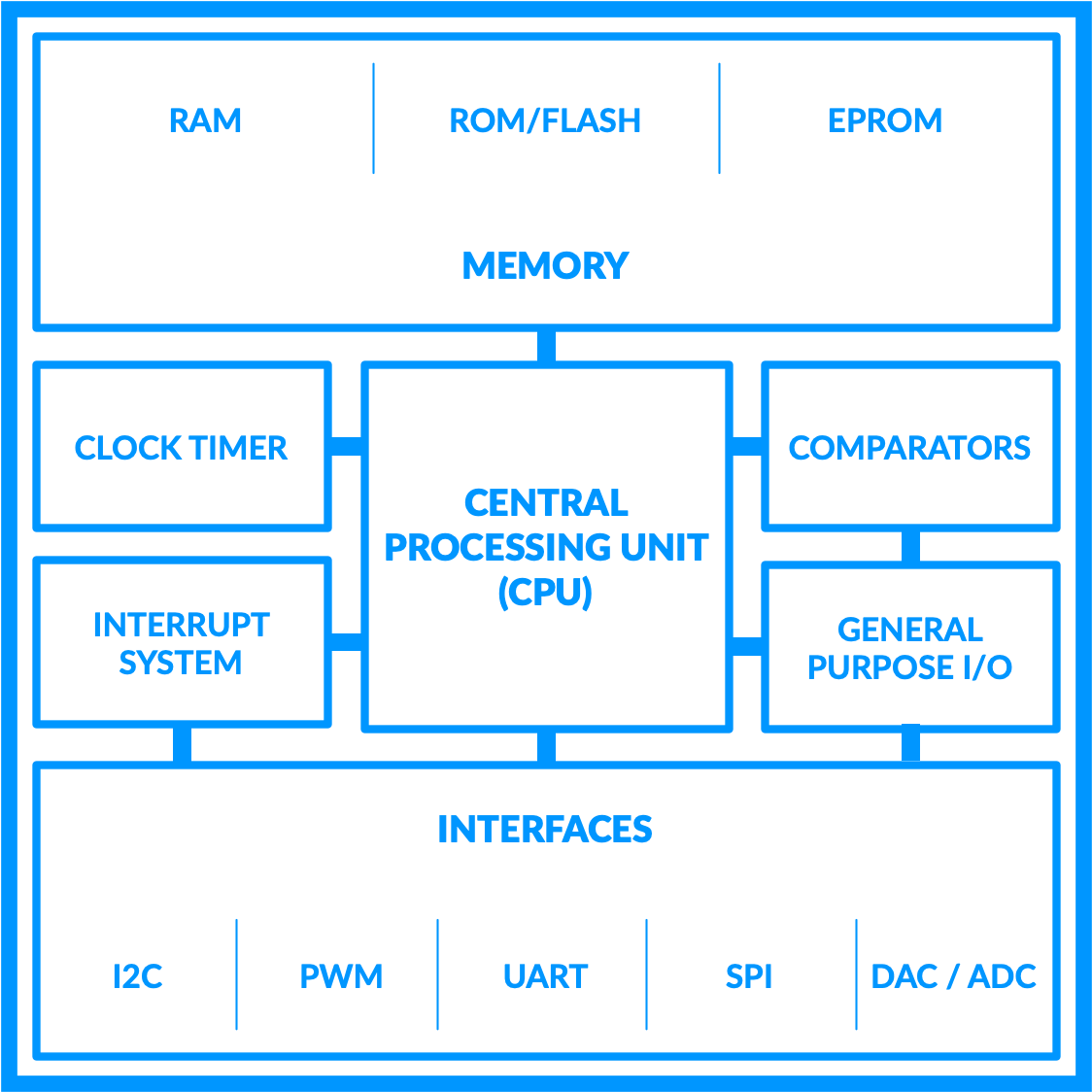

Microcontroller architecture

Microcontroller Inner Workings - Conceptual Layout

1. Central Processing Unit (CPU)

  • The “brain” of the microcontroller.
  • Executes the instructions from the program.
  • Interacts with all other components of the MCU.

2. Memory

  • ROM/Flash Memory:
    • ROM - Stores the program code.
  • RAM:
    • RAM - Temporary storage while the program is running.
    • Volatile memory (loses its data when power is off).
  • EEPROM (in some MCUs):
    • EEPROM - Can store data persistently, even when power is turned off.

3. Input/Output Ports

  • Interfaces the MCU to the external world.
  • Can be digital or analog.
  • Many MCUs have pins that can be configured either as input or output.

4. Clock/Timer

  • Provides a timing signal to the MCU.
  • Necessary for synchronous operations and to maintain accurate timing.

5. Communication Interfaces

  • UART: UART - Universal Asynchronous Receiver-Transmitter. Used for serial communication.
  • SPI: SPI - Serial Peripheral Interface. A synchronous serial data protocol.
  • I2C: I2C - Inter-Integrated Circuit. A bus for connecting multiple devices.

6. ADC (Analog to Digital Converter) and DAC (Digital to Analog Converter)

  • ADC converts analog signals (like from sensors) to digital data.
  • DAC converts digital data to analog signals (like to drive speakers).

7. Interrupt System

  • Allows the MCU to pause its main task and respond to urgent events.

8. Other Peripherals (vary with the MCU model)

  • PWM Modules: PWM For generating Pulse Width Modulation signals, often used in motor control.
  • Comparators: For comparing voltage levels.

Where You Encounter Microcontrollers Daily

Everyday objects powered by microcontrollers include:

  • Home gadgets: Thermostats, refrigerators, and smart speakers.
  • Toys: Electronic dolls, drones.
  • Healthcare: Glucometers, digital thermometers.
  • Transport: Modern car’s braking systems, traffic lights.

Microcontroller Description Manufacturer Website
Arduino (based on AVR) A favorite among hobbyists, it’s an excellent platform for beginners due to its vast community and plethora of projects Arduino
Raspberry Pi Pico and STM32 (both ARM Cortex series) While Raspberry Pi Pico is becoming popular for hobby projects, STM32 is versatile, ranging from simple tasks to advanced applications Raspberry Pi / STMicroelectronics /
ESP8266 and ESP32 Ideal for connected projects with Wi-Fi and Bluetooth capabilities Espressif
BBC micro:bit Designed for educational purposes, it’s user-friendly with integrated features, making it great for young learners Micro:bit Educational Foundation

Starting with Microcontrollers

Embarking on your microcontroller journey is exciting. Begin with:

  1. Acquiring a starter kit like Arduino or micro:bit.
  2. Understanding basic electronics principles - start with a course.
  3. Setting up your workspace with necessary tools.
  4. Engaging with online communities for support and project ideas.

Remember, every expert was once a beginner. Take one step at a time.

In Conclusion

The world of microcontrollers is vast and ever-evolving. As foundational elements in numerous devices, understanding them can open doors to innovative creations and solutions. Embrace the learning curve, and let your creativity soar!
