Pico Plotter A simple, low-cost, 3d printable plotter using a Raspberry Pi Pico and MicroPython 25 June 2025 3 minute read By Kevin McAleer Share this article on Table of Contents InspirationComponentsComponentsHardwareBill of MaterialsAssemblySoftwareCNCJS Tags: Raspberry Pi pico plotter Difficulty: beginner Category: pico micropython Code: https://www.github.com/kevinmcaleer/pico_plotter

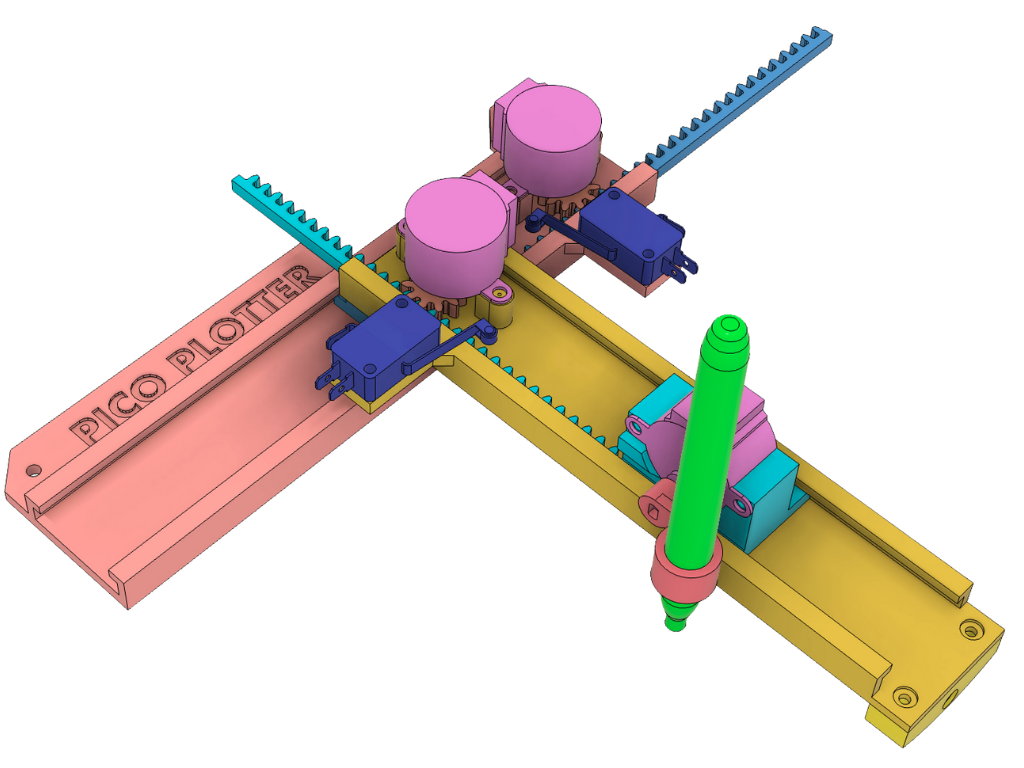

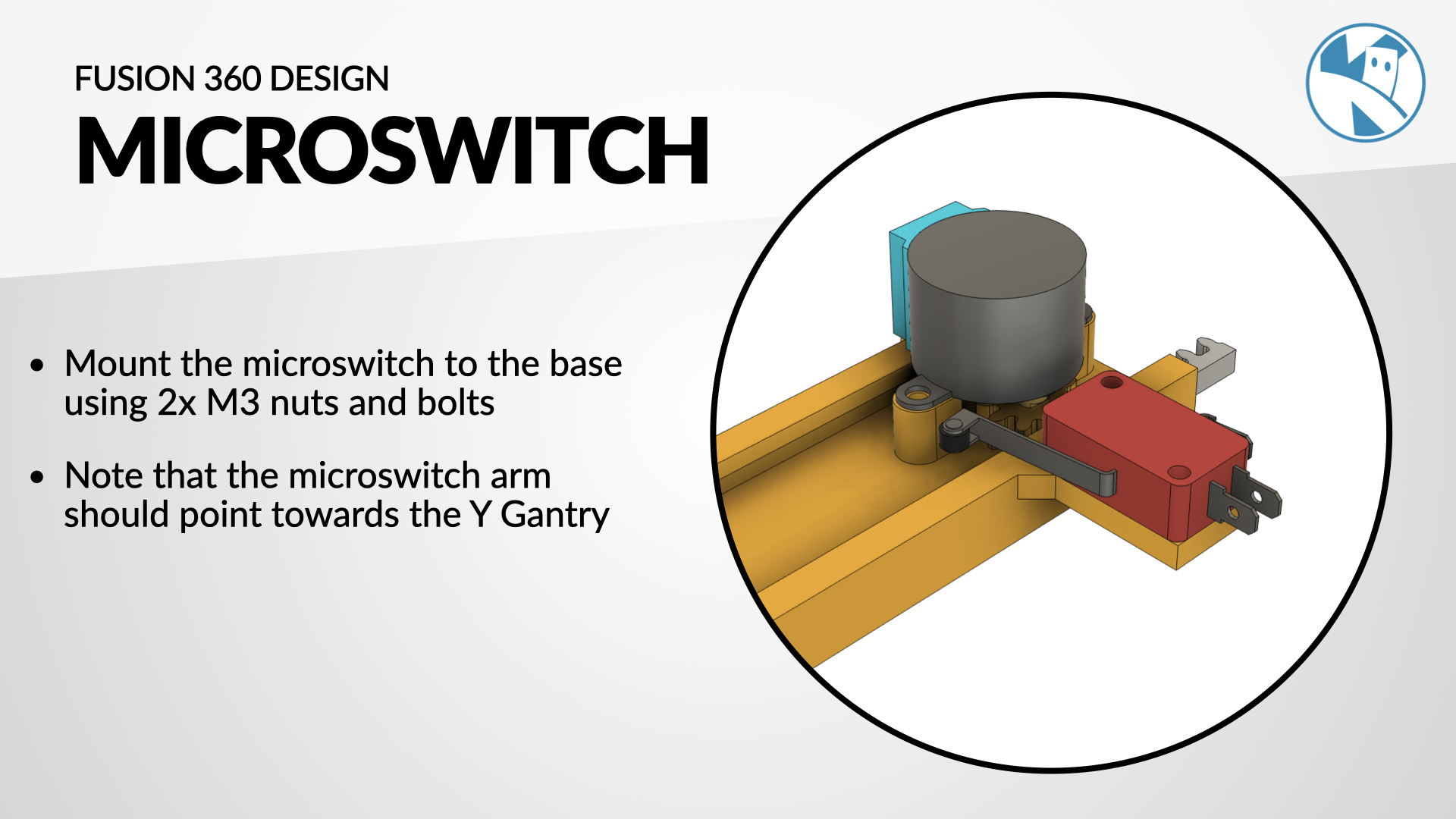

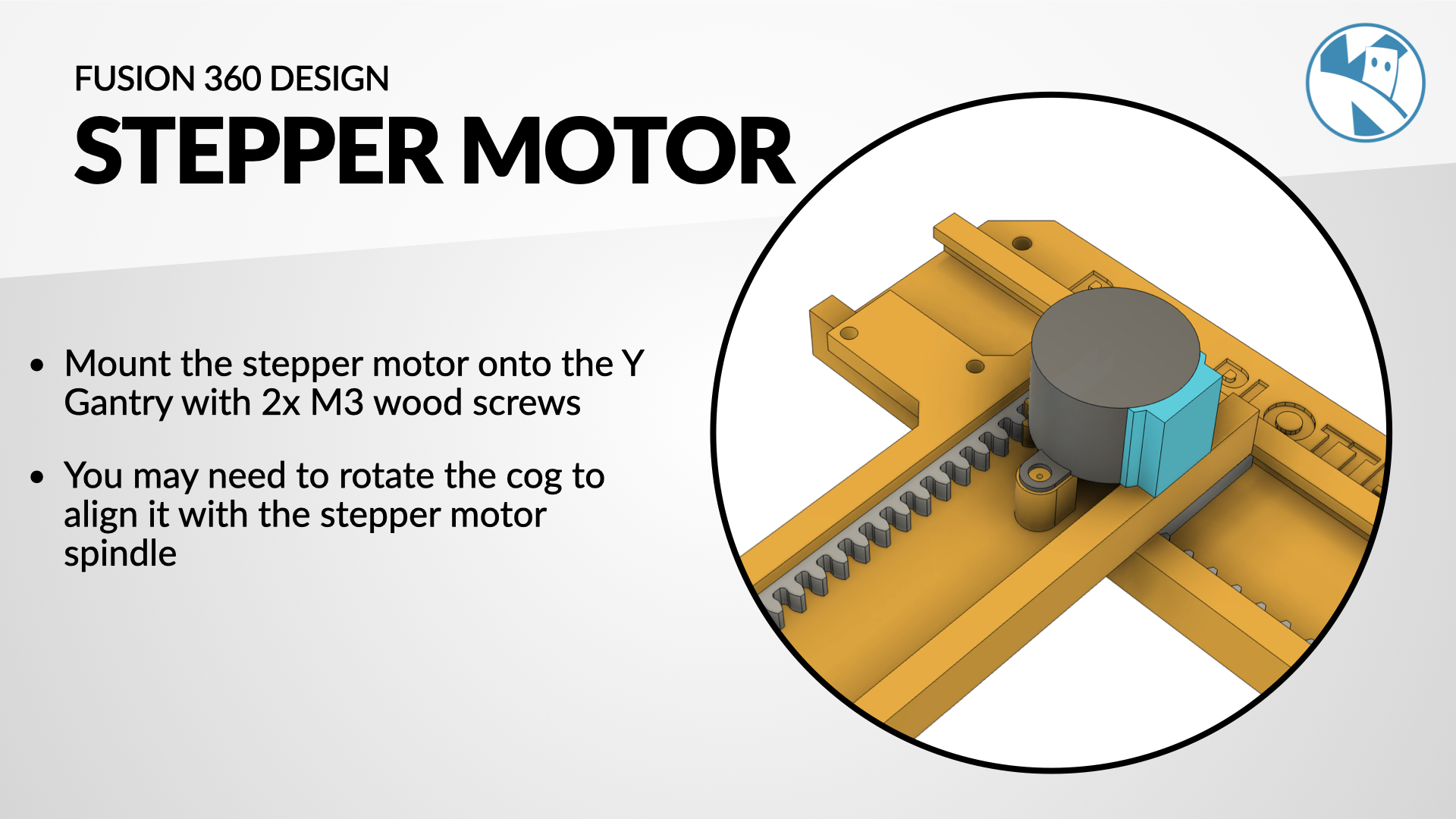

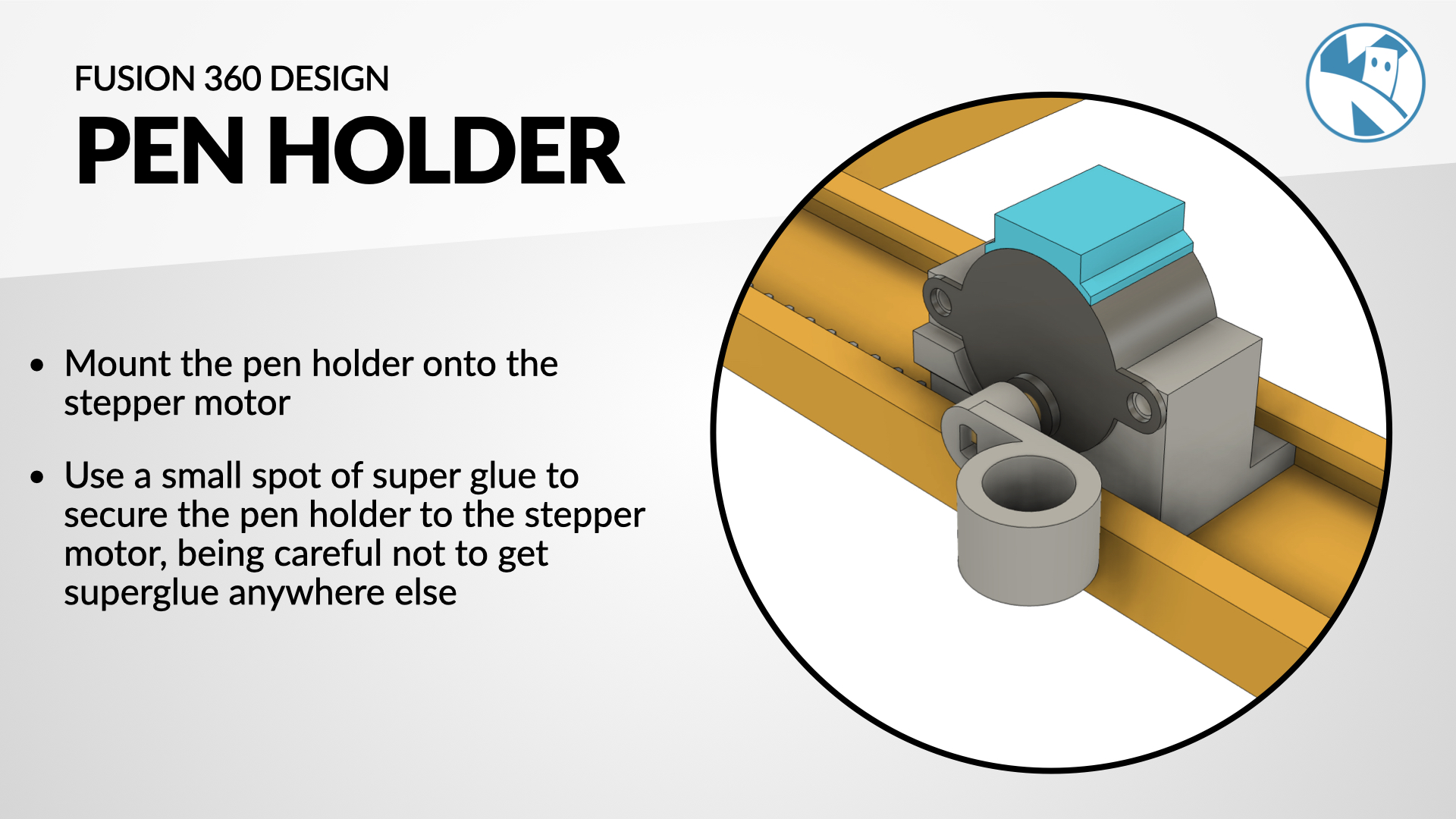

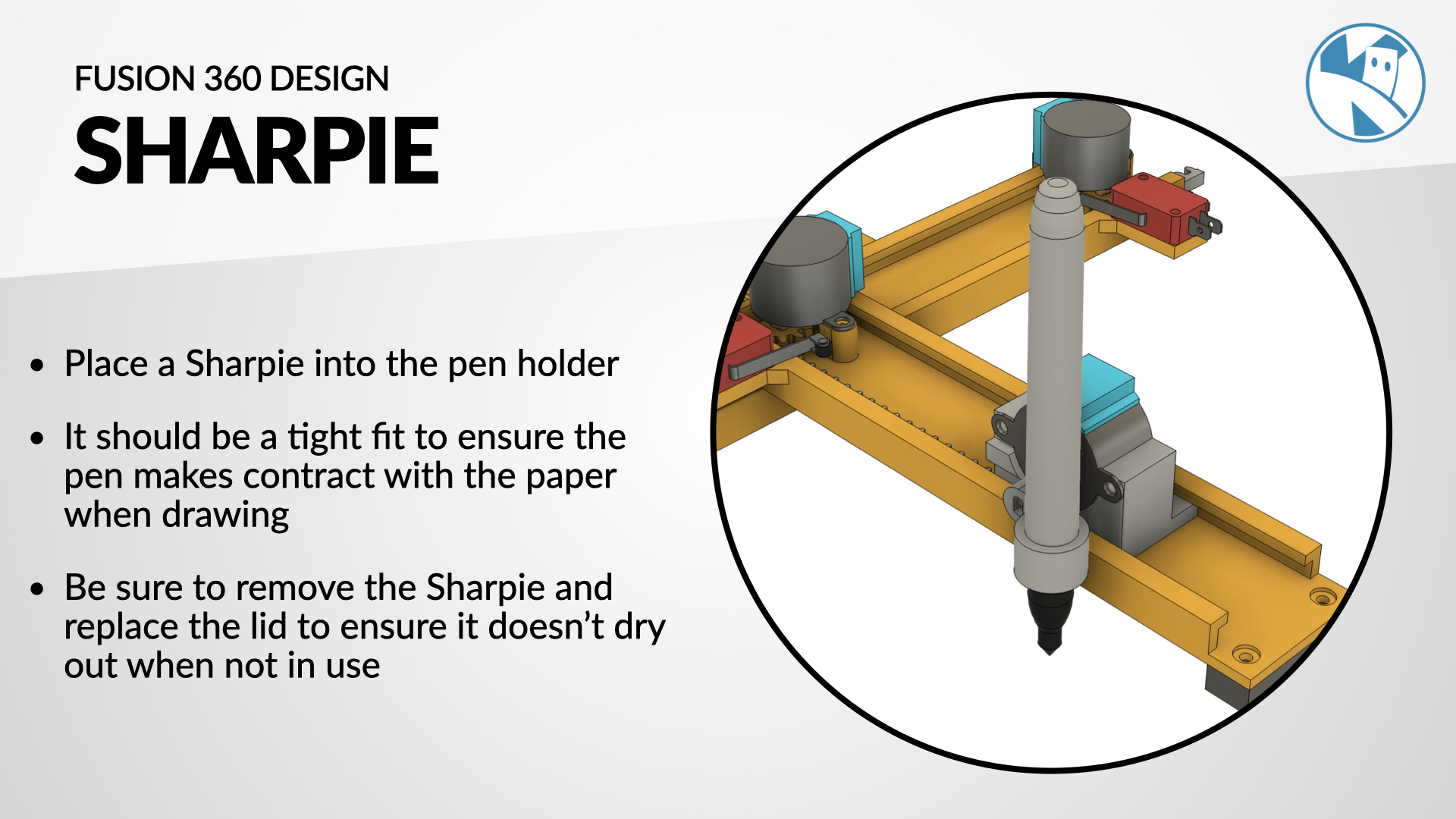

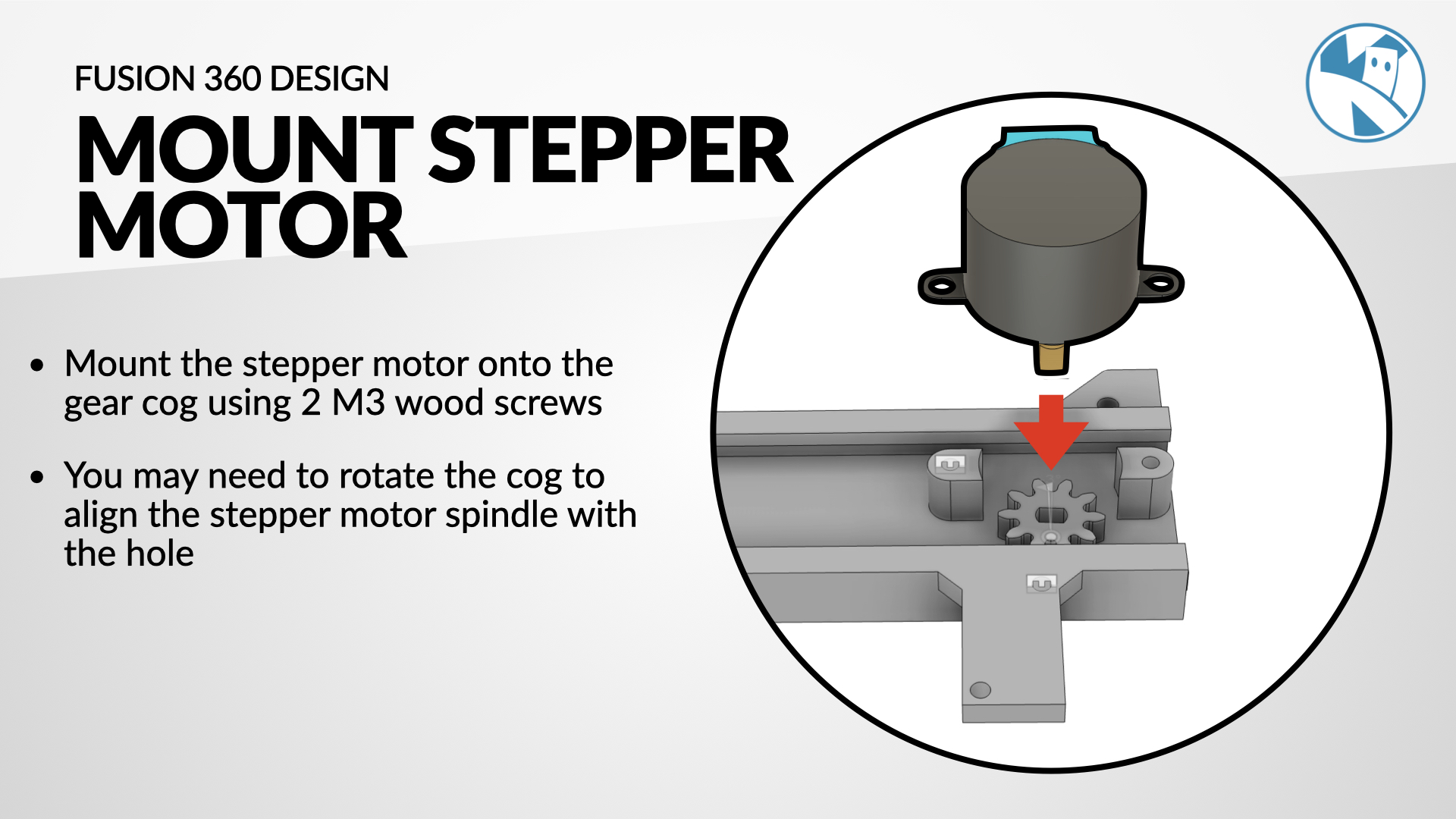

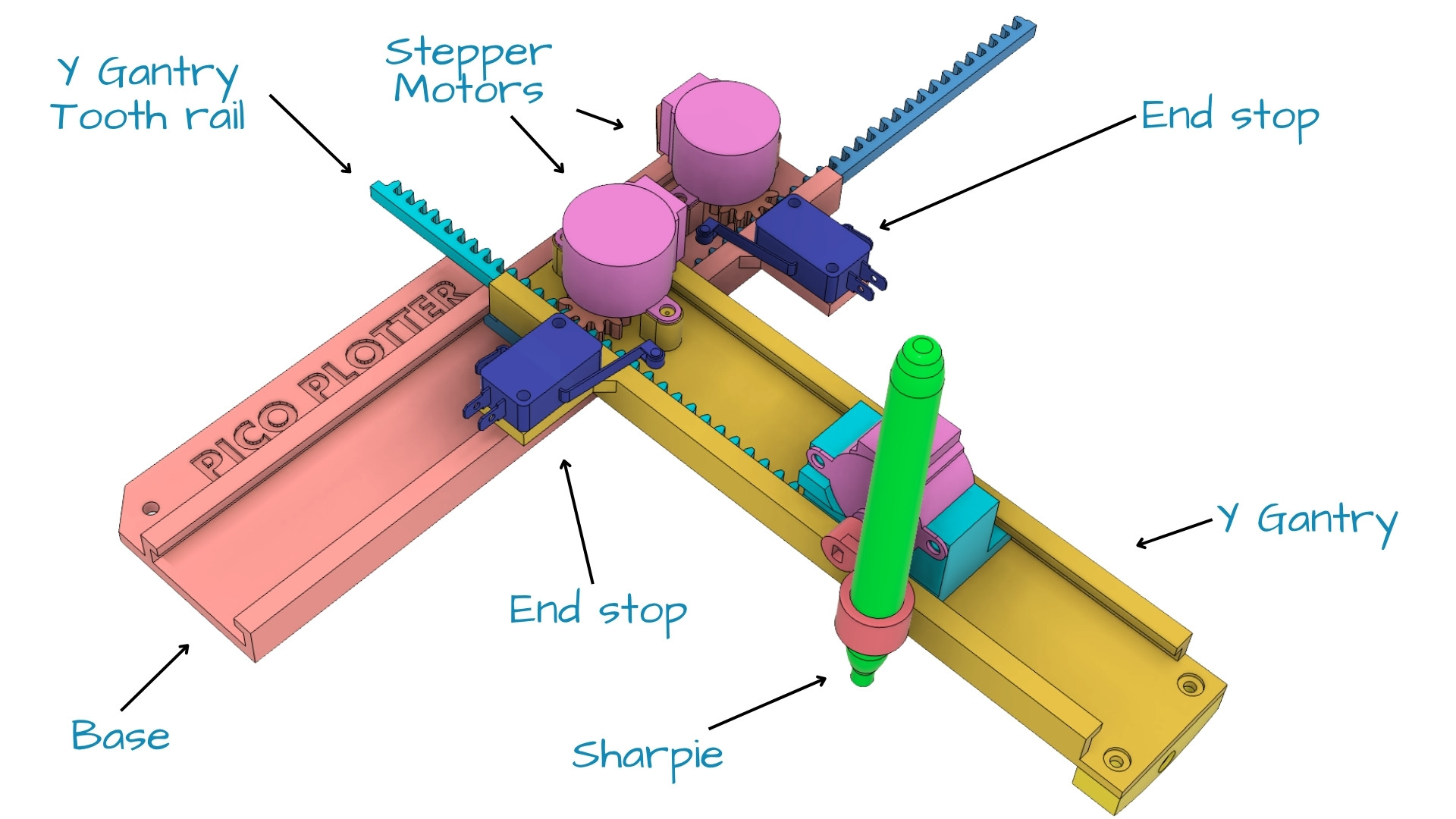

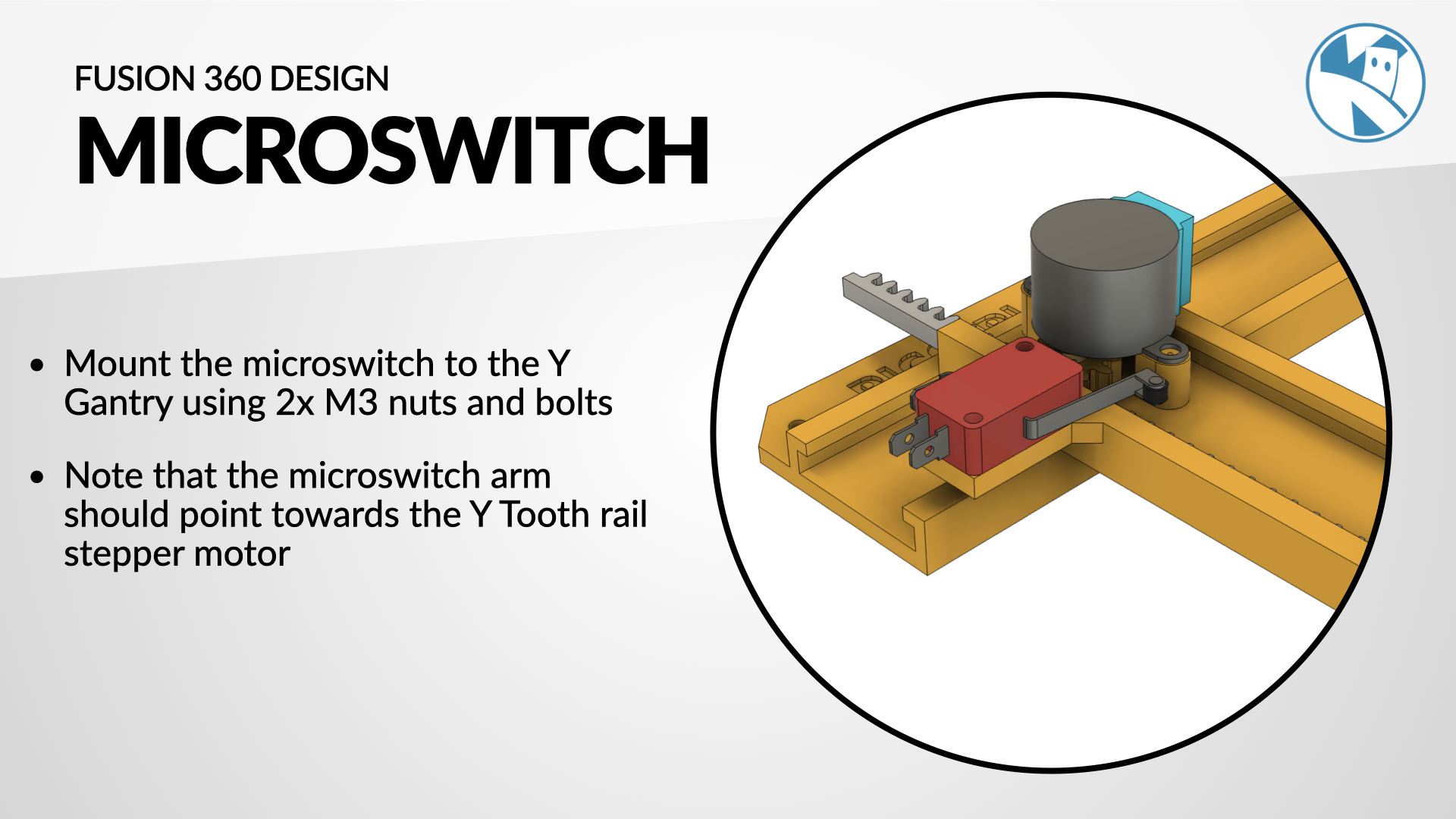

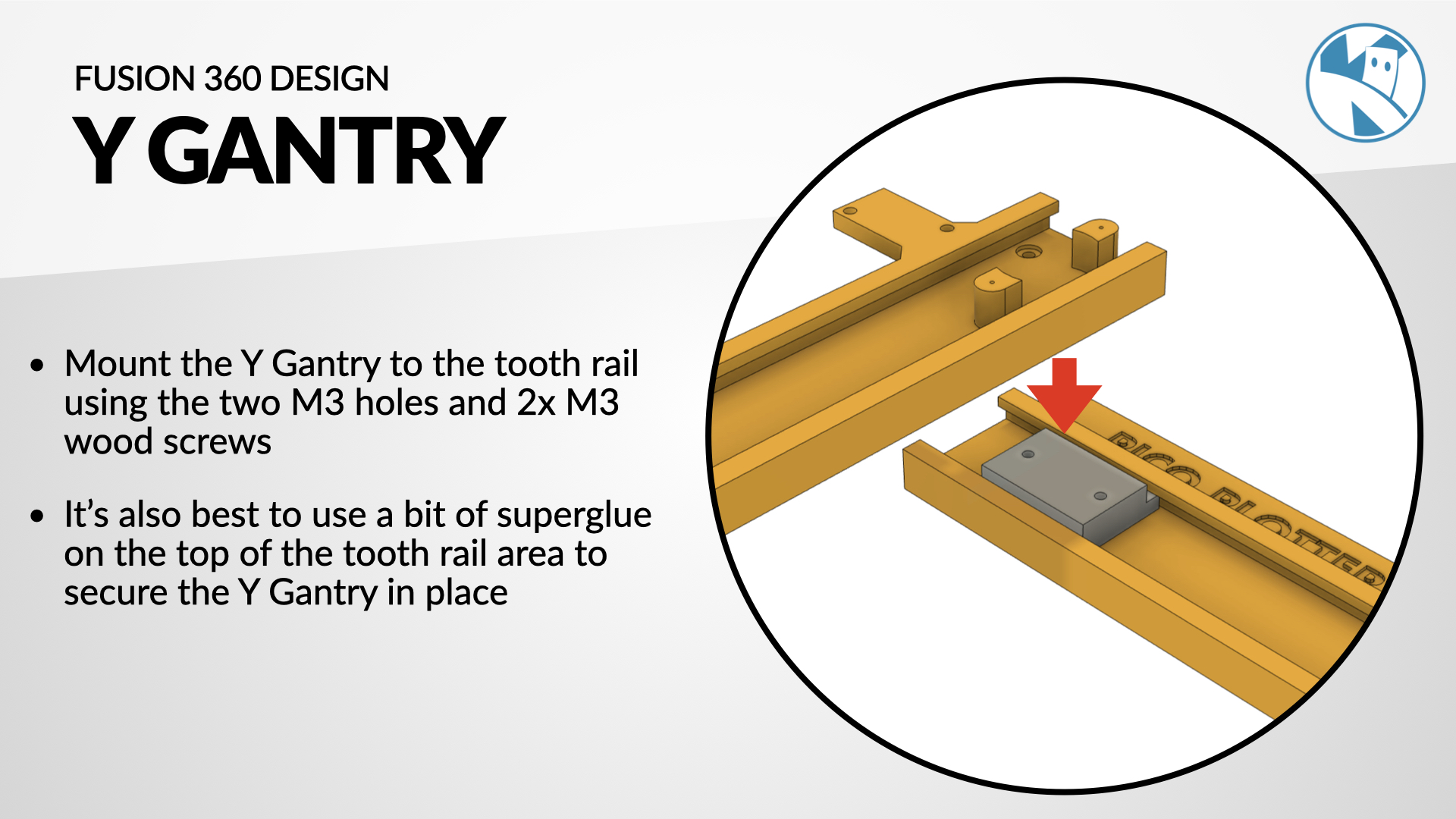

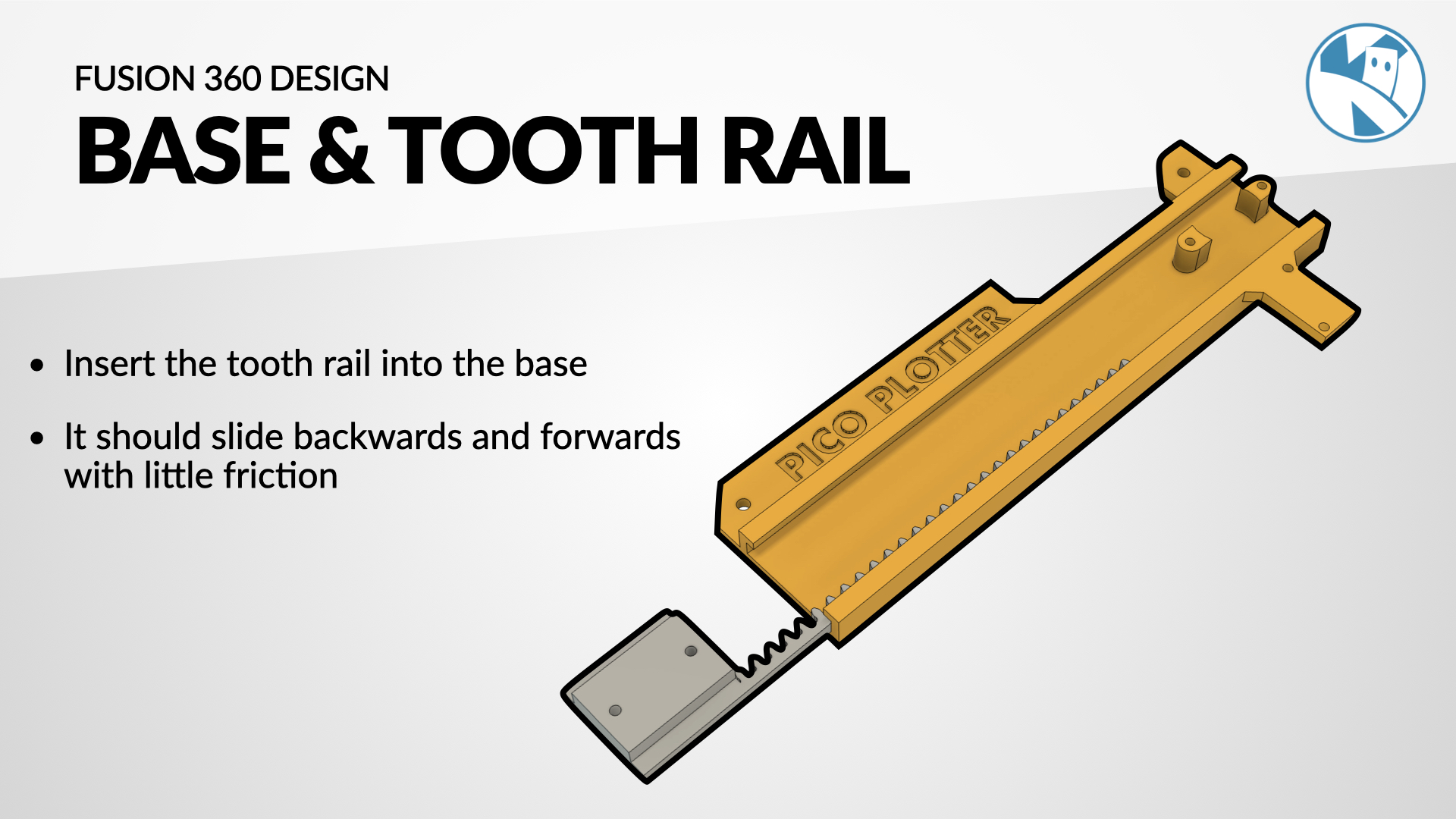

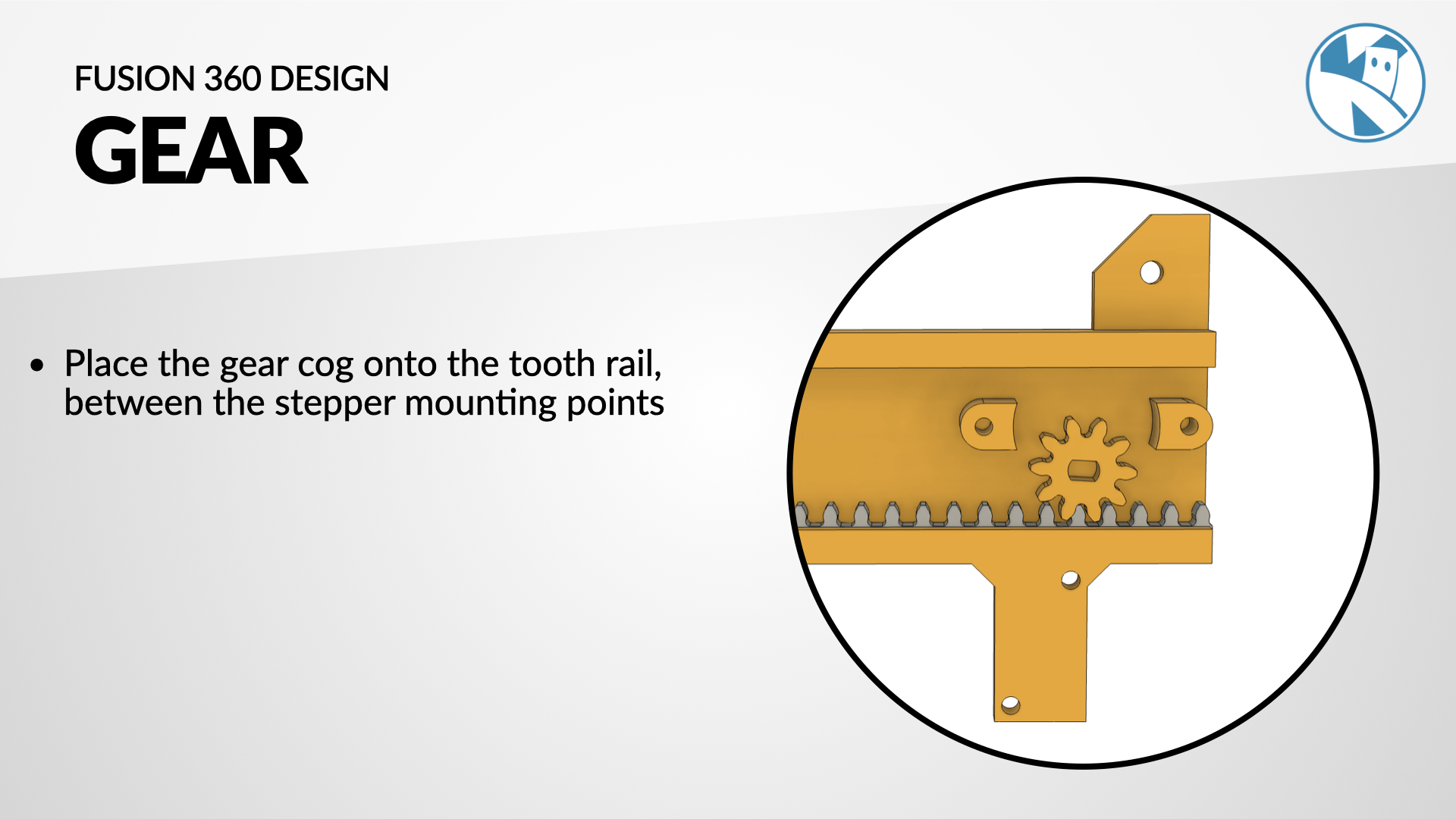

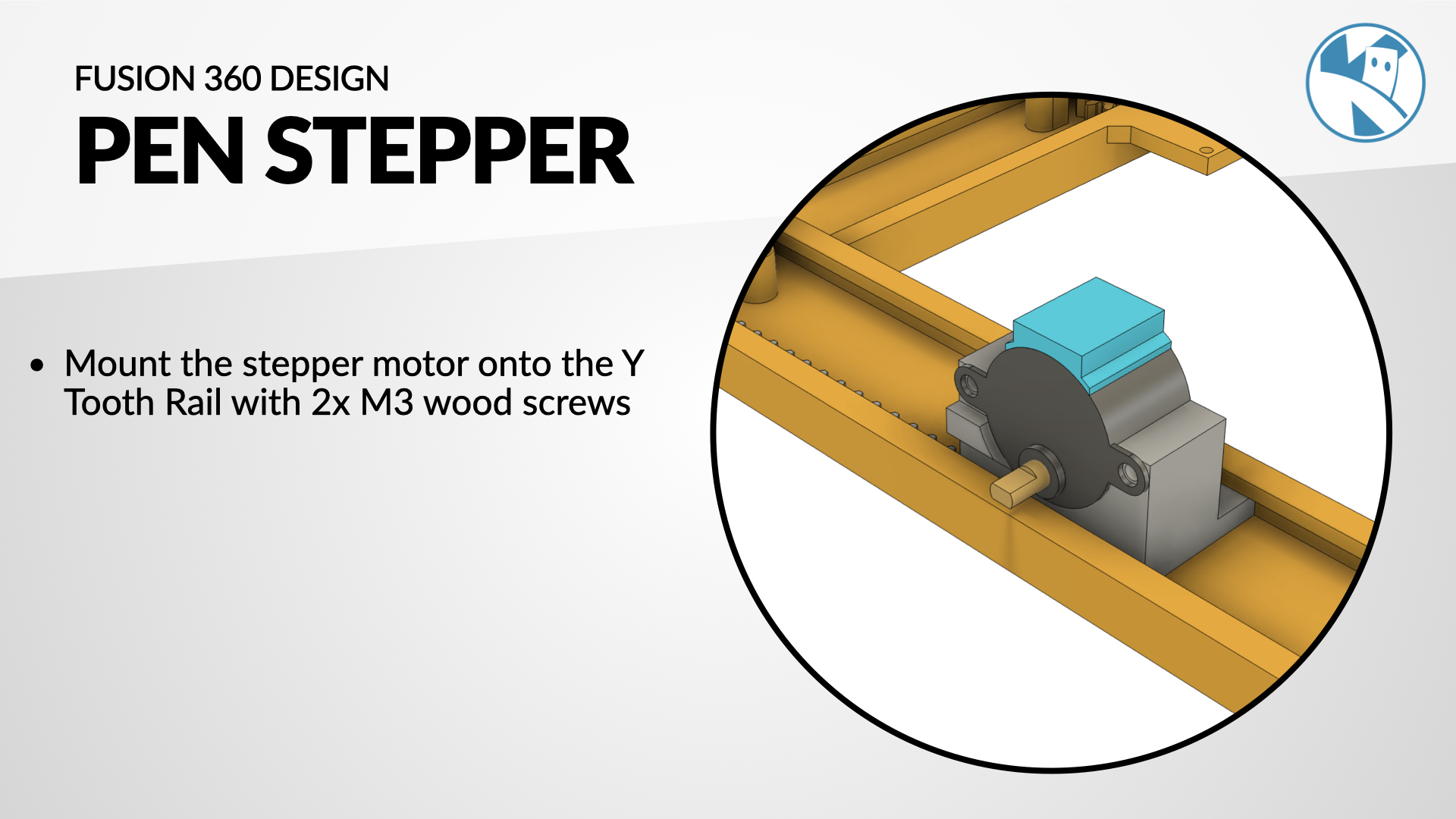

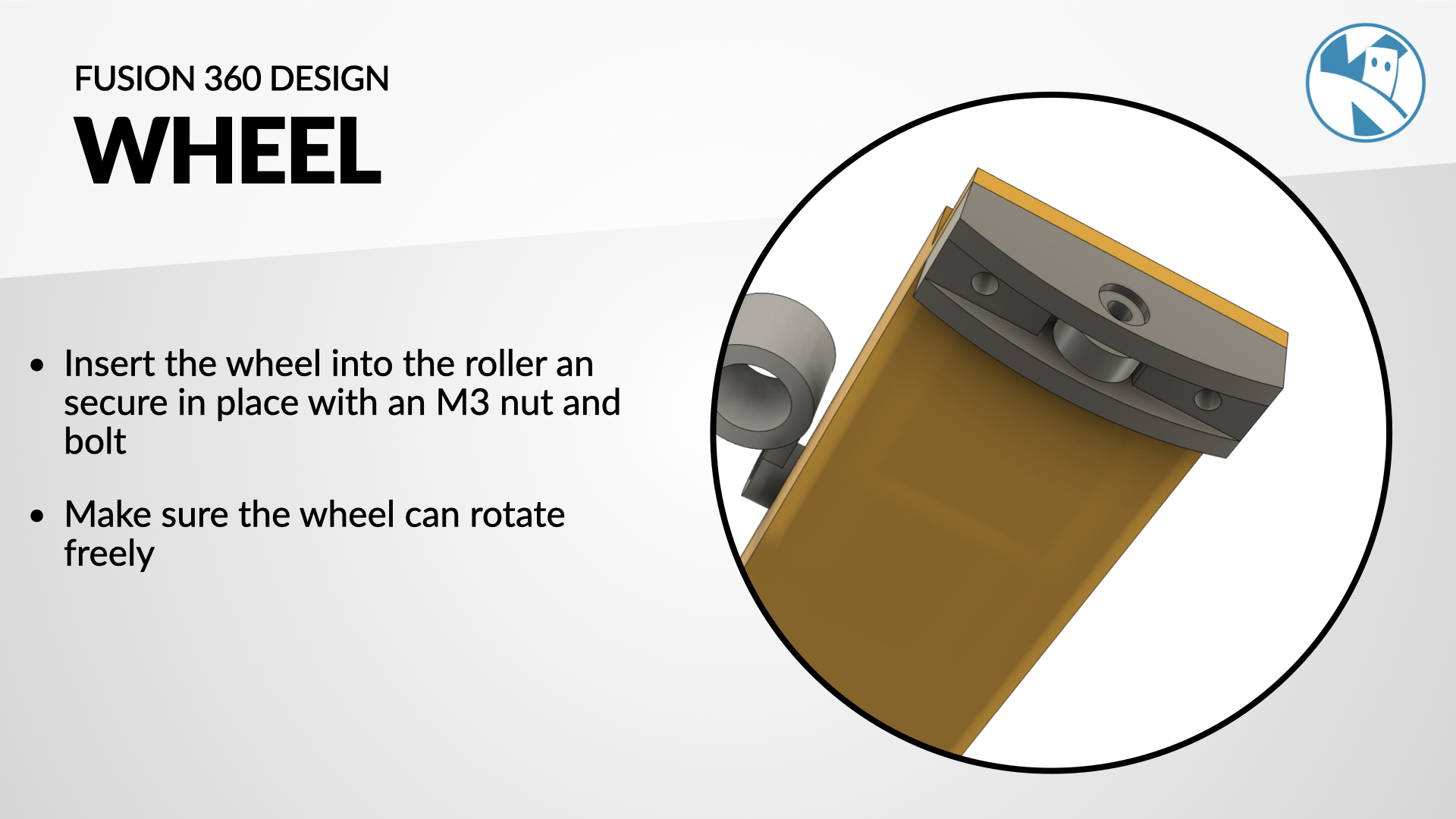

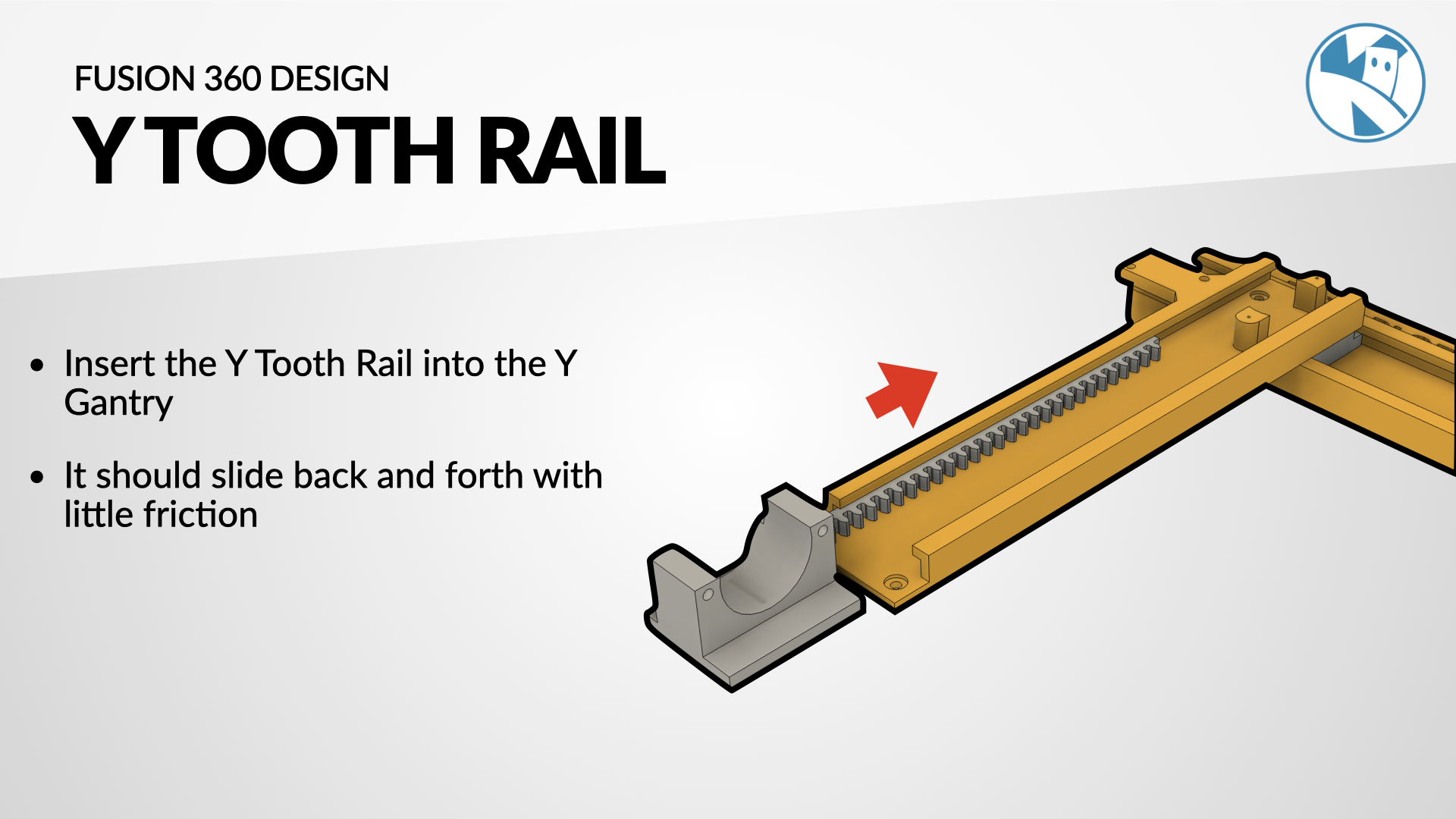

Inspiration This project was inspired by the desire to create a simple, low-cost plotter that can be used with a Raspberry Pi Pico. The idea is to use a stepper motor to control the movement of a pen, allowing for basic drawing and plotting tasks. This is a ‘ground-up’ project, meaning that it is designed to be built from scratch using basic components, making it accessible for beginners and hobbyists. I’ve written the code in MicroPython, that takes G-code from other software, and converts it to stepper motor movements. Components Components Pico Plotter Parts Hardware The design is heavily inspired by the Arduino mini cnc plotter project by Daz_projects, though I’ve created my own version of this design in Fusion 360, and included some enhancements to the design, such as end-stops to prevent the motors from moving too far, and a more robust design for the pen holder that works with Sharpies. Bill of Materials Item Description Qty Price Total Stepper Motors 28BYJ pack of 5 1 17.99 17.99 Pico Raspberry Pi Pico 1 4.00 4.00 Dupont Cables Pack of 3 types 1 5.99 5.99 Servo Helper 1 6.00 6.00 MicroSwitches pack of 10 1 6.99 6.99 Assembly Software This project uses 3 files of MicroPython code to control the plotter: stepper.py: This file contains the code to control the stepper motors. main.py: This is the main file that runs the plotter, taking G-code gcode-interpreter.py: This file interprets G-code commands and converts them to stepper motor movements. All 3 files need to be copied to the pico; you can use the Thonny IDE to do this, or copy them directly to the Pico using a USB cable. You can find the code on GitHub. CNCJS CNCJS is a web-based interface for controlling CNC machines, including plotters. It provides a user-friendly interface for sending G-code commands to the Pico Plotter. You can install CNCJS on your Raspberry Pi and connect it to the Pico Plotter to control it remotely. Our MicroPython code is designed to work with CNCJS, allowing you to send G-code commands directly from the CNCJS interface. This makes it easy to control the plotter and create drawings, and import drawings from other software.
