Stub wheel profile
Create the Stub wheel profile
By Kevin McAleer, 1 Minute
The stub wheel is actually created using a profile that is then revolved around an axis to form a rounded part.

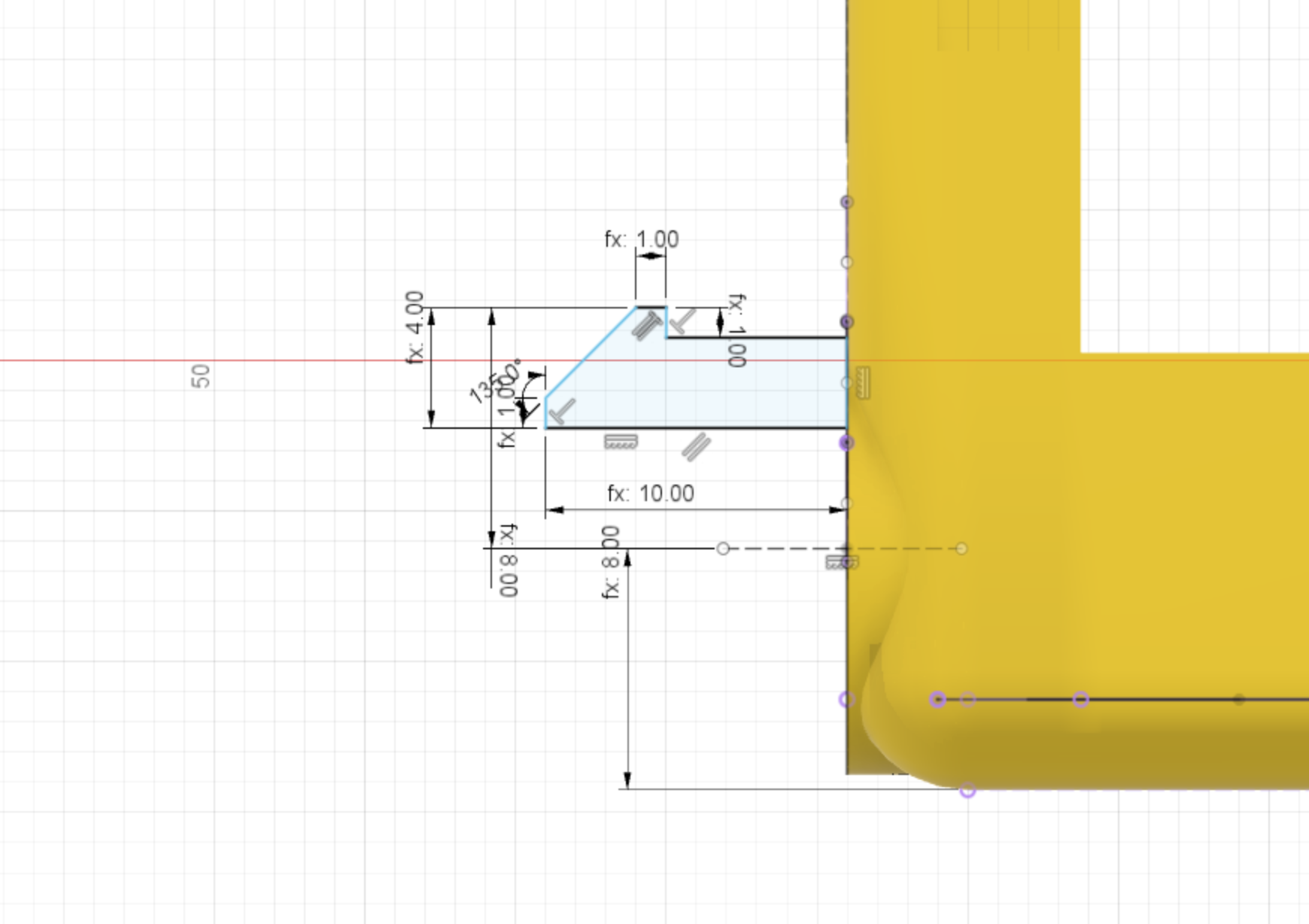

This is a complex part to describe so please refer to the diagram below for dimensions.
