Build a SMARS Robot in Fusion 360
64% Percent Complete
Overview
Create the Base
Refine
Wheels
Motor Holders
Front
Wheel
Final Design
Motor holder slots profile
define the motor holder slots
By Kevin McAleer, 1 Minute

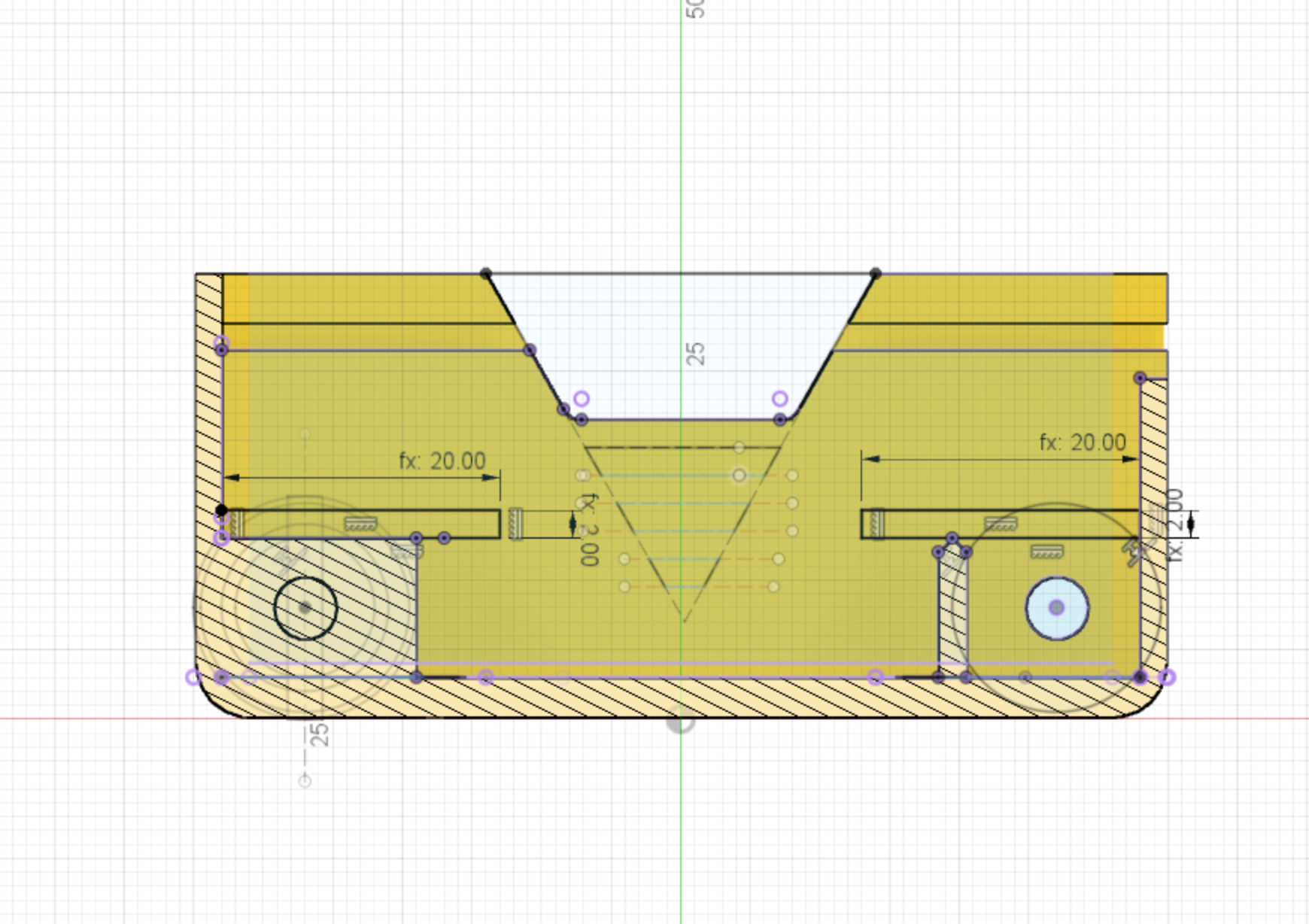

Two slot profiles need to be sketched above each of the areas where the motors live. This will enable a motor holder part to be snaped into place later once the motors are installed. The parts are pressure fit, so this part will only need to be a few mm deep.
Dimensions:
- length = 20mm
- depth = 2mm
