The Chassis Base
Sketch the rectangle the whole chassis is built from
By Kevin McAleer, 1 Minute

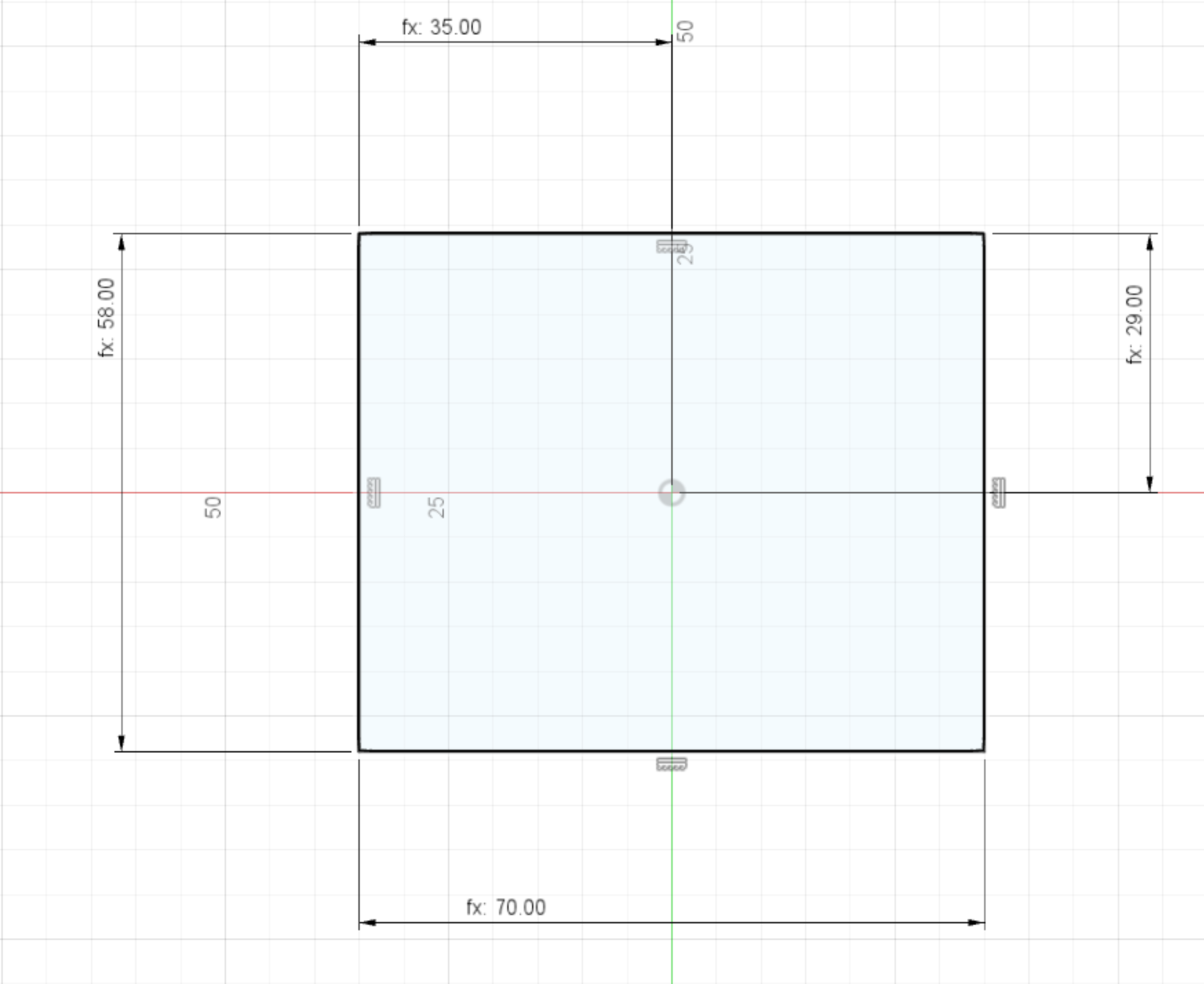

The Chassis Base is a rectangle with 2 dimensions:
- Length = 70mm
- Width = 58mm
