Fillet the Shell

Give the Chassis some roundness

By Kevin McAleer,    1 Minute

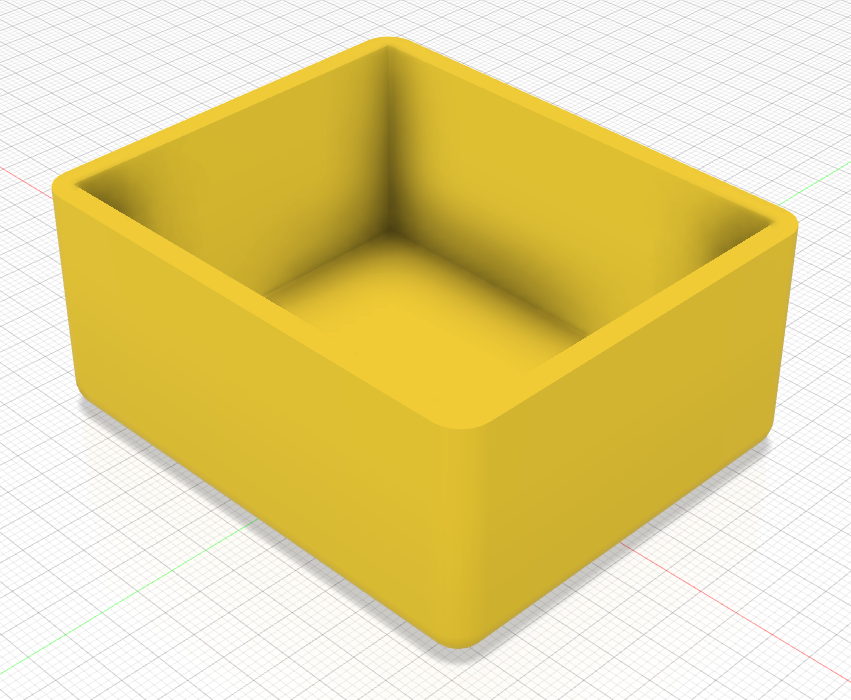

The Chassis is now given a fillet around the bottom edges and each of the corners, to make it pleasing to the eye.

  • Roundness = 4mm
