Stub wheel cutout
Cut away the center section
By Kevin McAleer, 1 Minute

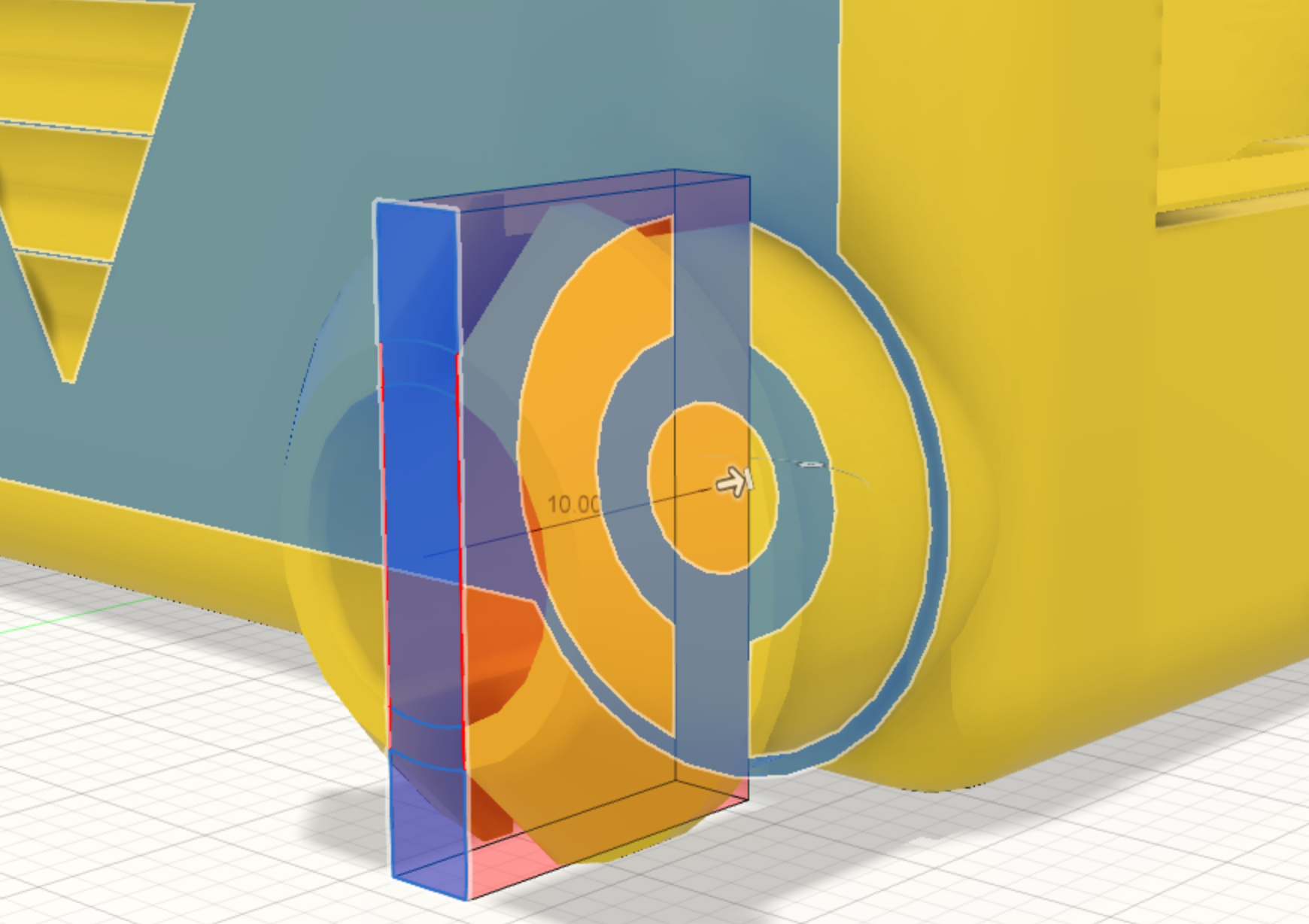

The Stub wheel cutout profile is used to extrude-cut the section into the stub wheel to create two halfs.
The cut operation goes through the stub wheel to the surface of the side of the chassis body.
