Unpowered wheel stub profile
Create a wheel stub profile
By Kevin McAleer, 1 Minute

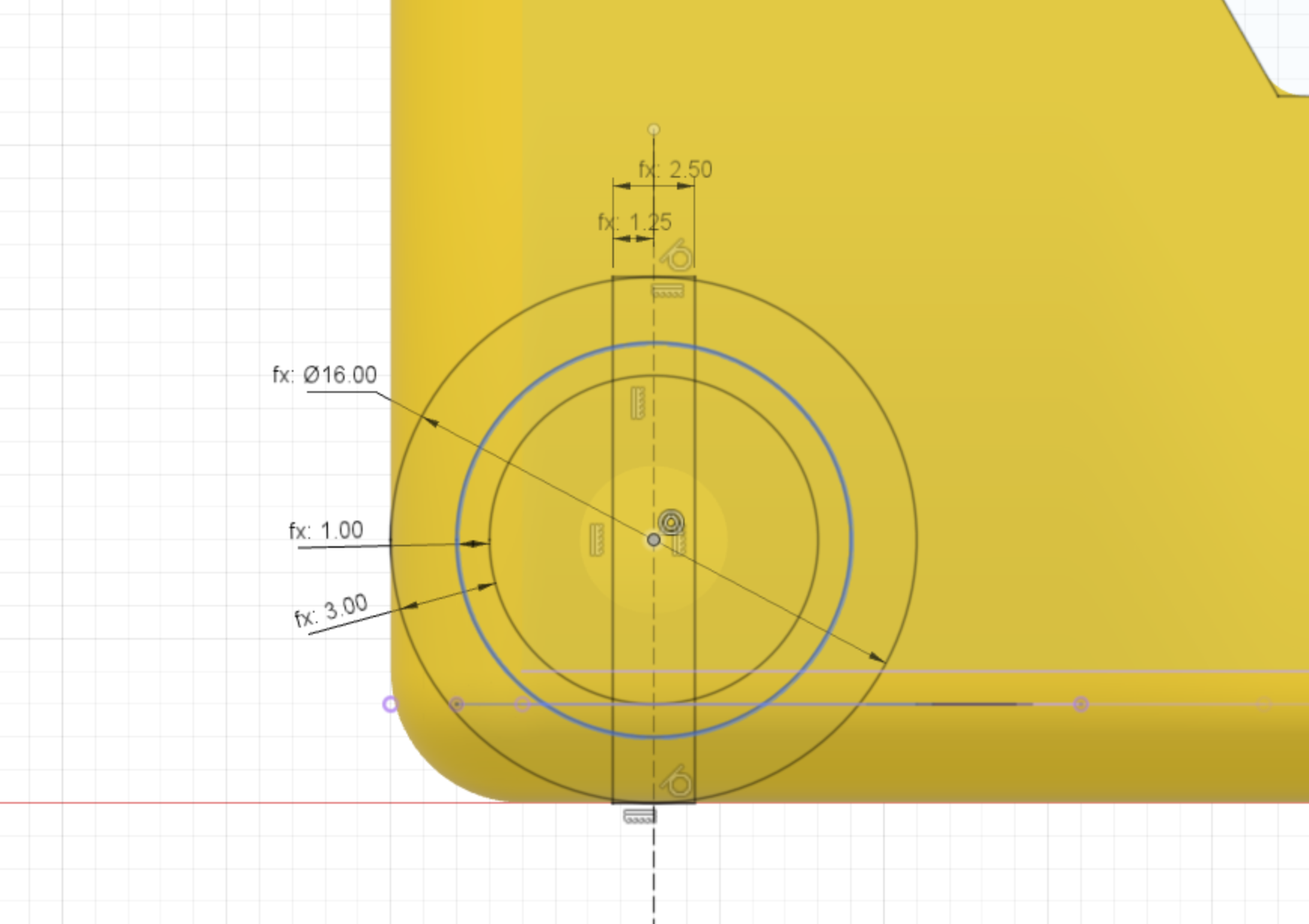

The unpowered wheel stub profile is sketched next.
This has several dimensions:
- stub diameter = 16mm
- stub inner diameter = 3mm (offset from stub diameter)
- stub flat diameter = 1mm (offset from the stub inner diameter)
- stub cut out slot width = 2.5mm
