Stub wheel revolve

Revolve the profile to creat the stub

By Kevin McAleer,    1 Minute


The Stub wheel profile created above is revolved around the center of the wheel hole to create a solid body. The revolve operation also joins this to the chassis.

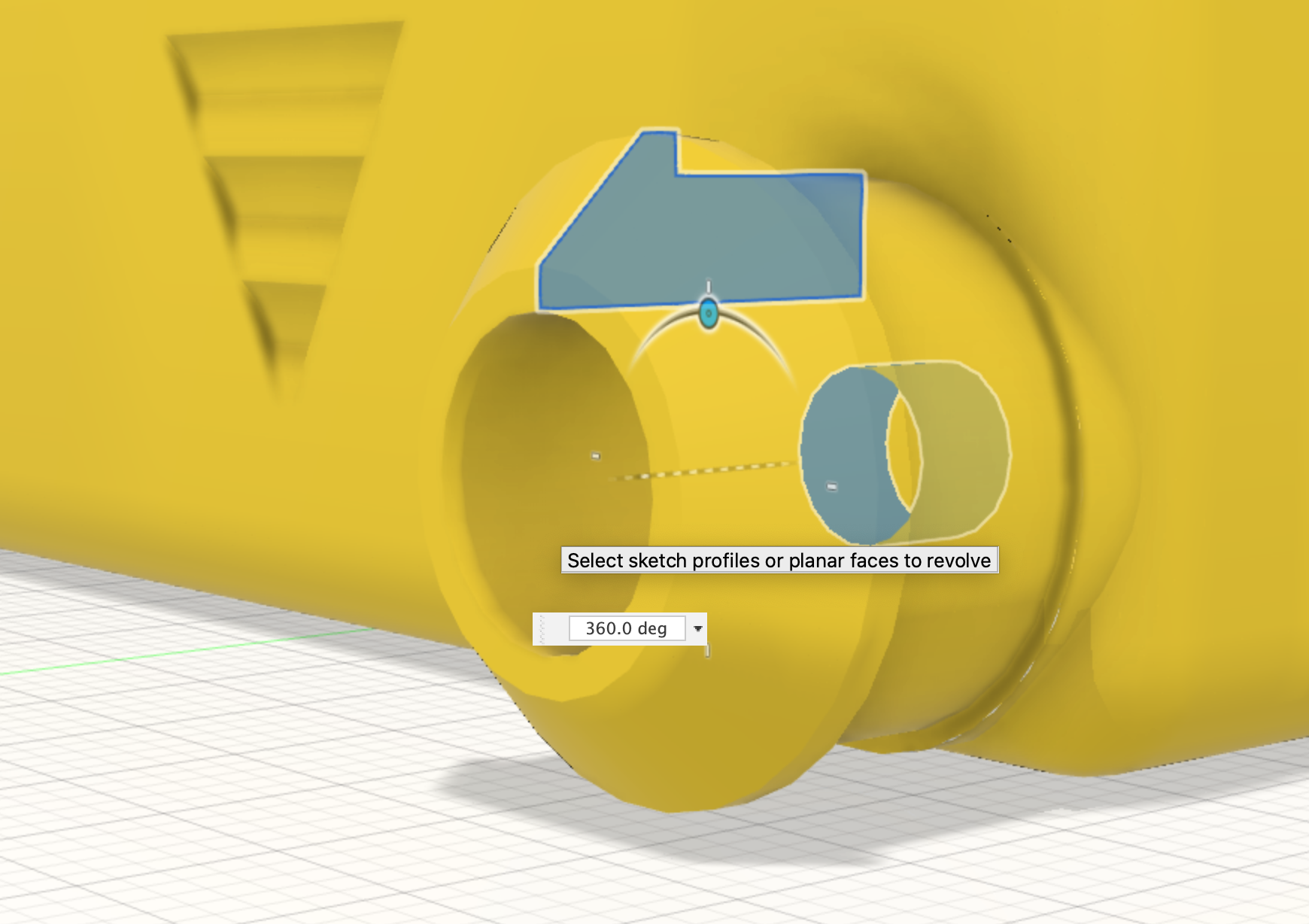

Chassis stub wheel revolve Cad Drawing
