Motor Holders
Front Cut
Stub Wheels
Motor Holder Slots
Final Design
Motor holder slot extrude-cut
Cut out the slot
By Kevin McAleer, 1 Minute

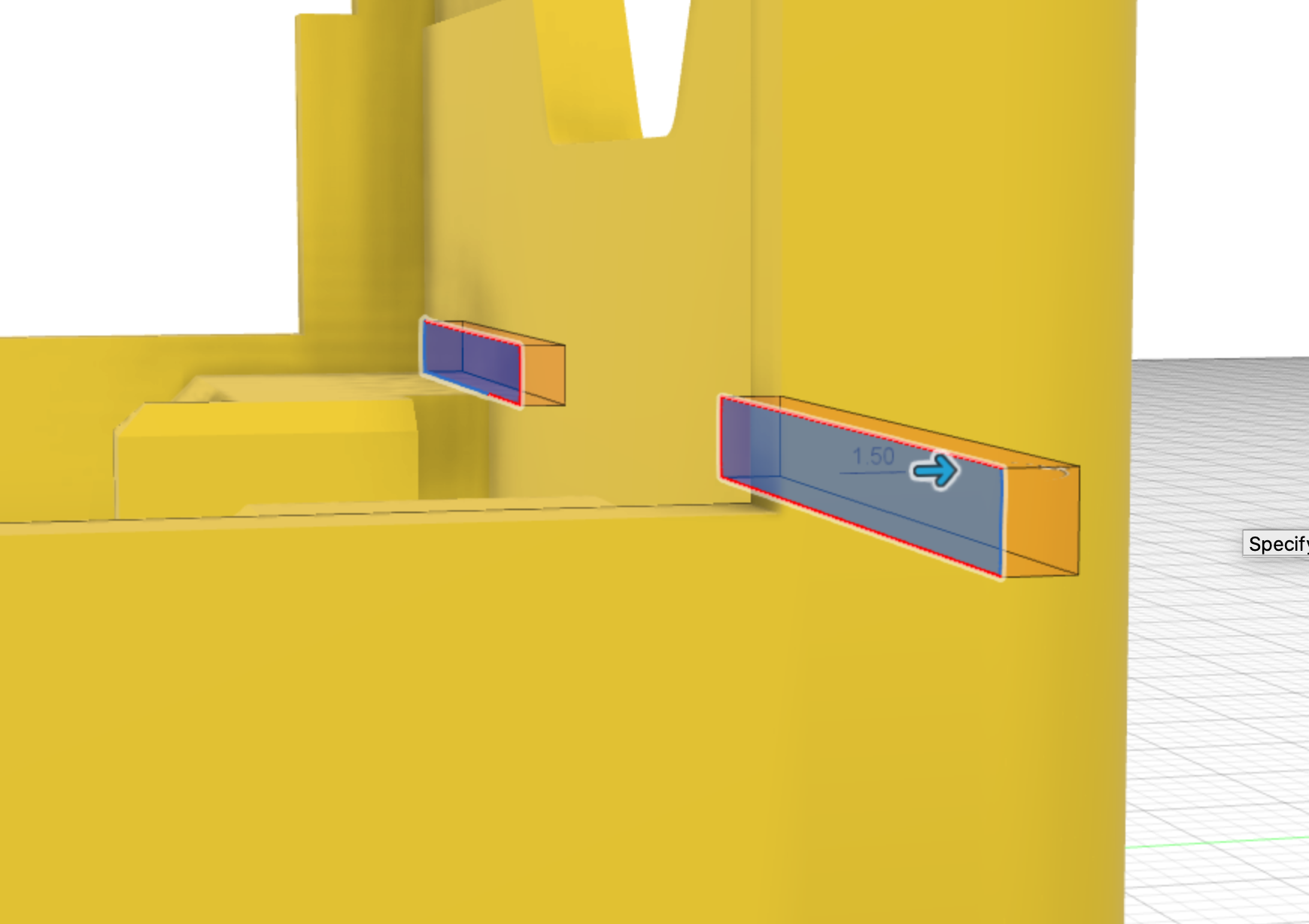

The Motor holder slots profile is used to extrude-cut the slots into the chassis.
The dimensions for the cut are:
- extrude cut depth = 1.5mm
This feature is then mirrored across to the other side of the chassis.
