Visualise Laserscan
It’s finally time to visualise the laser scan data.
-
Add Laser_scan topic display - In rviz2, click the
addbutton -

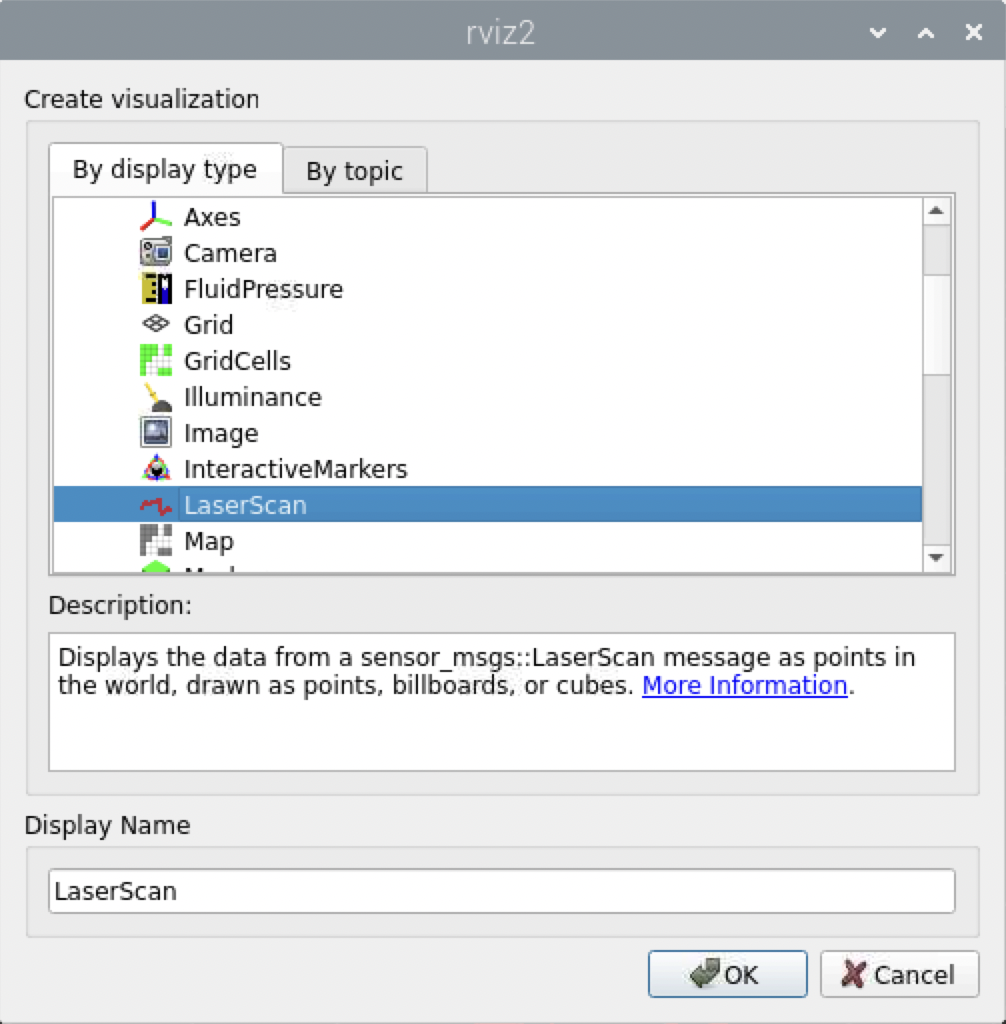

Select Laser_scan - Scroll down the list of displays types and select the
laser scanand clickok
- Set the settings - Click the disclosure triangle next to
LaserScanto open it up

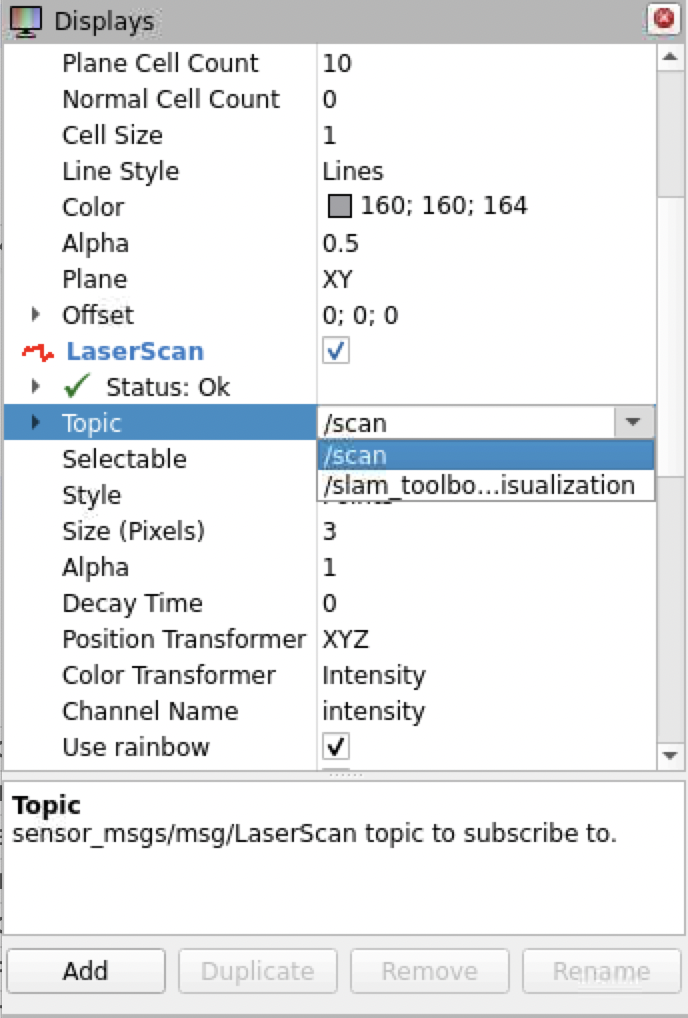

- Change topic to scan - Change the topic to
/scan

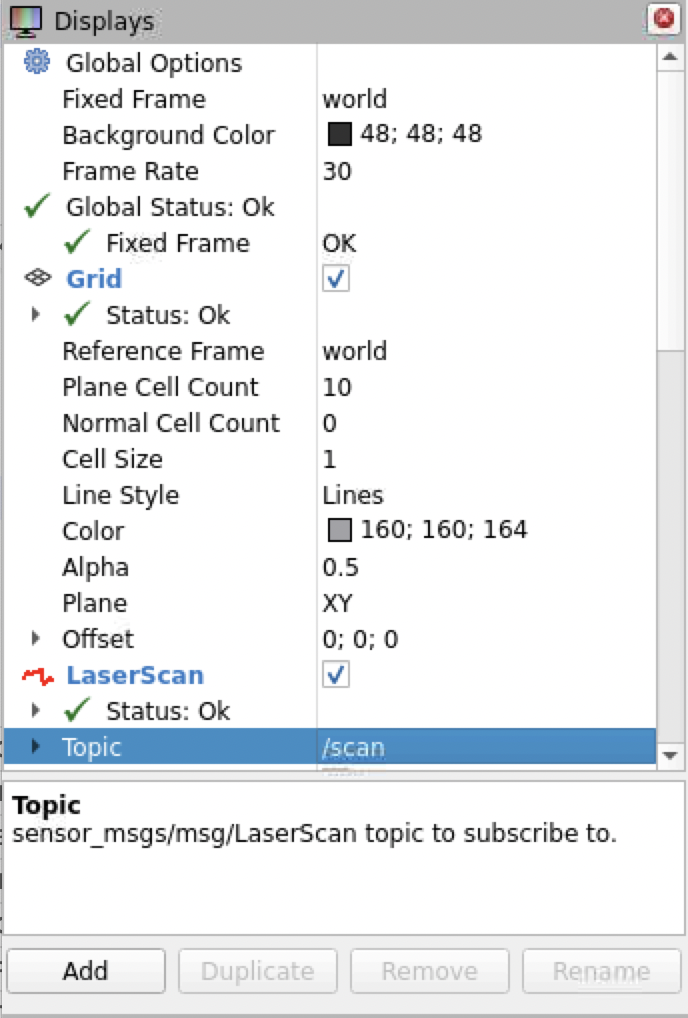

- Change the Fixed Frame to world - Under
Global Options, change theFixed Frametoworld
🥳 you should now be able to see the Lidar Data in the middle panel
If the scan doesn’t appear, this video covers a bug I hit at this point and how I fixed it:
Check your understanding
Quick quiz 1 of 3
Why do we need a transform from laser_frame to world?
world frame.Quick quiz 2 of 3
Which topic does the RPLidar node publish its scans to?
Quick quiz 3 of 3
Why does RViz2 need X11 forwarding when it runs in Docker?
