Getting Rviz2 and RQT to work in docker

Let's learn how to redirect our X11 Display

By ,    Minute


Cover Photo


To get the ROS visualisation tool rviz2 to work in our docker container we need to redirect any graphics calls to outside our container into the hosts’s X11 environment.

What is X11

X11 is a software package developed by the Massachusetts Institute of Technology (MIT) in the 1980s that enables graphical user interfaces (GUIs) to be created and used on Unix-based systems. It works by using a network protocol called the X Window System Protocol to communicate between the server and the client. The X server runs on the computer with the screen, keyboard and mouse, and draws everything. The clients are the applications, such as RViz2, which send drawing commands to the server. Because it’s a network protocol, an application running in one place (like our Docker container) can draw windows on a screen somewhere else (like the Raspberry Pi desktop).

X11 is the traditional display system on Linux, and X servers are available for macOS and Windows too. (Newer Raspberry Pi OS releases use Wayland, but still run X11 applications through XWayland.)

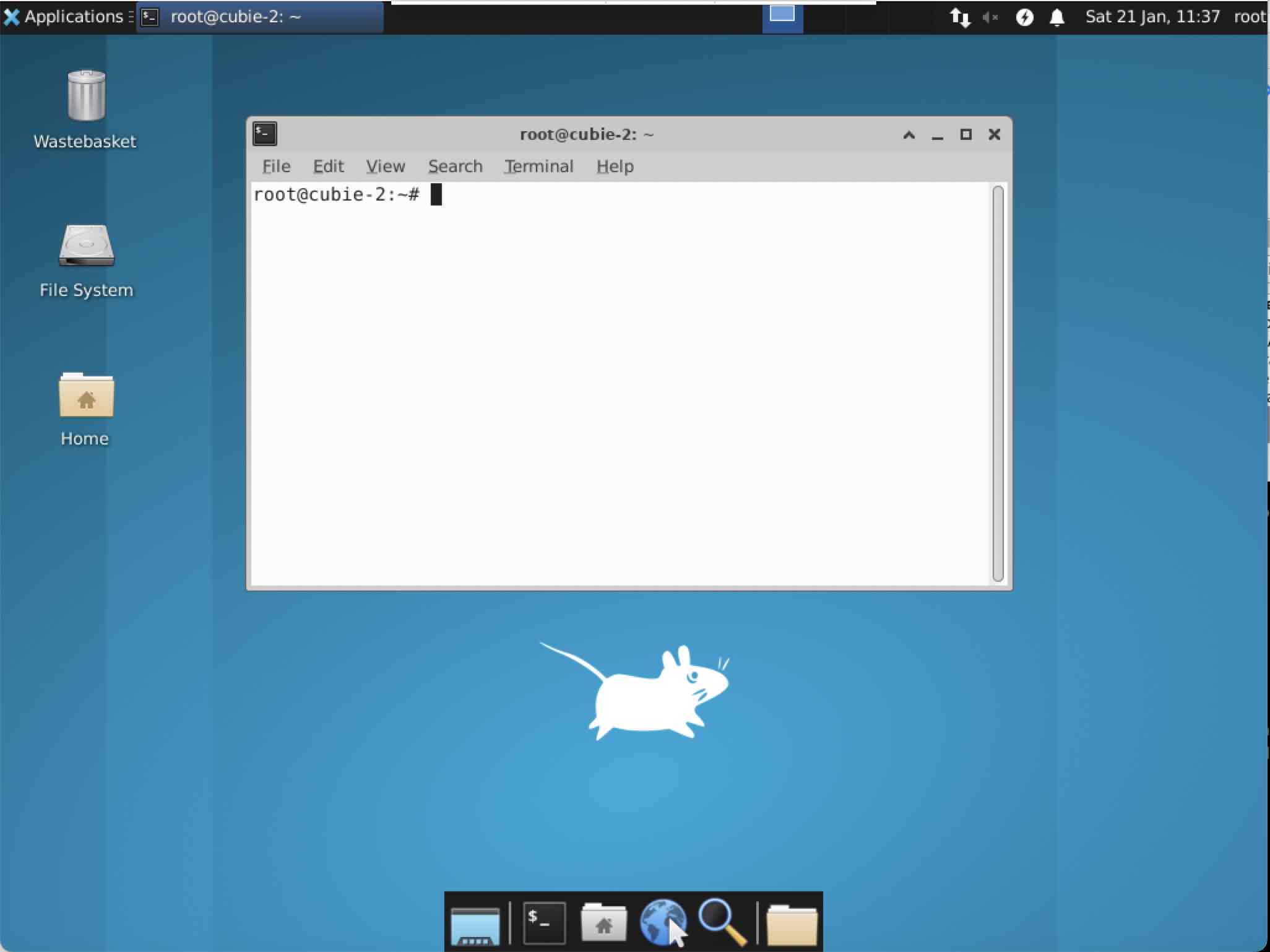

X11 example desktop


Redirecting the X11 Display to the host

To redirect any X11 display commands from within the docker container running ROS2, to outside the container (our Raspberry Pi 4 OS), we need to do two things:

  1. Use xhost to enable other processes to access the X11 server (this isn’t exactly secure, but for now it works)
  2. export the DISPLAY environment variable - this will complete the plumbing so we can run RViz2.
  • xhost - from the raspberry pi terminal type:
xhost local:root
  • Add display to docker-compose.yml - Edit the docker-compose.yml file to include the lines:
environment:
  - DISPLAY

We also add network_mode: host so the container shares the Pi’s network, which ROS 2 needs to find nodes running outside the container.

The full docker-compose.yml file should now look like this:

version: "3.9"
services:
  ros2:
    build: .
    network_mode: host
    volumes:
      - /home/kev/ros:/home/ros
      - /home/kev/cubie-1:/ros2
    devices:
      - /dev/ttyUSB0:/dev/ttyUSB0
    tty: true
    environment:
      - DISPLAY

Bring up the new docker-container

Now that we have updated our docker-compose file we need to bring the new container online; docker-compose has a simple command for this called up:

  • docker compose up -d - from the Raspberry Pi’s terminal, in the folder where the updated docker-compose.yml is, type:
docker compose up -d

Note the -d parameter means run the container detached (in the background). If you don’t include it, all the container output will display on this terminal, and the container will stop when the terminal session ends.
