Transformations with TF2
Let's learn about TF2 and use it to transform our laser data into the real world
By , Minute
TF2
tf2 is the ROS2 transform library, which lets the user keep track of multiple coordinate frames over time. tf2 maintains the relationship between coordinate frames in a tree structure buffered in time and lets the user transform points, vectors, etc. between any two coordinate frames at any desired point in time.
Transformations
Transformations allow us to convert (or translate) one set of coordinates to another. Our robot, and the coordinates of the parts of the robot can be considered to be local to the robot.
The robot exists in the real world (or virtual world) in a world coordinate space.
We need to transform the data from the Lidar, known as the laser_frame (which is in the robots local coordinates), to the world coordinate space.

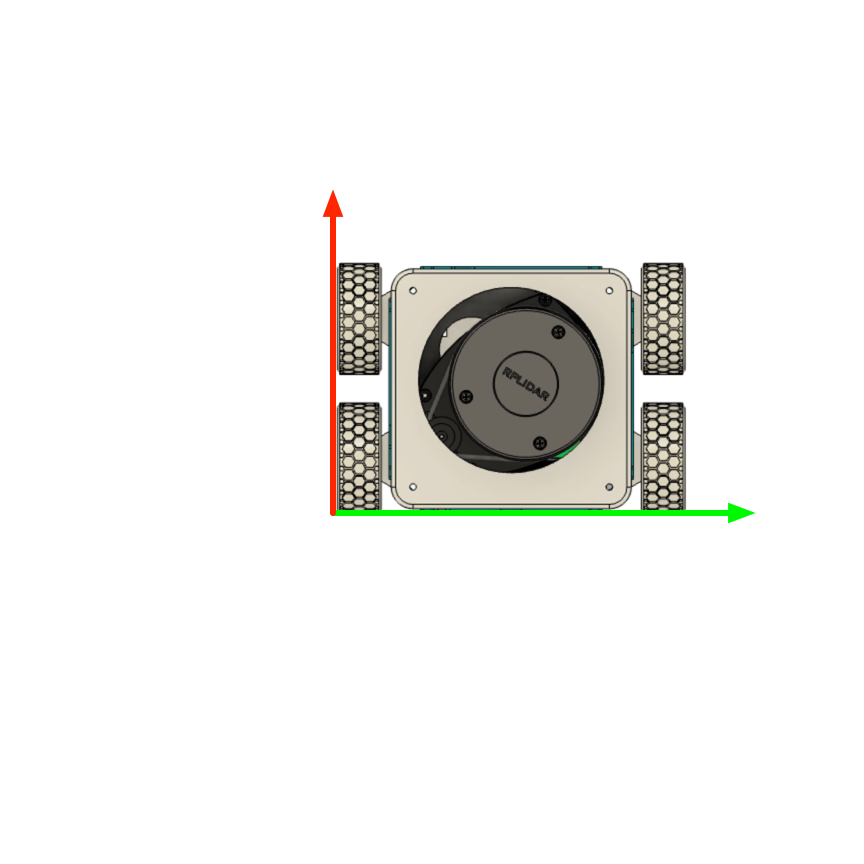

LocalCoordinate start at the objects origin- Real

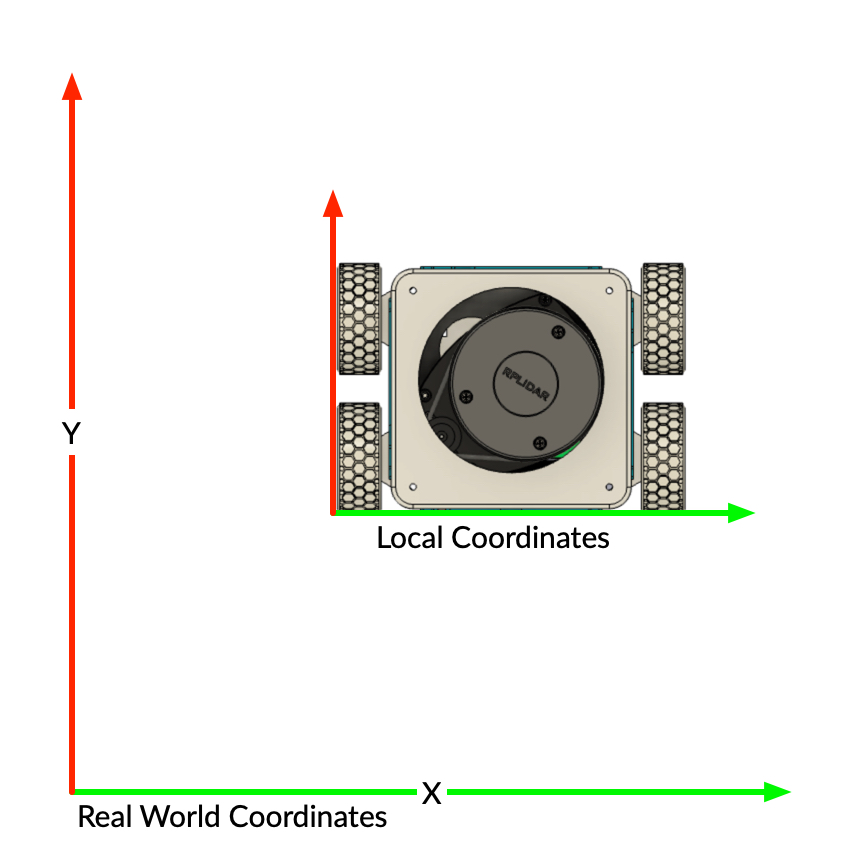

WorldCoordinates have a different origin

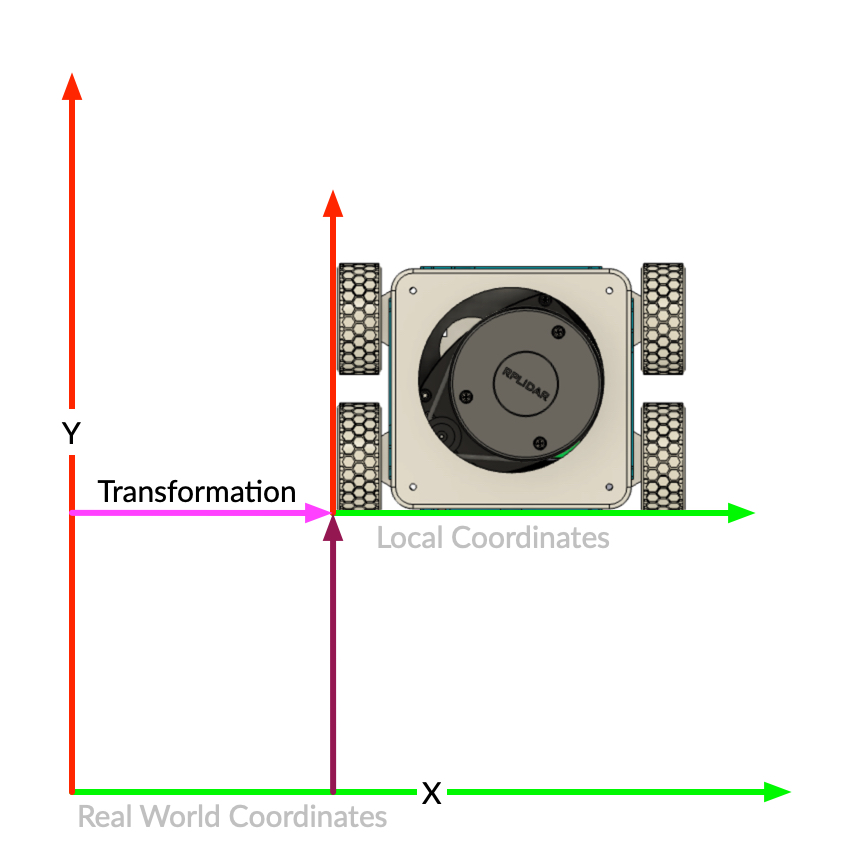

Transformations translate coordinates between the local and real world
Laser_frame to World
We will use TF2 to create the transform from the laser_frame to the world.
- Create the Transform with TF2 - from the container, type:
ros2 run tf2_ros static_transform_publisher 0 0 0 0 0 0 laser_frame world
The six numbers are the position (x, y, z) and rotation (yaw, pitch, roll) between the two frames. All zeros means the laser is at the centre of our world, facing forwards. Newer ROS 2 releases prefer named arguments, which do the same thing:
ros2 run tf2_ros static_transform_publisher --frame-id laser_frame --child-frame-id world
