PicoCat Lives

Some code and pictures

1 April 2022 by Kevin McAleer


Table of Contents


PicoCat V2 Update Video


Redesign

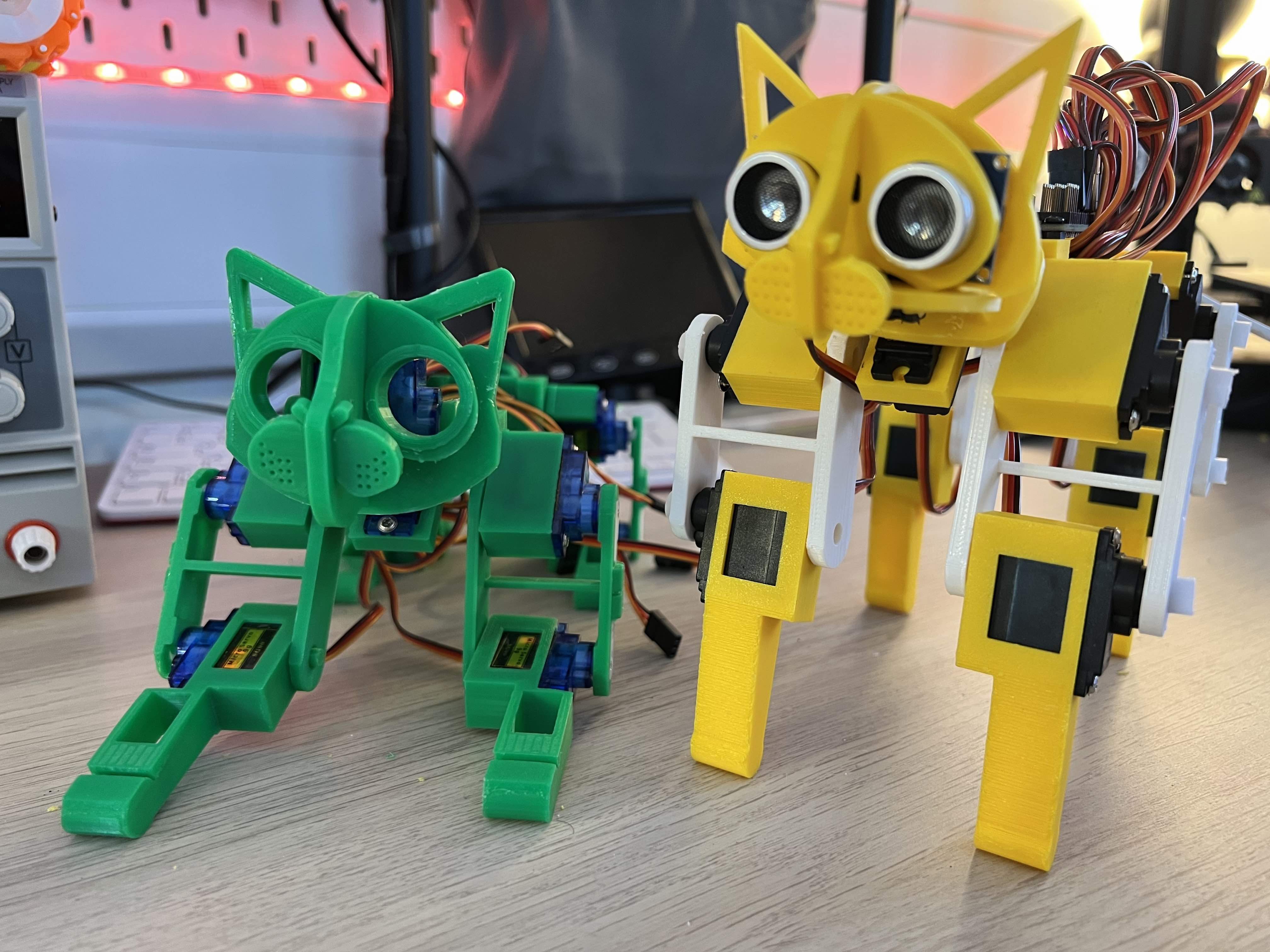

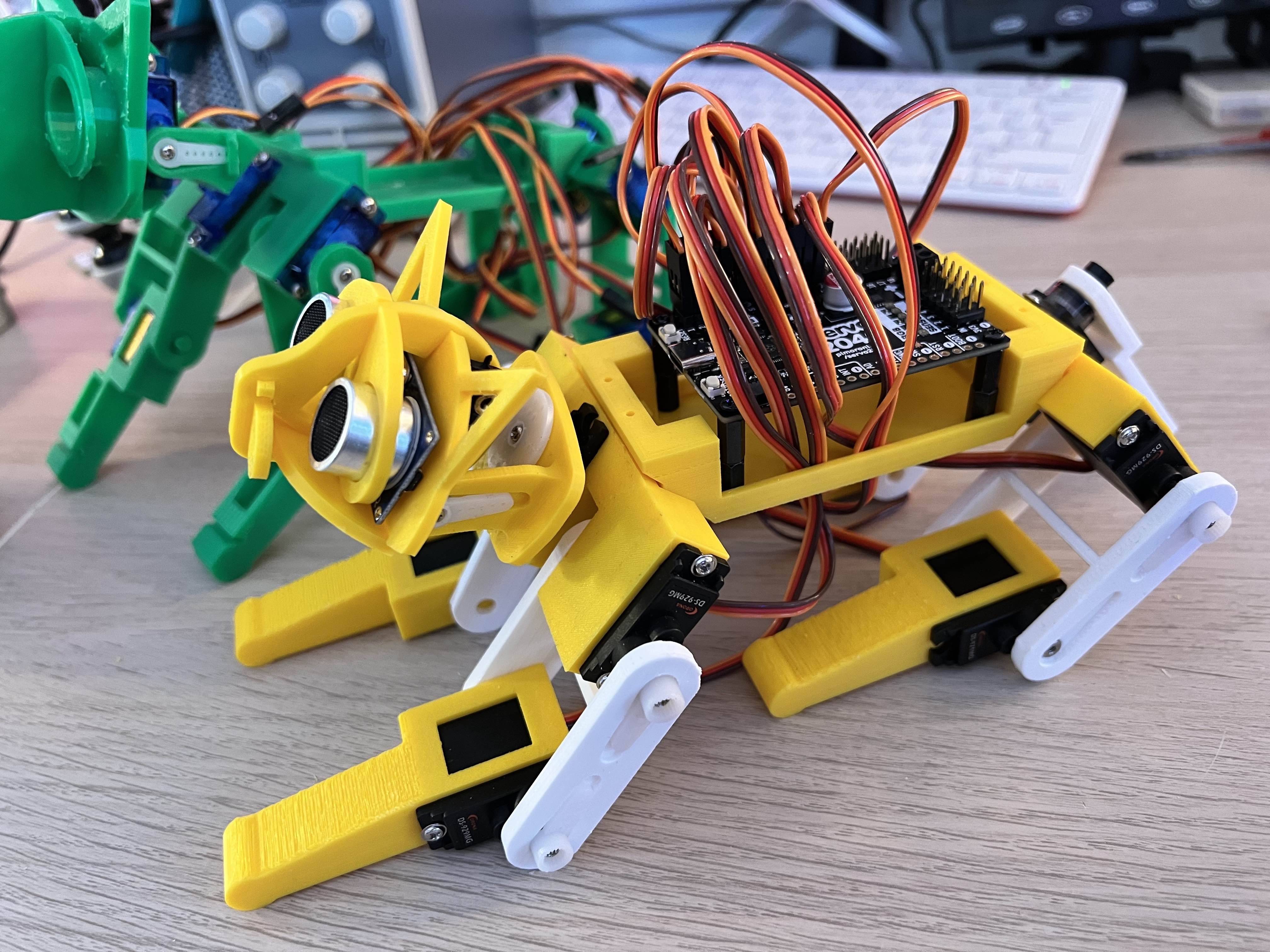

PicoCat v2 is a complete redesign of the original opensource Opencat project; that is to say each part has been remodelled in Fusion 360 to allow for the different size of servo used. The old model used either the SG90 or the MG90. The DS-929MG is slightly longer than the sg90 and mg90. The only parts not changed are the head assembly parts.

Servo Comparison

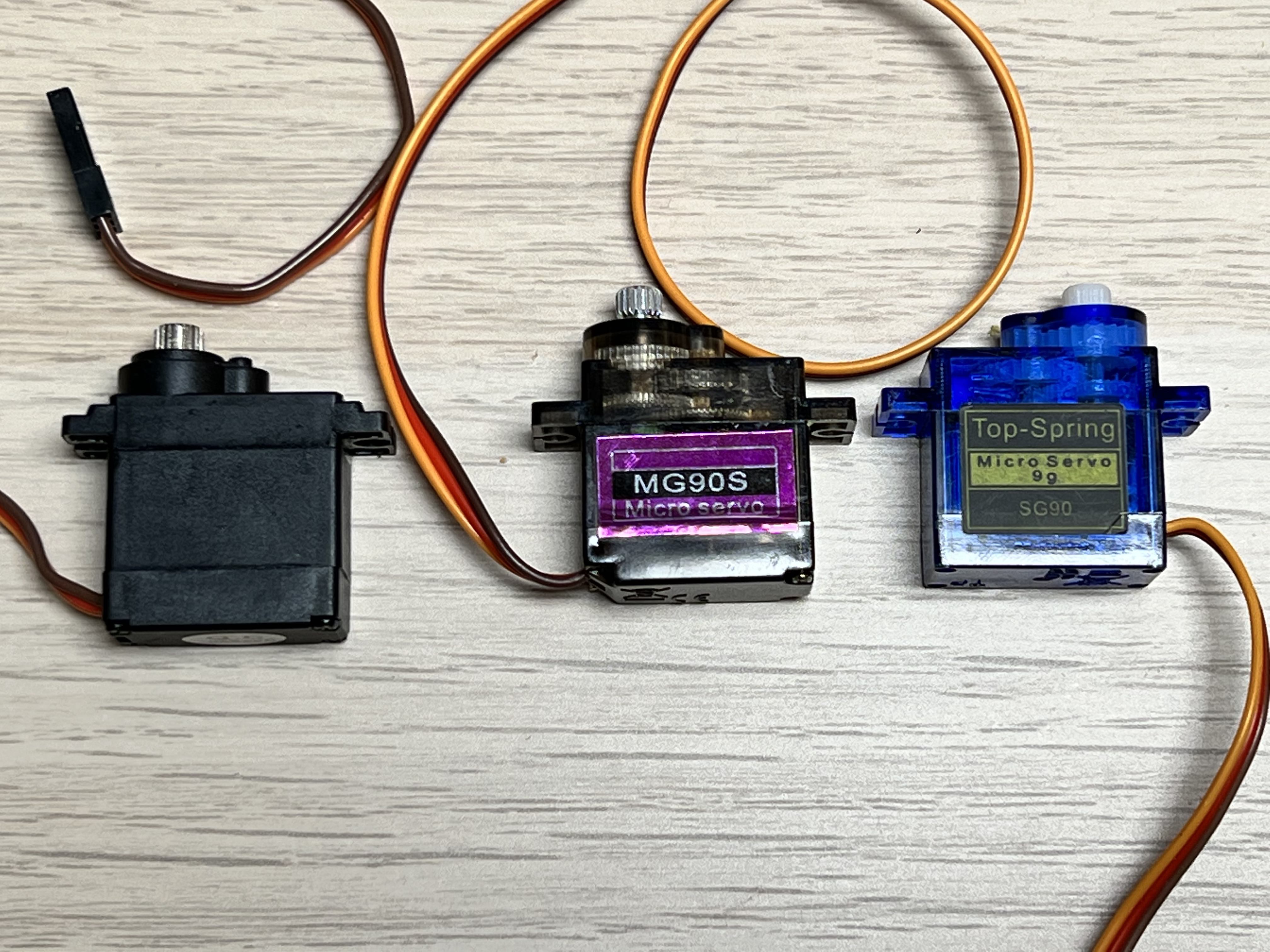

You can see the DS-929MG on the left, the MG90 in the middle and SG90 to the right.


STL files & Code

You can download the complete STL files for this project here. To grab the MicroPython code for this project head over to my GitHub Repository

Here are a gallery of the new parts:

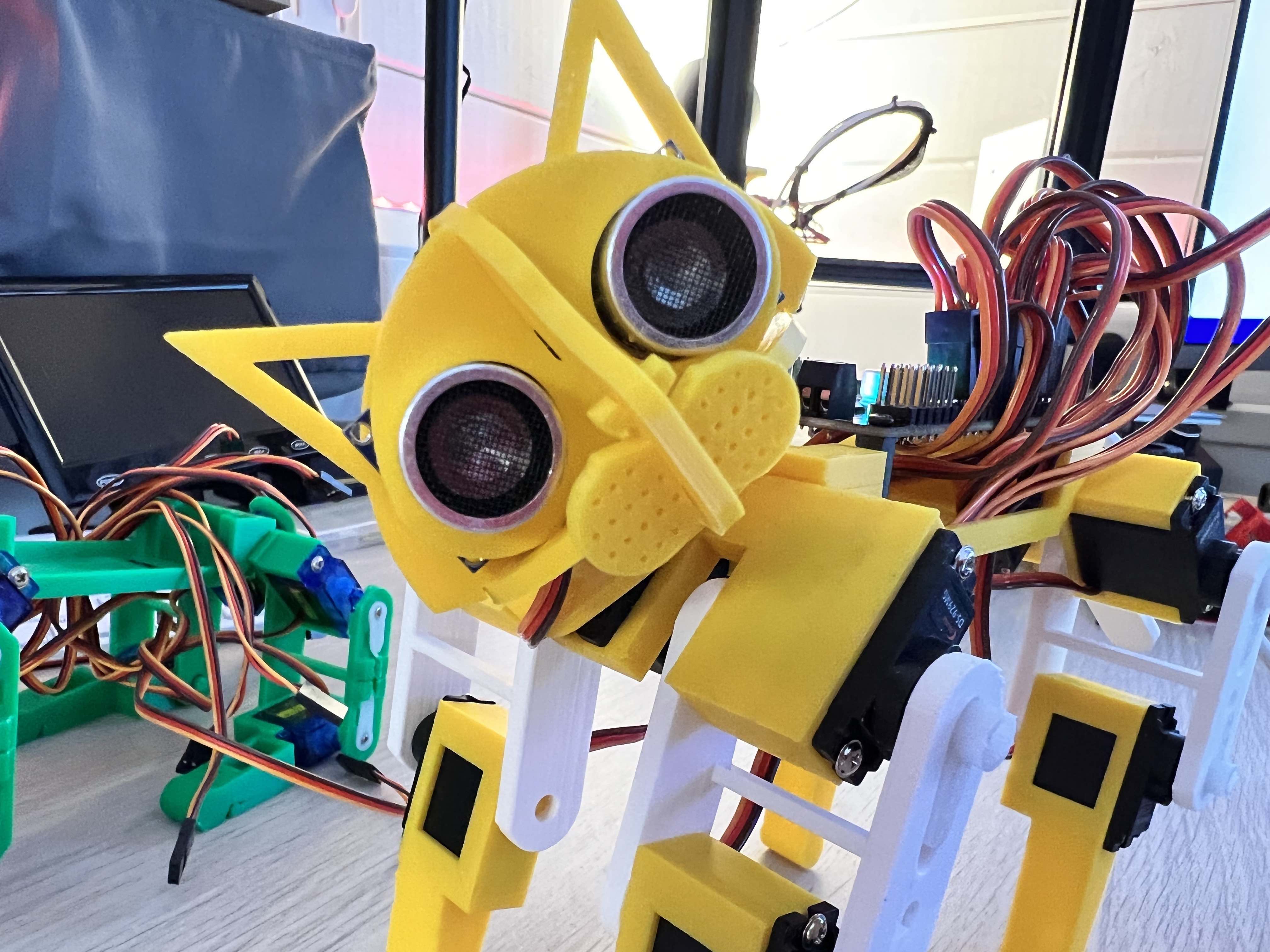

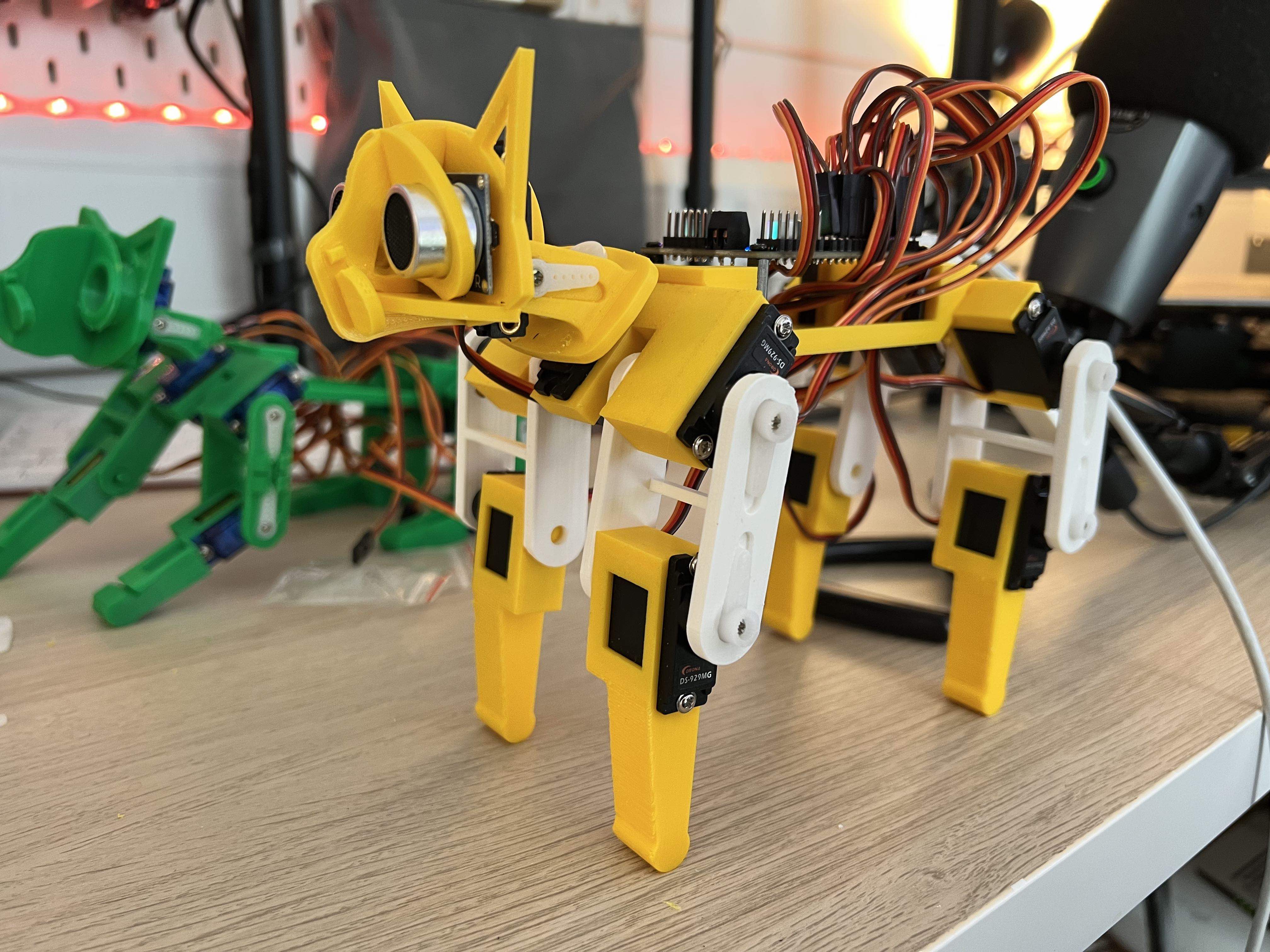

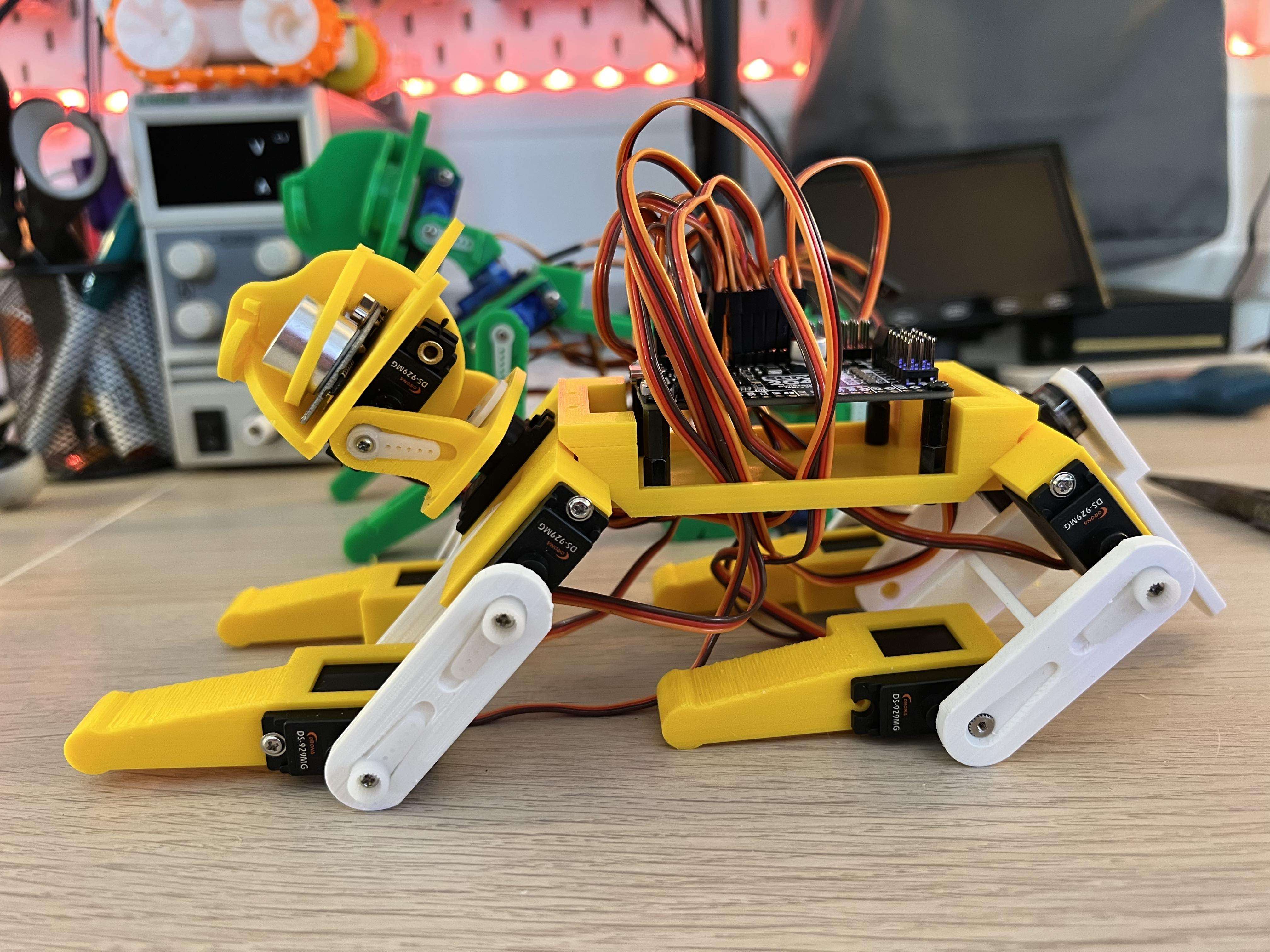

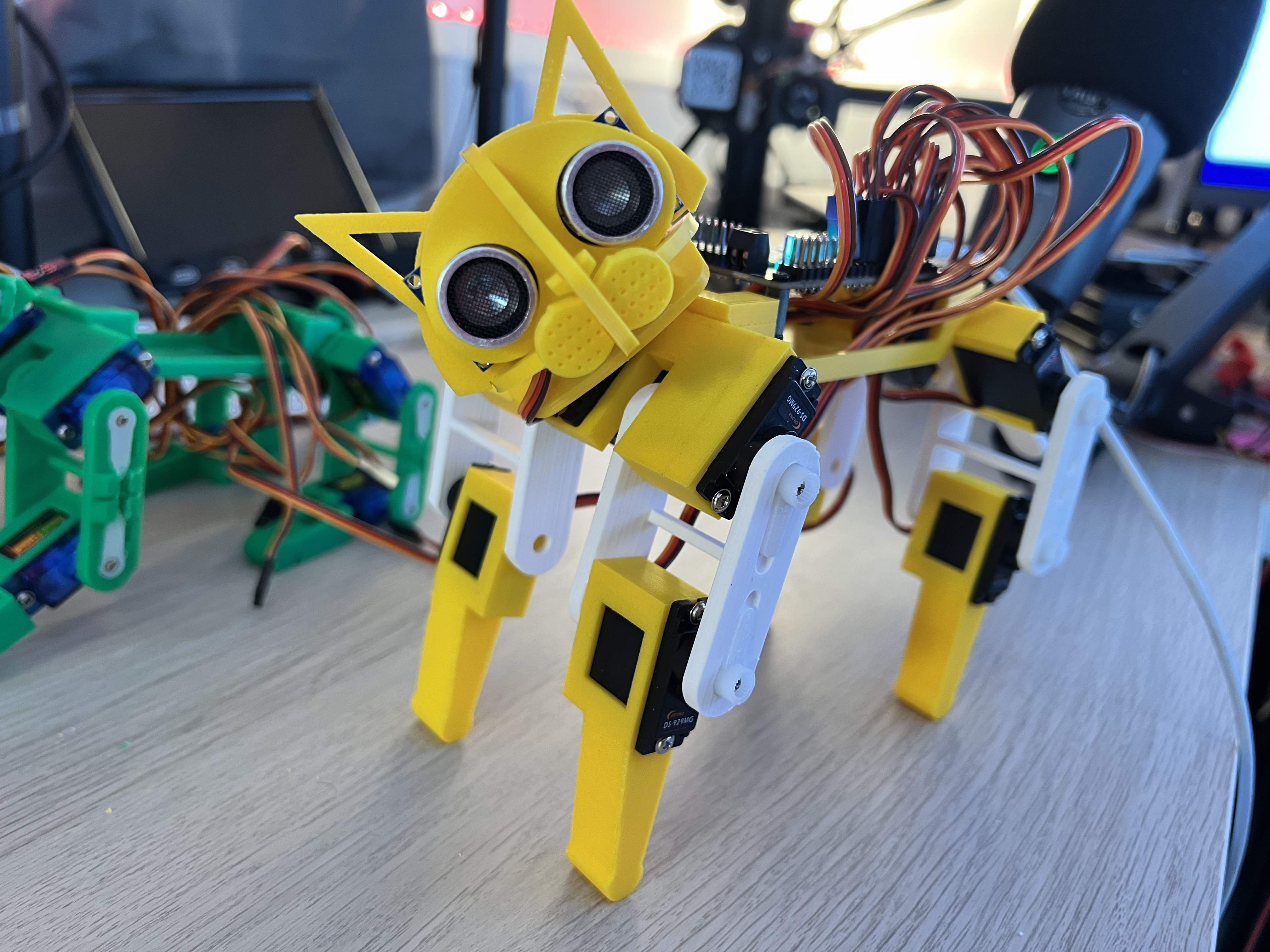

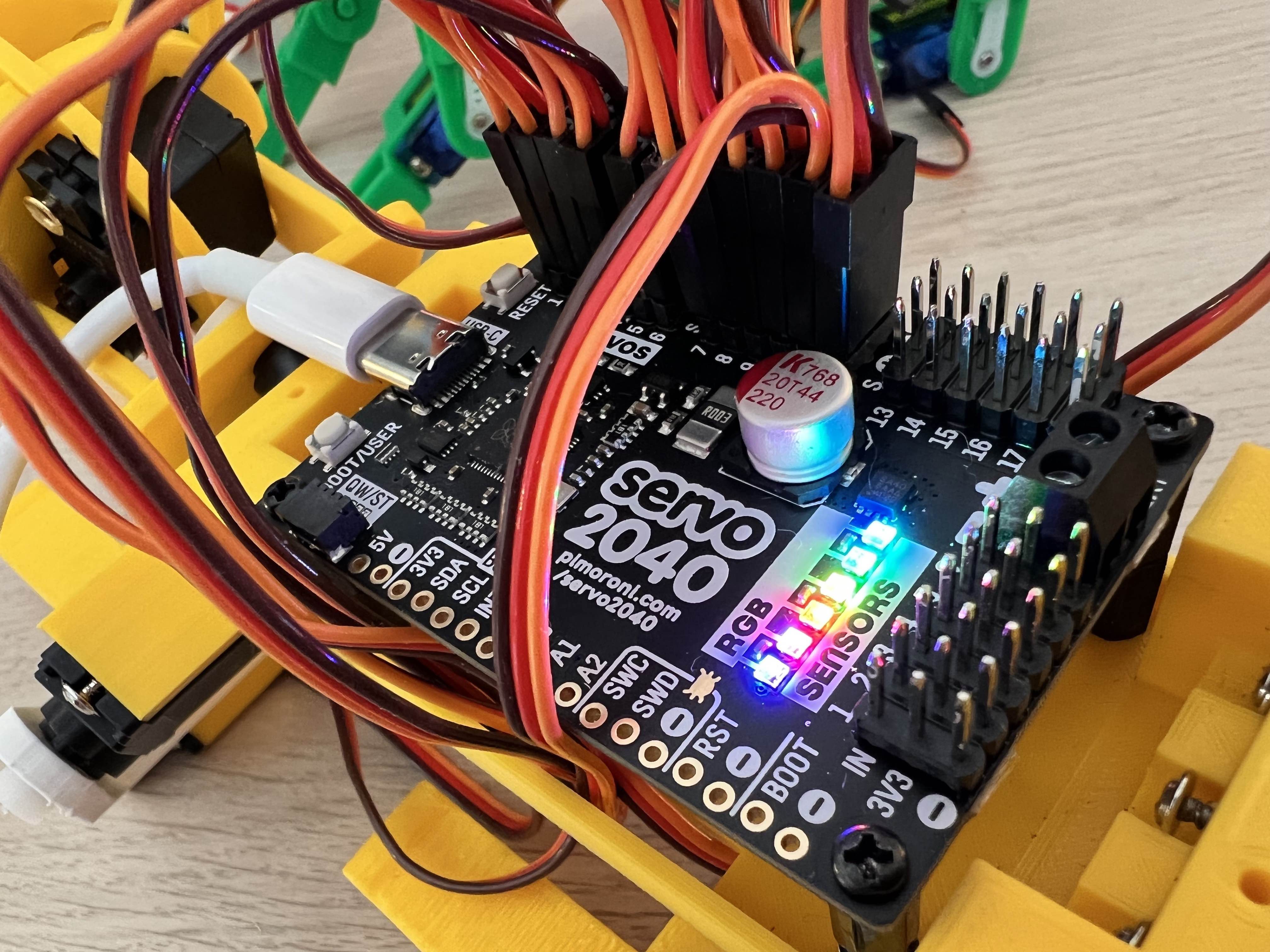

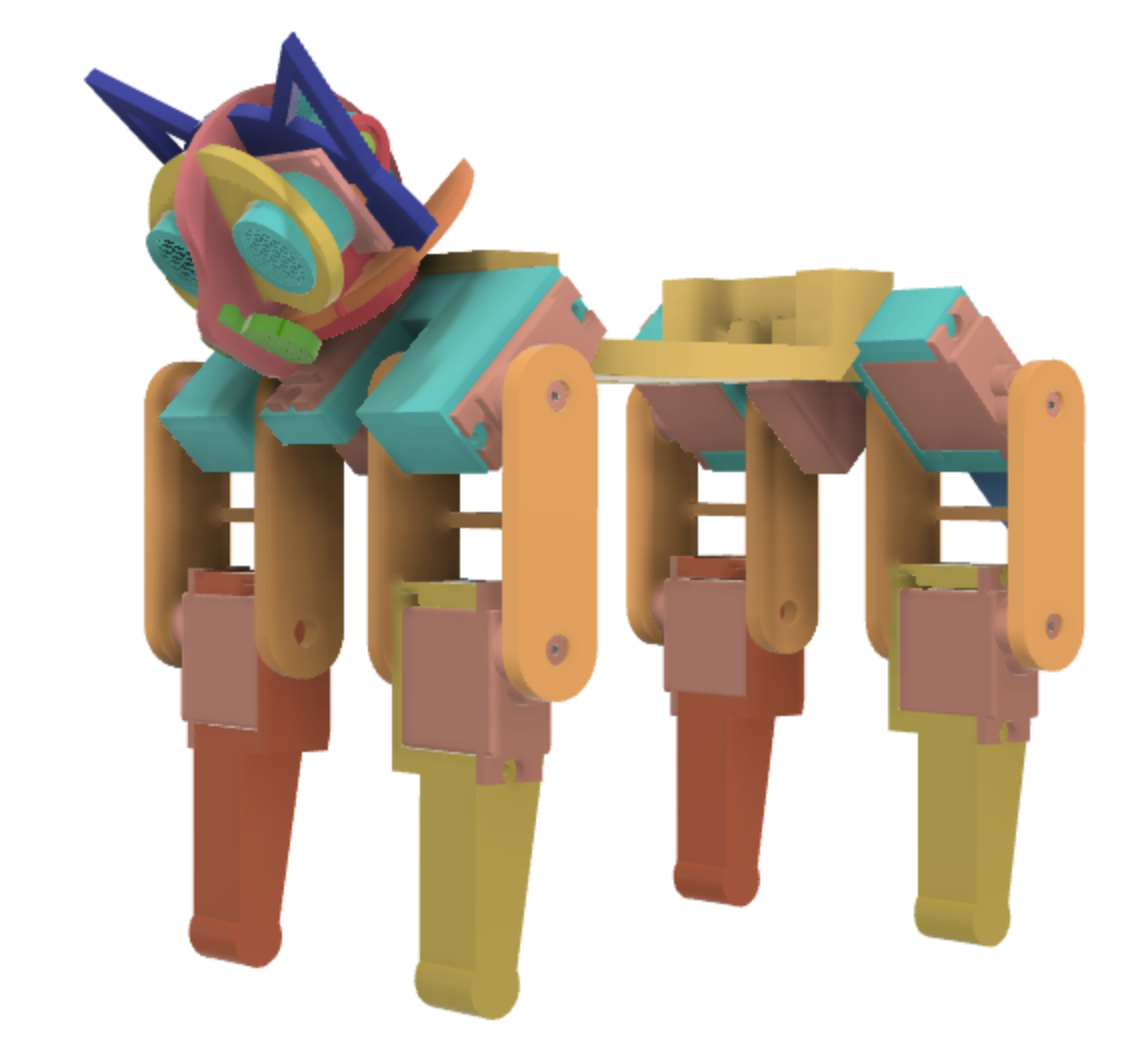

  1. Full Assembly

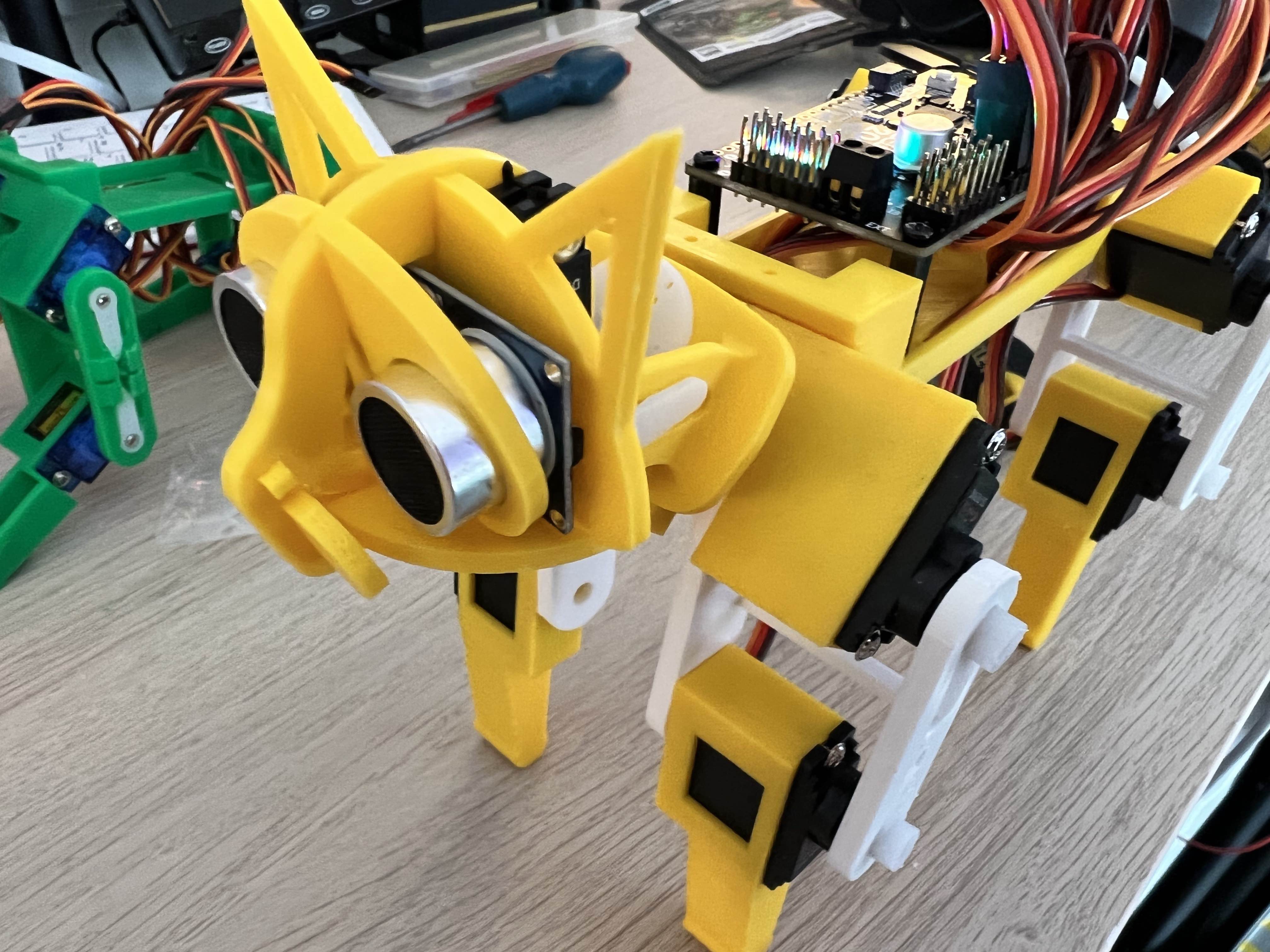

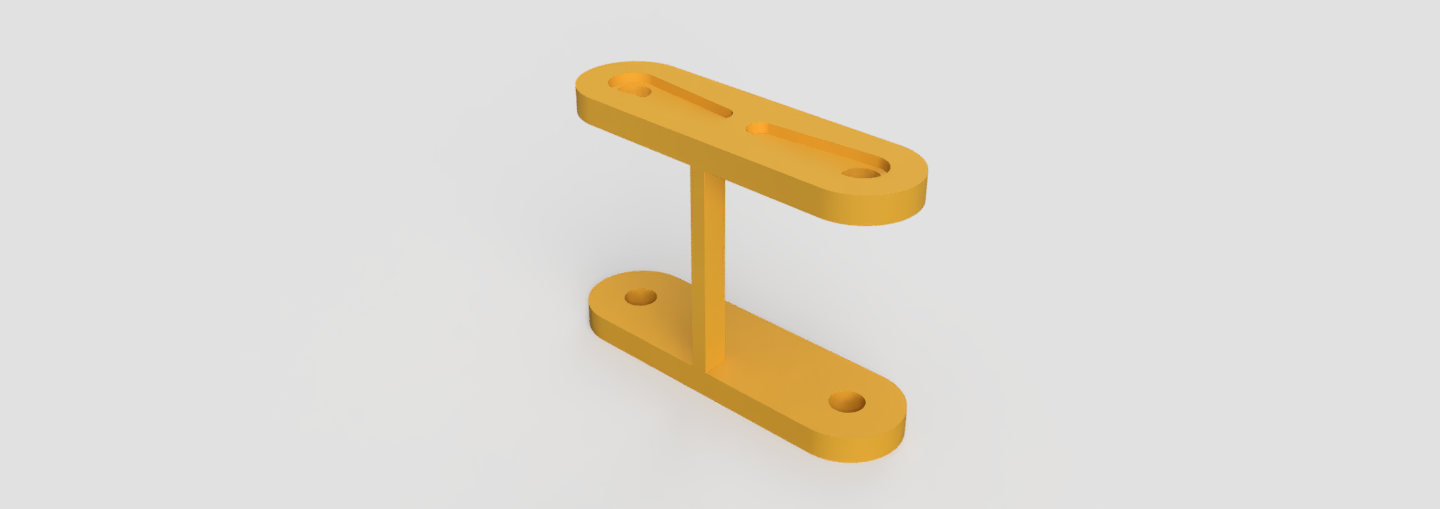

  2. Collar / Shoulder

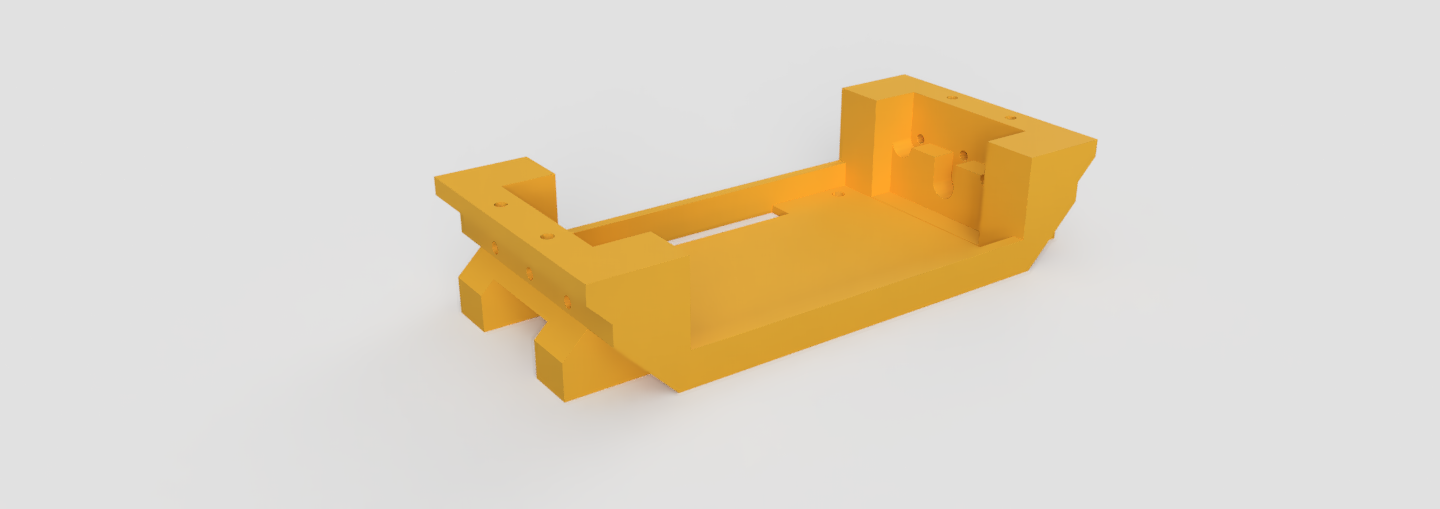

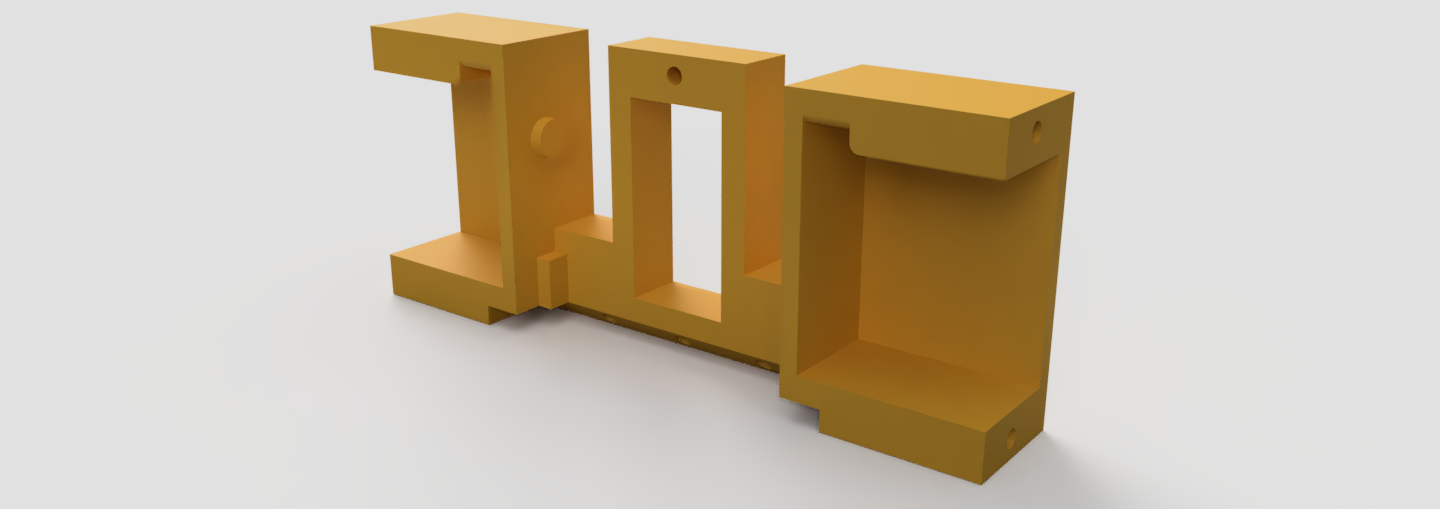

  3. Body
  4. Foot

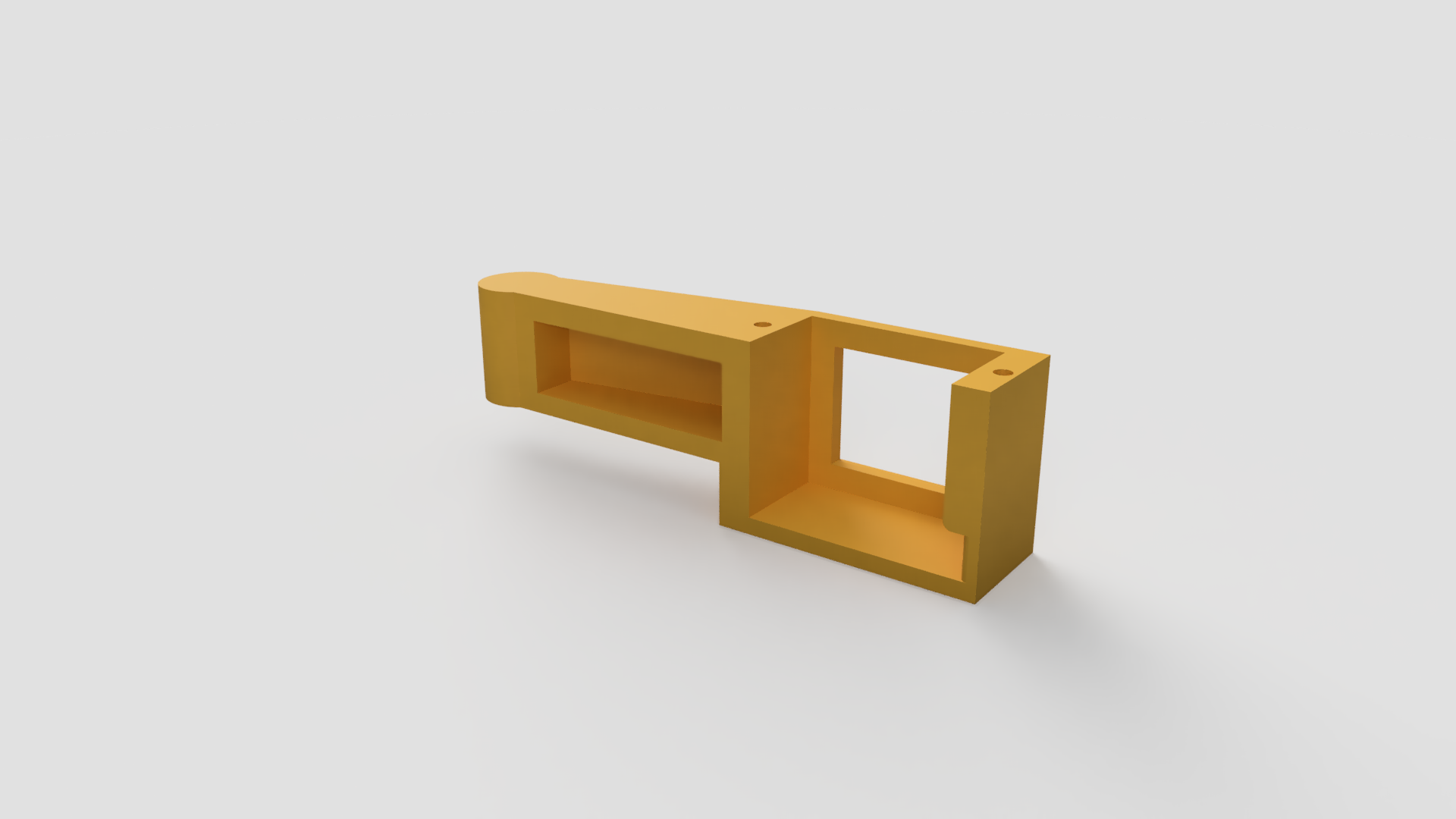

  5. Tibia

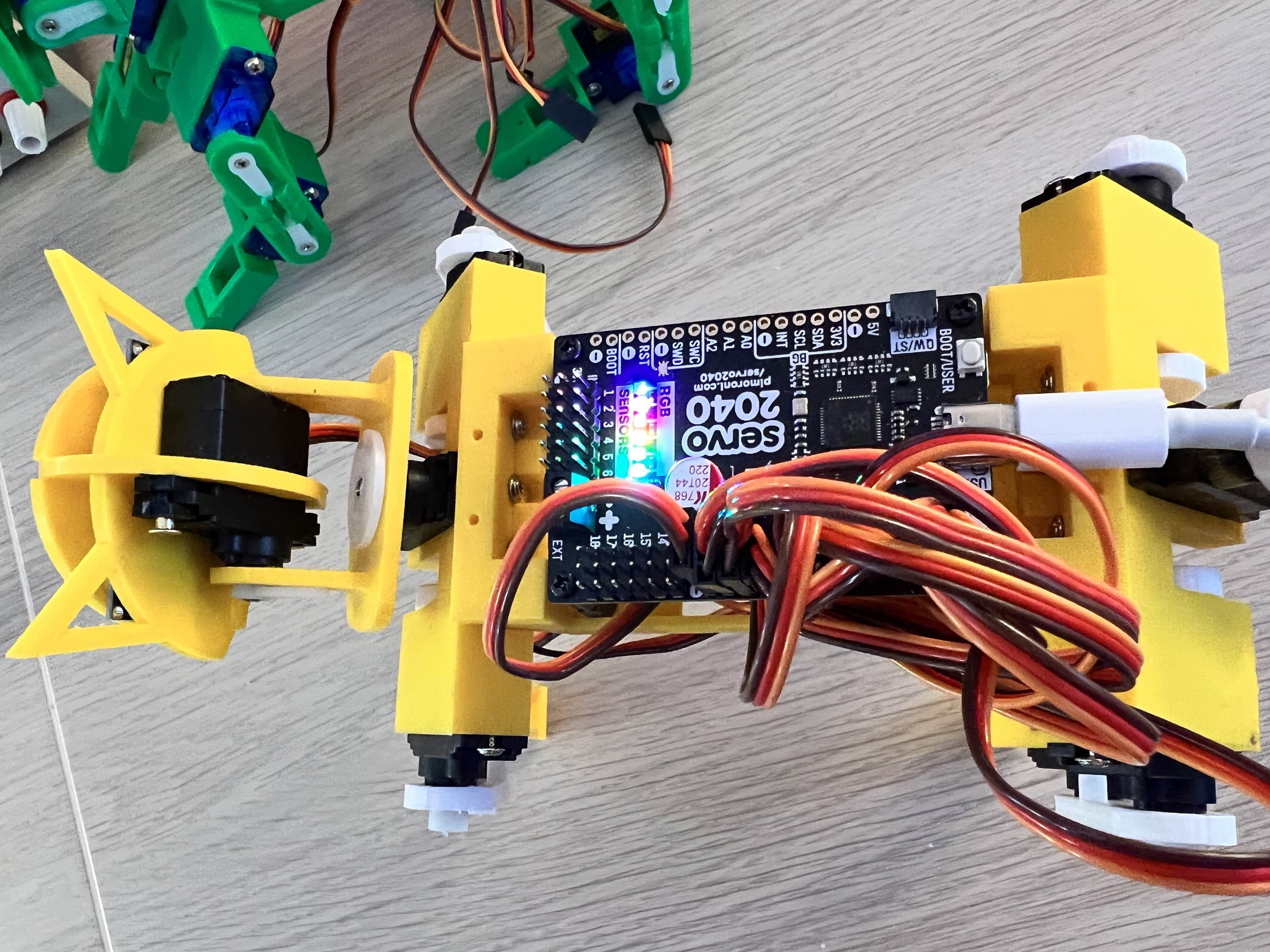

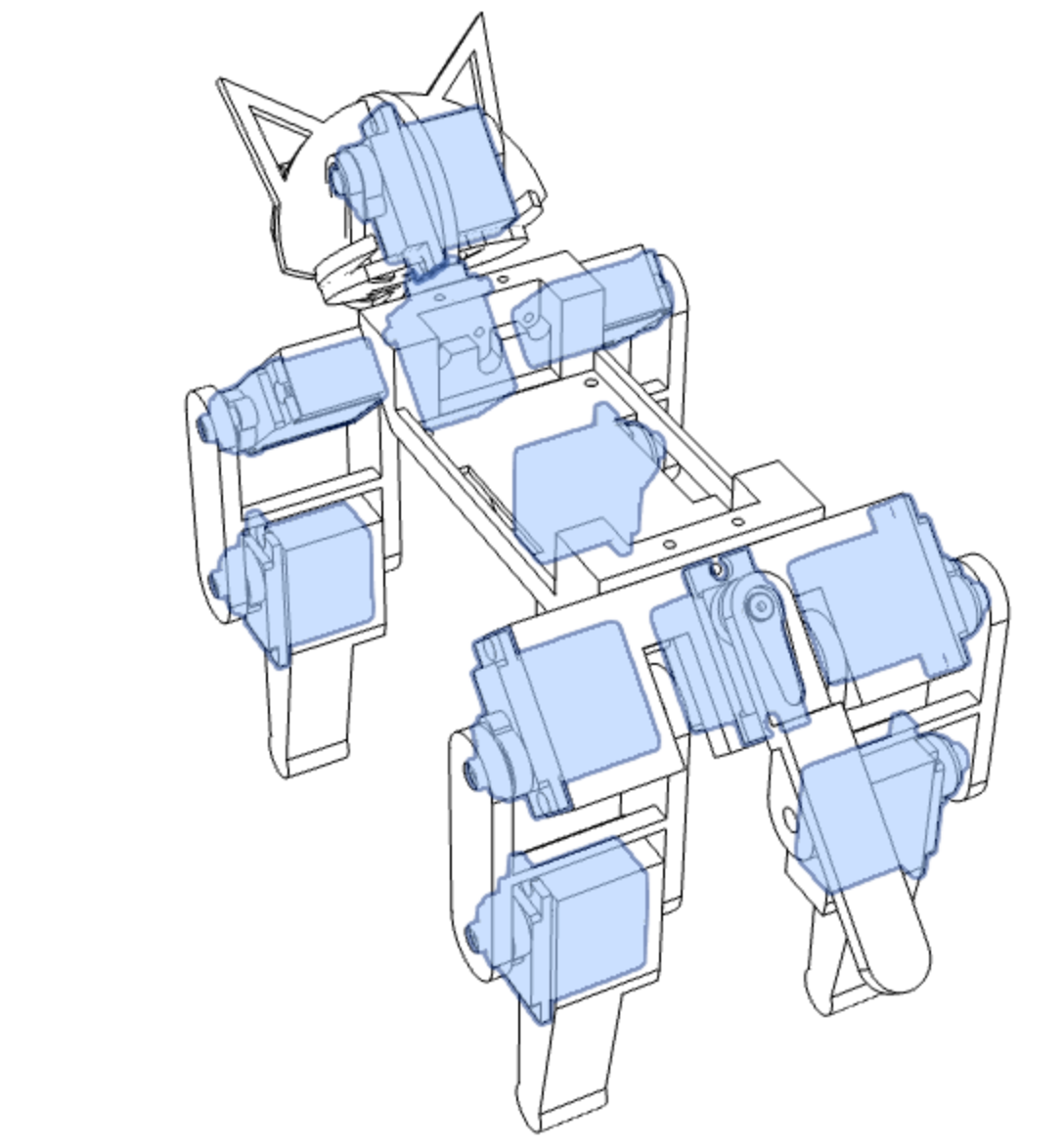

  6. Position of the 11 Servos

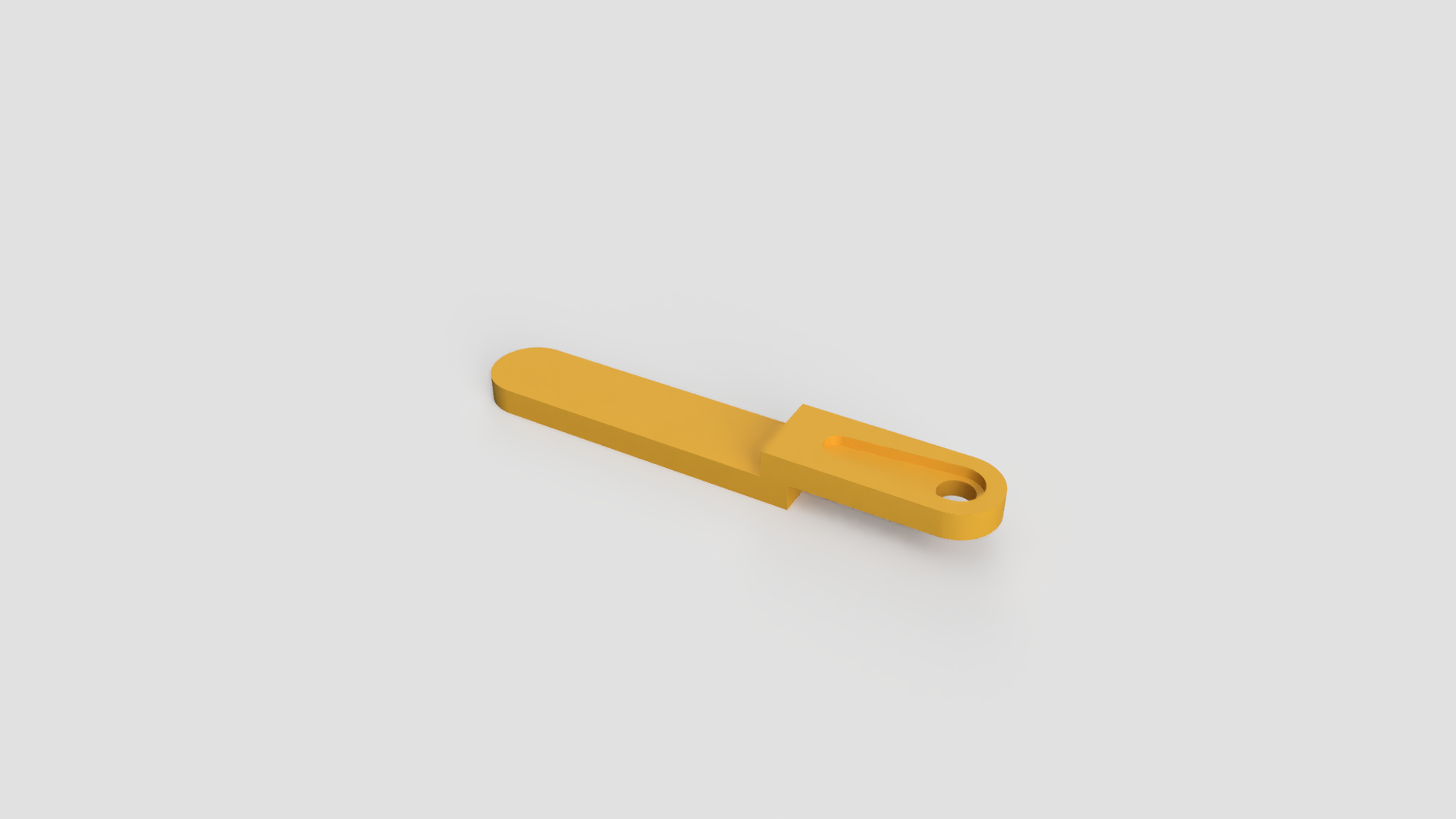

  7. Tail

Fusion 360 Part Fusion 360 Part Fusion 360 Part Fusion 360 Part Fusion 360 Part Fusion 360 Part Fusion 360 Part


Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison Servo Comparison
