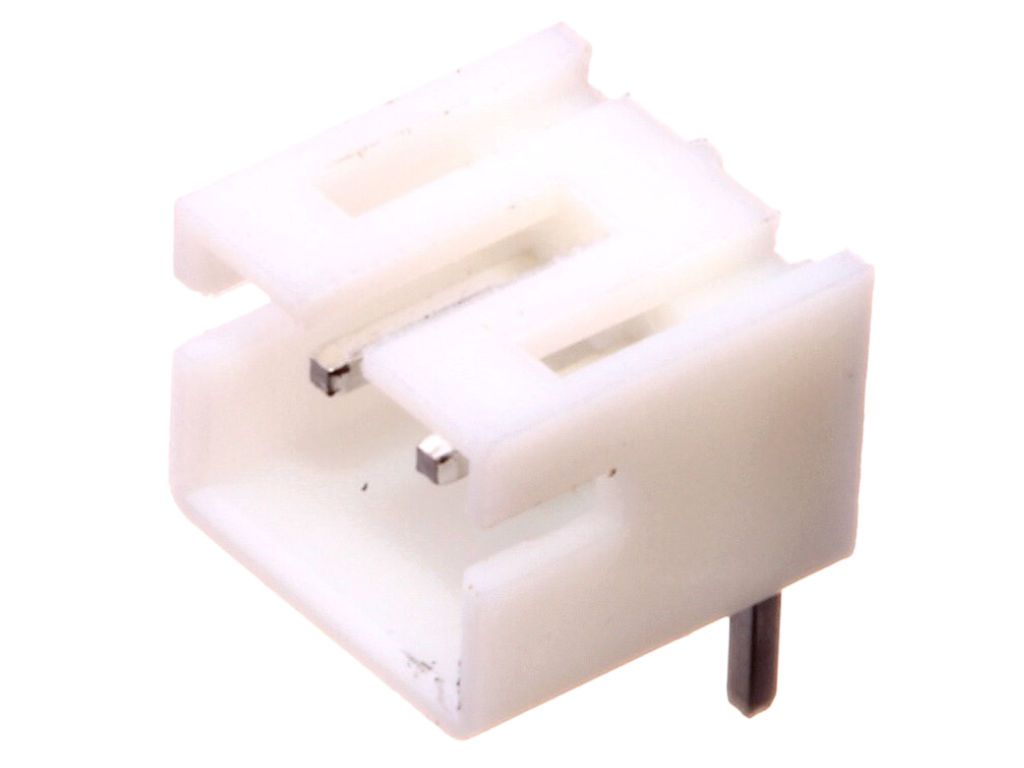

The Three Types of Electrical Connectors Electrical connectors are classified into three types based on their termination ends: Board-to-board connectors Cable/wire-to-cable/wire connectors Cable/wire-to-board connectors What are JST Connectors? JST connectors are electrical connectors manufactured to the design standards originally developed by J.S.T. Mfg. Co. The name JST is an acronym of Japan Solderless Terminal. JST connectors com in several series (families) and pitches (pin-to-pin distance). Description Small and reliable, commonly used for battery and board-to-board connections. The Micro:bit has a JST-PH connector for power. Wire to Board connectors JST Series Pitch Current Rating Voltage Rating Wire size Datasheet VH 3.96mm 10A 250V 22-16 AWG Datasheet RE 2.54mm 2A 250V 30-24 AWG Datasheet EH 2.5mm 3A 250V 32-22 AWG Datasheet XA 2.5mm 3A 250V 30-20 AWG Datasheet XH 2.5mm 3A 250V 30-22 AWG Datasheet PA 2.0mm 3A 250V 28-22 AWG Datasheet PH 2.0mm 2A 100V 32-24 AWG Datasheet ZH 1.5mm 2A 50V 32-26 AWG Datasheet GH 1.25mm 1A 50V 30-26 AWG Datasheet SH 1.0mm 1A 50V 32-28 AWG Datasheet Wire to wire connectors JST Series Pitch Current Rating Voltage Rating Wire size Datasheet RCY 2.5mm 3A 250V 28-22 AWG Datasheet SM 2.5mm 3A 250V 28-22 AWG Datasheet Conventions Typically used in compact devices. Pros and Cons Compact and dependable but require specific tools for assembly.
