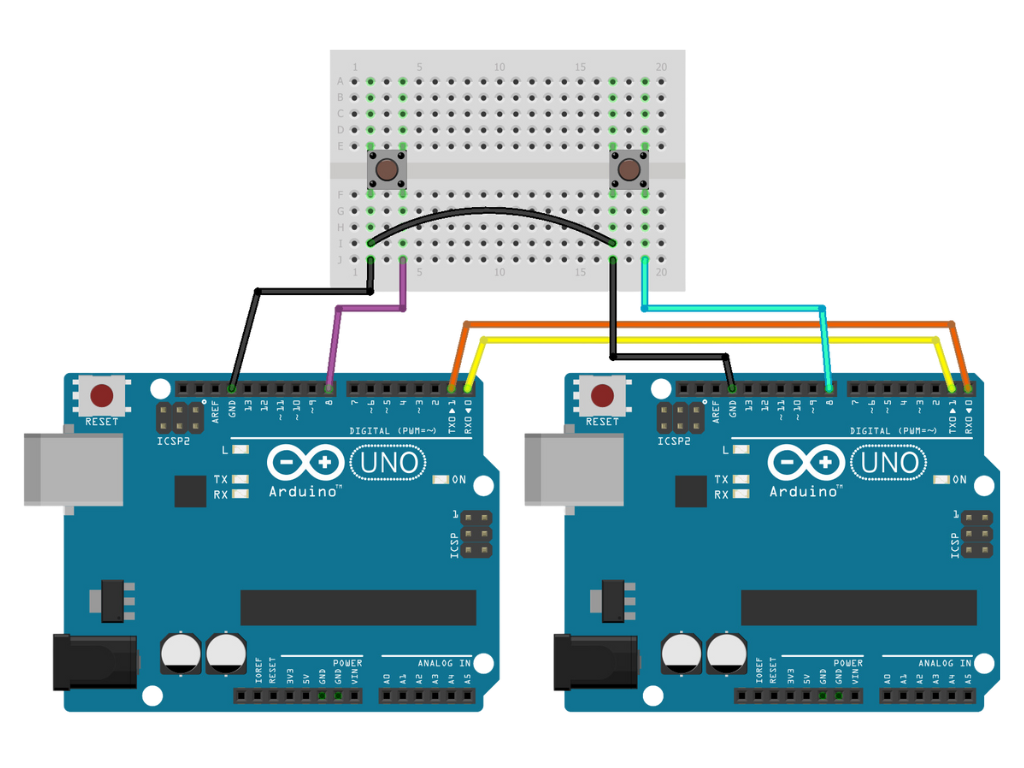

What is UART? UART, or Universal Asynchronous Receiver/Transmitter, is a hardware and protocol specification used in serial communication between devices. Unlike SPI or I2C, UART communication does not require a clock to synchronize the sending and receiving units, relying instead on start and stop bits to frame the data. Description UART setups typically involve two lines: TX (transmit) and RX (receive), facilitating full-duplex communication. Each UART frame of data contains a start bit, data bits, parity bit (optional), and stop bits. This setup allows UART to handle asynchronous data transmission reliably. Key Features of UART Asynchronous Communication: No clock signal is needed, as devices synchronize with each data packet. Full-Duplex Capability: Can transmit and receive data simultaneously. Error Checking: Optional parity bit helps in detecting errors in the transmission. Configurable Speed and Data Format: Bit rates and data frame sizes can be adjusted to meet specific communication needs. Application Areas Consumer Electronics: Commonly used in GPS receivers, and for communication between microcontrollers and computer systems. Industrial Automation: Facilitates data exchange between various controllers and sensors. Telecommunication: Supports data transmission for cellular modules and similar devices. Conventions UART is widely utilized in environments requiring simple, direct connections without the complexity of a clock line, especially useful in point-to-point communications. Pros and Cons Pros: Simple implementation without the need for a dedicated clock line. Flexible configuration of data format and speed to suit specific application needs. Widespread support across a range of microcontroller and processor platforms. Cons: Limited to two devices per communication line, hindering scalability. Requires careful configuration of baud rates between devices to ensure successful communication. Slower than protocols like SPI and lacks advanced features such as built-in collision detection or multi-master capability.
