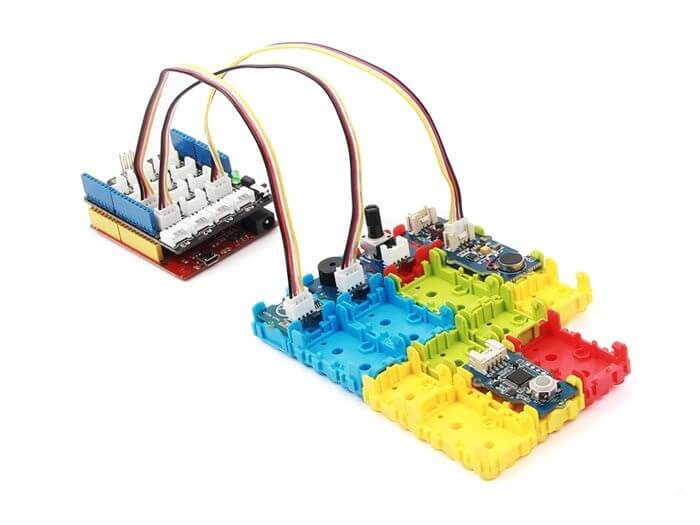

The Three Types of Electrical Connectors Electrical connectors are classified into three types based on their termination ends: Board-to-board connectors Cable/wire-to-cable/wire connectors Cable/wire-to-board connectors What are Grove Connectors? Grove connectors are a system of standardized connectors used to connect microcontroller boards, such as Arduino and Raspberry Pi, to various sensors, actuators, and displays without the need for soldering. This system is designed to make prototyping easier and faster by using a uniform 4-pin connector that handles both digital and analog signals. Grove was invented by Seeed Studio and has become a popular choice for hobbyists and educators. Description Grove connectors reduce the complexity of wiring in projects, allowing developers and hobbyists to focus more on the functional aspects of their prototypes. Types of Grove Connectors Connector Type Signal Type Pin Configuration Typical Use Digital Digital I/O 4-pin standard Buttons, LEDs Analog Analog signal 4-pin standard Sensors (light, sound) I2C Serial data 4-pin standard Communication modules UART Serial data 4-pin standard GPS modules, GSM Application Areas Educational Kits: Widely used in educational environments for teaching electronics and programming. DIY Projects: Ideal for home automation projects and DIY electronics due to their simplicity and versatility. Rapid Prototyping: Used extensively in prototyping for quick assembly and testing of ideas. Conventions Typically used in environments that require quick setup and frequent changes, such as educational settings and prototype development. Pros and Cons Pros: Simplifies connections, reducing the possibility of errors. Speeds up project assembly and modifications. Compatible with a wide range of modules and sensors. Cons: Limited by the current and voltage that each connector can handle. Slightly higher cost compared to basic jumper wires.
