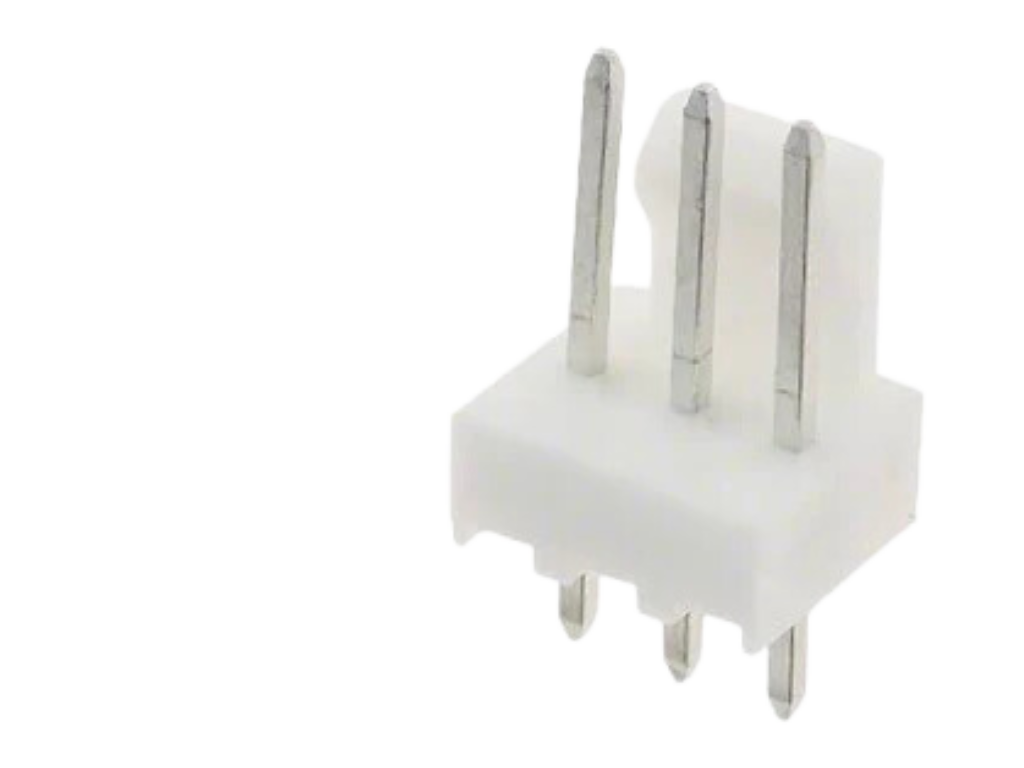

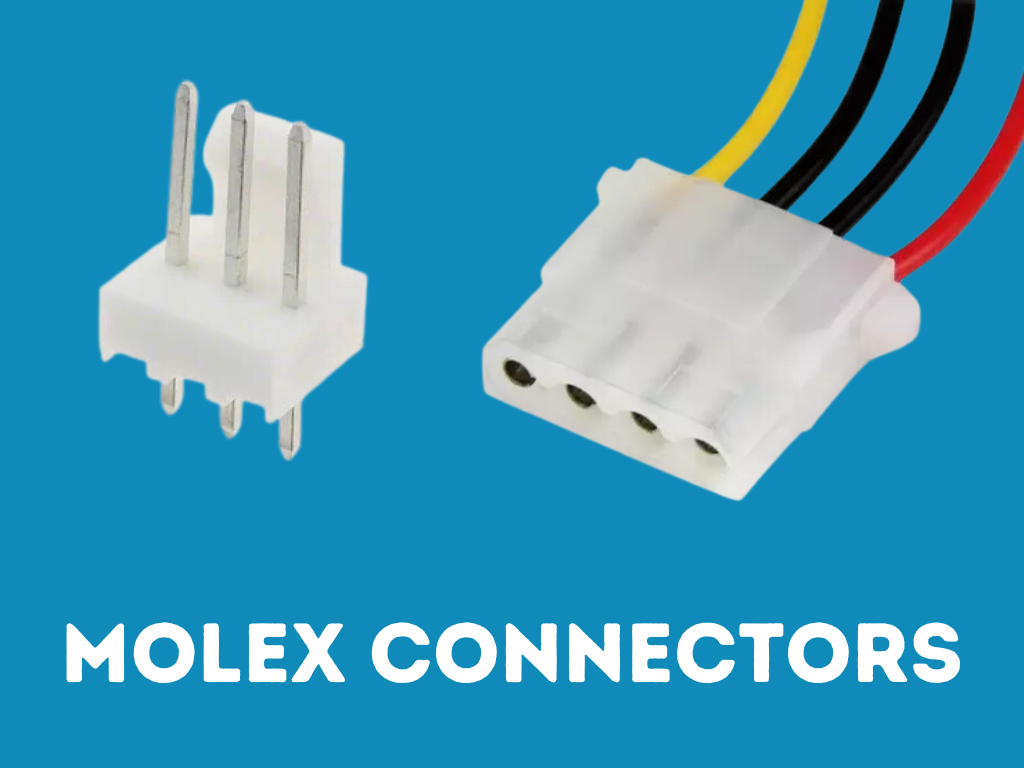

The Three Types of Electrical Connectors Electrical connectors are classified into three types based on their termination ends: Board-to-board connectors Cable/wire-to-cable/wire connectors Cable/wire-to-board connectors What are Molex Connectors? Molex connectors are a family of connectors commonly used for power and signal applications across various sectors. These connectors are manufactured by Molex Incorporated, a major provider of electronic connectors and interconnect components. Description Molex connectors are designed to handle both low and high current applications, offering solutions that range from simple wire-to-wire to complex multi-pin configurations. They are appreciated for their versatility and reliability in providing secure connections. Types of Molex Connectors Connector Type Pin Configuration Current Rating Voltage Rating Typical Use Standard Multiple configurations Varies Varies General electronics, power supplies Mini-Fit Jr 4 to 24 pins Up to 9A Up to 600V PCs, appliances Micro-Fit 3.0 2 to 24 pins Up to 5A Up to 250V Data, telecom Fit Power 2 to 24 pins Up to 23A Up to 600V Industrial, automotive Application Areas Consumer Electronics: Used in devices like home appliances and computer peripherals for reliable power connections. Automotive: Essential for wiring in vehicles, handling everything from signal transmissions to powering in-car entertainment systems. Industrial: Employed in machinery and equipment to ensure robust and durable connections under challenging conditions. Conventions Molex connectors are known for their ease of use, with many designed to be “no-tool” connectors, and their keyed housings prevent incorrect mating. Pros and Cons Pros: Robust and durable, suitable for a wide range of environmental conditions. Versatile configurations fit a variety of power and signal needs. Keyed and polarized to prevent misalignment and wrong connections. Cons: Can be more expensive than simpler connectors. Some types require specific tools for crimping and assembly.
