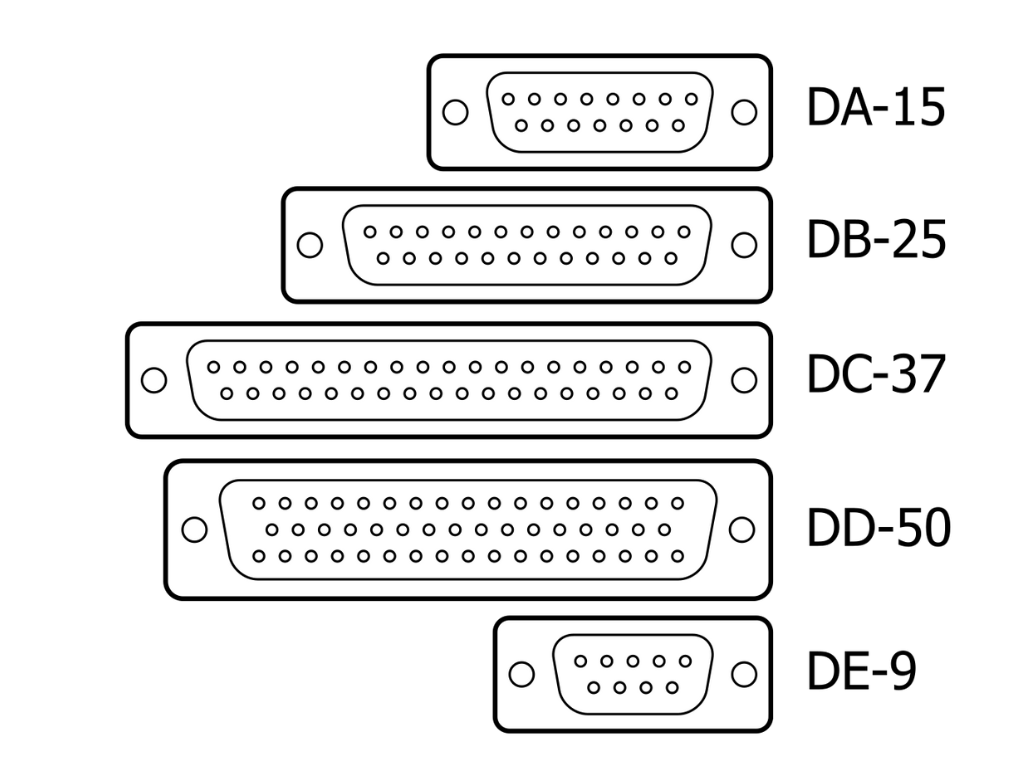

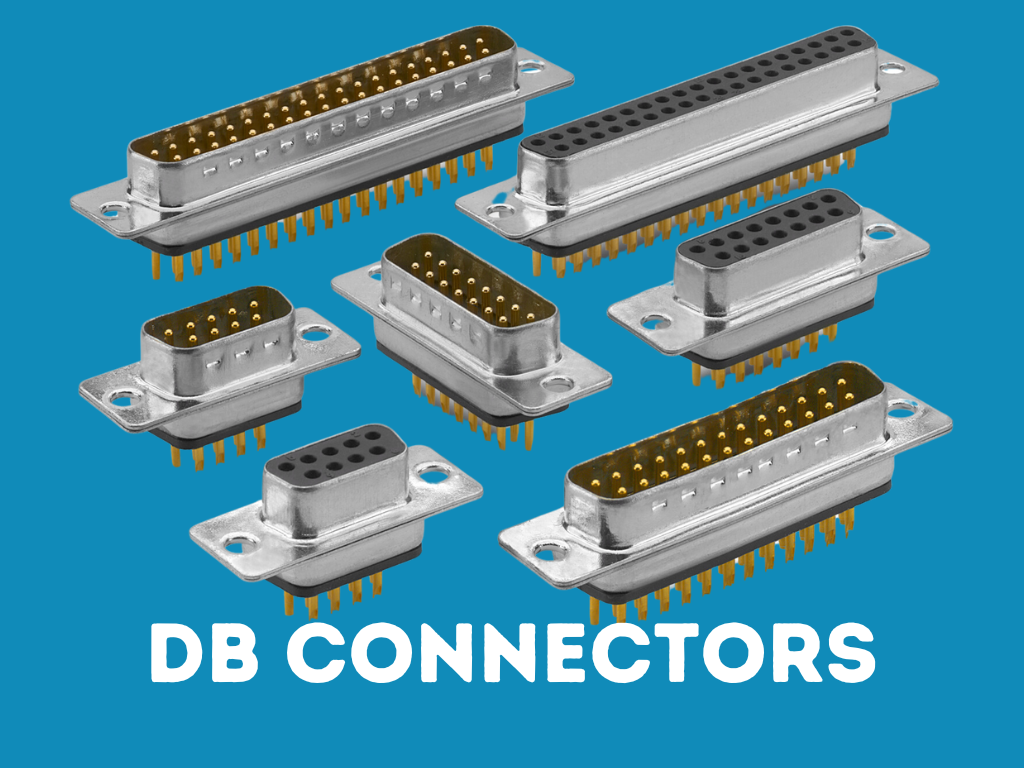

The Three Types of Electrical Connectors Electrical connectors are classified into three types based on their termination ends: Board-to-board connectors Cable/wire-to-cable/wire connectors Cable/wire-to-board connectors What are DB Connectors? DB connectors, also known as D-subminiature or D-sub connectors, are characterized by their D-shaped metal shield and are used to establish serial and parallel connections. They are widely used in computing, communication systems, and network ports. Description DB connectors are designed to minimize electromagnetic interference and provide robust mechanical connections. They come in a variety of sizes and pin configurations, suited for multiple applications from video connections to data transmission. Types of DB Connectors DB Connector Type Pin Count Typical Use DB-9 9 pins Serial communications (RS-232) DB-15 15 pins Game joystick ports, older VGA connections DB-25 25 pins Parallel printer ports, serial communications DB-37 37 pins Data network connections DB-50 50 pins SCSI connections Application Areas Computing: Used for connecting peripherals such as printers, monitors, and game controllers. Telecommunications: Integral in network hardware for establishing reliable data connections. Industrial Equipment: Employed in settings requiring robust and secure connections for data and control signals. Conventions DB connectors are often used where reliable and durable connections are necessary, especially in environments susceptible to interference or requiring multiple connection cycles. Pros and Cons Pros: Provides secure mechanical and electrical connections. Offers options for a wide range of pin configurations. Shielding helps minimize electromagnetic interference. Cons: Bulkier than modern alternatives like USB or HDMI. Some types have become less common, like DB-25 for printers, as newer standards emerge. Requires precise alignment and secure fastening to avoid pin damage.
