Create the Cluster Panel

Learn how to create the cluster panel for the mini-rack

By Kevin McAleer,    1 Minute

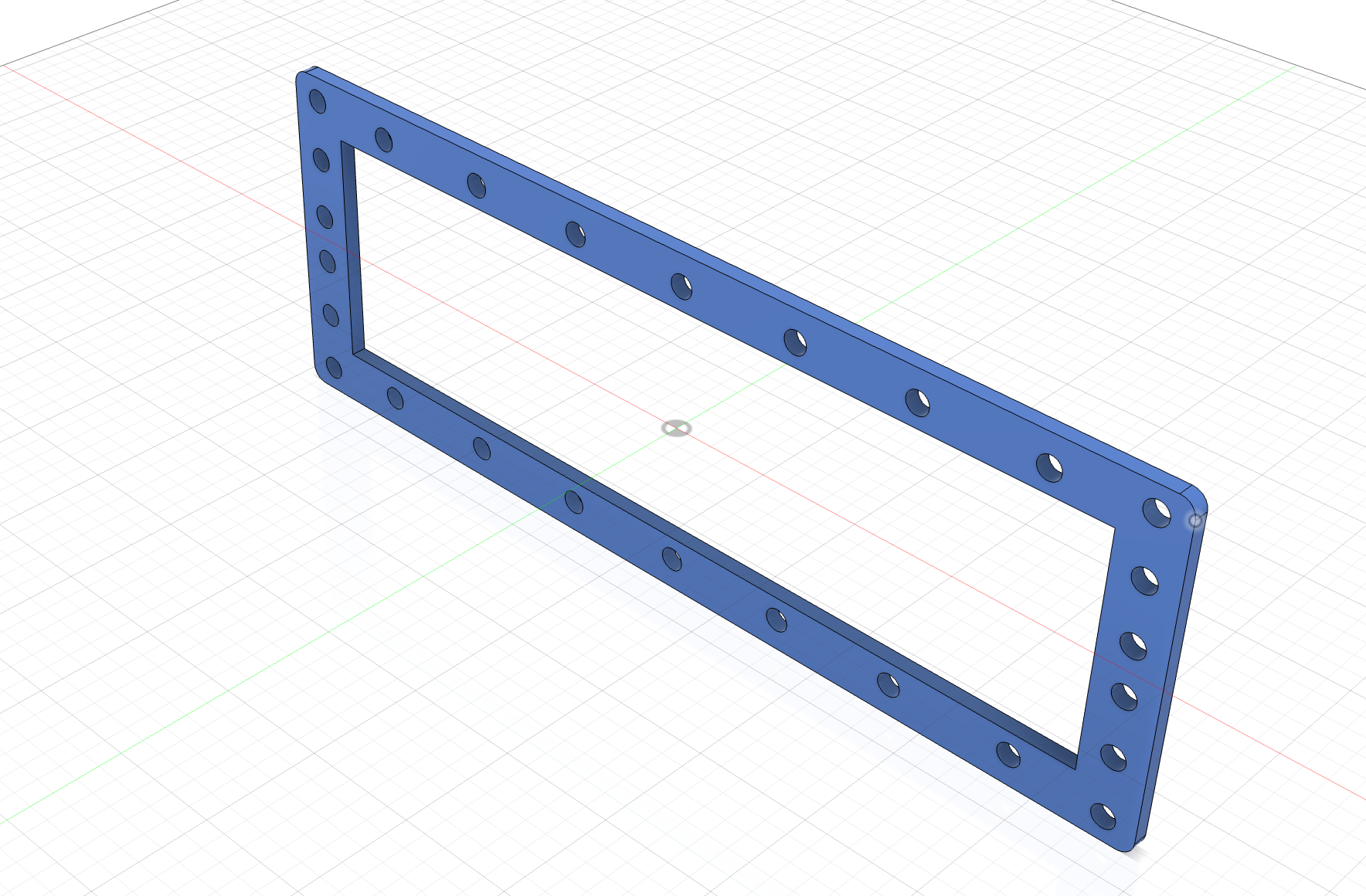

Cluster Panel Design

  1. Create a new file named cluster_panel in Fusion 360

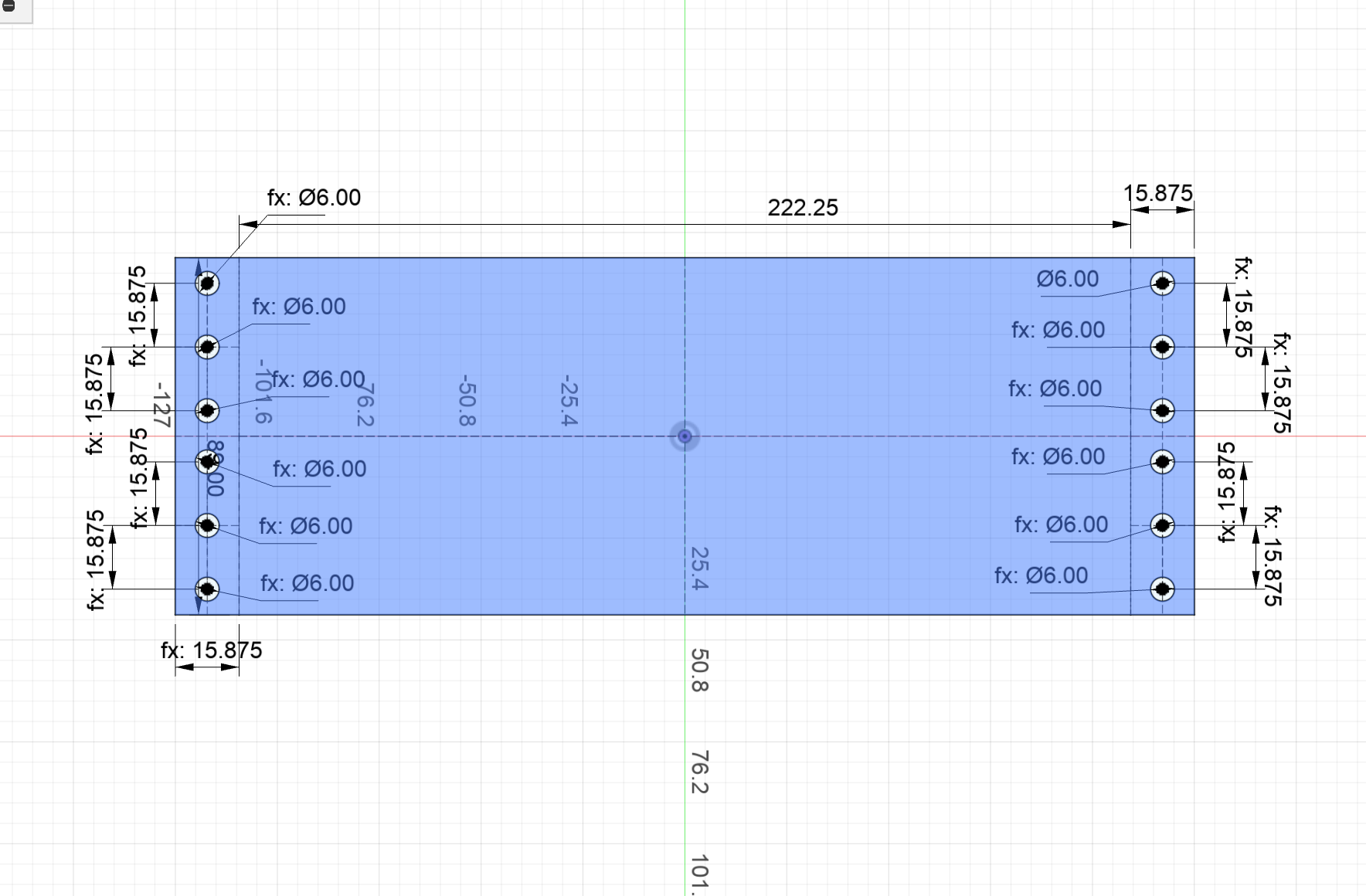

  2. Create a new sketch on the XY plane, named panel_base

    dimensions

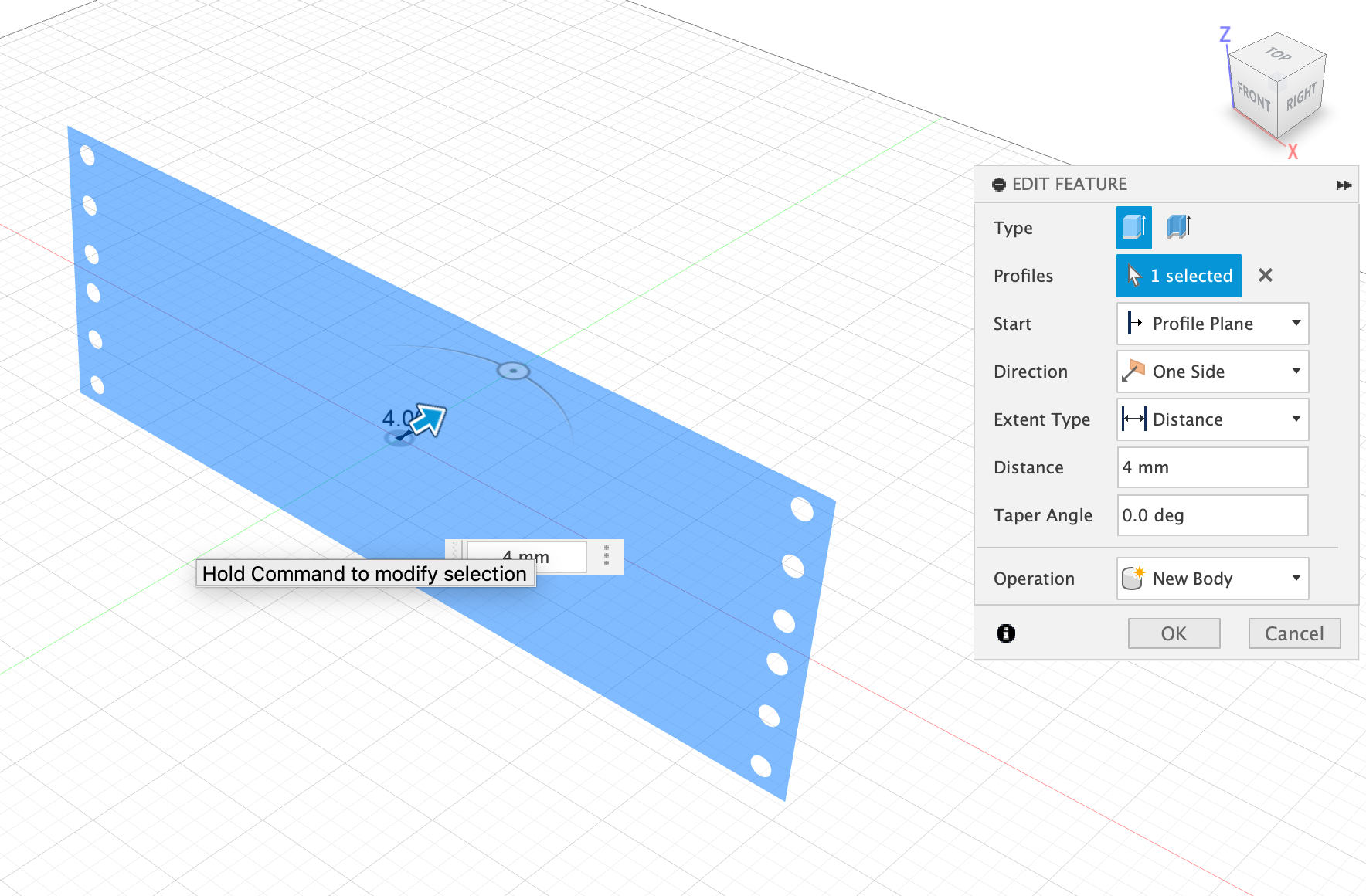

  3. Extrude the body profile by 4mm:

    Extrude

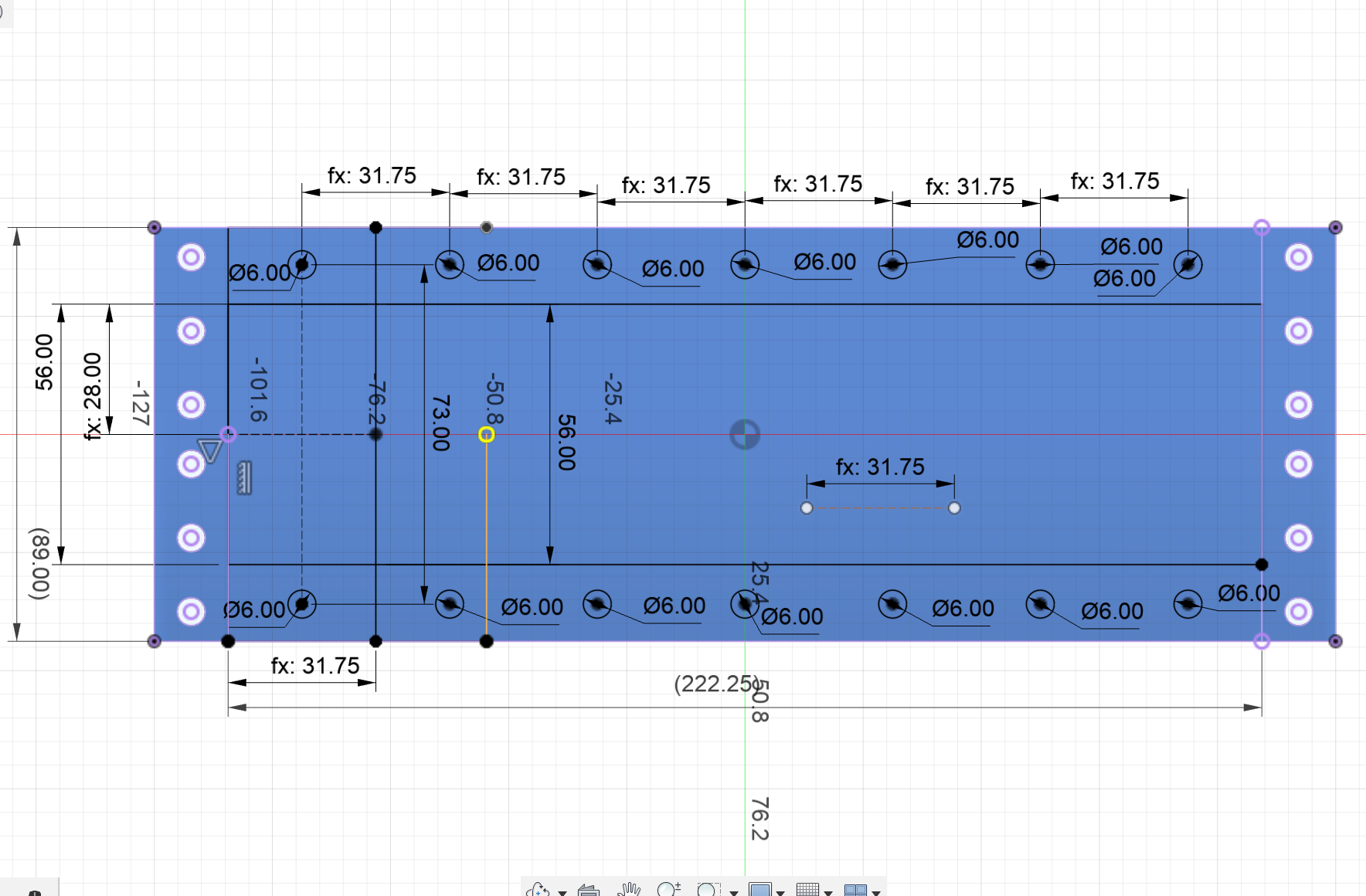

  4. Create a new sketch on the top of the new part, named holes

    Sketch

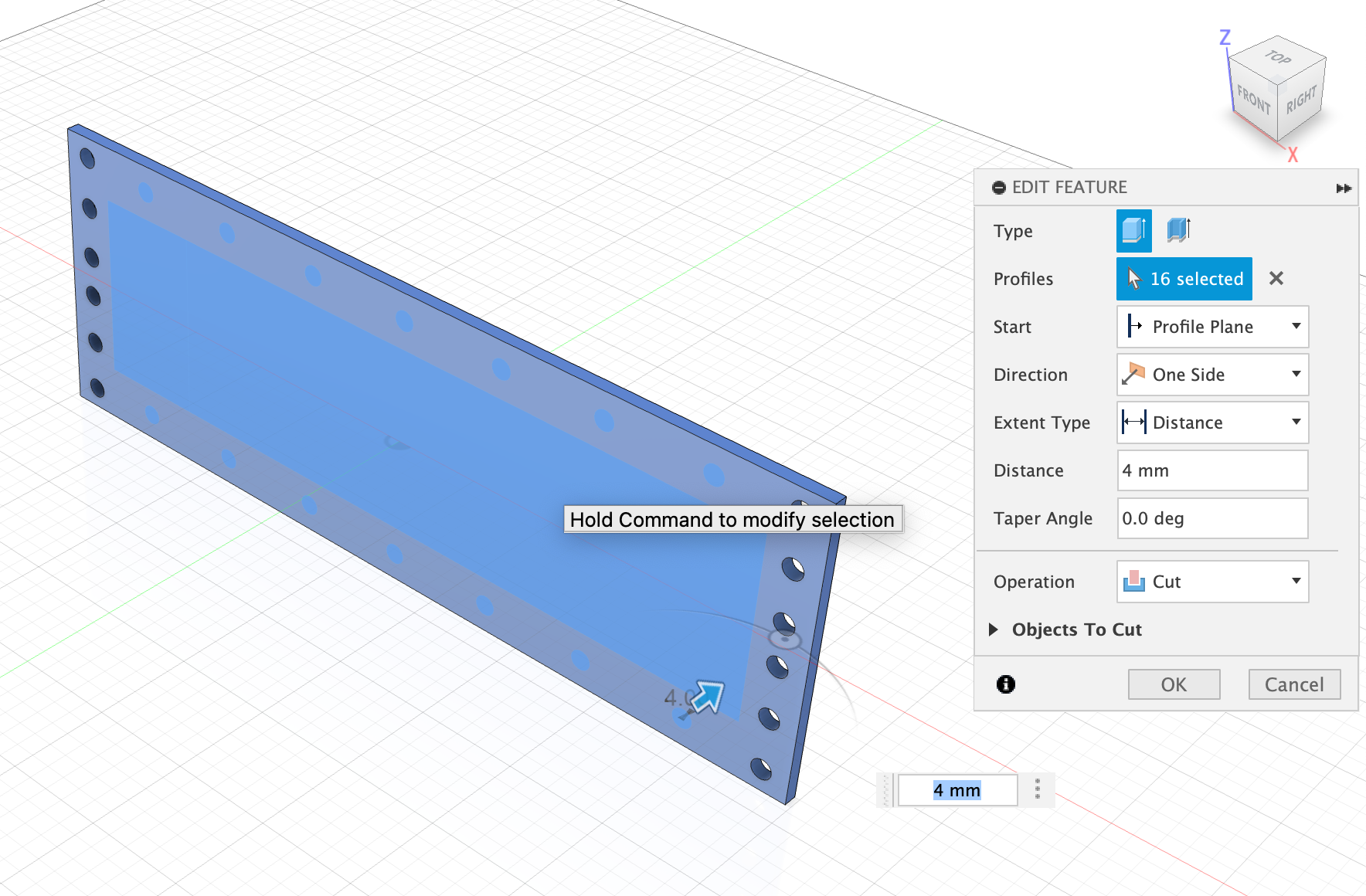

  5. Extrude-Cut the holes sketch:

    Extrude
