Create the Handle

Learn how to create the handle for the mini-rack

By Kevin McAleer,    1 Minute

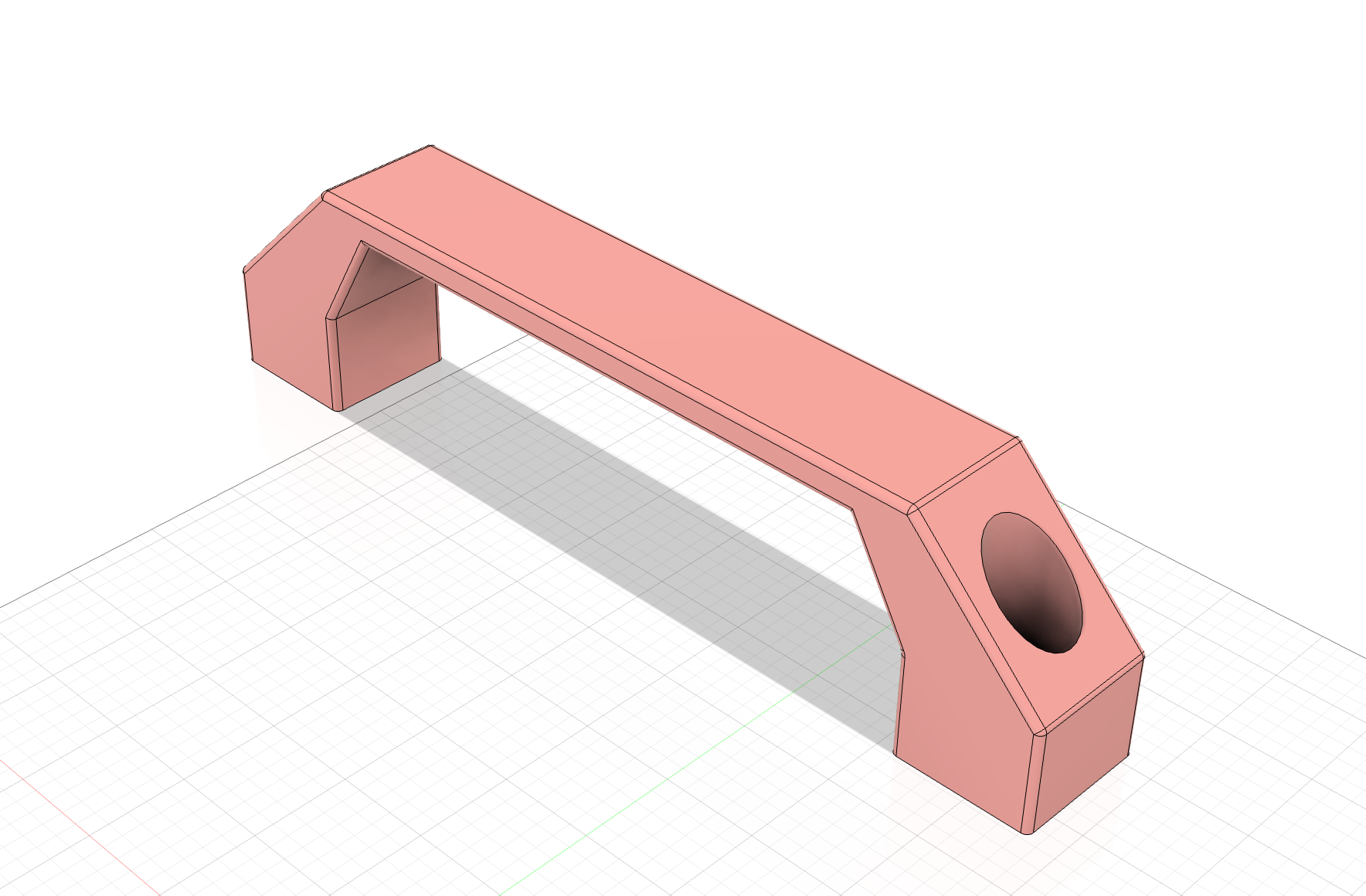

Handle Design

  1. Create a new file named handle in Fusion 360

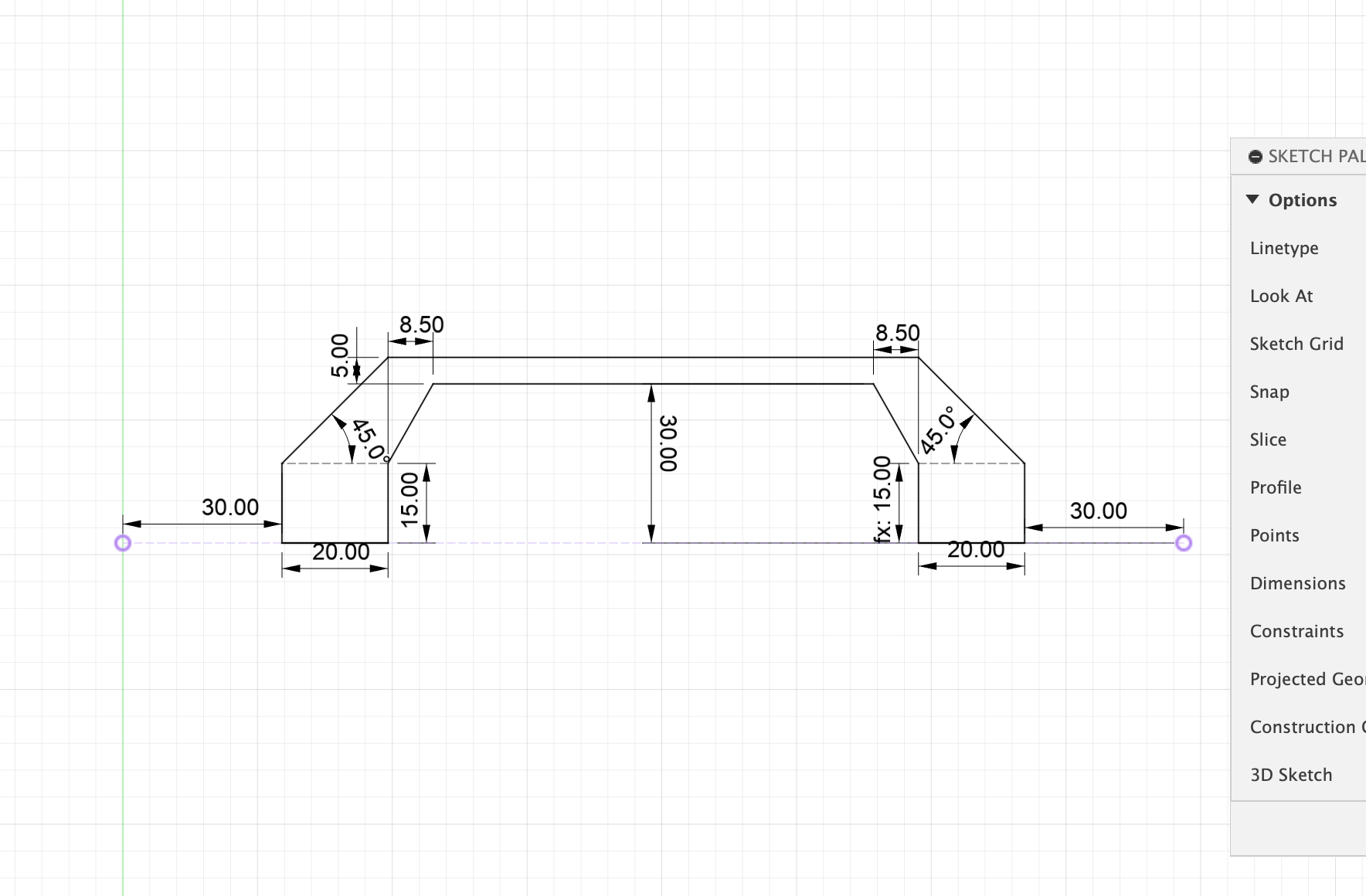

  2. Create a new sketch on the XY plane, named handle_base

    dimensions

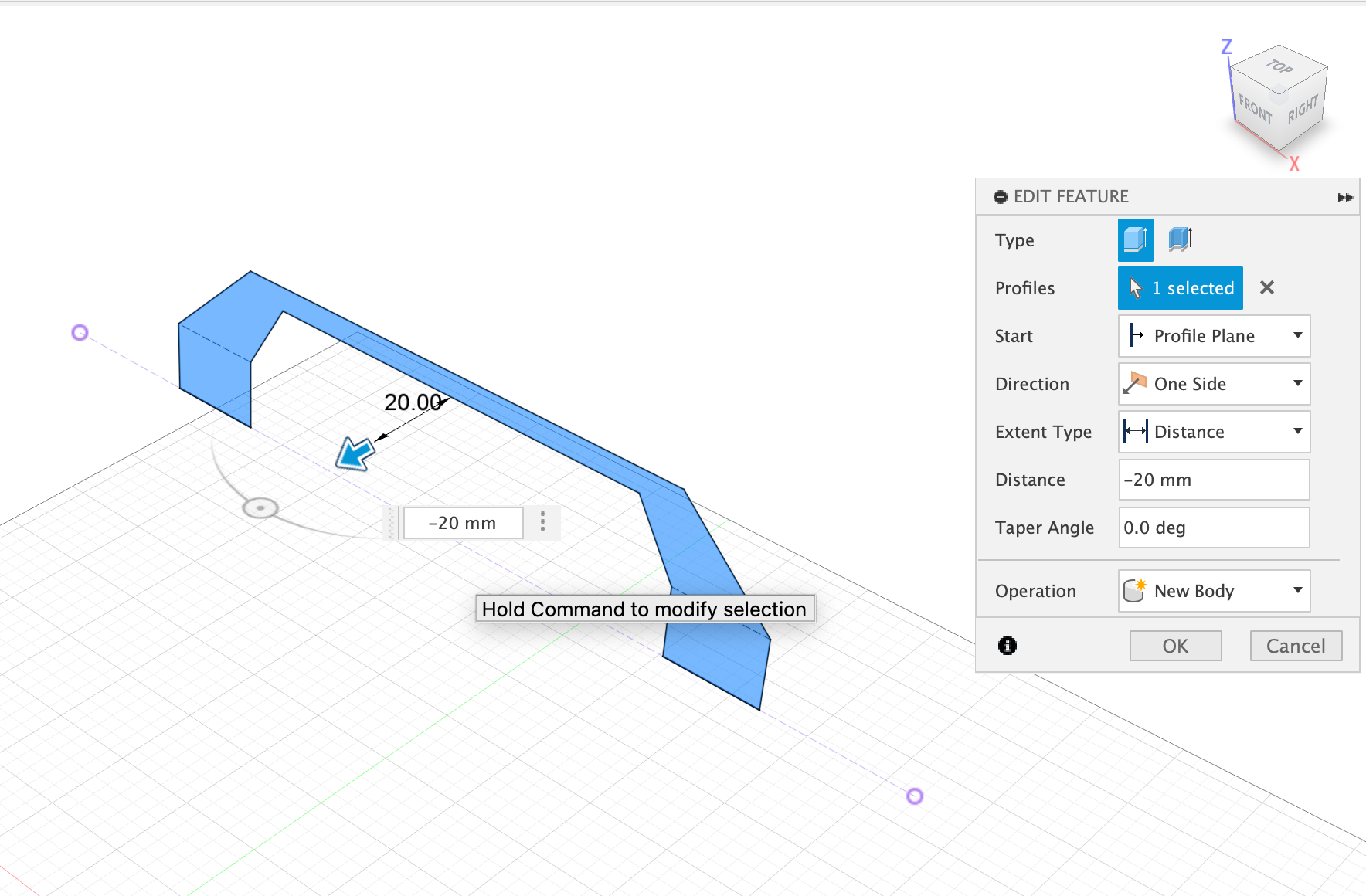

  3. Extrude the body profile by 20mm:

    Extrude

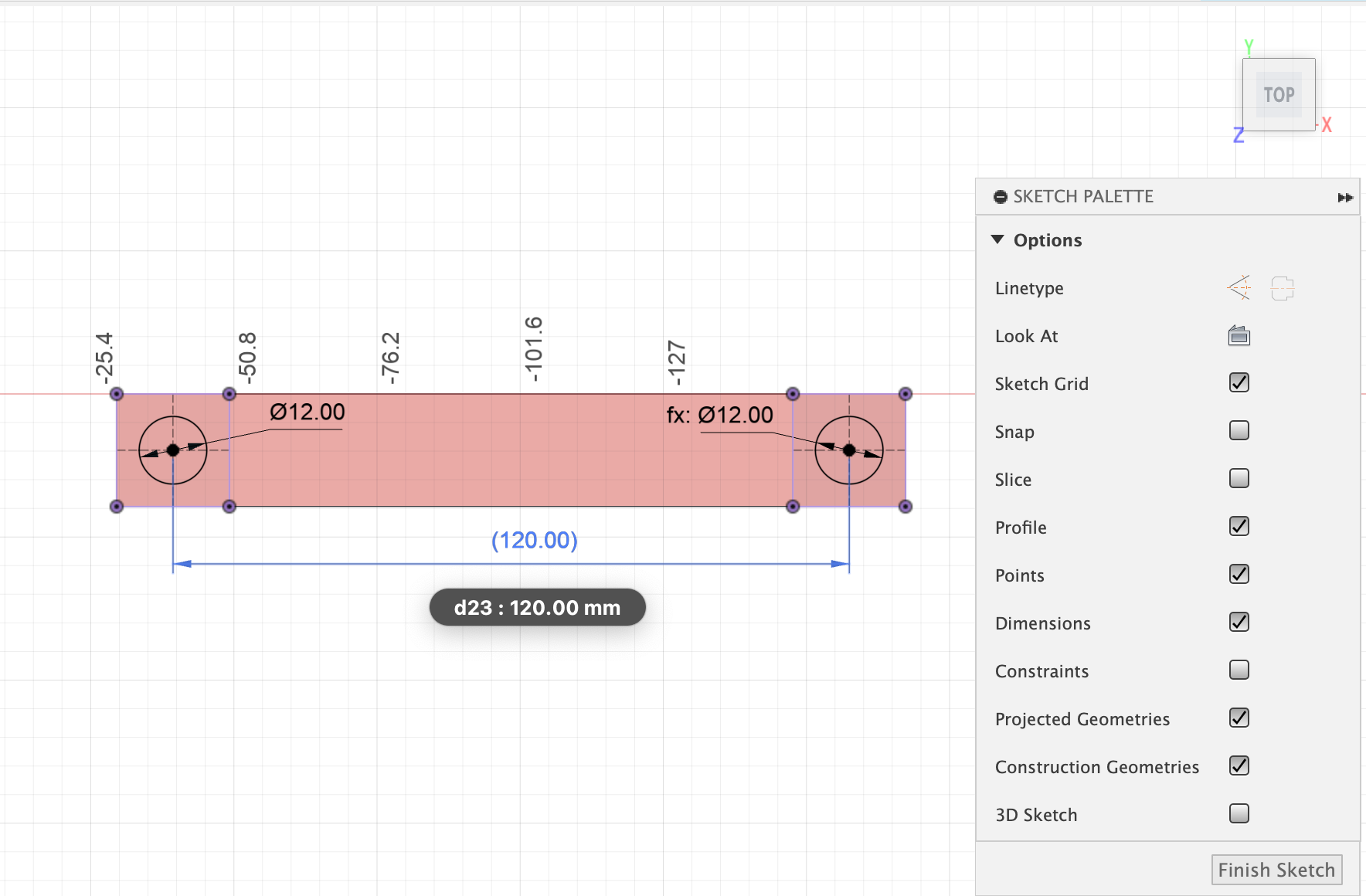

  4. Create a new sketch on the top of the new part, named top_profile

    Sketch

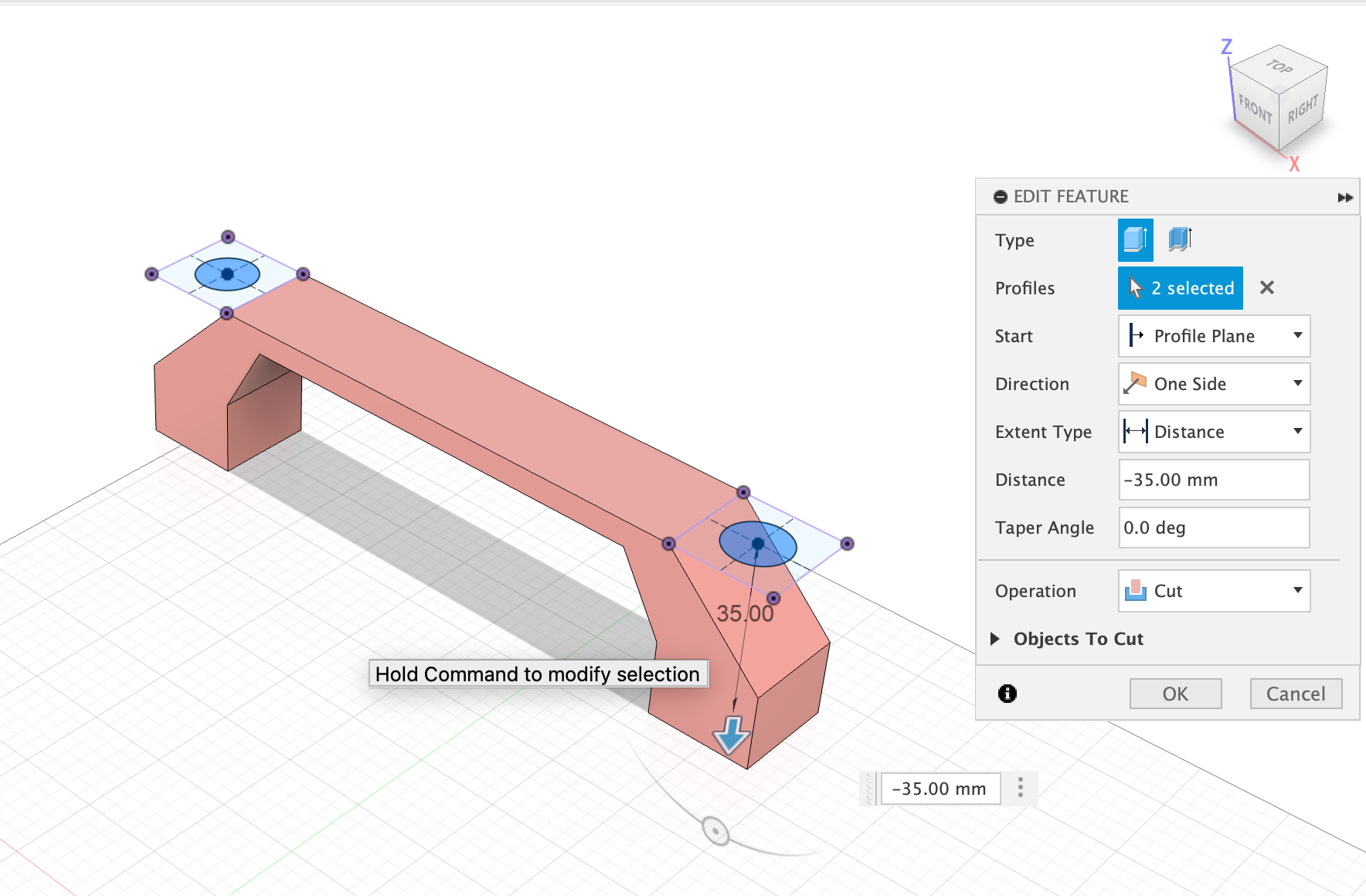

  5. Extrude-cut the profile:

    Extrude

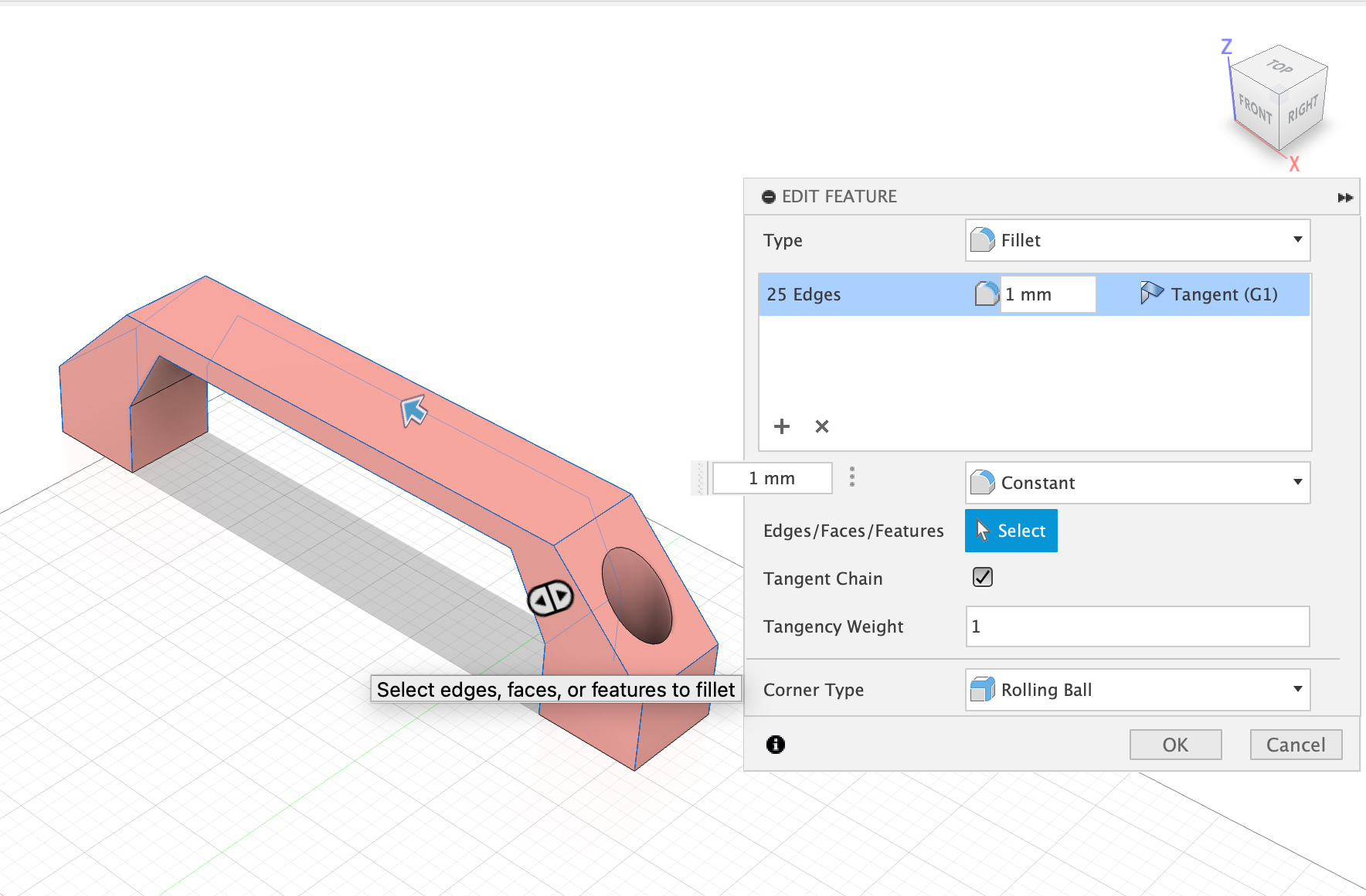

  6. Fillet the handle edges:

    Fillet

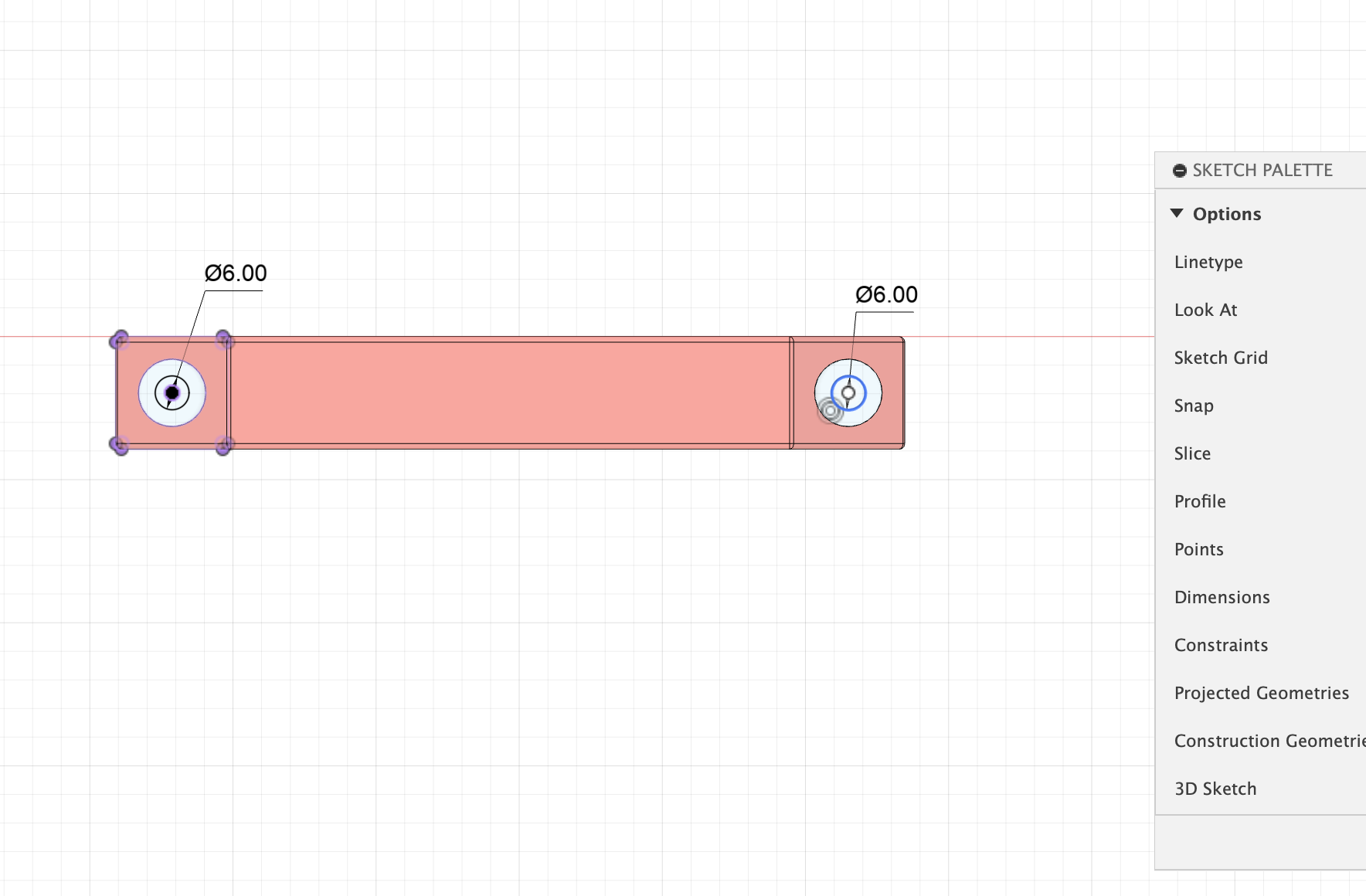

  7. Create a new sketch on the bottom of the body, named bottom holes

    Sketch

  8. Extrude the sketch up by 3mm to create the platform the screws will sit on:

    Extrude
