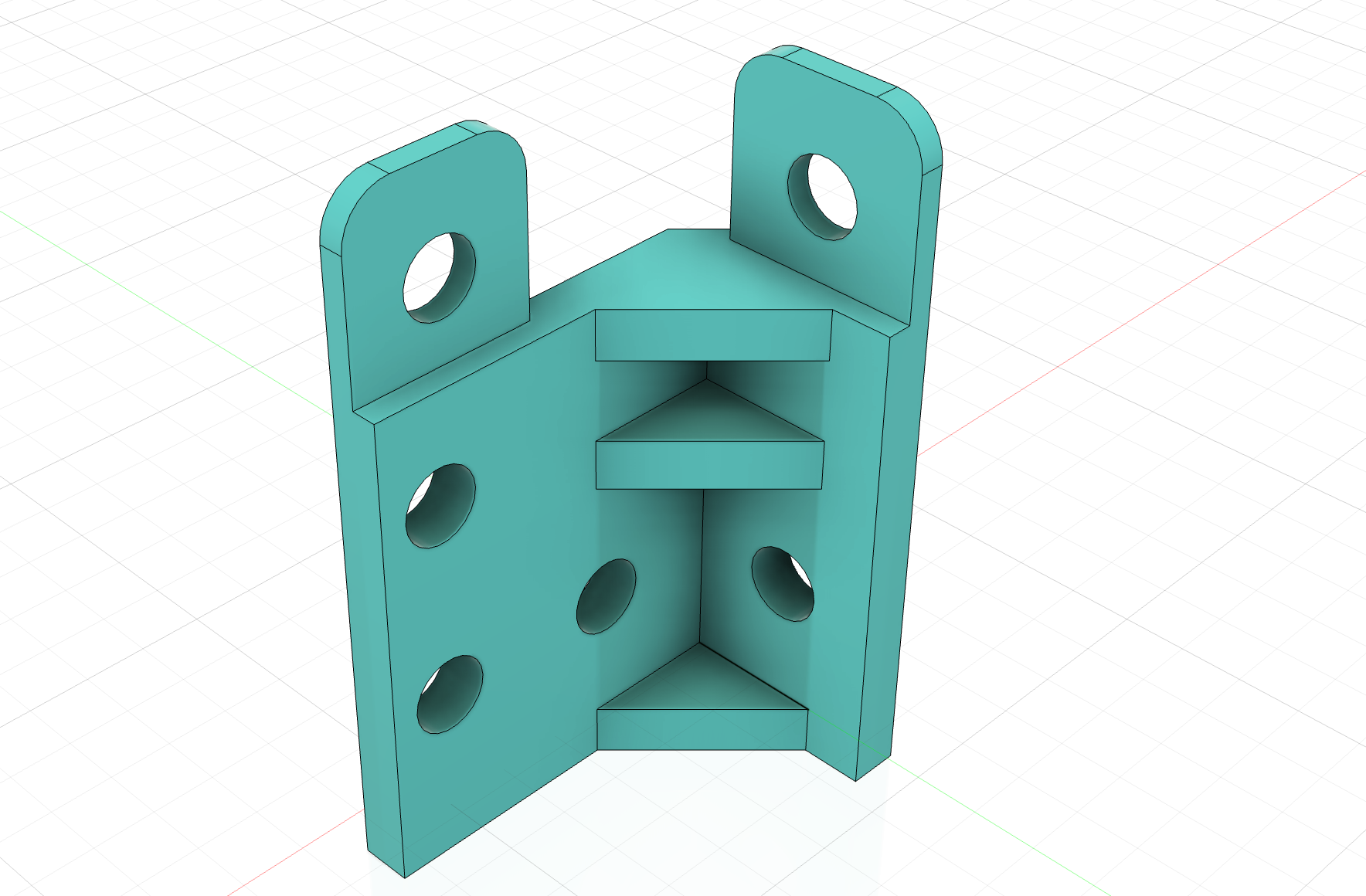

Create the Bottom Corner

Learn how to create the bottom corner piece for the mini-rack

1. Create a new file named bottom_corner in Fusion 360

2. Create a new sketch on the XY plane, named bottom_base

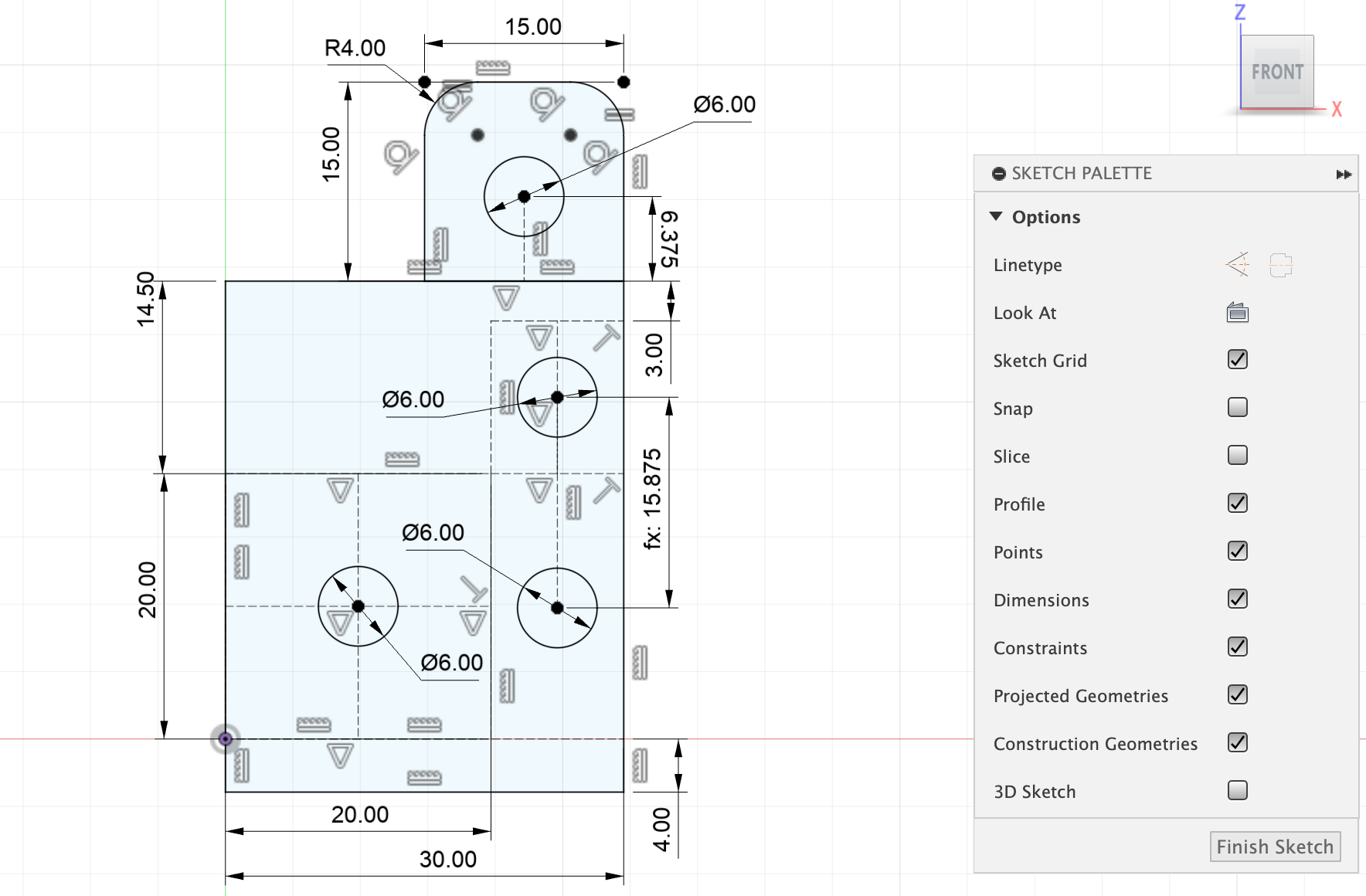

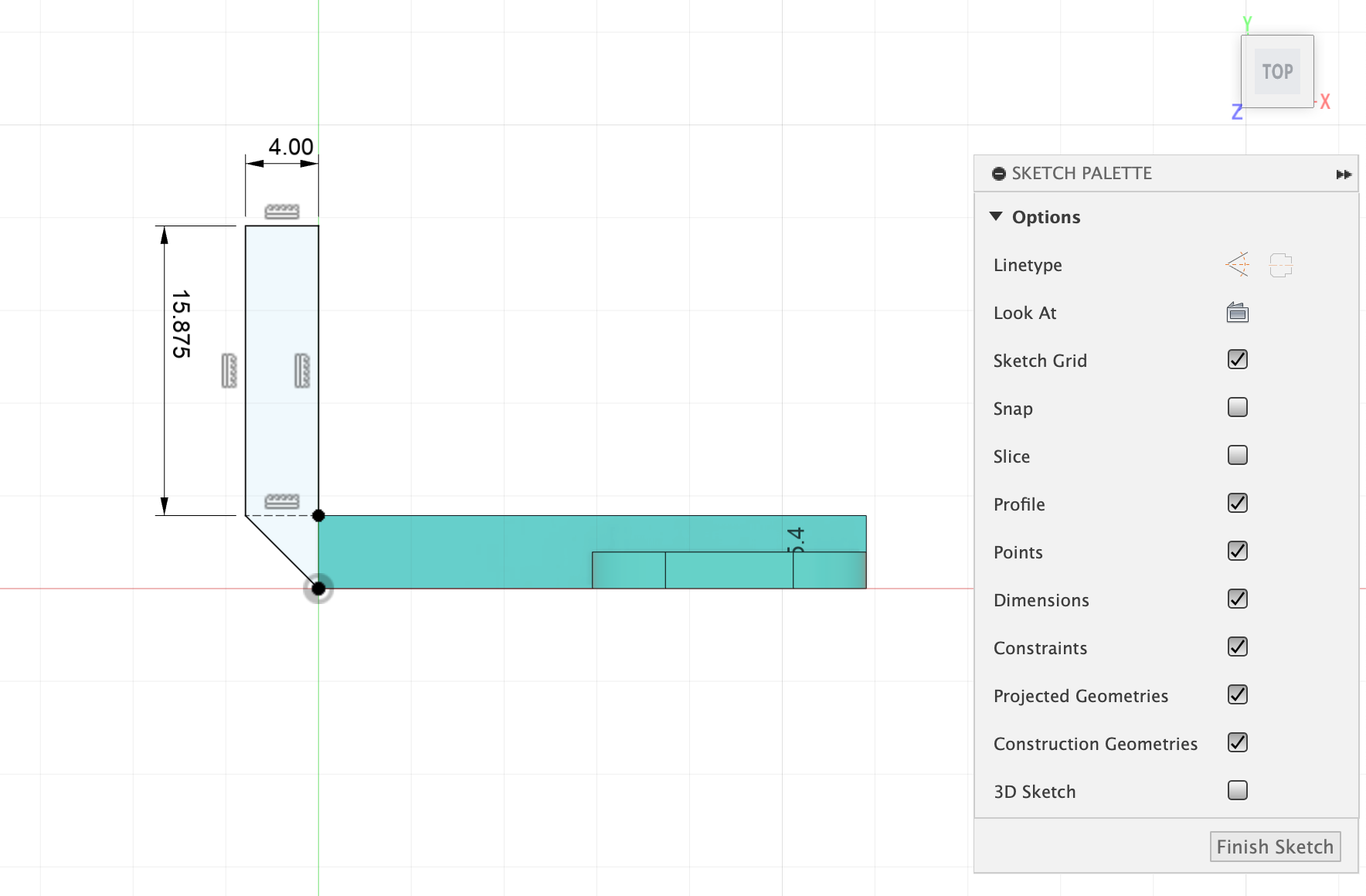

3. Create the following sketch:

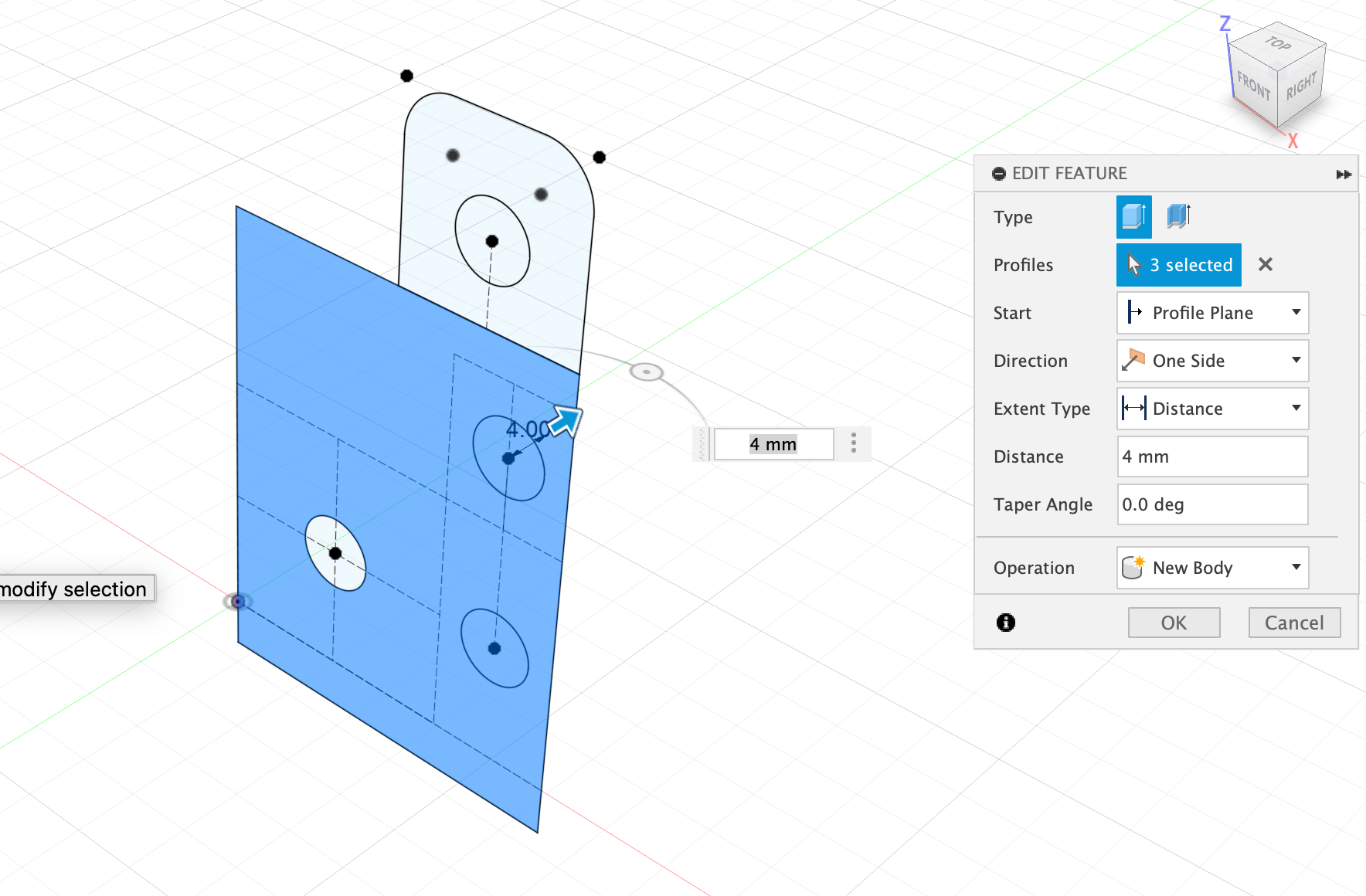

4. Extrude the body profile by 4mm:

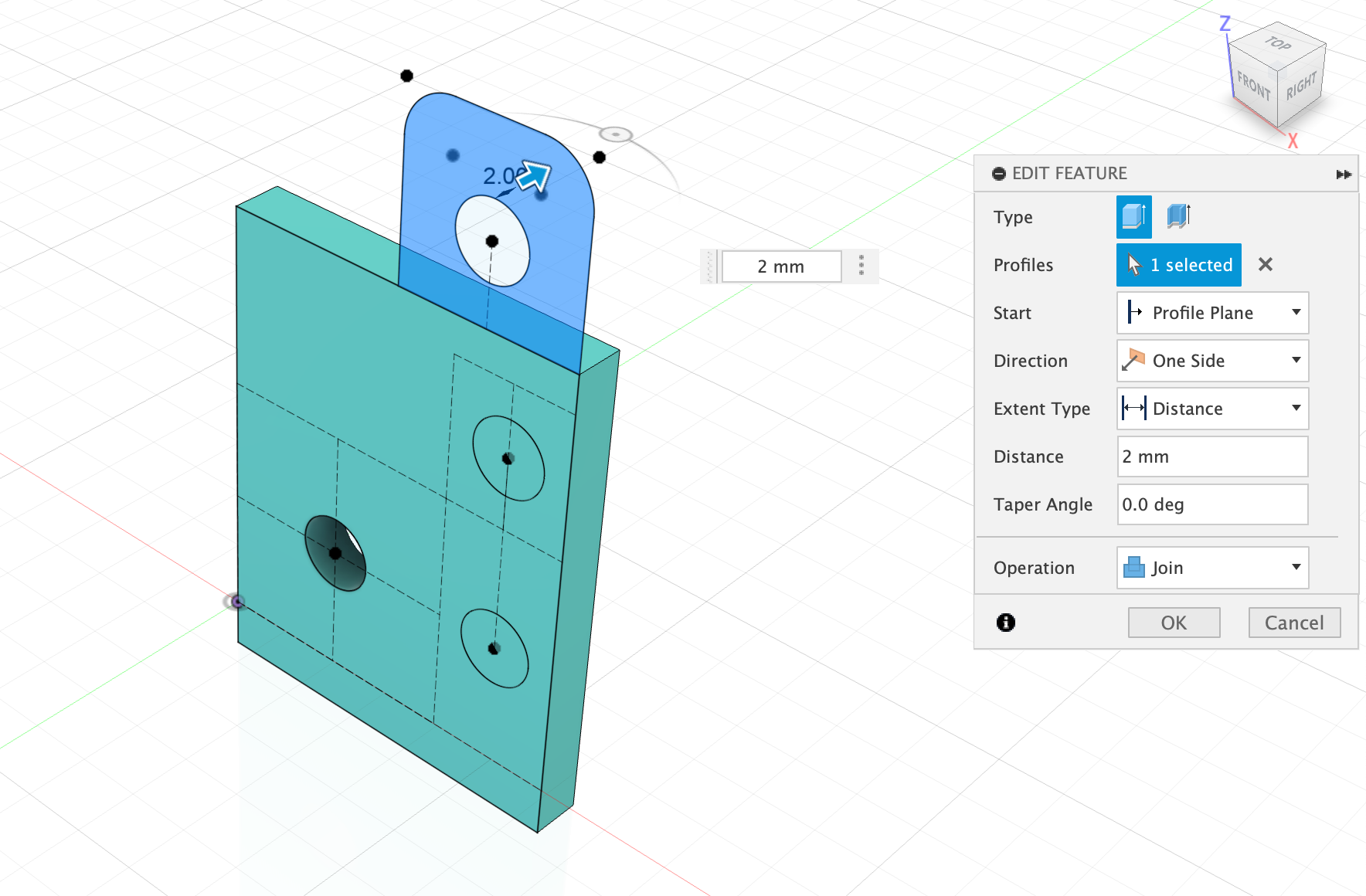

5. Extrude the top tab profile by 2mm:



6. Create a new sketch on the top of the new part, named top_profile

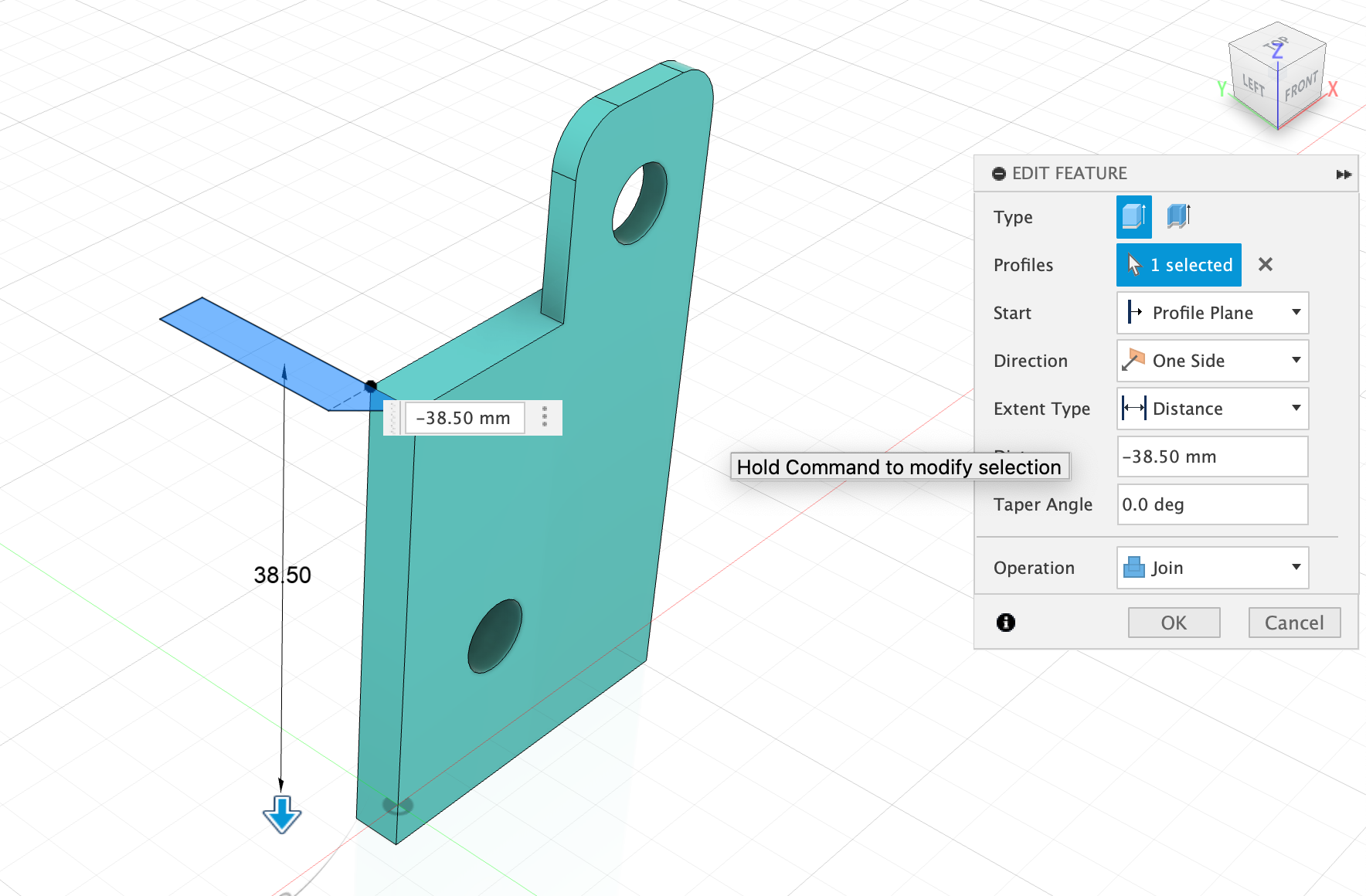

7. Extrude the top profile to the bottom surface of the main part:

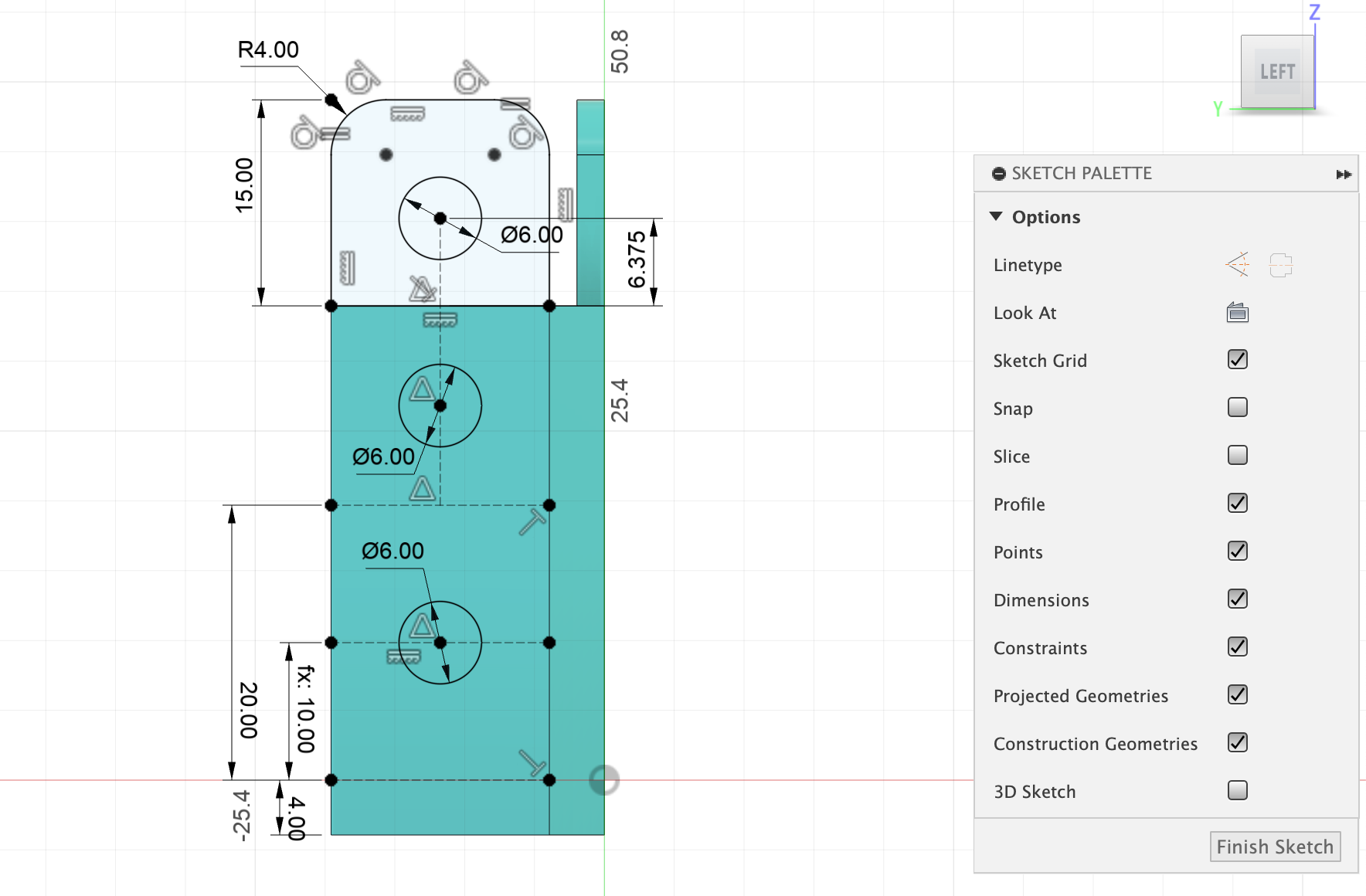

8. Create a new sketch on the top of the body, named side holes

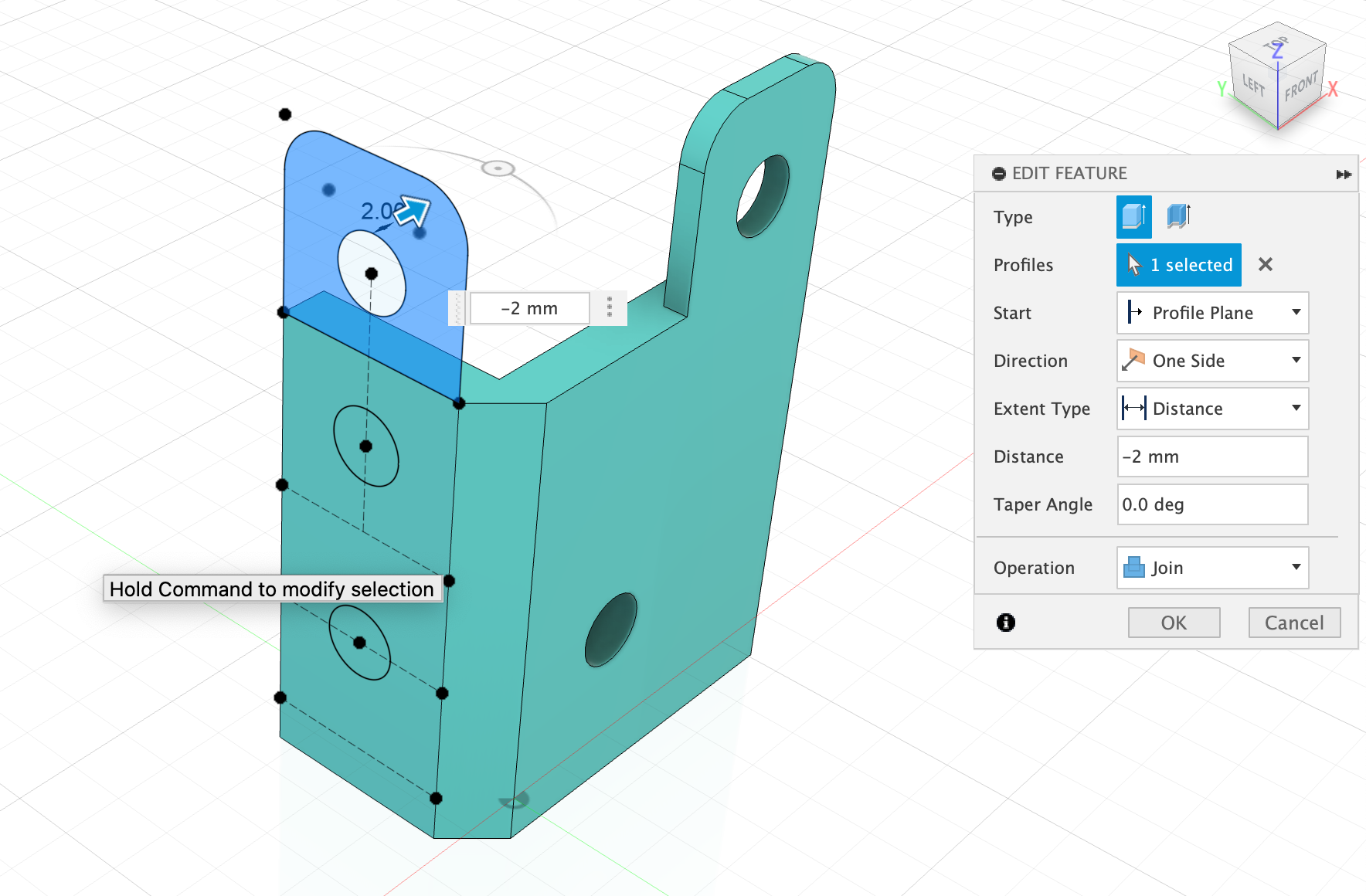

9. Extrude the top tab:

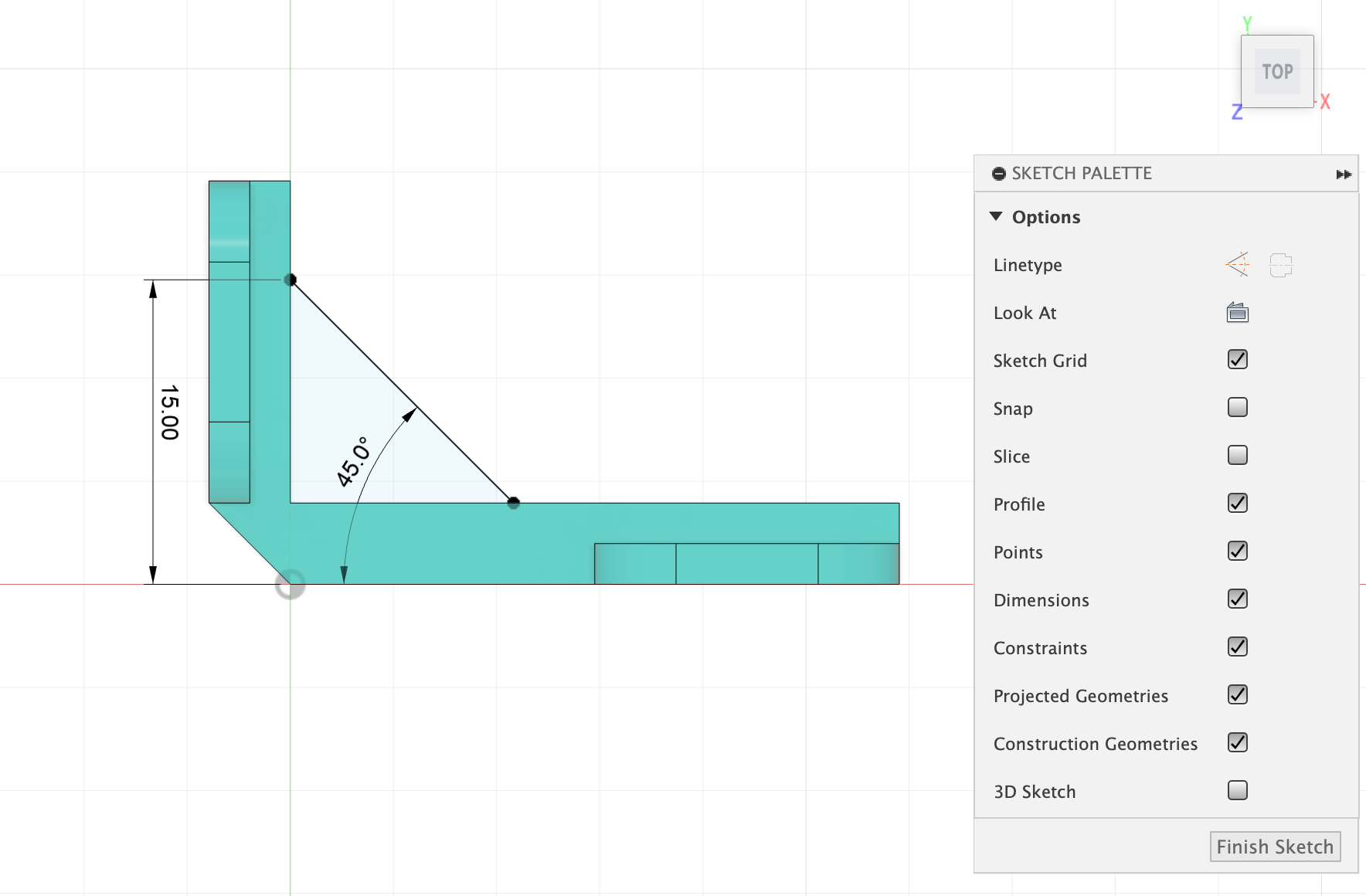

10. Create a new sketch, name it ribs:

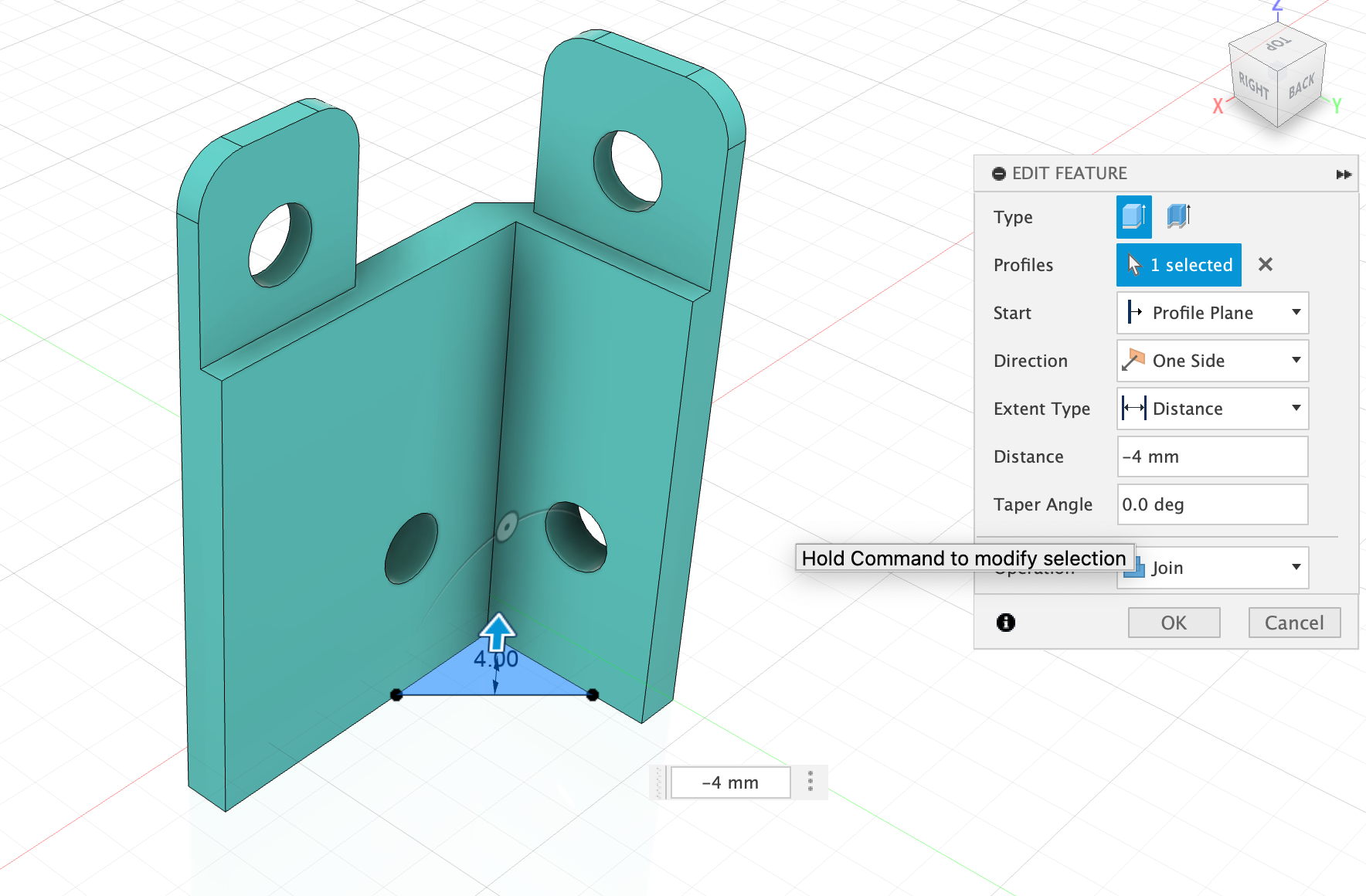

11. Extrude the sketch::

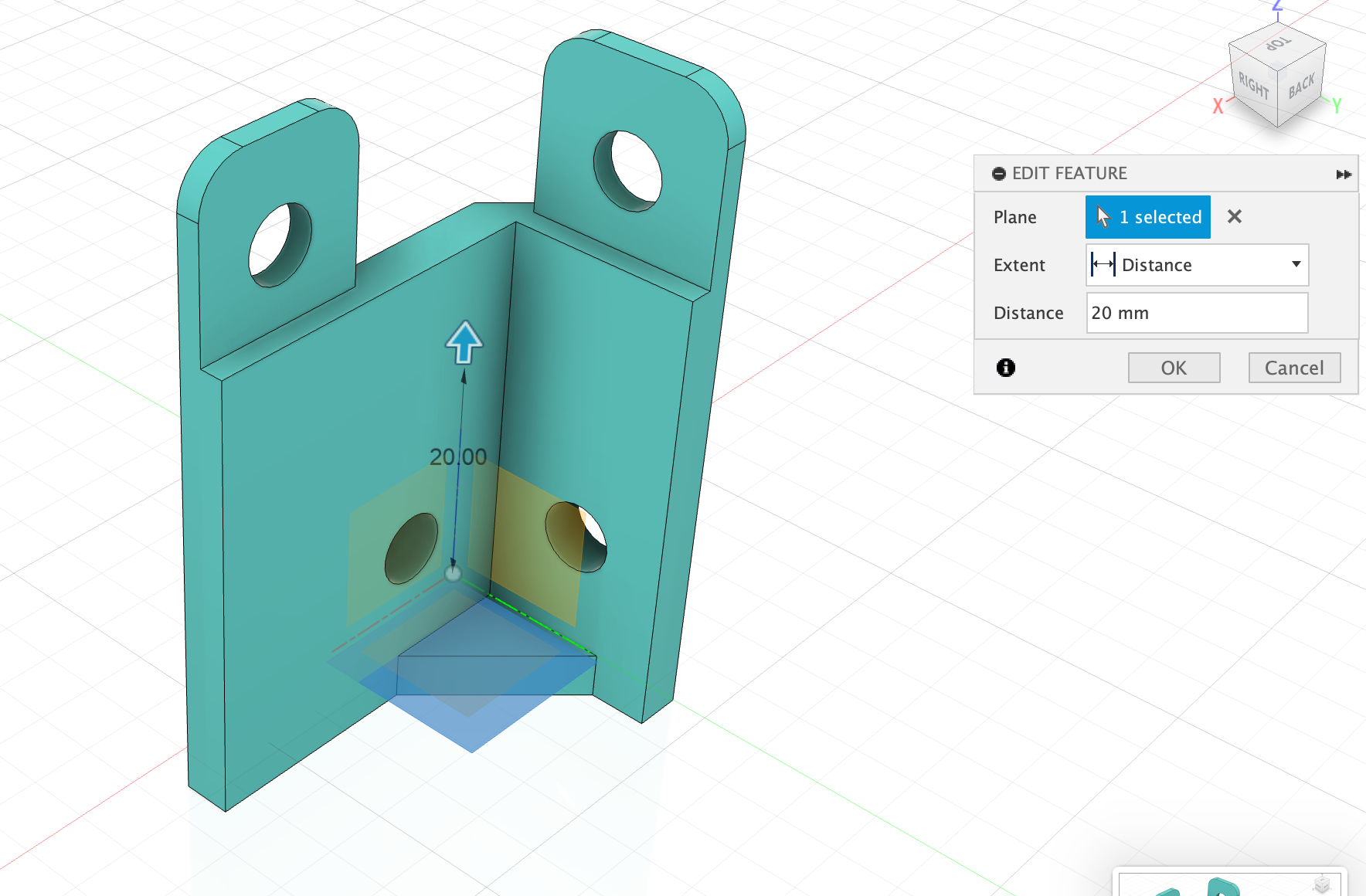

12. Create a construction plane on the top of the new rib:



13. Extrude the ribs sketch 20mm from the construction plane:

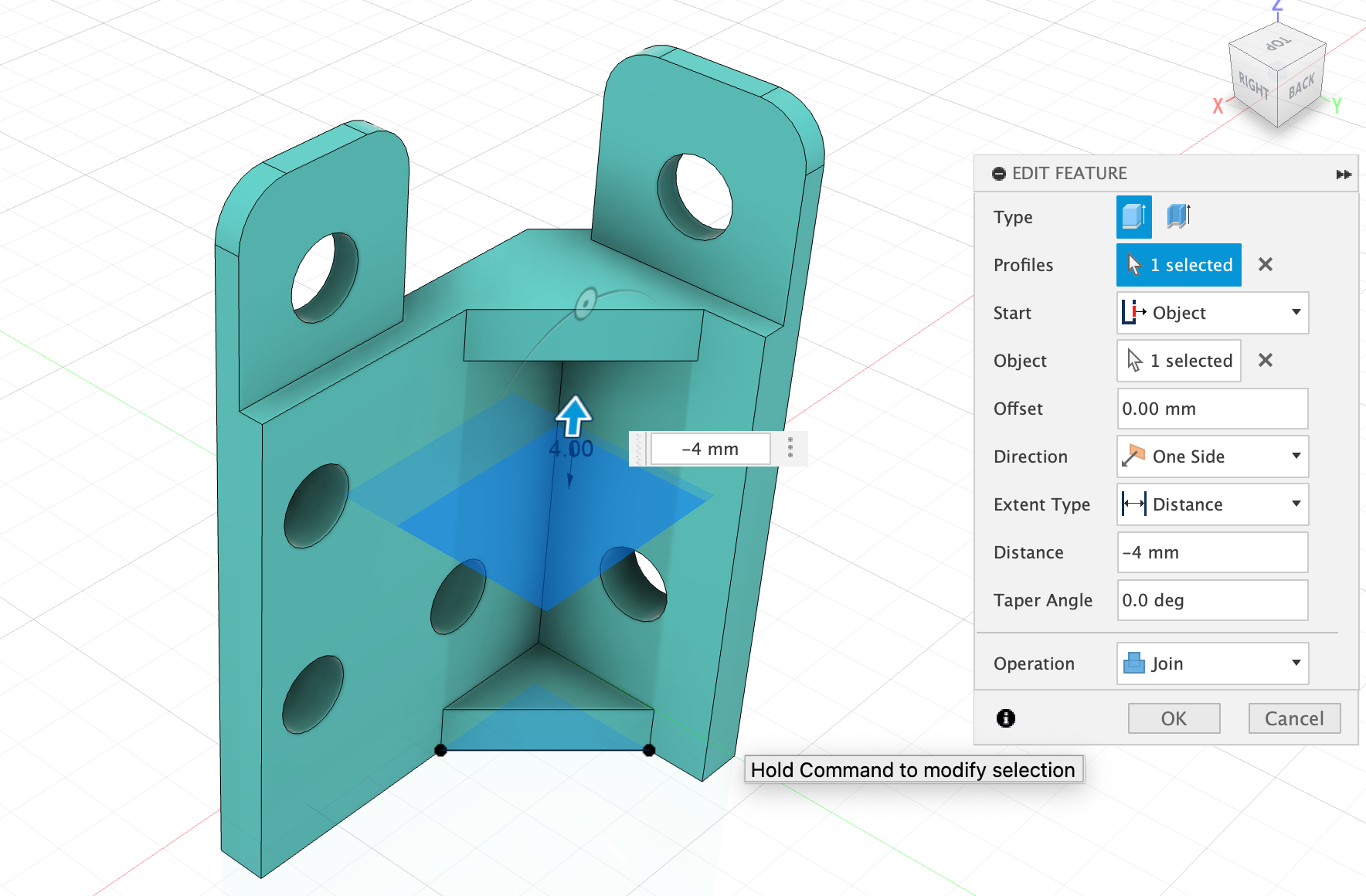

14. Extrude the sketch from the top of the body down by 4mm:

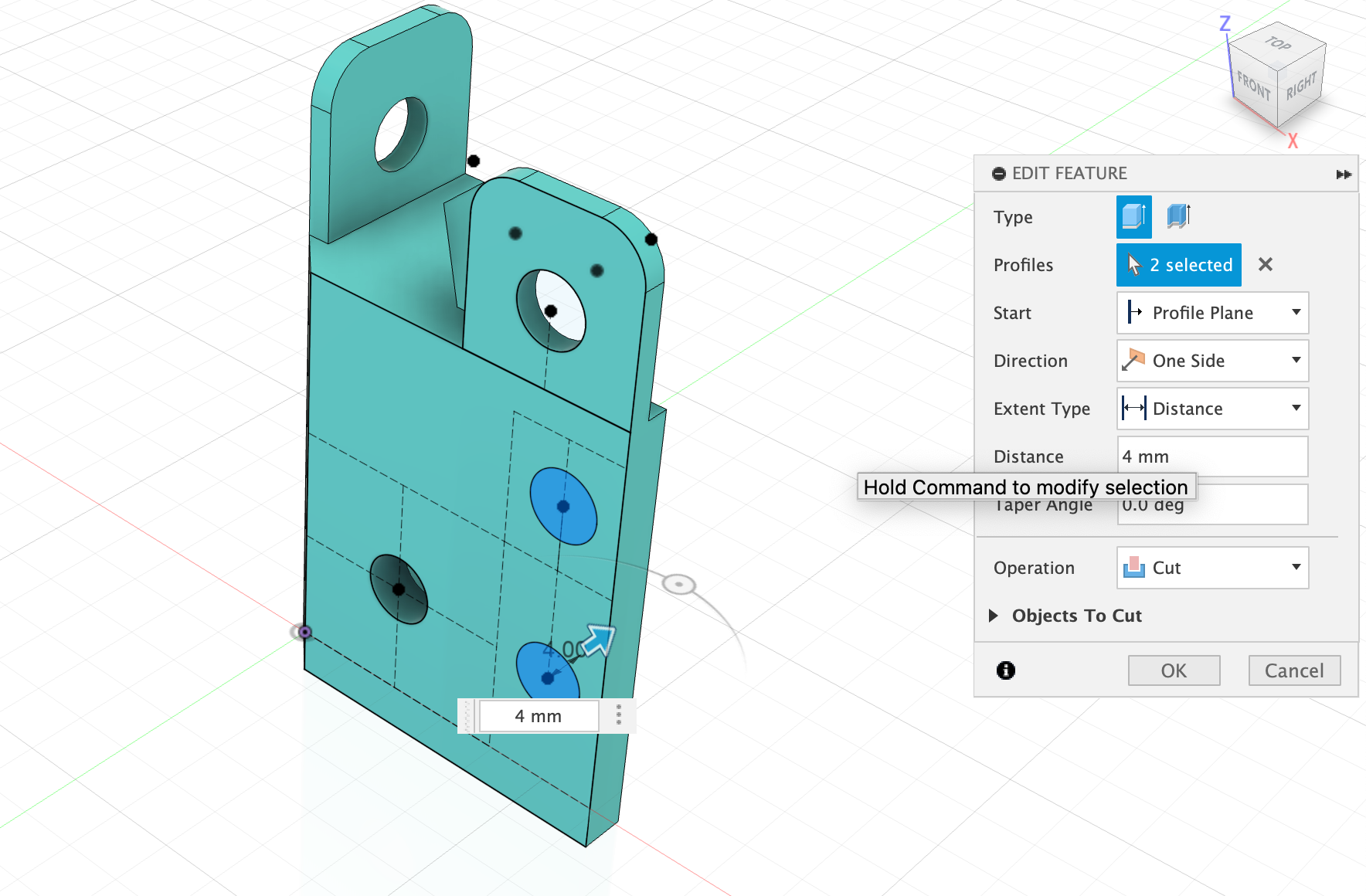

15. Extrude the sketch to create the holes:

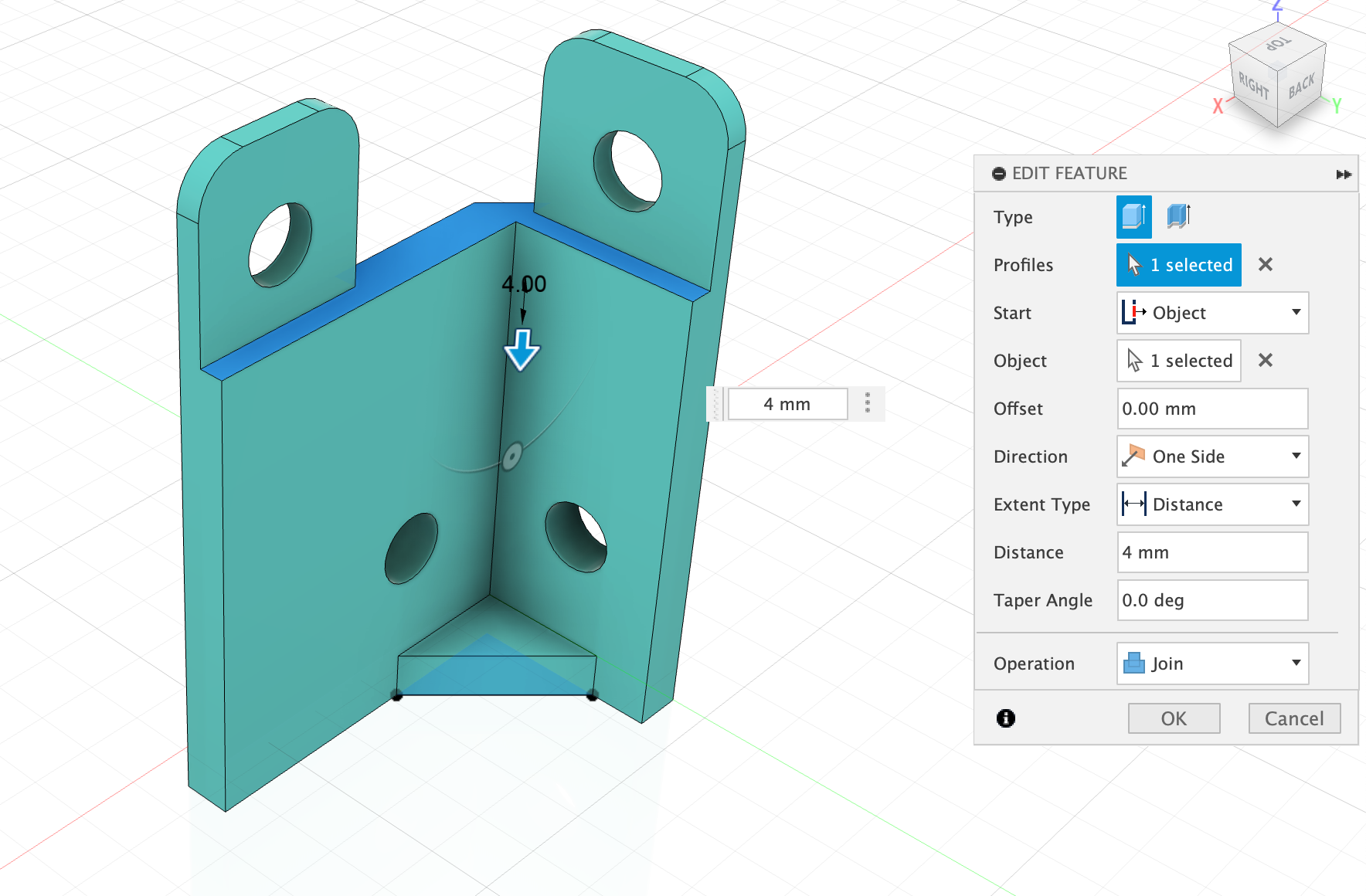

16. Extrude the ribs sketch 4mm from the construction plane:
