Solder wires to motors
Solder power wires onto the two N20 motors
By Kevin McAleer, 1 Minute
Watch the video
The assembly video covers soldering and putting the robot together (lessons 2 to 7).
Preparation
Prep the motor by:
- putting some flux on the contacts
- putting flux on the wires

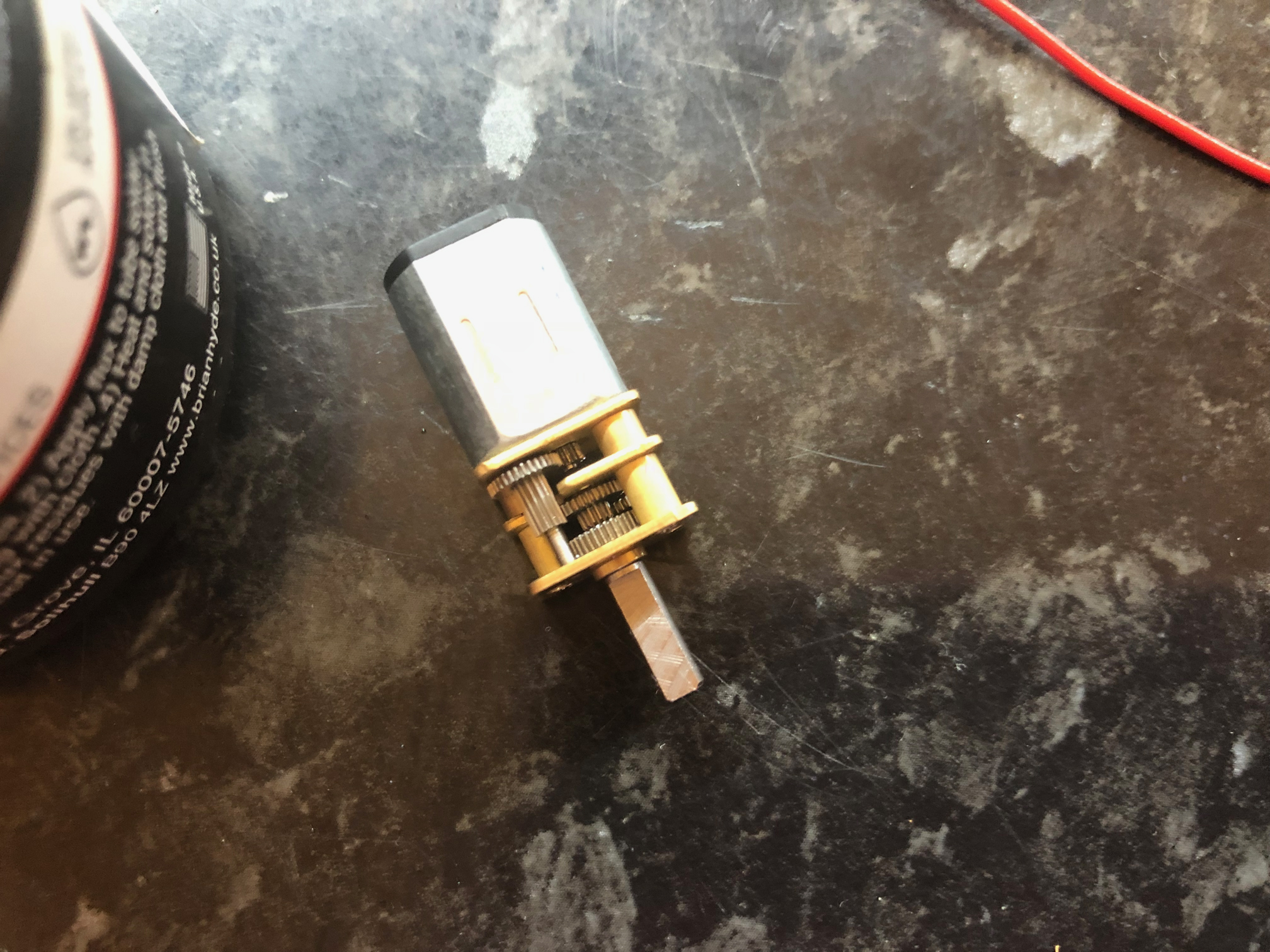

Motor

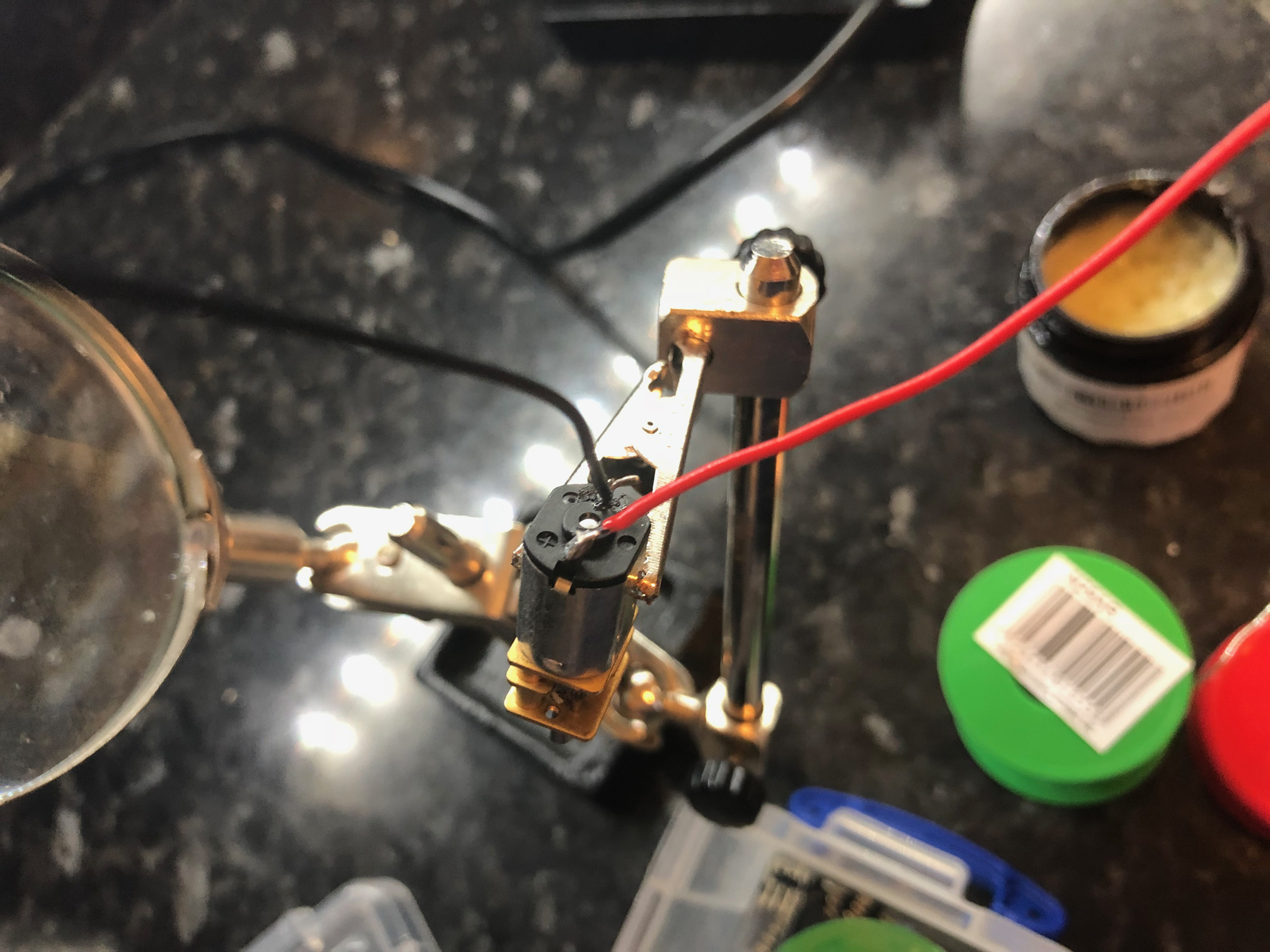

Solder wires to motors
- solder a 15cm red wire to the positive terminal
- solder a 15cm black wire to the negative terminal
Safety first
Soldering irons get hot enough to burn you instantly. Use a stand, work in a ventilated area, and wash your hands after handling solder.
After soldering, twist the red and black wires to secure them further. It also makes the wires easier to manage.
