Revolve
Revolve to create the eyelid
By Kevin McAleer, 1 Minute

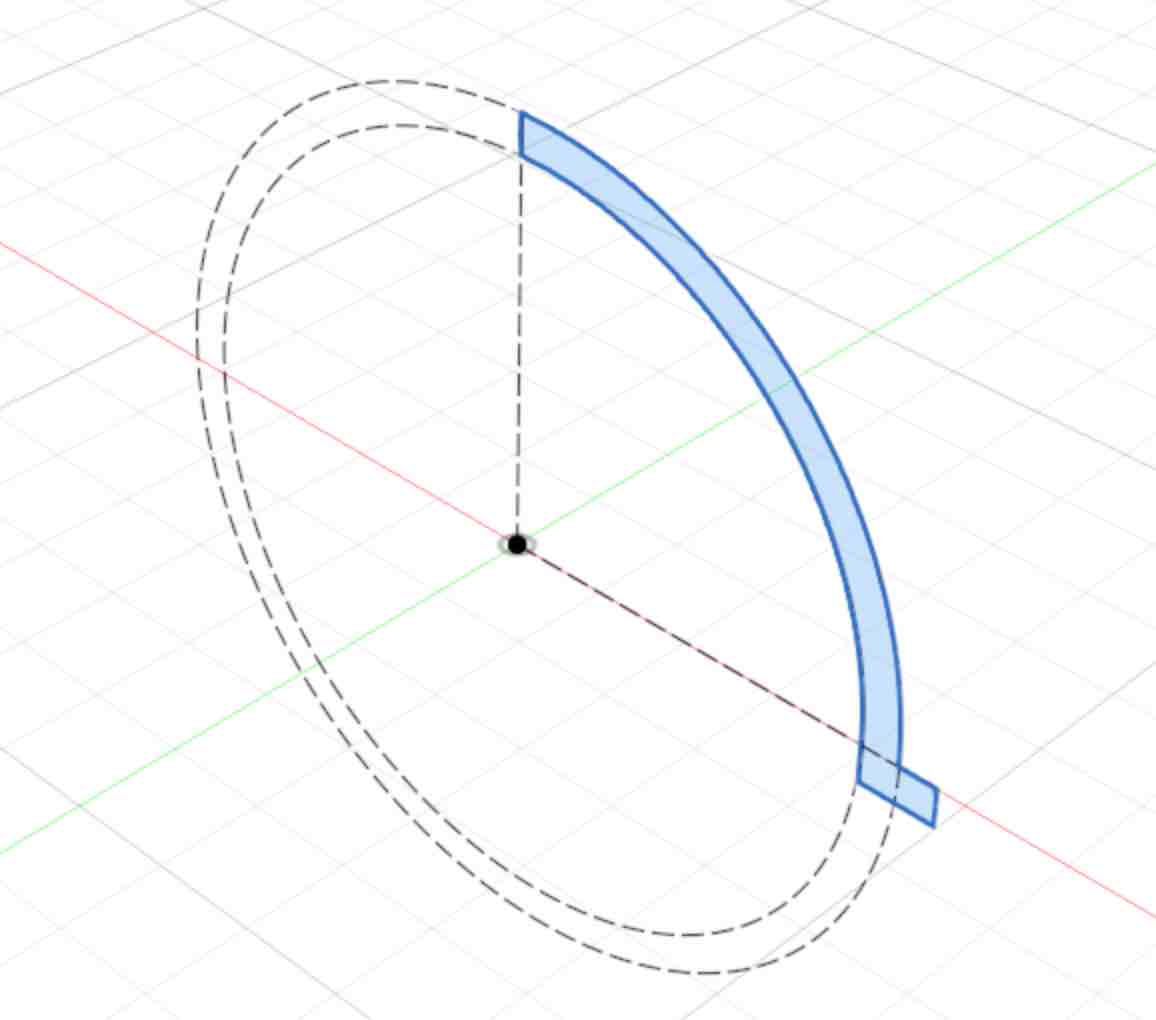

- Select the profile - Click within the newly created profile to select it

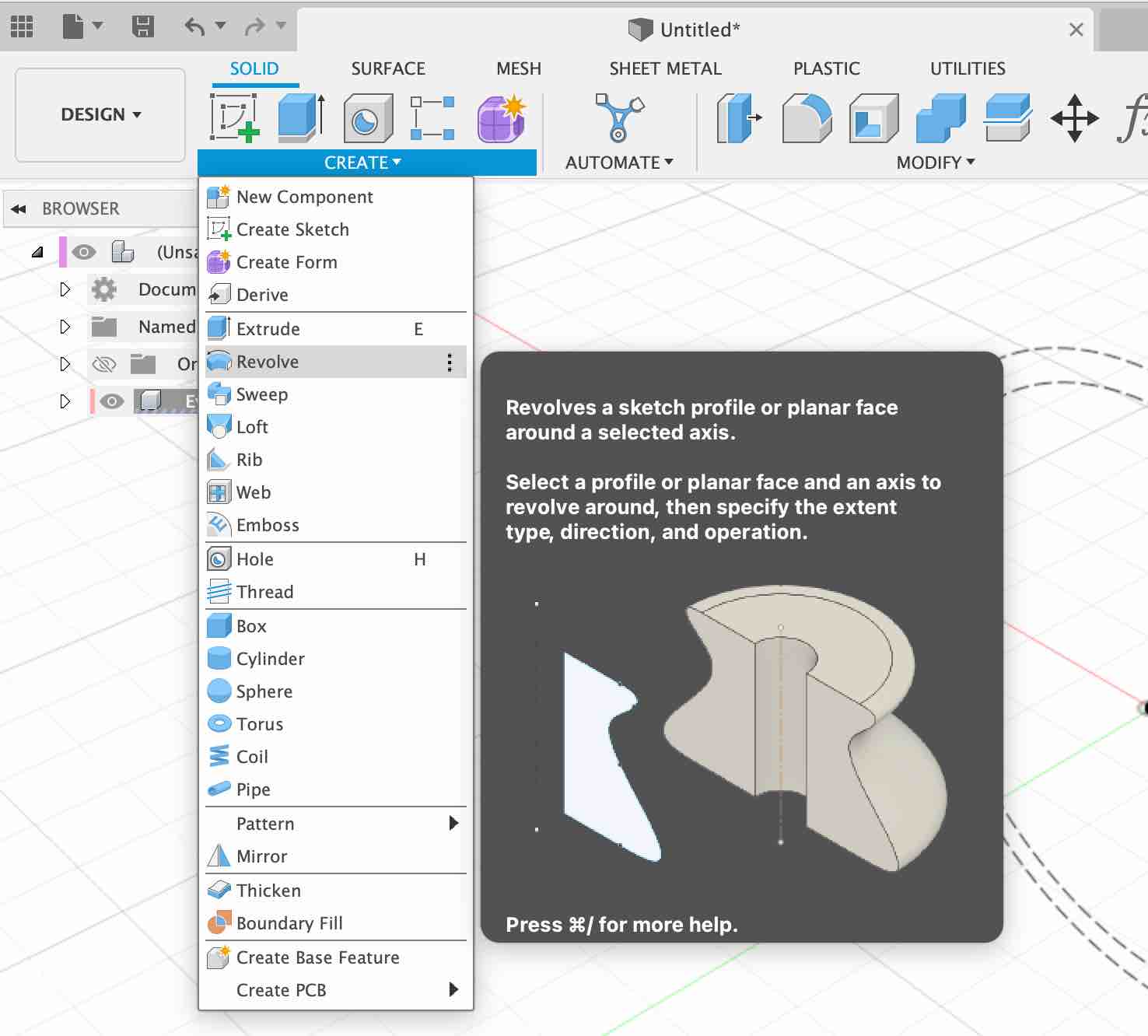

- Revolve the profile - Click the Revolve Tool from the ‘CREATE’ Menu
- Select the Axis - Select the Blue
ZAxis and you will see the new shape appear.

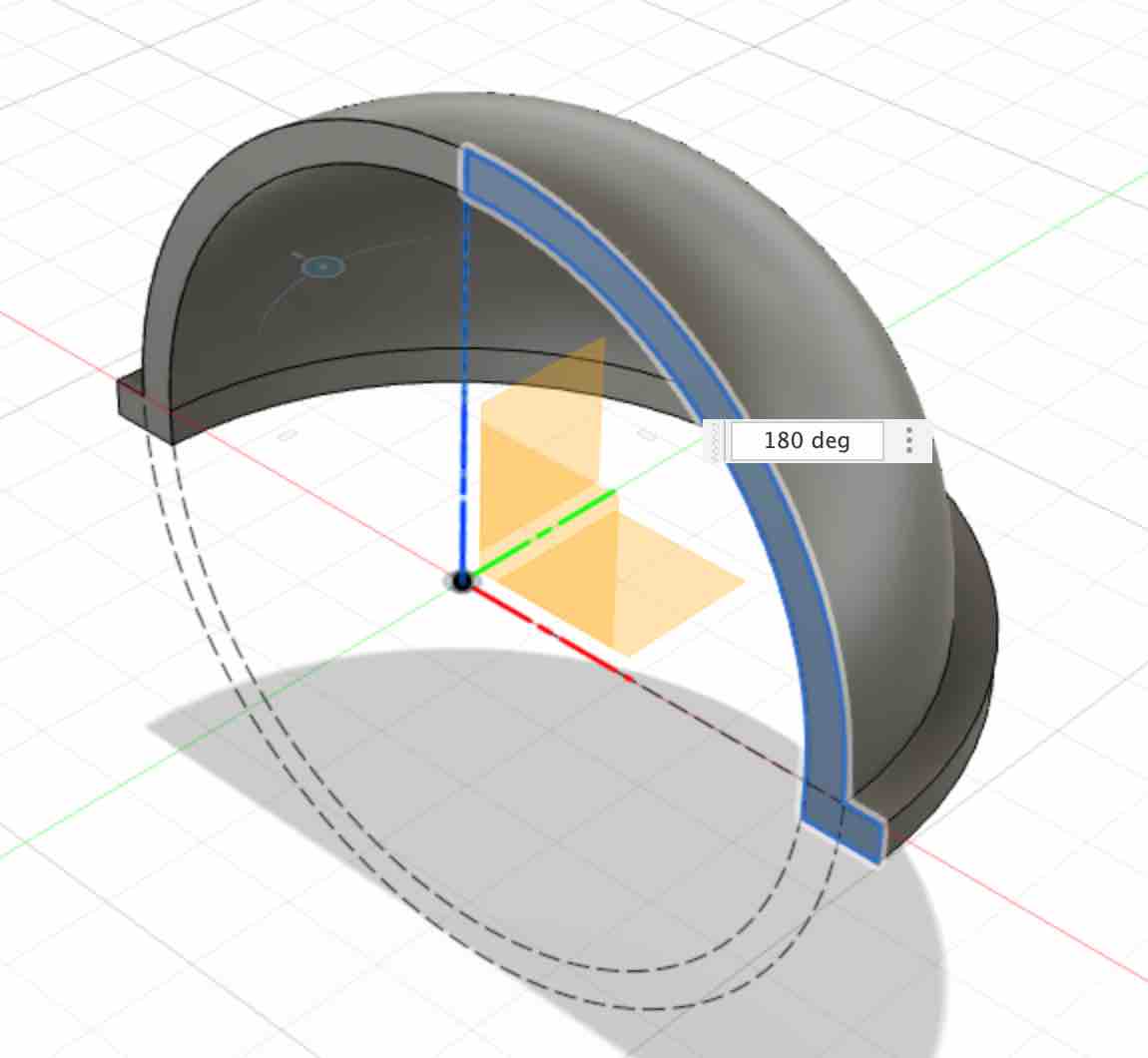

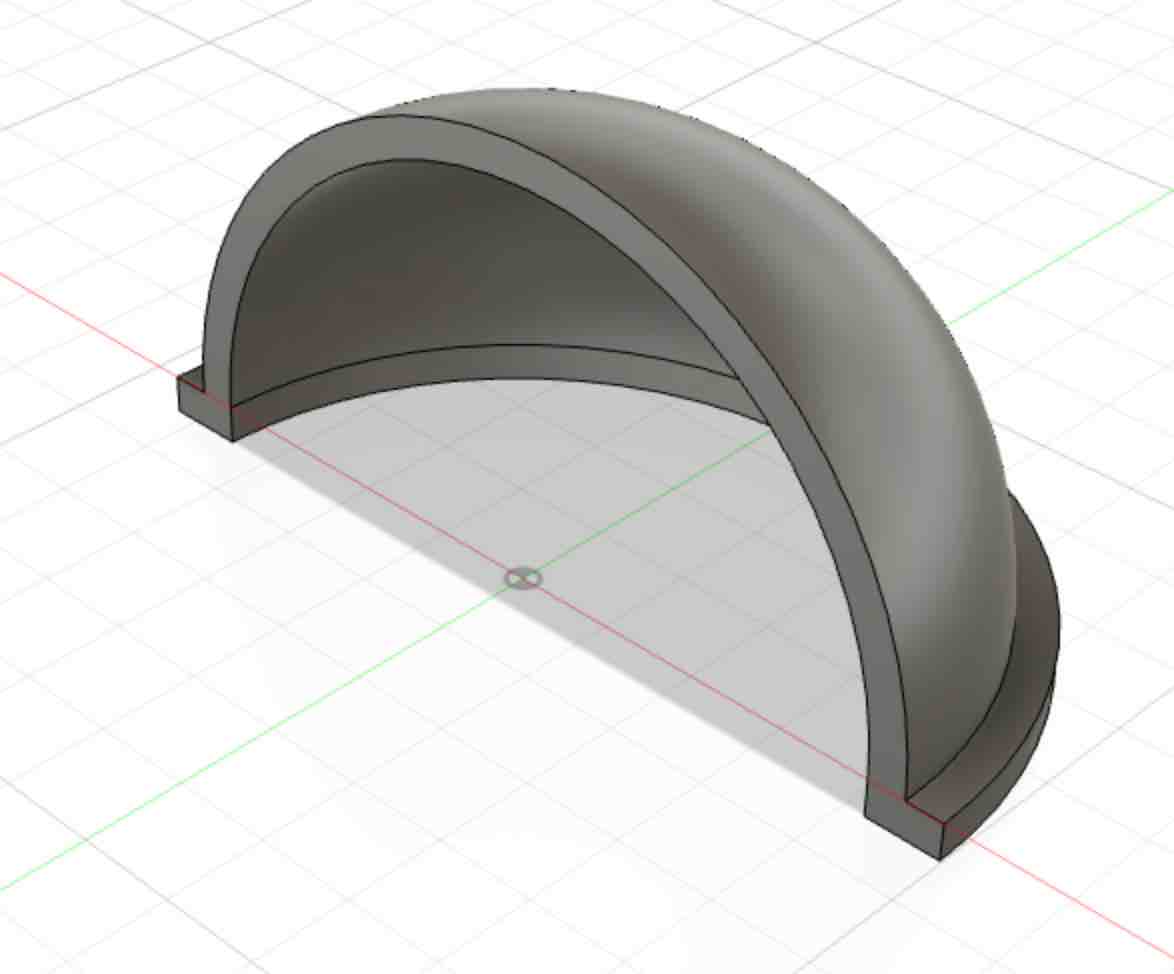

- Set the rotation - Set the rotation to 180° so the shape looks like the quarter of a hollow sphere.
