Common Part Dimensions

Sizes of common electronics

A list of common dimensions of parts I use often, but forget

fusion_360 3d_printing robot

12 September 2022 by Kevin McAleer | Share this article on

⚠️ Work in progress Please note, I’ll add extra components as I use them.

Table of Contents

SG90 Servo

The SG90 Servo is a low cost servo and is commonly available. Its ideal for use in lightweight robots.

Dimensions follow this convention:

^ Height
|
| / Width
|/
o----->
Length

Here are the dimensions:

Dimension Measurement
Length 23mm
Width 11.8mm ~ 12mm
Height 30.5mm

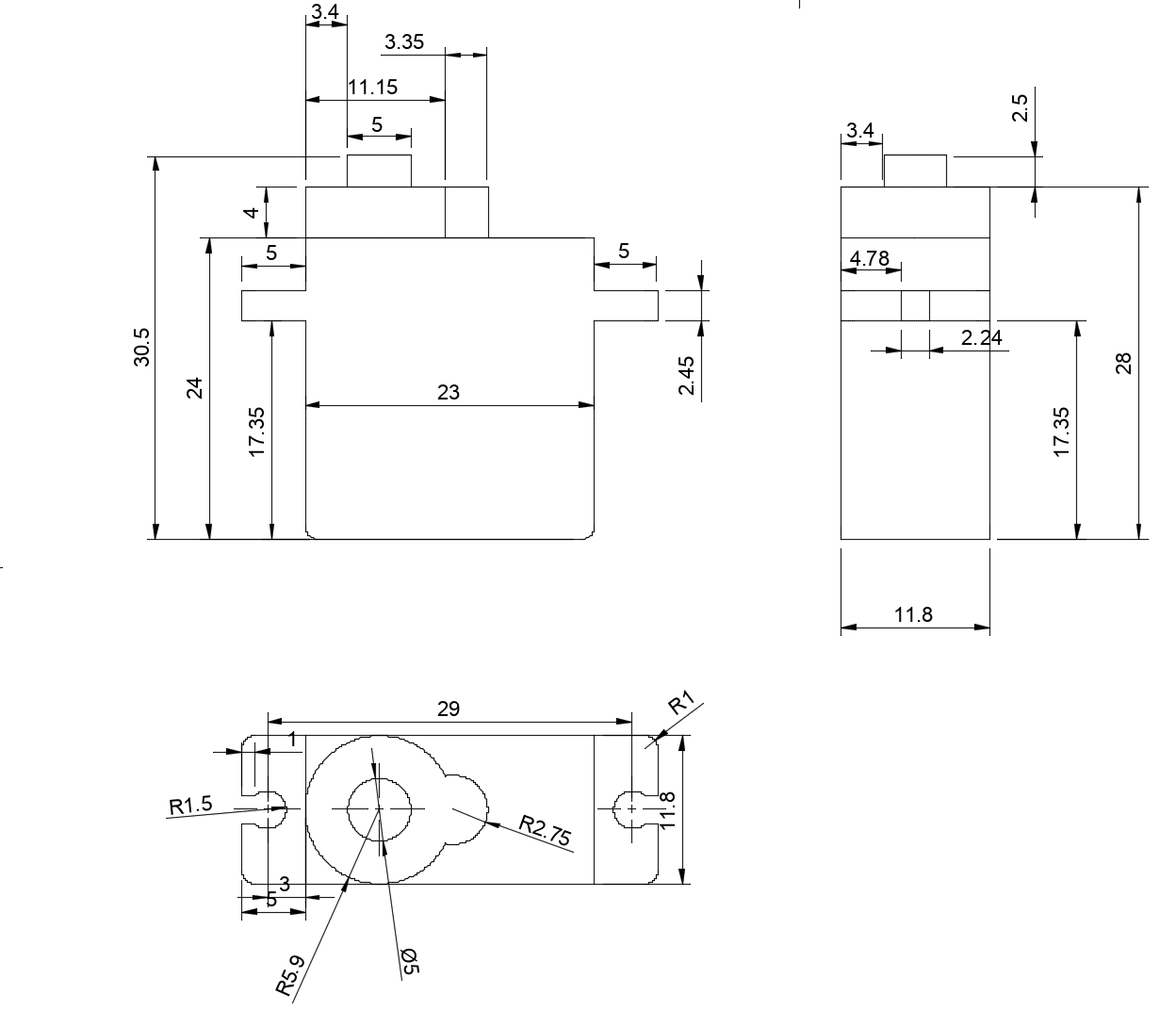

SG90 Dimensions

Raspberry Pi Pico & Pico W

The Raspberry Pi Pico & Pico W are low cost 32 bit Microcontroller.

Here are the dimensions:

Dimension Measurement
Length 51mm
Width 21mm
