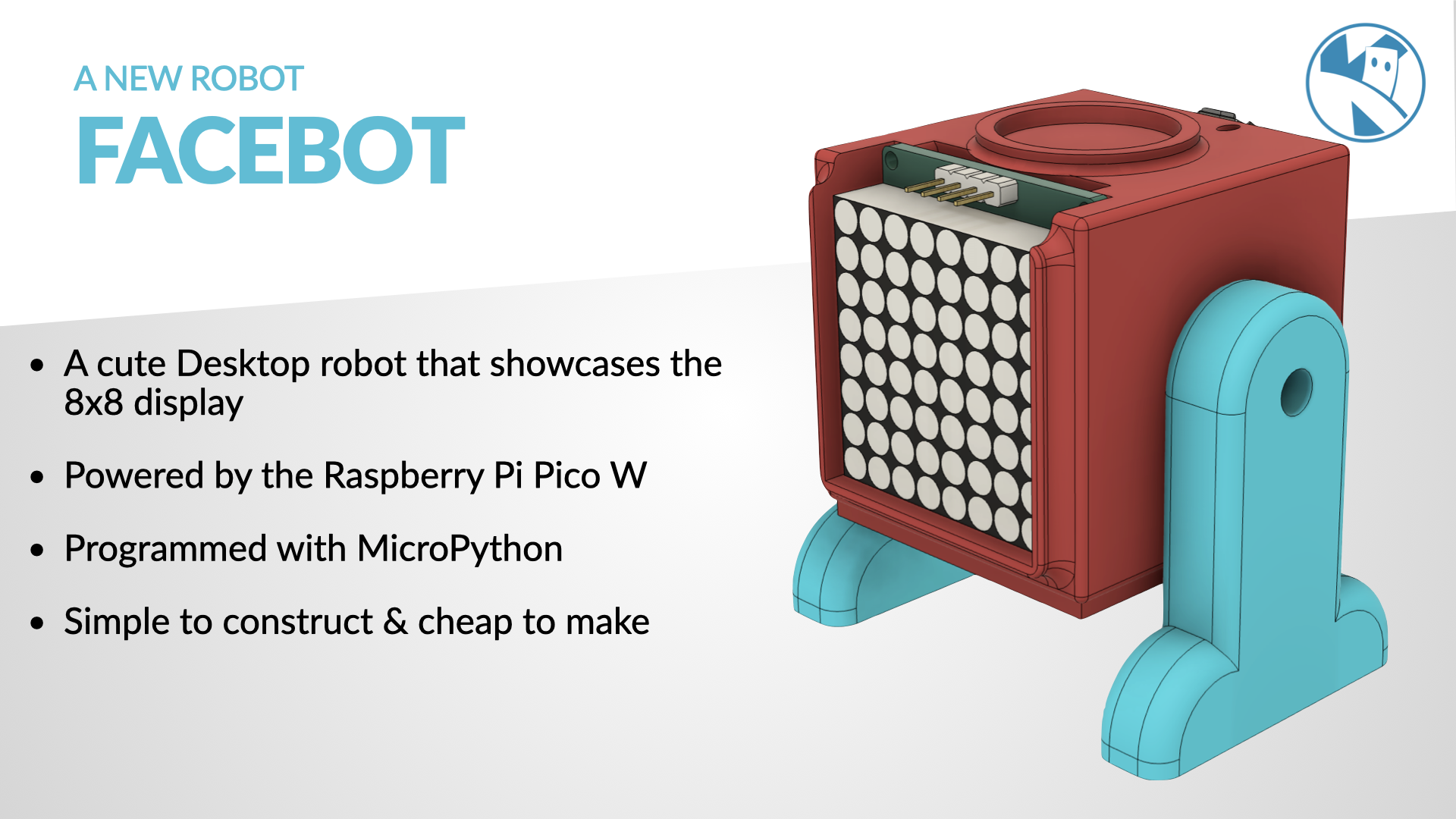

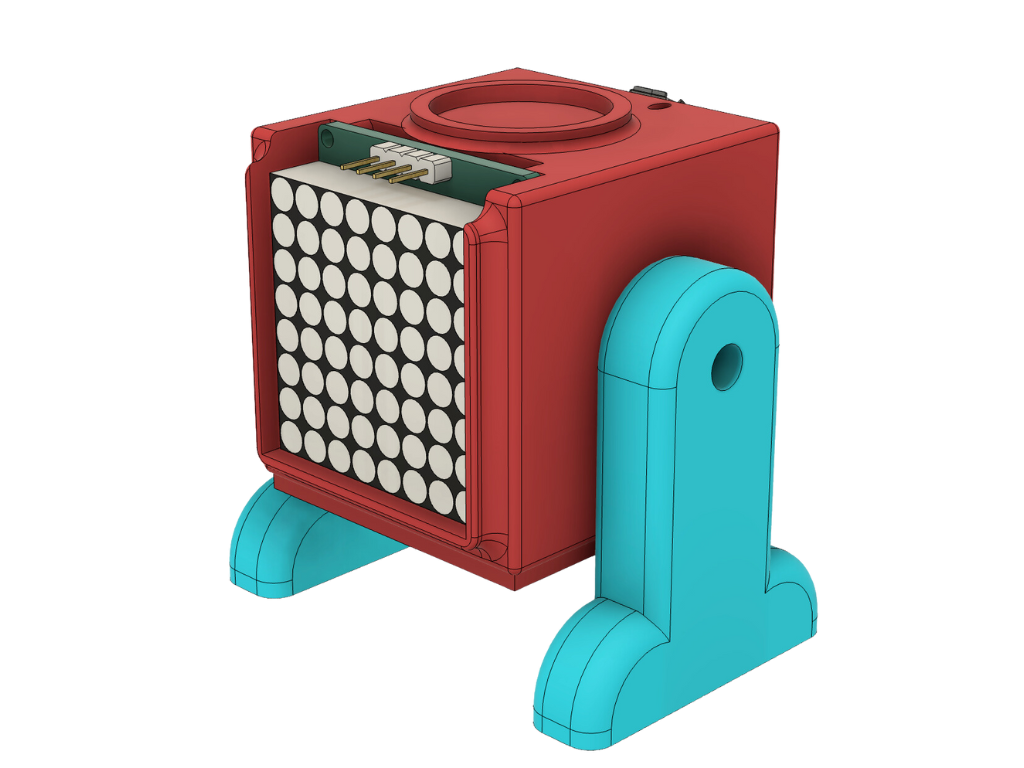

Facebot is a cute desktop robot that features a small 8x8 LED Display matrix. It is powered by a Raspberry Pi Pico W, which means we can control this robot using Wifi and/or Bluetooth. The 8x8 LED Matrix I2C display is useful for scrolling text, and displaying fun icons and simple animations. Bill of Materials Item Description Qty Price Pico Raspberry Pi Pico / Pico W (either will do) 1 £6.50 HT16K33 Display KeyStudio 8x8 LED Matrix Display with driver 1 £9.00 Wire Red, Black, Green, Blue Dupont cable 1 £0.50 2x M5 Screws 2 M5 Screws 2 £0.10   Total £16.20 MicroPython Code The code for Facebot is available in the Pico SMARS 2 library: https://www.github.com/kevinmcaleer/picosmars2 The library contains the icon images as well as a 5x5 font named ‘Jonny Five’. Icon Maker A useful tool for creating your own icons is available with this library - a program called icon_maker.py will help you create icons for displaying on your 8x8 Matrix LED screen. To use the icon maker you will need to setup a virtual environment with the tk library installed: From the command line type: python3 -m venv venv Activate the virtual environment: source venv/bin/activate Install tk: pip install tk Run icon_maker: python3 icon_maker.py Wiring STL Files Facebot is made up of 3 parts: body.stl - The main Body left_leg.stl - The left leg right_leg.stl - The right leg Construction
