Wiring

Wiring the SMARS Quad robot

By Kevin McAleer,    1 Minute


wiring

wiring

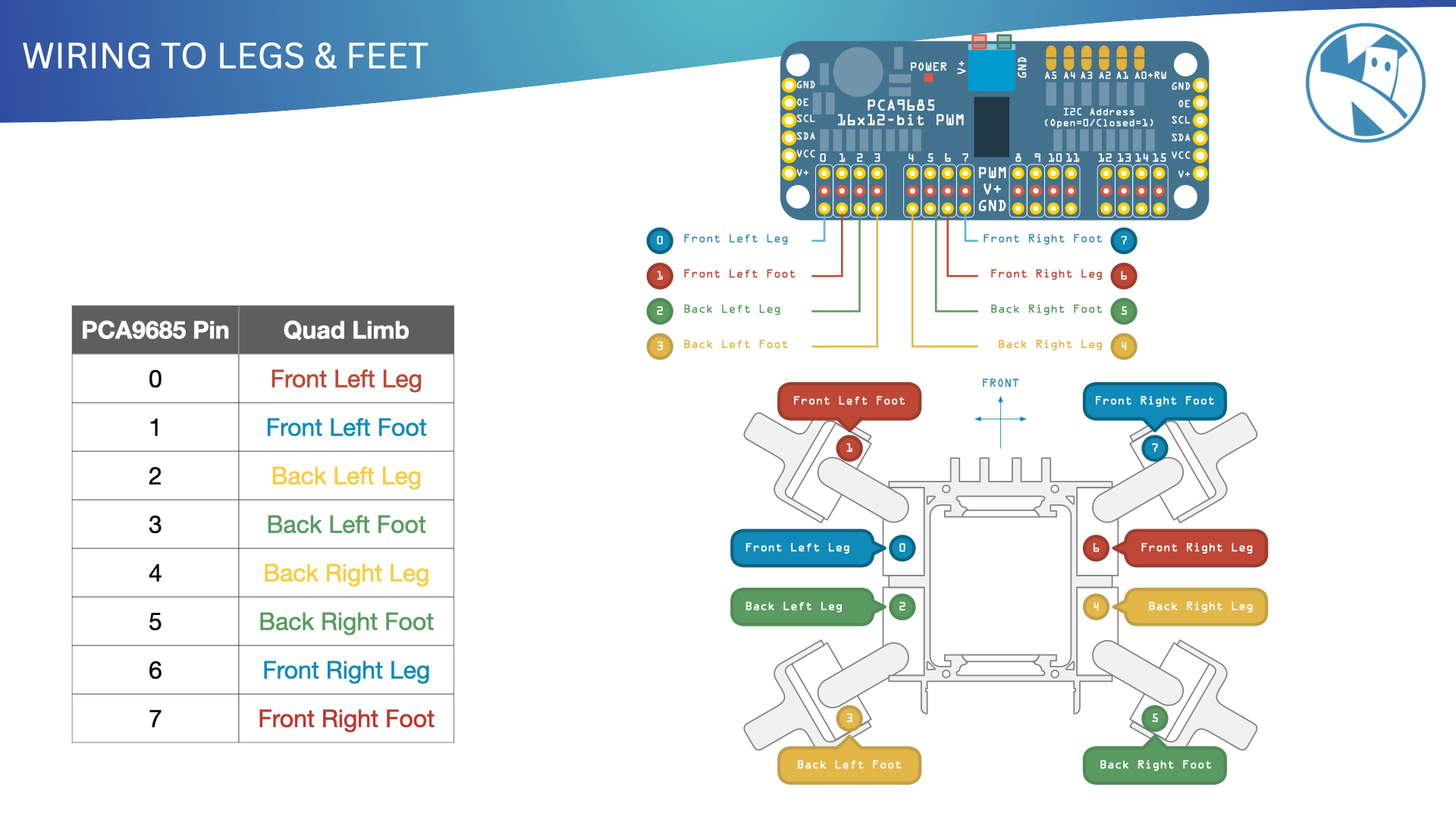

PCA9685 Pinout

PCA9685 Pin Quad Limb
0 Front Left Leg
1 Front Left Foot
2 Back Left Leg
3 Back Left Foot
4 Back Right Leg
5 Back Right Foot
6 Front Right Leg
7 Front Right Foot

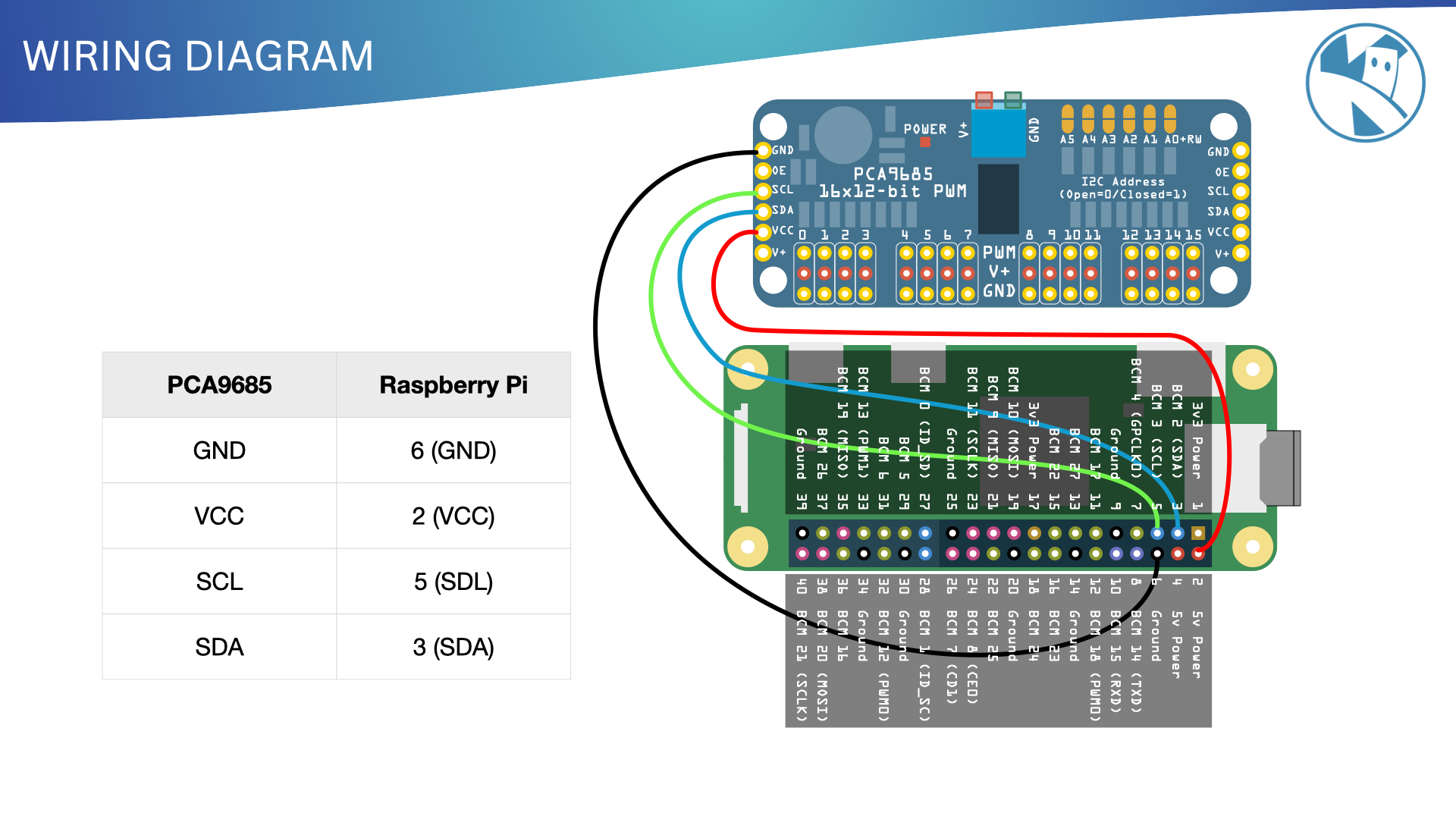

PCA9685 to Pi Wiring

PCA9685 Raspberry Pi
GND 6 (GND)
VCC 1 (3.3V)
SCL 5 (SCL)
SDA 3 (SDA)

Power the servos separately

VCC only powers the PCA9685’s chip, so connect it to 3.3V to keep the I2C signals safe for the Pi. Eight servos need far more current than the Pi can give, so connect a separate 5V supply or battery pack to the screw terminal (V+ and GND) on the PCA9685.
