MEMS

MEMS stands for MicroElectroMechanical Systems and is a technology that combines both electrical and mechanical elements on a very small scale.

Robot Tips MEMS How it works

13 January 2023 by Kevin McAleer | Share this article on


MEMS stands for MicroElectroMechanical Systems and is a technology that combines both electrical and mechanical elements on a very small scale.

It works by combining microfabrication techniques to create tiny mechanical components like gears, levers, and other structures that are on the order of micrometers in size.

This technology is used for a variety of applications, such as accelerometers, gyroscopes, pressure sensors, and many more. The electrical components in MEMS are usually made using standard semiconductor fabrication techniques, while the mechanical elements are made using processes like photolithography, etching, and deposition.

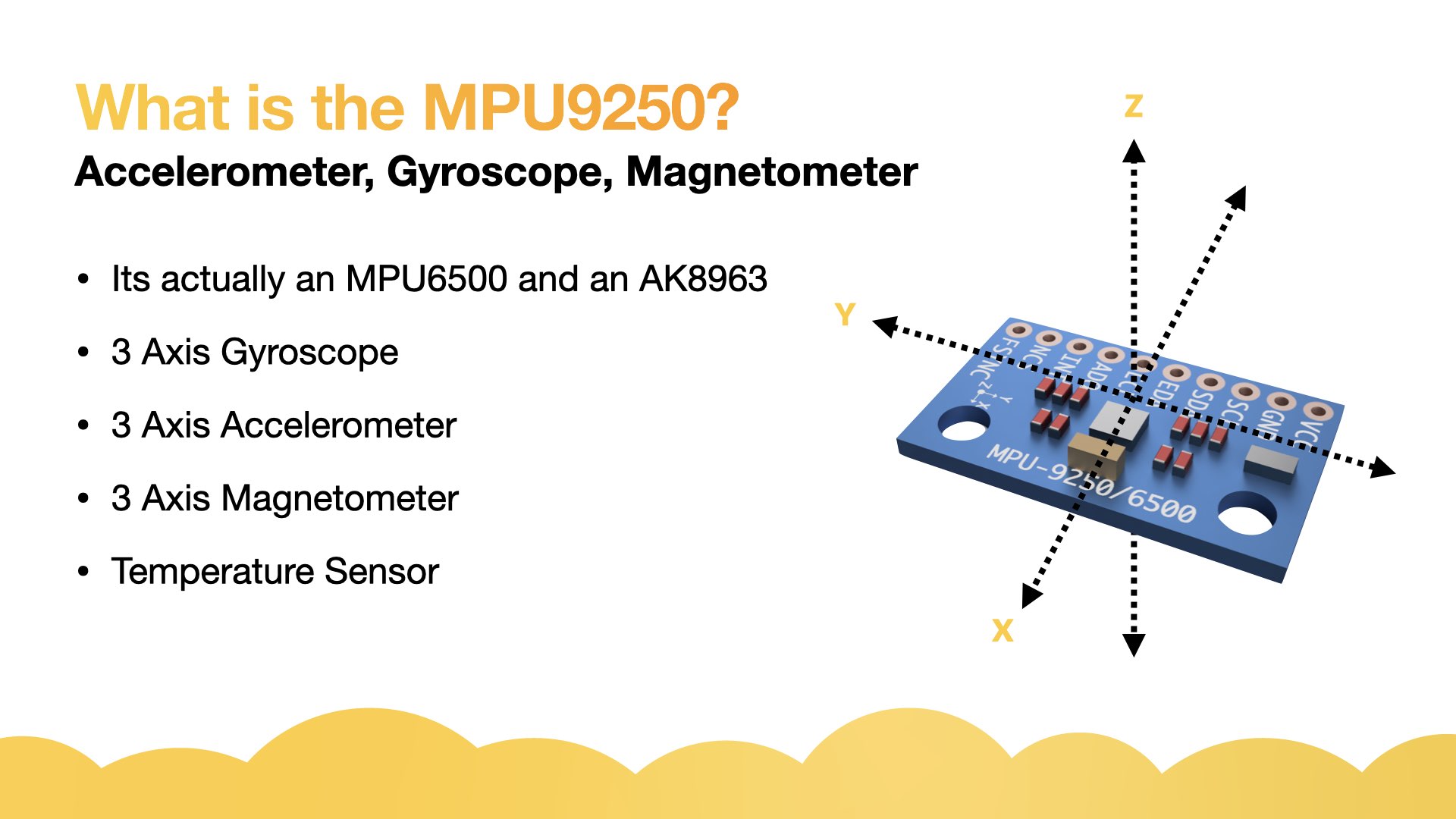

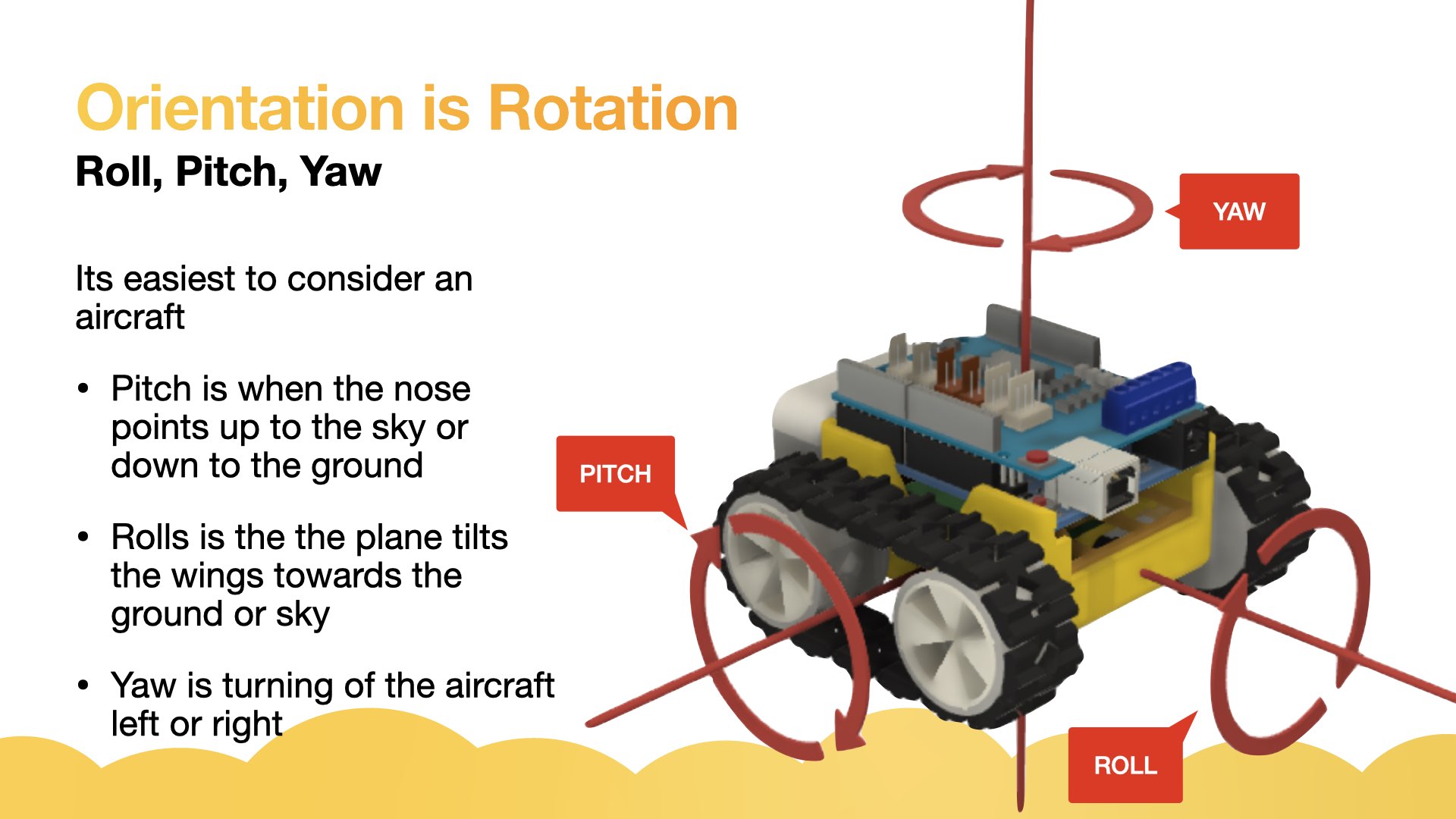

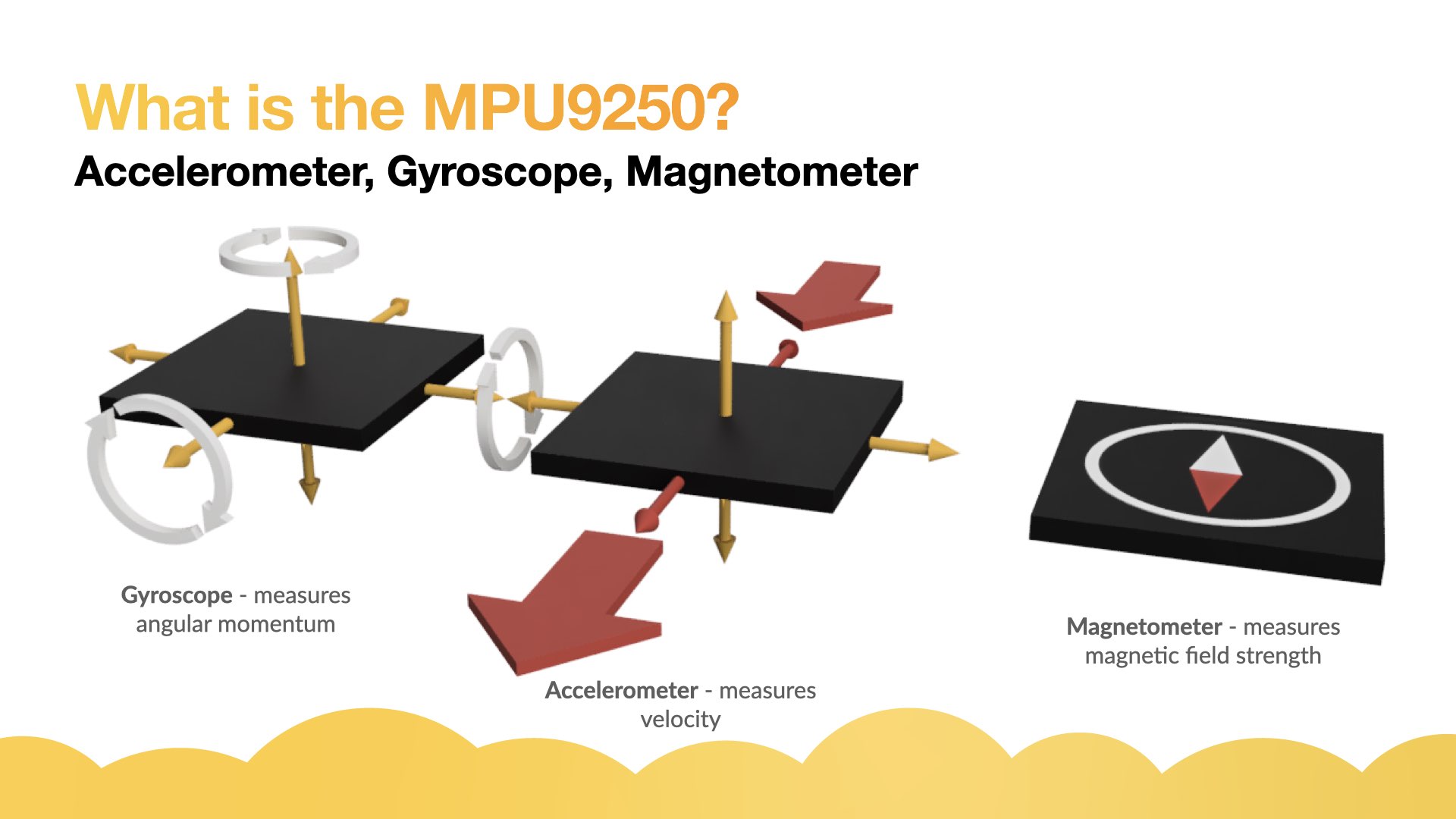

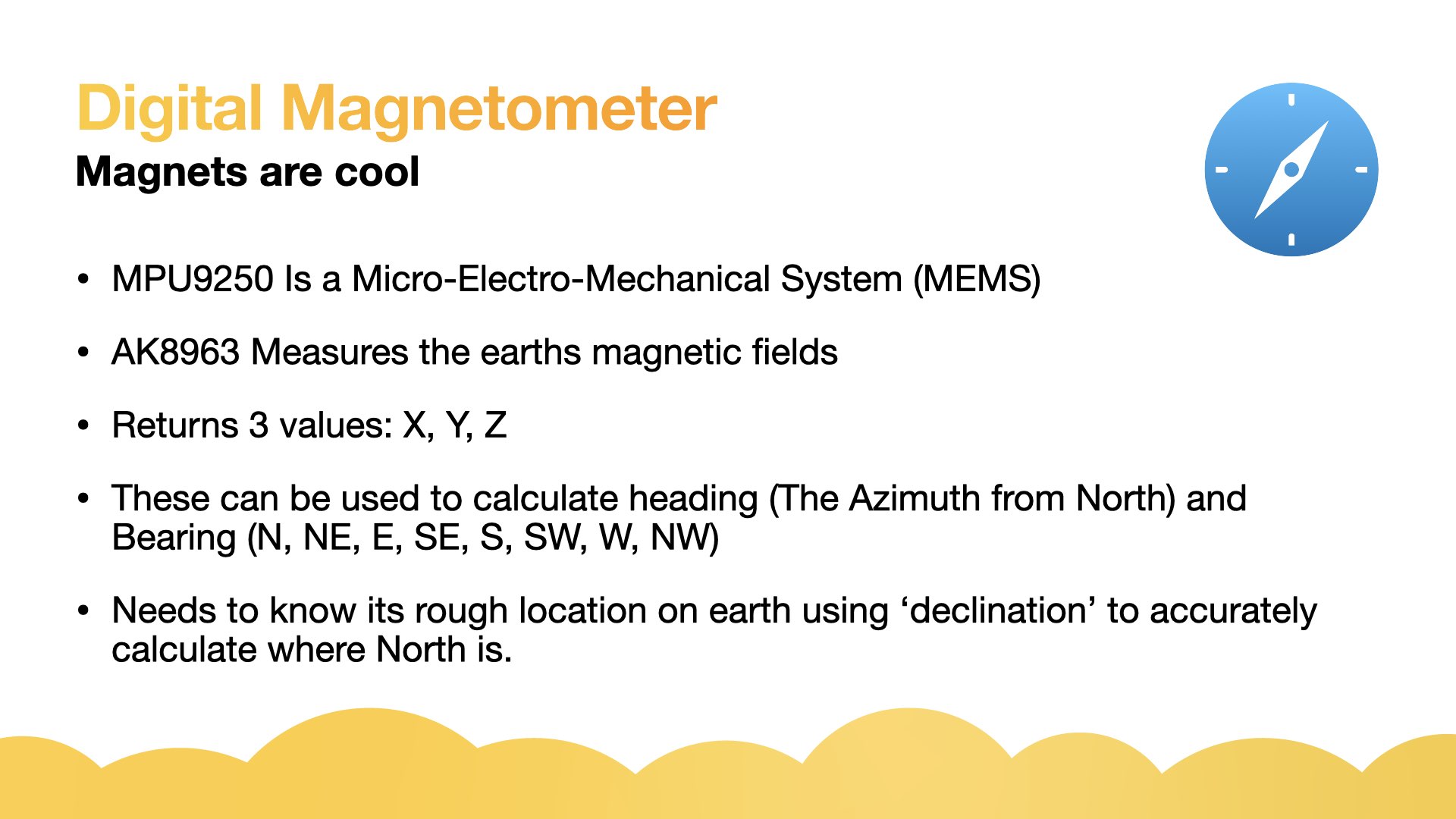

The MPU9250 is such a component and combines an accelerometer, gyroscope and magnetometer; it can measure acceleration in 3 directions simultaneously, it measures the orientation of the sensor in each dimension (X/Y/Z), it can also measure the devices orientation (heading) in relation to magnetic north.


Video


gallery image

gallery image

gallery image

gallery image

gallery image

gallery image

gallery image

gallery image
