Overview of the FreeCAD User Interface

Familiarize yourself with the FreeCAD interface, learn to navigate efficiently, and customize your workspace.

Welcome to the FreeCAD Interface

Understanding the layout and capabilities of the FreeCAD interface is essential for efficient modeling. This lesson provides a detailed tour of the interface and guidance on how to tailor it to your needs.

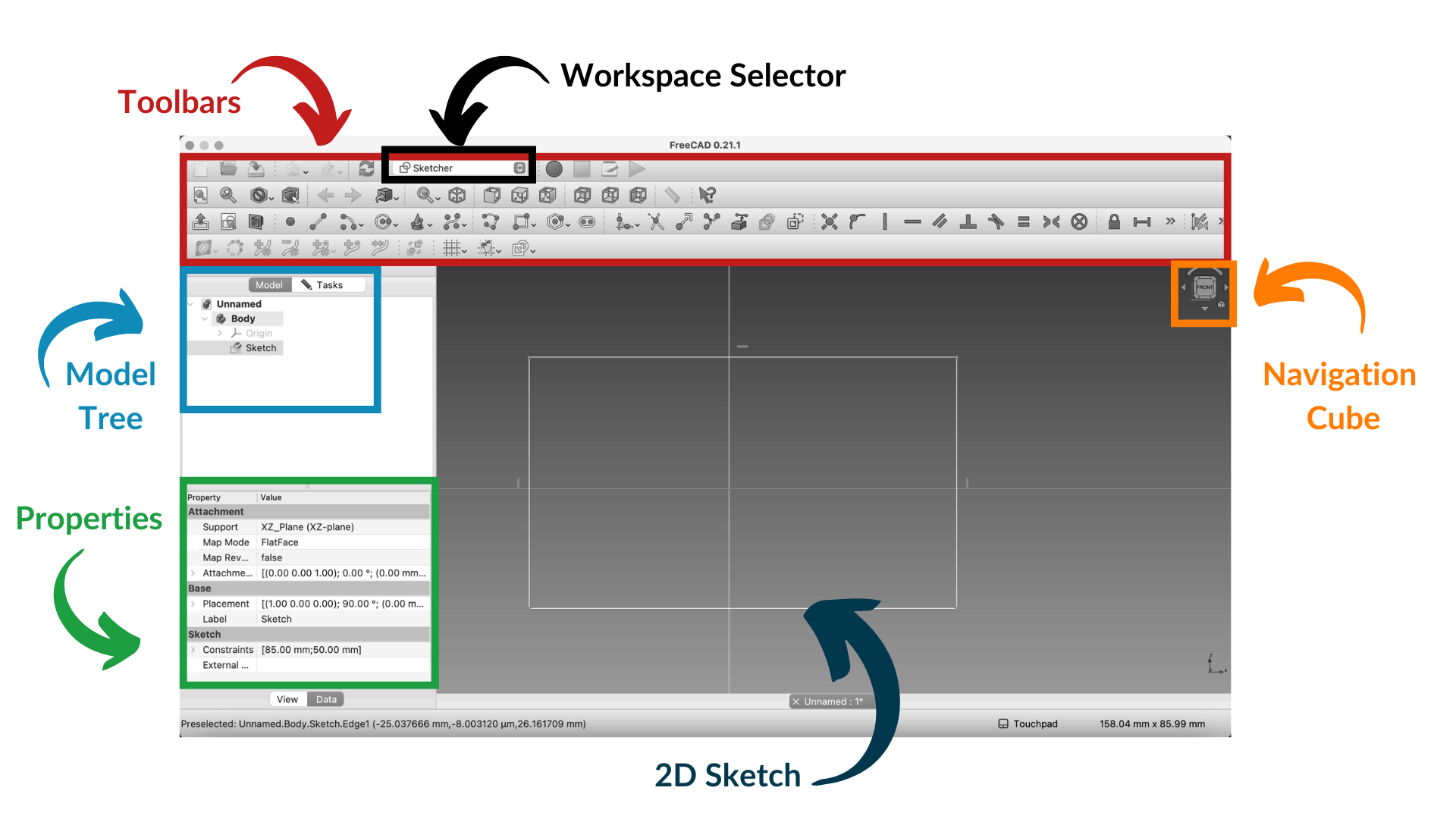

Exploring the Main Elements

1. Workspace Selector:
   • This is where you can switch between different workspaces tailored for specific tasks like drafting, modeling, or analysis.
2. Toolbars and Commands:
   • Learn about the toolbars that change dynamically with the workspace. We’ll explore common tools and their options.
3. Property Editor:
   • This area displays the properties of the selected object, allowing you to make precise adjustments to its attributes.
4. Navigation Cube:
   • A small, interactive cube that helps with orienting the view of your model in the workspace.

Navigating the Interface

• Zoom, Pan, and Rotate: Practice these essential navigation controls to view your models from different angles.
• Custom Views: Learn how to save custom views for quick access during complex projects.

Customizing the Interface

• Adjusting Toolbars: Customize which tools are visible and how they are arranged to streamline your workflow.
• Setting Preferences: Modify preferences to suit your design habits, including unit display and default file locations.

Mini-Tasks

• Rearrange your toolbar to better suit the way you work.
• Change the theme of the interface from light to dark mode.

Practical Assignment

1. Open FreeCAD and familiarize yourself with each area of the interface mentioned.
2. Follow the mini-tasks to customize your workspace.
3. Create a simple sketch using the tools from the toolbars you’ve customized.

Additional Resources

• Detailed Guide to the FreeCAD Interface
• Customizing FreeCAD: A User’s Guide
