Installing CVZone

Kickstart your computer vision journey on Raspberry Pi using CVZone

By Kevin McAleer,    4 Minutes


Cover Image

Overview

In this lesson you’ll set up your Raspberry Pi for computer vision: a Python virtual environment with OpenCV, MediaPipe and CVZone, plus a quick camera test.


What each library does

  • OpenCV (cv2) - reads frames from the camera, draws on them and shows them in a window
  • MediaPipe - Google’s machine learning models that actually find the faces, hands and bodies
  • CVZone - a thin layer over both that turns each detector into a couple of lines of code

Requirements

  • Raspberry Pi 4 or 5 running 64-bit Raspberry Pi OS. MediaPipe only provides packages for 64-bit systems
  • Camera: a USB webcam or a Raspberry Pi camera module
  • Python 3 (already installed on Raspberry Pi OS)

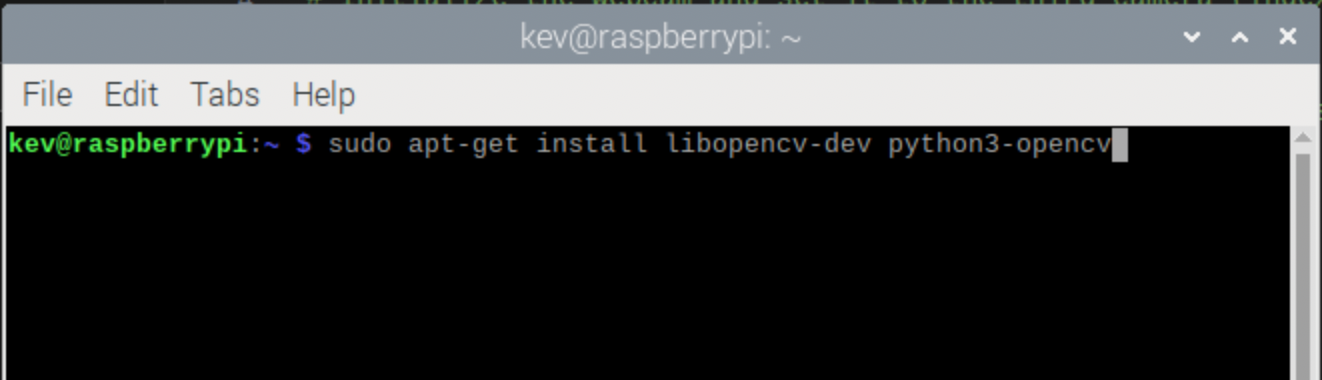

Installation steps

  1. Update your Pi:

    sudo apt update && sudo apt full-upgrade -y

  2. Create a virtual environment:

    Recent versions of Raspberry Pi OS don’t let pip install packages system-wide, so we create a virtual environment for the course. The --system-site-packages option lets it see the camera library that comes with Raspberry Pi OS.

    python3 -m venv --system-site-packages ~/cvzone-env
    source ~/cvzone-env/bin/activate


    Your prompt now starts with (cvzone-env). Run the source line again each time you open a new terminal.

  3. Install CVZone and MediaPipe:

    pip install cvzone mediapipe


    This also installs OpenCV (opencv-python) and NumPy. It can take a few minutes.


Test your camera

Save this as camera_test.py and run it with python camera_test.py:

import cv2

cap = cv2.VideoCapture(0)

while True:
    success, img = cap.read()
    if not success:
        print("No camera image")
        break
    cv2.imshow("Camera test", img)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()
  • cv2.VideoCapture(0) opens the first camera
  • cap.read() grabs one frame. success is False if it failed
  • cv2.imshow() shows the frame in a window, and cv2.waitKey(1) gives the window time to draw and checks for a key press
  • Press q to quit

Using a Raspberry Pi camera module

cv2.VideoCapture(0) works with USB webcams. Camera modules on the ribbon cable use the picamera2 library instead. Swap the capture lines for:

from picamera2 import Picamera2

picam2 = Picamera2()
picam2.configure(picam2.create_preview_configuration(main={"format": "RGB888", "size": (640, 480)}))
picam2.start()

img = picam2.capture_array()   # use this in place of cap.read()

The RGB888 format gives you frames in the same colour order OpenCV expects. The rest of the code in this course works the same way.


Common Issues

Problem: pip install says error: externally-managed-environment. Solution: Activate the virtual environment first with source ~/cvzone-env/bin/activate. Why: Raspberry Pi OS protects the system Python, so packages go in a virtual environment.

Problem: pip can’t find a version of mediapipe. Solution: Check you’re on 64-bit Raspberry Pi OS with uname -m, which should print aarch64. If it does, check MediaPipe on PyPI supports your Python version (python --version). Why: MediaPipe only publishes packages for 64-bit Arm and particular Python versions.

Problem: The test program prints “No camera image”. Solution: Check the webcam is plugged in and try cv2.VideoCapture(1), or use the picamera2 code for a camera module. Why: OpenCV couldn’t open a camera at that index.


Quick quiz 1 of 2

What does MediaPipe do in this course?

Quick quiz 2 of 2

Why do we use a virtual environment?
